Plan 100358GHR

Exclusive

Urban Contemporary House Plan with Rooftop Deck and 2-Car Garage

Heated S.F.
1,766
Beds
3
Baths
3.5
Stories
4
Cars
2

Floor Plan

Plan 100358GHR

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor
Rooftop Deck
Rooftop Deck

Plan 100358GHR

M-F 9am-5pm EST |

1-203-761-8500

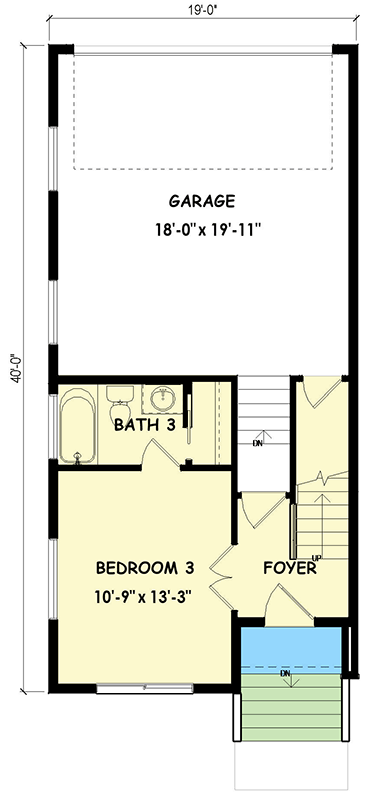

Main Level

Plan 100358GHR: Urban Contemporary House Plan with Rooftop Deck and 2-Car Garage - Floor Plan - Main Level - Contemporary

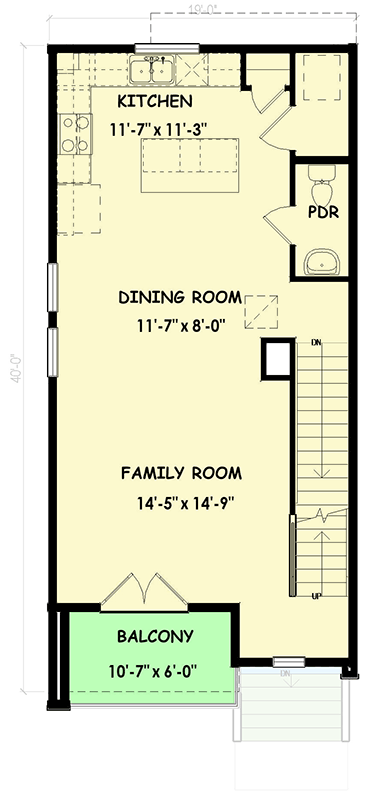

2nd Floor

Plan 100358GHR: Urban Contemporary House Plan with Rooftop Deck and 2-Car Garage - Floor Plan - 2nd Floor - Contemporary

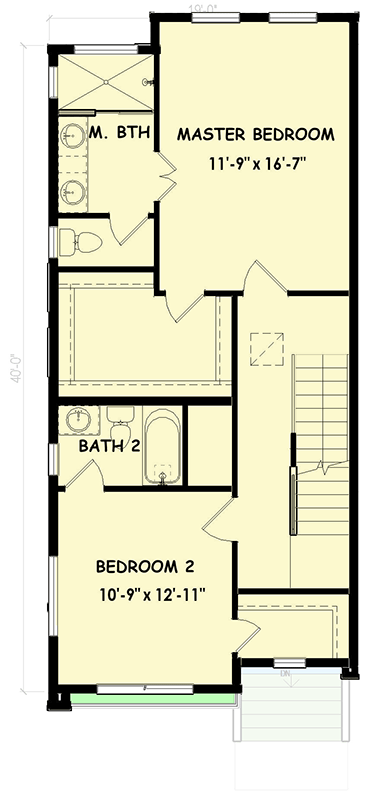

3rd Floor

Plan 100358GHR: Urban Contemporary House Plan with Rooftop Deck and 2-Car Garage - Floor Plan - 3rd Floor - Contemporary

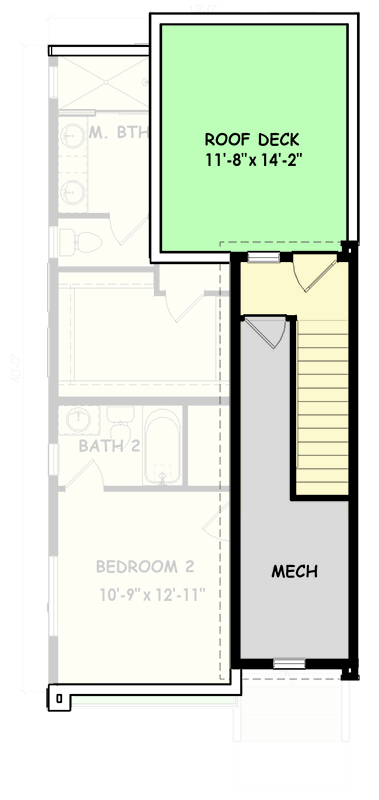

Rooftop Deck

Plan 100358GHR: Urban Contemporary House Plan with Rooftop Deck and 2-Car Garage - Floor Plan - Rooftop Deck - Contemporary

Plan Details

  •  This sleek 1,766 sq. ft. Contemporary House Plan offers 3 bedrooms, 3 full bathrooms, 1 half bathroom, and an integrated 389 sq. ft. two-car rear-entry garage, all wrapped in a striking modern facade.
  • Step into a welcoming foyer on the first floor, which immediately opens to a private bedroom suite, ideal for guests or a quiet home office, and provides convenient access to the rear-entry garage.
  • Ascend to the second floor where a bright, open-concept living space awaits, featuring a spacious family room, an elegant dining area, and a well-appointed kitchen with an island, creating a seamless flow for daily life and entertaining.
  • The third floor is dedicated to private retreats, including a luxurious master bedroom suite with its own bath, and a comfortable secondary bedroom also featuring an en-suite bathroom, ensuring privacy for all occupants. A conveniently located laundry area completes this level.
  • Enjoy the outdoors with a charming balcony extending from the second-floor family room, perfect for morning coffee, and an expansive rooftop deck offering panoramic views, ideal for al fresco dining or evening relaxation.

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

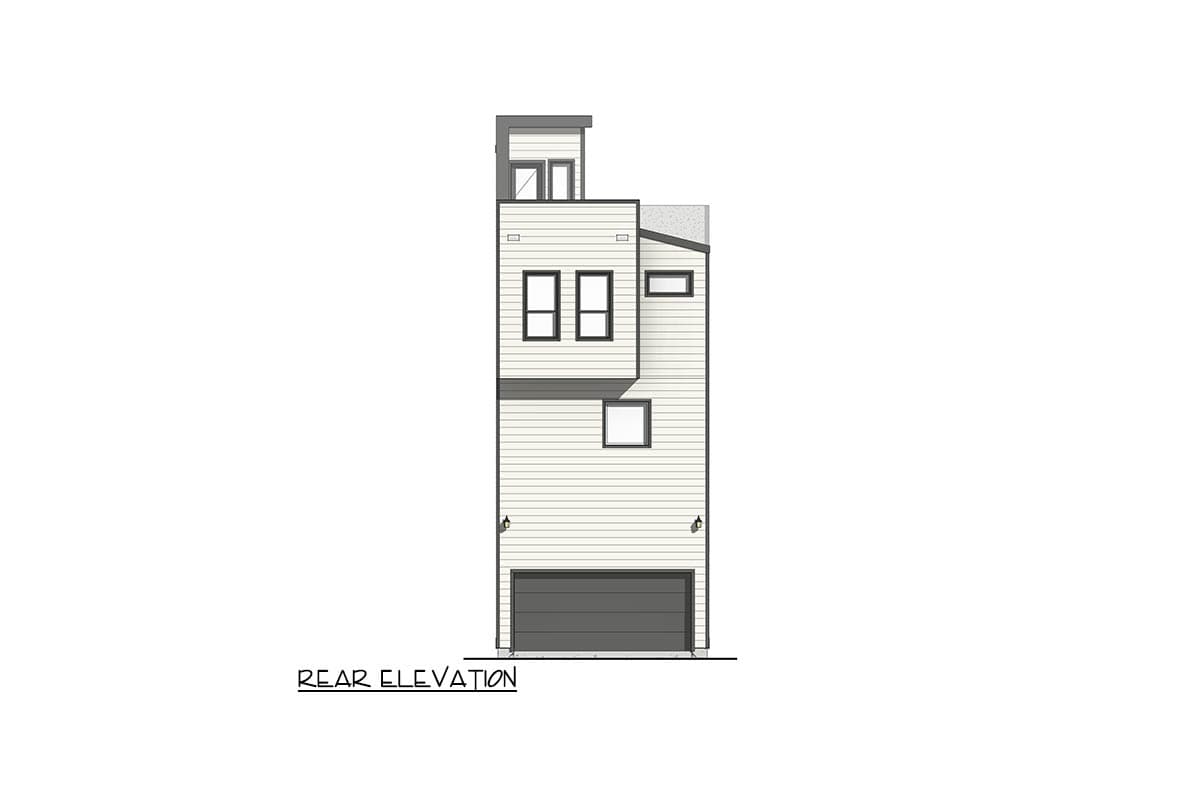

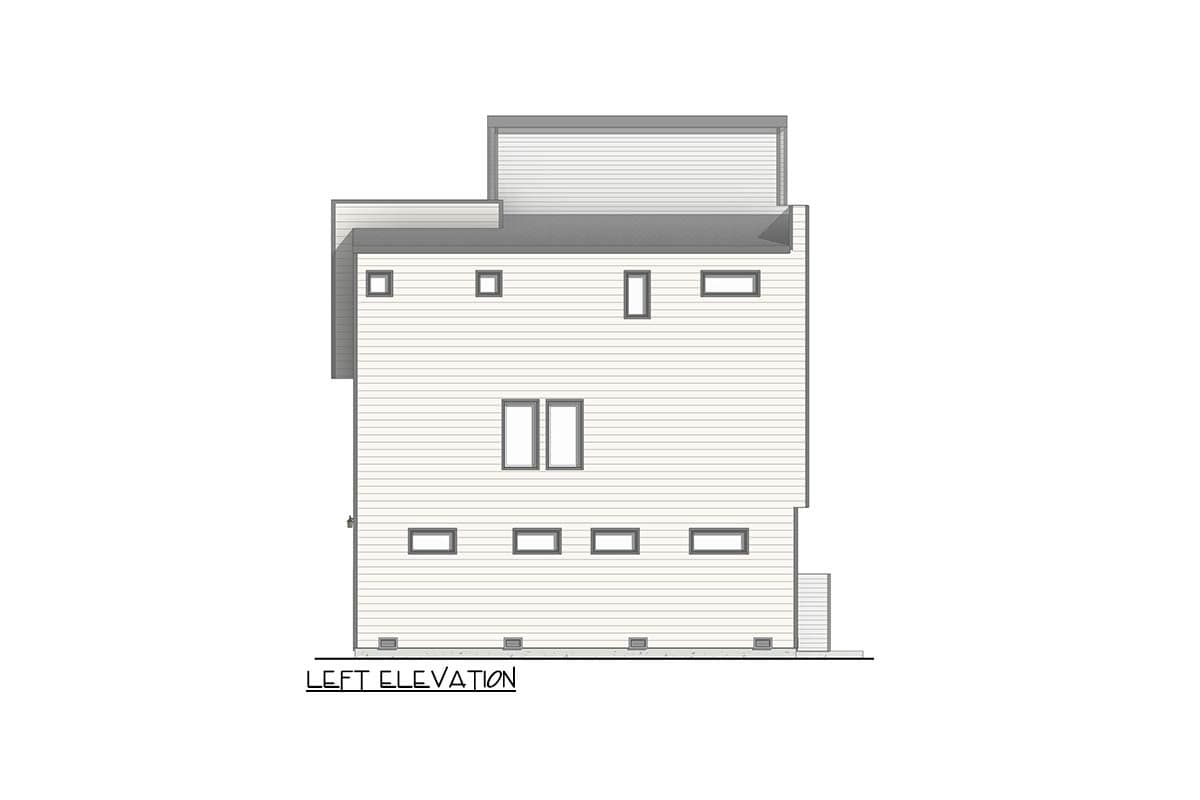

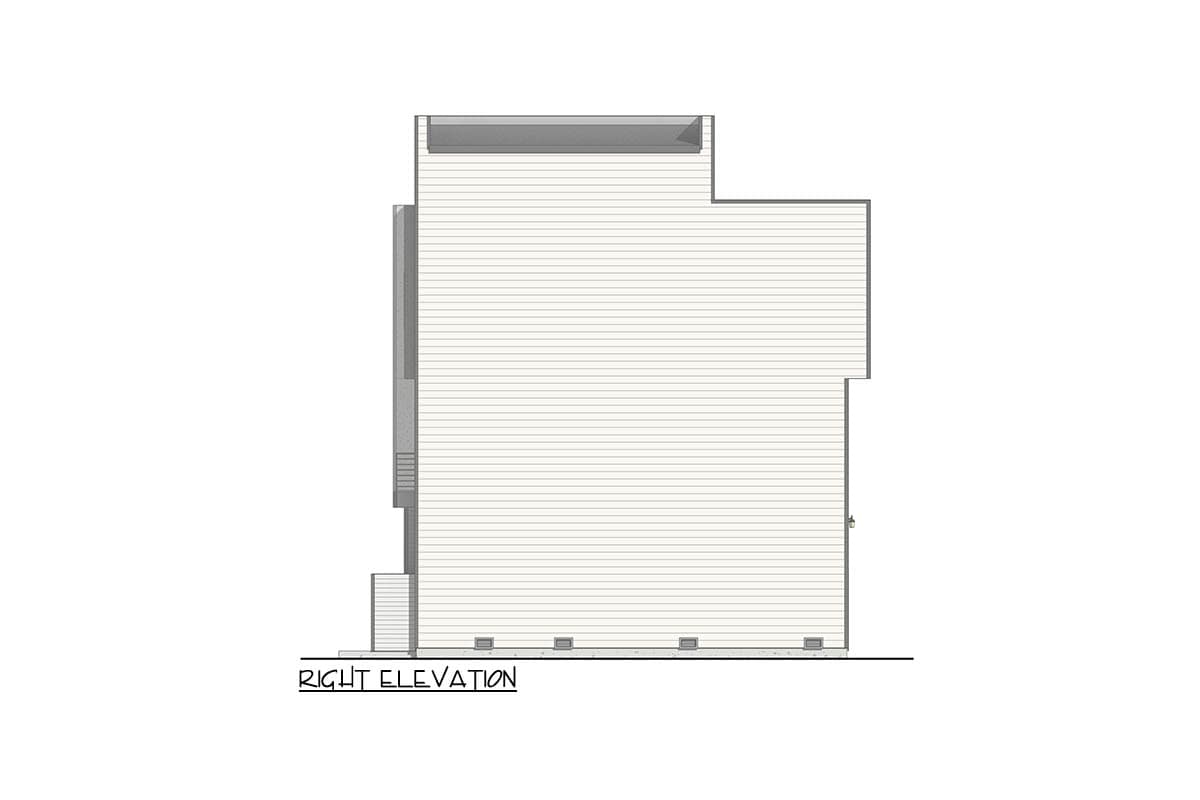

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,766 sq. ft.

1st Floor

341 sq. ft.

2nd Floor

688 sq. ft.

3rd Floor

705 sq. ft.

Deck

190 sq. ft.

Balcony / Veranda

69 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

19' 0"

Depth

40' 0"

Max Ridge Height

44' 7"

Garage

Type

Attached

Area

389 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9' 1"

Second Floor

10' 1"

Third Floor

10' 1''

Stair tower

8' 1''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive
