Plan 80680PM Vacation Cabin with Reading Loft

2,079 3-4 2.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Vacation Cabin with Reading Loft

Plan 80680PM

  • 2,079

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

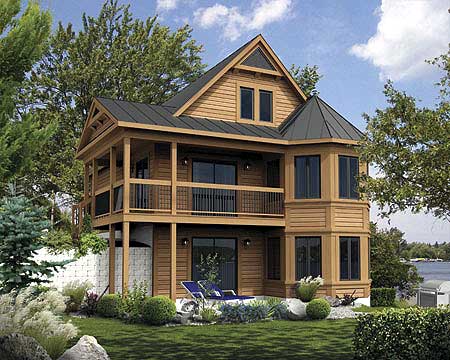

  • A wrap-around porch gives you a great place to sit and watch the sunset in this Mountain vacation home plan.
  • The dining room is set in a large bay with lots of windows to bring in the light.
  • The first floor master has a full bath close by.
  • On the upper level, two more bedrooms each have a walk-in closet and a spacious reading loft is open to the living room below.
  • The lower level has outdoor access if your lot has an adequate slope to it plus a bedroom suite and rec area.
  • Related Plan: Eliminate the reading loft with house plan 80679PM.

Plan sets include the following:

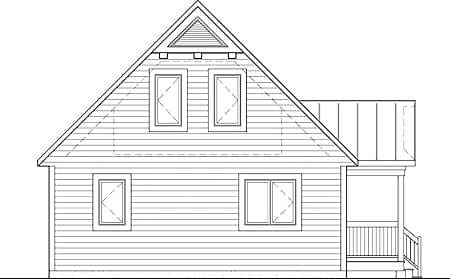

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

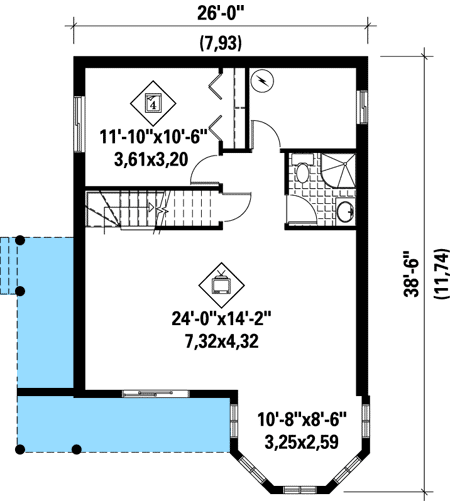

Vacation Cabin with Reading Loft - 80680PM floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

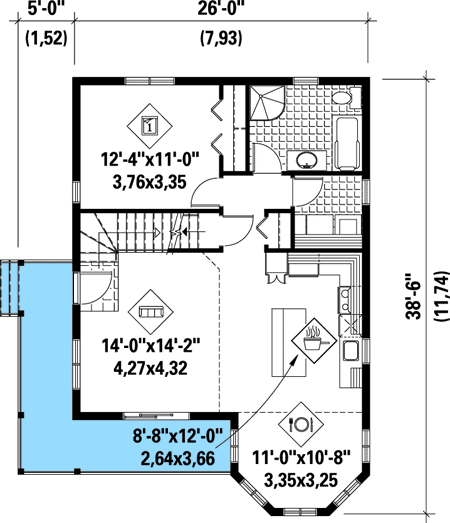

Vacation Cabin with Reading Loft - 80680PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

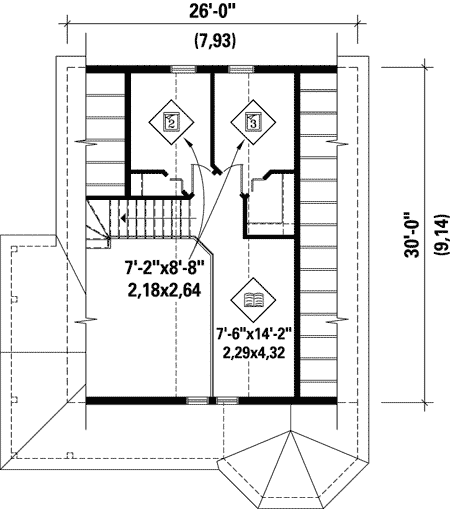

Vacation Cabin with Reading Loft - 80680PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,079 sq. ft.
  • Lower Level: 870 sq. ft.
  • 1st Floor: 870 sq. ft.
  • 2nd Floor: 339 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 26' 0"
  • Depth: 38' 6"
  • Max ridge height: 32' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Vacation Cabin with Reading Loft

  • 2,079

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,070
  • 5 Sets $1,115
  • 5 Sets + PDF $1,215
  • CAD + PDF - Single-Build $2,090
  • View all purchase option online

About This Plan

  • A wrap-around porch gives you a great place to sit and watch the sunset in this Mountain vacation home plan.
  • The dining room is set in a large bay with lots of windows to bring in the light.
  • The first floor master has a full bath close by.
  • On the upper level, two more bedrooms each have a walk-in closet and a spacious reading loft is open to the living room below.
  • The lower level has outdoor access if your lot has an adequate slope to it plus a bedroom suite and rec area.
  • Related Plan: Eliminate the reading loft with house plan 80679PM.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,079 sq. ft.
  • Lower Level: 870 sq. ft.
  • 1st Floor: 870 sq. ft.
  • 2nd Floor: 339 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 26' 0"
  • Depth: 38' 6"
  • Max ridge height: 32' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
Plan 80680PM
View this and more for this plan by visiting www.architechtecturaldesigns.com/80680PM
|
