Plan 59199ND

Vacation Dream Home

3,029 4 5 1-2 2
Pageloader

Vacation Dream Home

Plan 59199ND

  • 3,029

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This house plan is a vacation dream home come true. As you enter the foyer, you are exposed to the spacious great room with large rock fireplace- perfect for entertaining family and friends.
  • If more room is needed for the party, lead them into your kitchen with large island bar.
  • Your guests will enjoy climbing the spiral staircase to the loft above with a great view of the lake.
  • You'll find plenty of space and privacy in all of your bedrooms, complete with their own baths.
  • The fourth bedroom and bath includes a whirlpool bath and glass shower for relaxing comfort.
  • An upper loft has exposed trusses and is open to below.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style

Special features



Vacation Dream Home

  • 3,029

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $670
  • 5 Sets $780
  • 8 Sets $945
  • Reproducible Set $1,450
  • PDF - single-use $1,450
  • CAD $2,235
  • View all purchase option online

About This Plan

  • This house plan is a vacation dream home come true. As you enter the foyer, you are exposed to the spacious great room with large rock fireplace- perfect for entertaining family and friends.
  • If more room is needed for the party, lead them into your kitchen with large island bar.
  • Your guests will enjoy climbing the spiral staircase to the loft above with a great view of the lake.
  • You'll find plenty of space and privacy in all of your bedrooms, complete with their own baths.
  • The fourth bedroom and bath includes a whirlpool bath and glass shower for relaxing comfort.
  • An upper loft has exposed trusses and is open to below.

Floor Plans

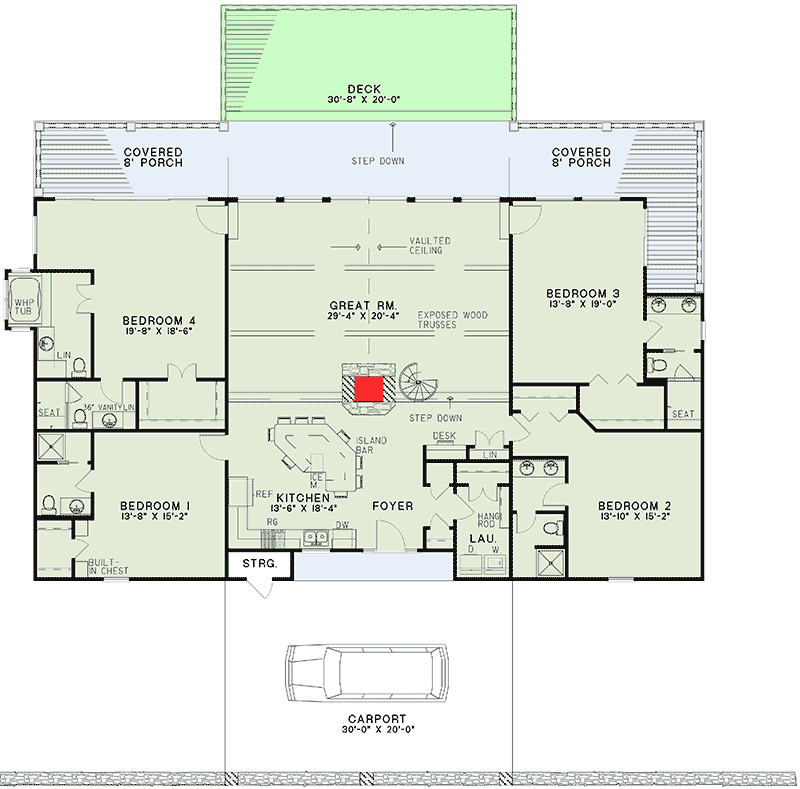

  • Main Level

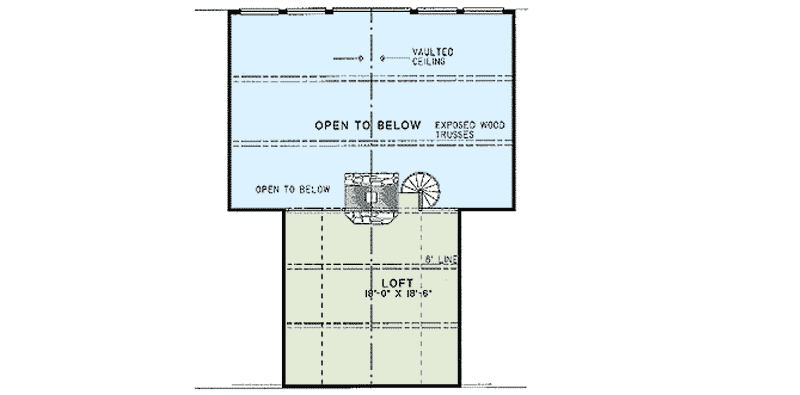

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,029 sq. ft.
  • 1st Floor: 2,687 sq. ft.
  • 2nd Floor: 342 sq. ft.
  • Porch, Rear: 495 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 0"
  • Depth: 69' 4"
  • Max ridge height: 22' 4"

Garage

  • Type: Carport
  • Area: 600 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

  • Contemporary
  • Mountain
  • Vacation

Special features

  • CAD Available
  • PDF
