Plan 86225HH

Vacation Escape

Heated S.F.
1,536
Beds
2
Baths
2
Stories
2

Floor Plan

Plan 86225HH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 86225HH

M-F 9am-5pm EST |

1-203-761-8500

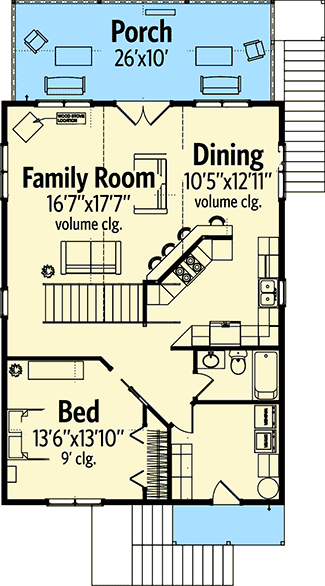

Main Level

Plan 86225HH: Vacation Escape - Floor Plan - Main Level - Cottage, Country, Vacation

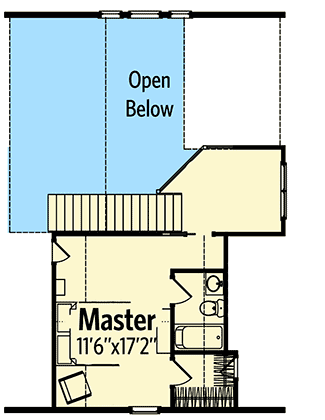

2nd Floor

Plan 86225HH: Vacation Escape - Floor Plan - 2nd Floor - Cottage, Country, Vacation

Plan Details

  • A big vaulted ceiling expands the living space in this Vacation getaway, making the house feel larger.
  • Dine in the dining area, at the peninsula snack bar or out on the large covered back porch.
  • There's a bedroom and bathroom on each floor so you can bring guests and have privacy.
  • The second floor loft has an open rail so you can see into the family room below.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,536 sq. ft.

1st Floor

1,120 sq. ft.

2nd Floor

416 sq. ft.

Porch, Combined

260 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

50' 0"

Max Ridge Height

24' 10"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,536 sq. ft.

1st Floor

1,120 sq. ft.

2nd Floor

416 sq. ft.

Porch, Combined

260 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

50' 0"

Max Ridge Height

24' 10"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs
