Vacation Getaway

Plan 9095PD

  • 987

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • Sleek, contemporary lines are emphasized on this vacation retreat with lots of windows to let in light.
  • Inside, one large, open living area greets you with a fireplace and 16'6" high cathedral ceiling that covers kitchen and dining room too.
  • The compact kitchen has a peninsula bar and double doors in the dining room lead to the deck outside.
  • Two bedrooms and a bath provide room for owners and guests.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

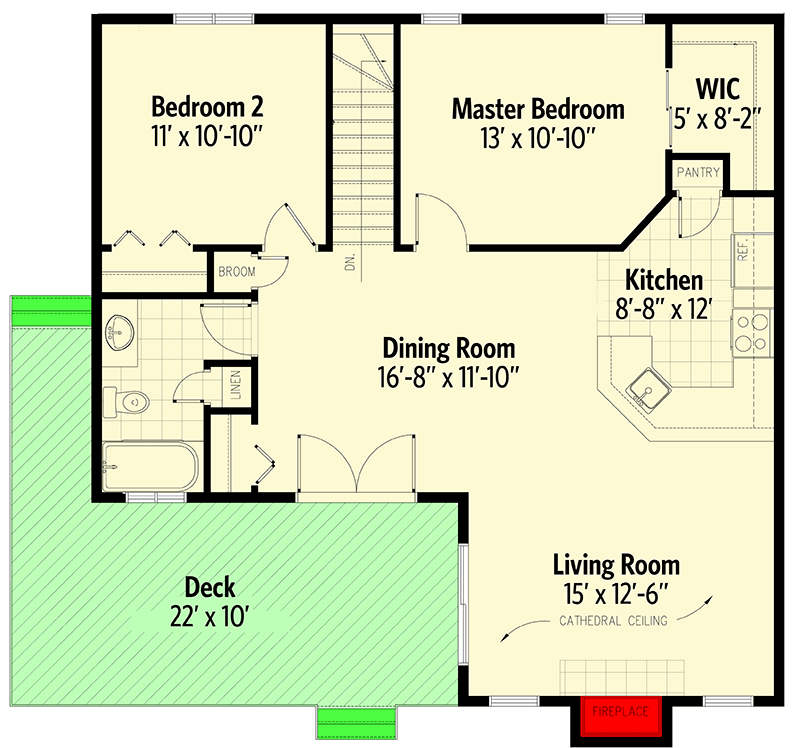

Vacation Getaway - 9095PD floor plan - Main Level

Architectural Style

Special features

Plan Collections

Vacation Getaway

  • 987

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 987 sq. ft.
  • 1st Floor: 987 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 34' 0"
  • Max ridge height: 21' 8"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
