Plan 80565PM
Vacation Getaway with Loft
Heated S.F.
969
Beds
1
Baths
1
Stories
2
What's Included
Plan Details
  • A great big open deck wraps around this adorable Vacation getaway house plan.
  • Specialty window shapes and gingerbread trim add to the appeal.
  • A corner fireplace warms the main, open living area that combines the cooking, eating and living spaces.
  • There's a big bedroom with a prow-shaped windows and a full bathroom on the main level.
  • Upstairs, loft space can be used for bunk beds or sleeping bags for the kids.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vacation Getaway with Loft

  • 969

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 969 sq. ft.
  • 1st Floor: 655 sq. ft.
  • 2nd Floor: 314 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 29' 6"
  • Max ridge height: 26' 6"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Vacation Getaway with Loft

  • 969

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

Vacation Getaway with Loft

  • 969

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 969 sq. ft.
  • 1st Floor: 655 sq. ft.
  • 2nd Floor: 314 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 29' 6"
  • Max ridge height: 26' 6"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

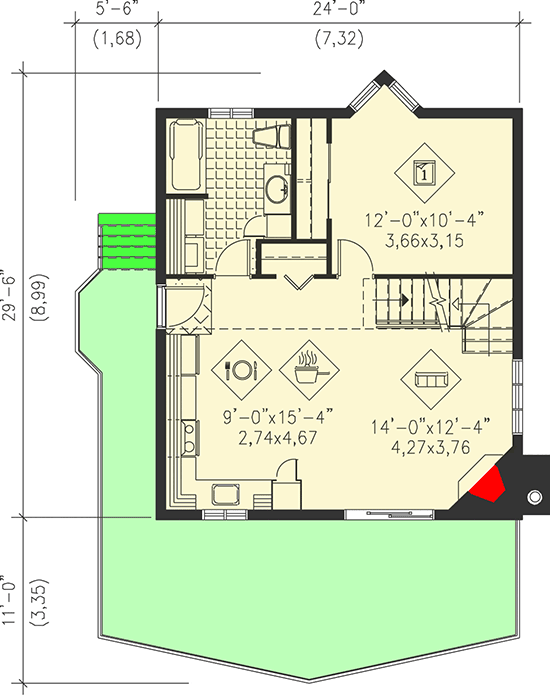

    Main Level

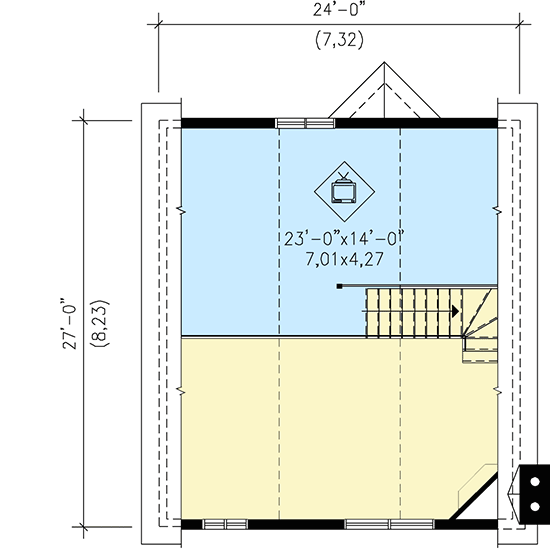

    2nd Floor
