Plan 90297PD

Vacation Home Plan with Incredible Rear-Facing Views

Heated S.F.
1,228
Beds
3 - 5
Baths
3
Stories
2

Floor Plan

Plan 90297PD

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 90297PD

M-F 9am-5pm EST |

1-203-761-8500

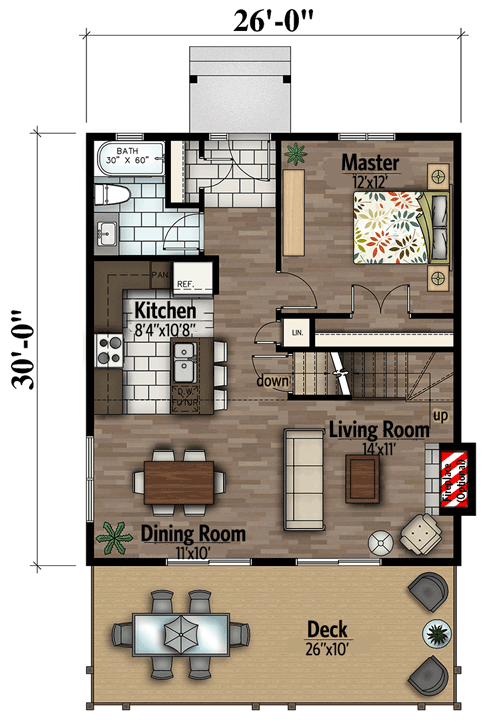

Main Level

Plan 90297PD: Vacation Home Plan with Incredible Rear-Facing Views - Floor Plan - Main Level - Contemporary, Cottage, Country, Craftsman, Mountain, Rustic, Vacation

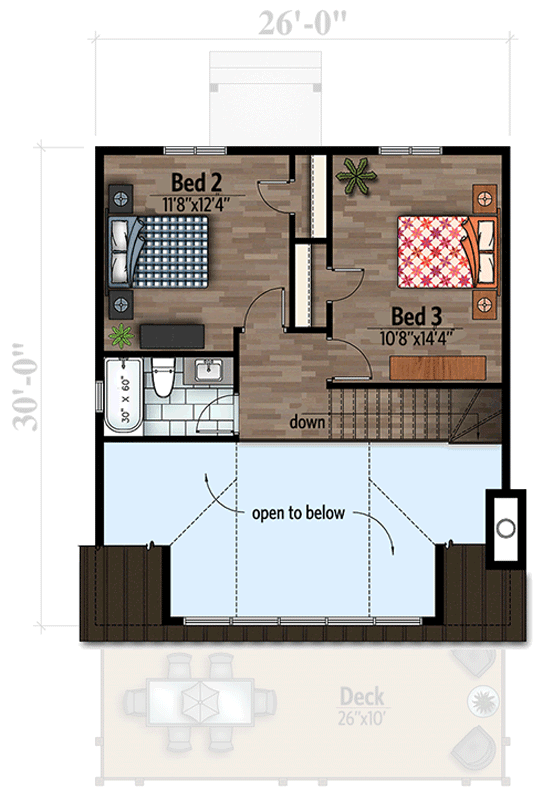

2nd Floor

Plan 90297PD: Vacation Home Plan with Incredible Rear-Facing Views - Floor Plan - 2nd Floor - Contemporary, Cottage, Country, Craftsman, Mountain, Rustic, Vacation

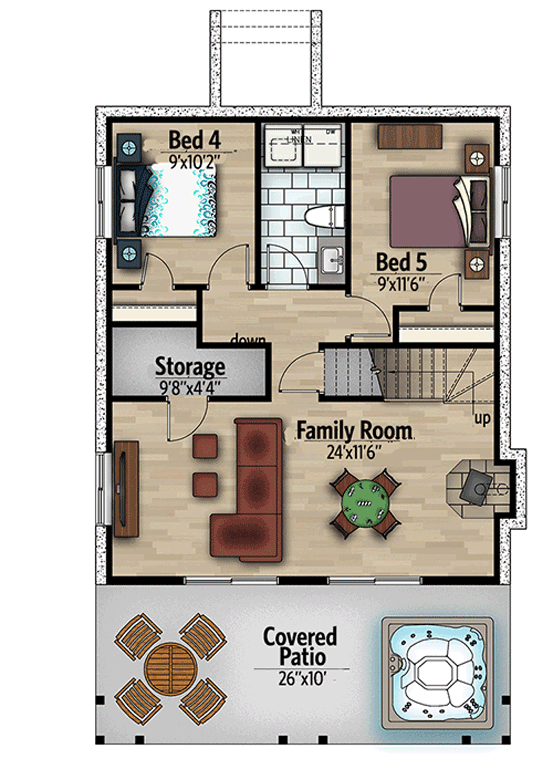

Optionally Finished Lower Level

Plan 90297PD: Vacation Home Plan with Incredible Rear-Facing Views - Floor Plan - Optionally Finished Lower Level - Contemporary, Cottage, Country, Craftsman, Mountain, Rustic, Vacation

Plan Details

  • Sliding glass doors and a wall of huge transom windows send light streaming into this house plan, perfect with a mountain or lake view or a vacation spot in the woods.
  • Designed for a narrow lot, the plan is only 26' wide.
  • You can live all on the main floor or invite guests and family with two more bedrooms up on the second floor.
  • The large deck in the back creates an outdoor living room with terrific views.
  • There's even an optional finished ground level that adds two more bedrooms and a spacious family room.

What's Included

Please note this plan is designed to the National Building Code of Canada.

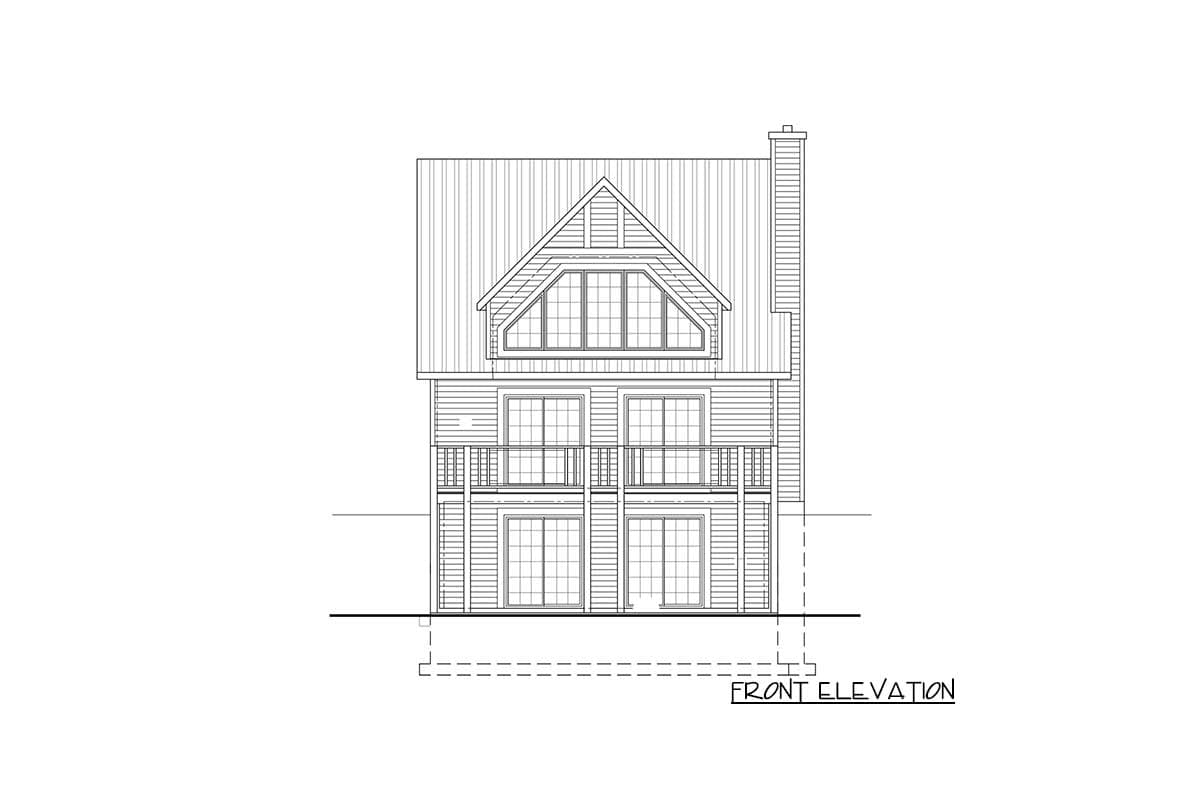

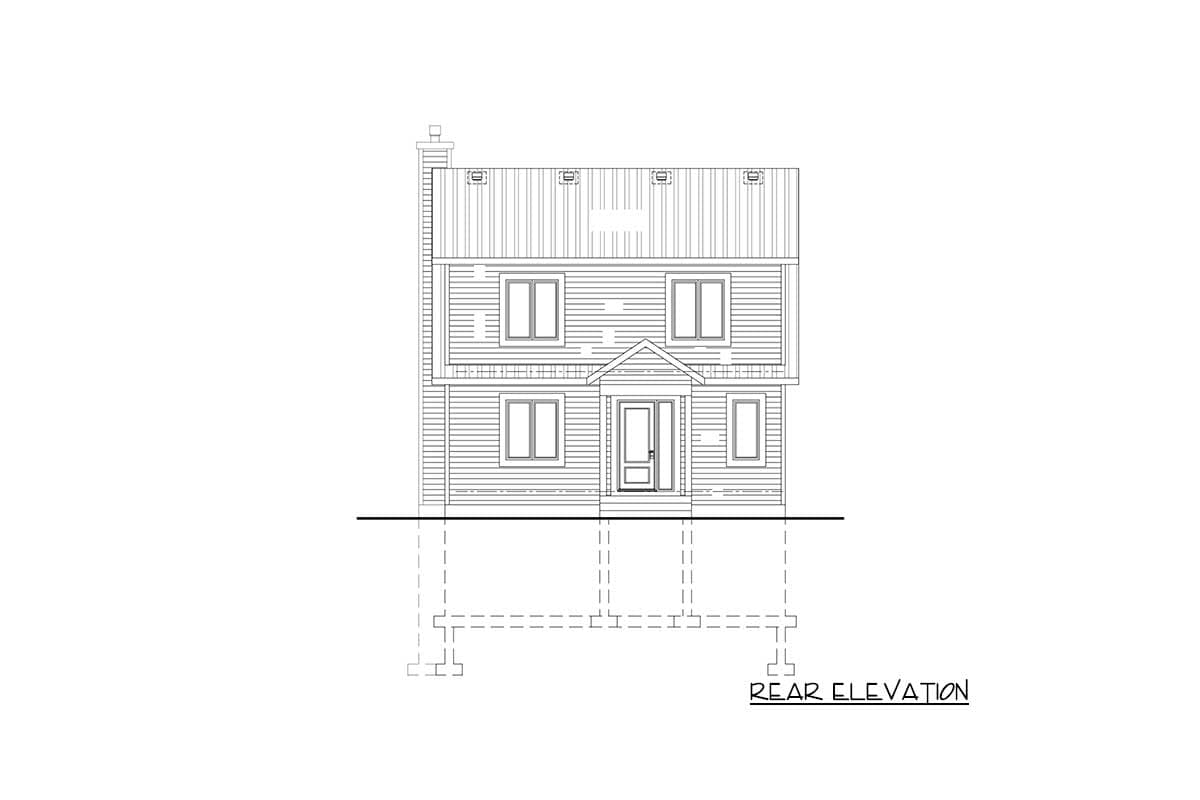

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,228 sq. ft.

1st Floor

785 sq. ft.

2nd Floor

443 sq. ft.

Optional Lower Level

785 sq. ft.

Porch, Front

28 sq. ft.

Porch, Rear

260 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

30' 0"

Max Ridge Height

26' 8"

Ceiling Heights

First Floor

8'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

Flat

17' 0''

Dining Room

Flat

17' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Cottage

Country

Craftsman

Mountain

Rustic

Vacation

Special Features

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Laundry - Lower Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Lake House Plans

Sloping Lot
