Plan 21181DR Vacation Retreat For The Rear-Sloping Lot

3,506 5 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Vacation Retreat For The Rear-Sloping Lot

Plan 21181DR

  • 3,506

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

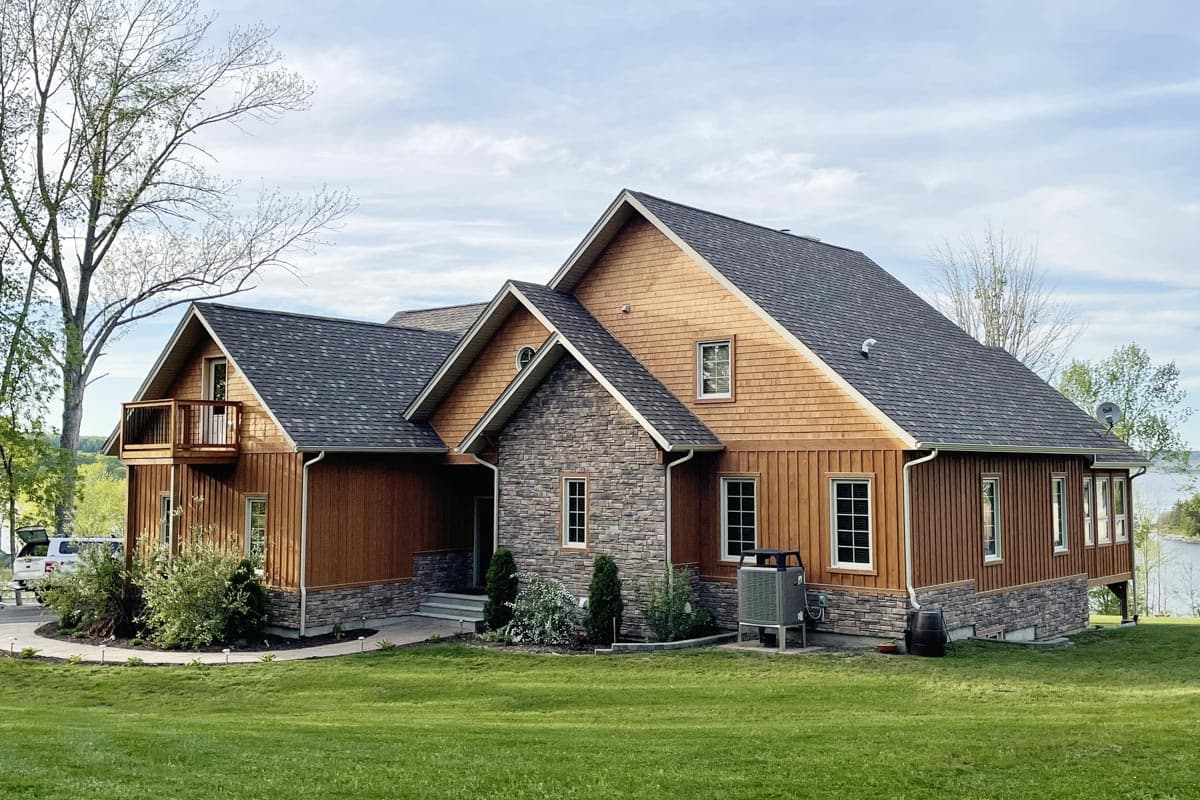

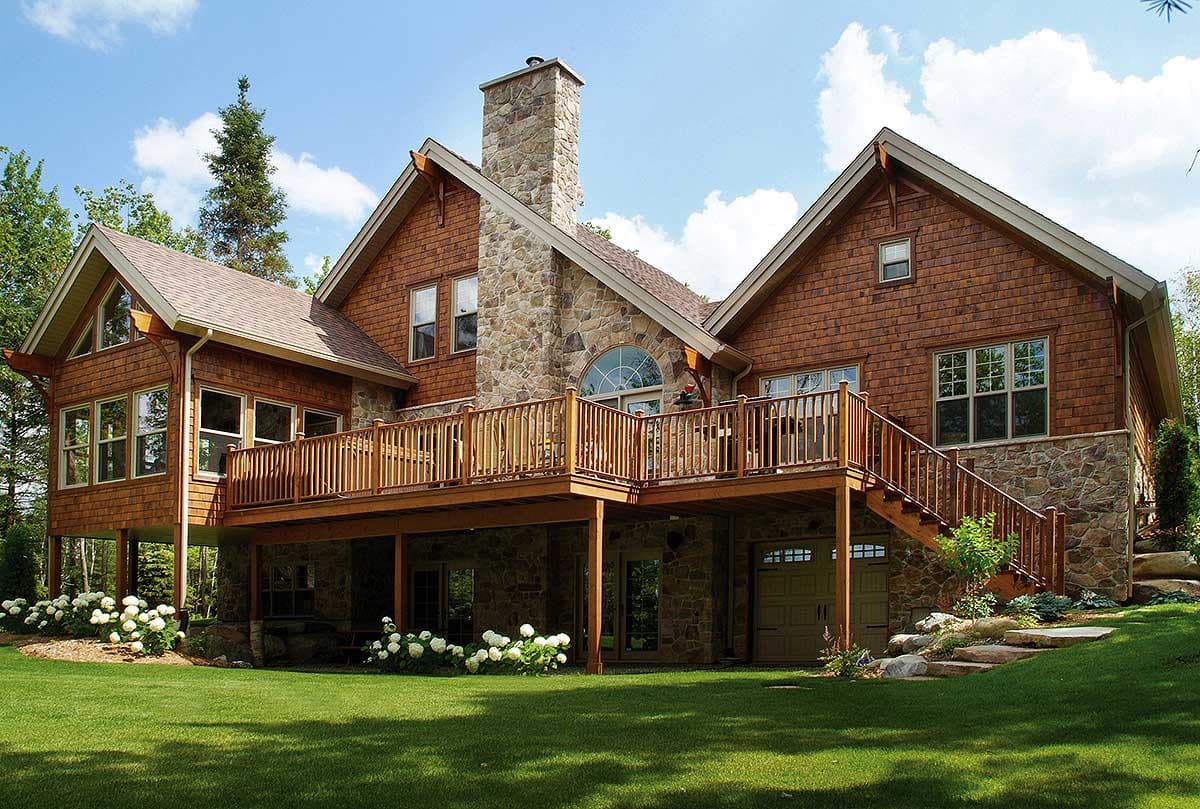

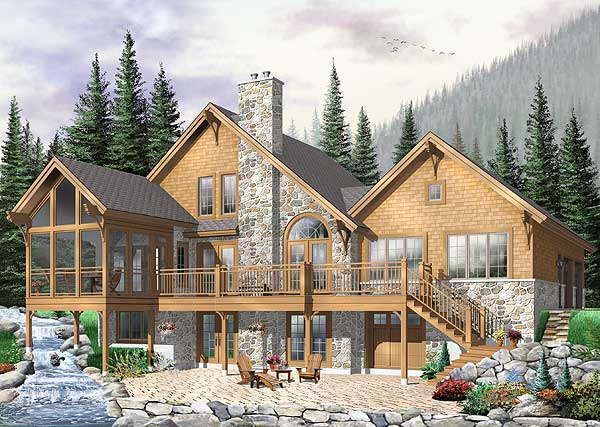

  • Designed for a sloping lot, this vacation home plan has plenty of room to accommodate family and guests. A wall of windows across the rear brings in light and maximizes views.

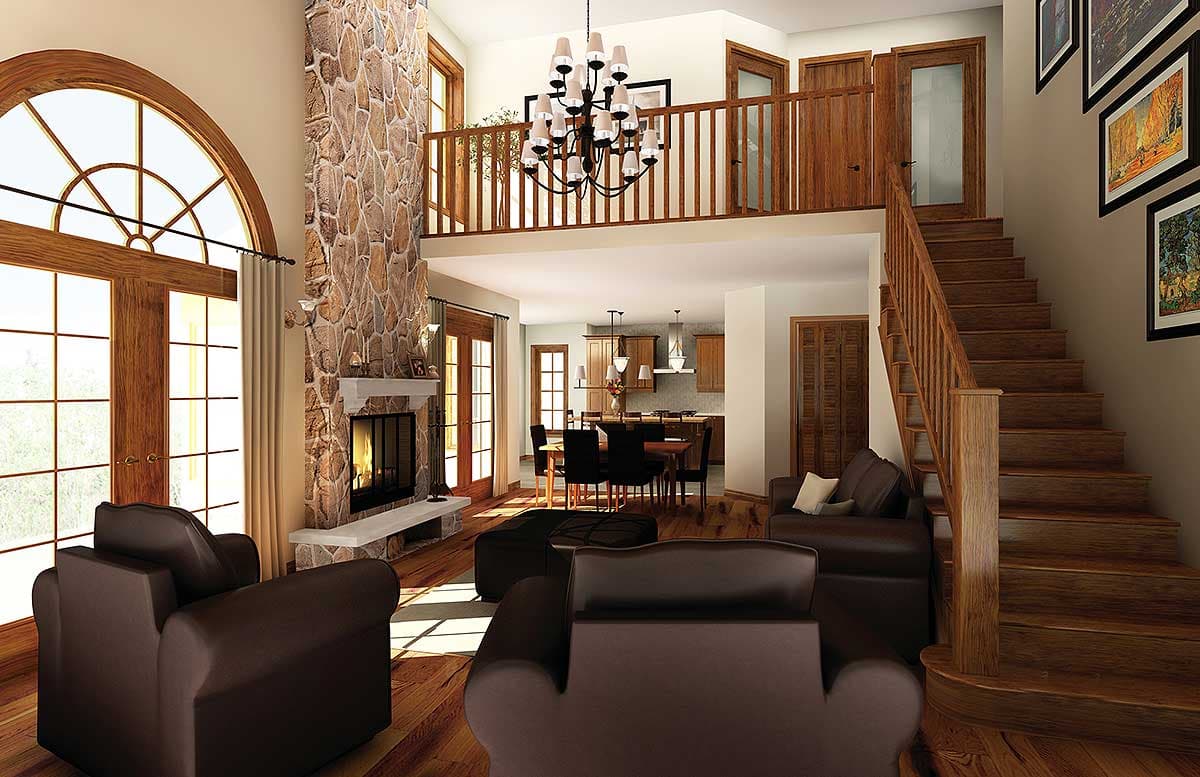

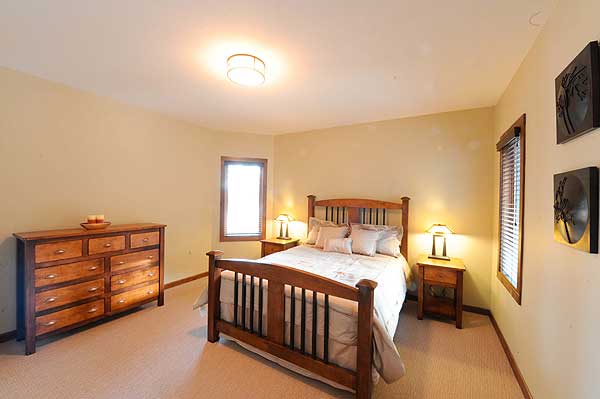

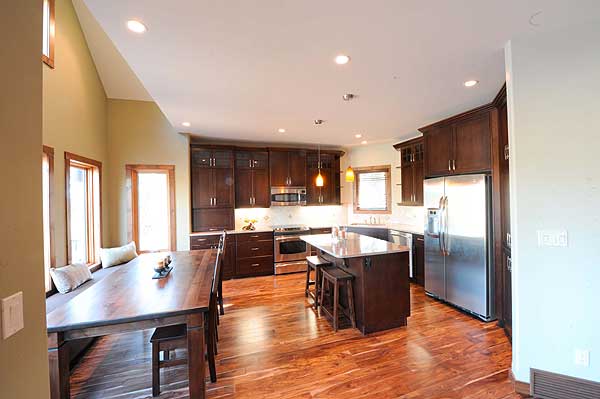

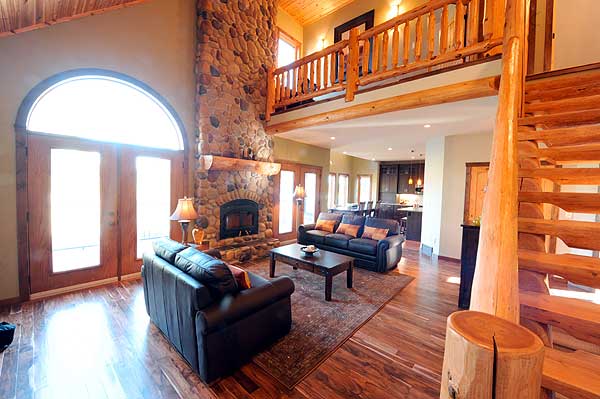

  • On the main level, the large kitchen with an island blends into the living/dining room and into the media room beyond. A private master suite with walk-in closet is also located on this level.

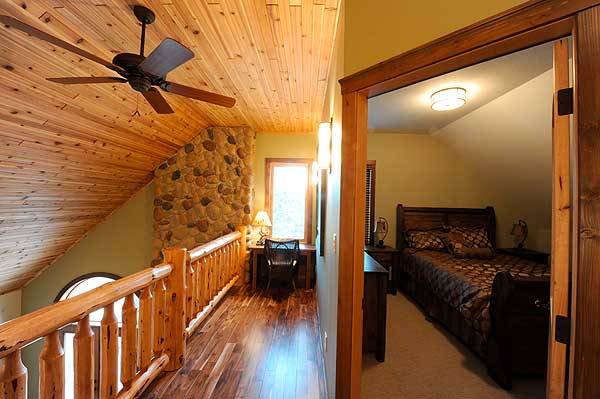

  • Two bedrooms with a bath and balcony loft overlooking the living space below occupy the second floor.
  • Guest quarters on the lower level are comprised of two more bedrooms, a large bath and recreation room plus laundry room.
  • Related Plan: Downsize with house plans 21179DR (1,909 sq. ft.) and house plan 21941DR (1,816 sq. ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

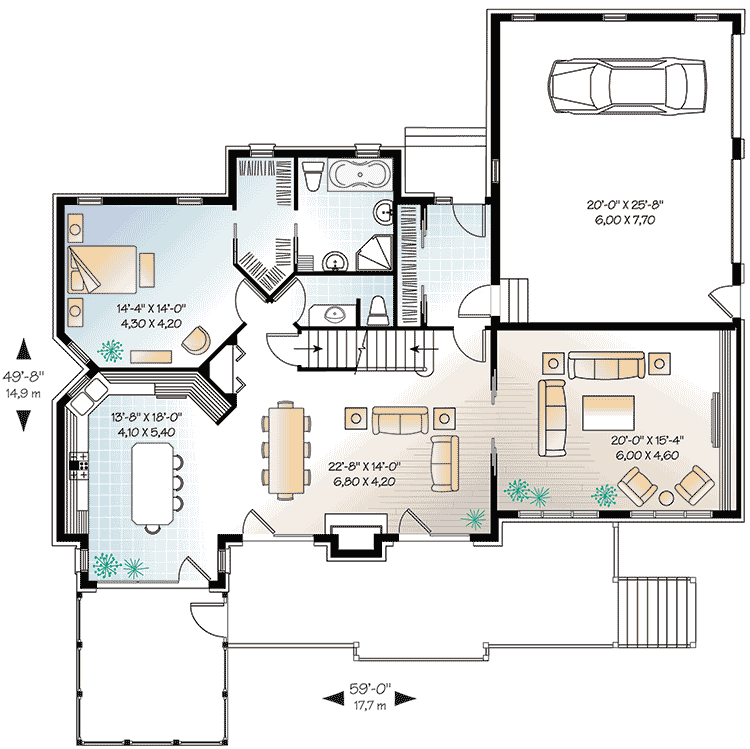

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Retreat For The Rear-Sloping Lot - 21181DR floor plan - Main Level

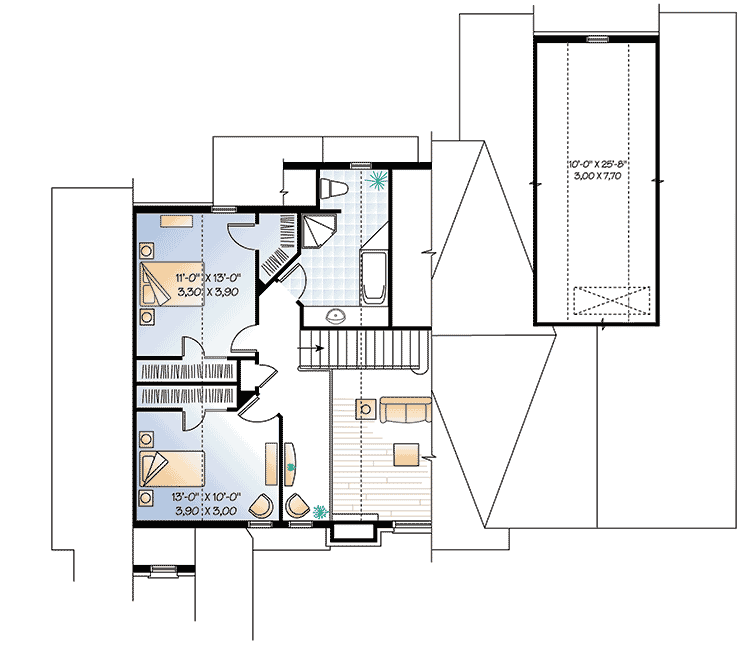

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Retreat For The Rear-Sloping Lot - 21181DR floor plan - 2nd Floor

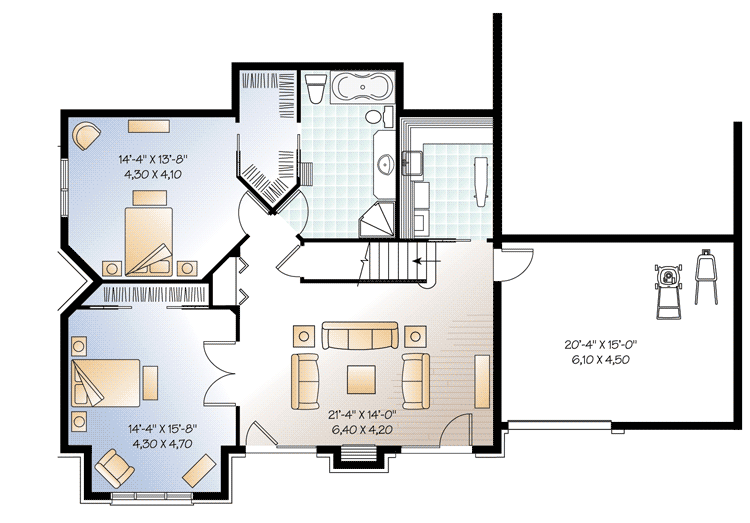

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Retreat For The Rear-Sloping Lot - 21181DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,506 sq. ft.
  • Lower Level: 1,247 sq. ft.
  • 1st Floor: 1,604 sq. ft.
  • 2nd Floor: 655 sq. ft.
  • Deck: 327 sq. ft.
  • Porch, Front: 169 sq. ft.
  • Bonus: 257 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 49' 8"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 7' 10" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Vacation Retreat For The Rear-Sloping Lot

  • 3,506

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,770
  • PDF - Single-Build $1,770
  • 5 Sets + PDF $1,895
  • CAD - Single-Build $2,370
  • View all purchase option online

About This Plan

  • Designed for a sloping lot, this vacation home plan has plenty of room to accommodate family and guests. A wall of windows across the rear brings in light and maximizes views.
  • On the main level, the large kitchen with an island blends into the living/dining room and into the media room beyond. A private master suite with walk-in closet is also located on this level.
  • Two bedrooms with a bath and balcony loft overlooking the living space below occupy the second floor.
  • Guest quarters on the lower level are comprised of two more bedrooms, a large bath and recreation room plus laundry room.
  • Related Plan: Downsize with house plans 21179DR (1,909 sq. ft.) and house plan 21941DR (1,816 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,506 sq. ft.
  • Lower Level: 1,247 sq. ft.
  • 1st Floor: 1,604 sq. ft.
  • 2nd Floor: 655 sq. ft.
  • Deck: 327 sq. ft.
  • Porch, Front: 169 sq. ft.
  • Bonus: 257 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 49' 8"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 7' 10" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
