Variation On A Mountain Masterpiece

Plan 95009RW

This plan plants 3 trees

6,325
Heated s.f.
4
Beds
3.5+
Baths
1
Stories
4
Cars

Terrific sightlines and large, comfortable rooms characterize this deluxe Mountain home plan.
Right from the foyer, the sweeping views extend back to the huge great room and covered deck beyond.
A coffered ceiling tops the dining room with only two columns to separate it from the main living area.
The fully equipped lower level has a huge wet bar, wine cellar, billiards area and marvelous home theater.
Guests can relax in comfort in the private lower level guest suite.
Related Plans: Get upper level with house plan 9500RW (7,400 sq. ft.) and 9536RW (8,673 sq. ft.). And eliminate the lower level - and still get a second floor - with house plan 9531RW (4,705 sq. ft.).

The following details are included with this house plan:

Cover Page
4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

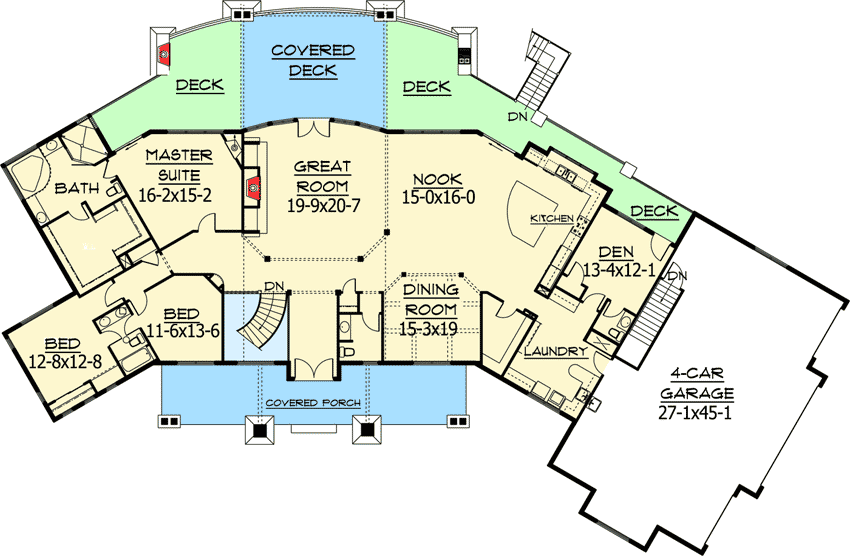

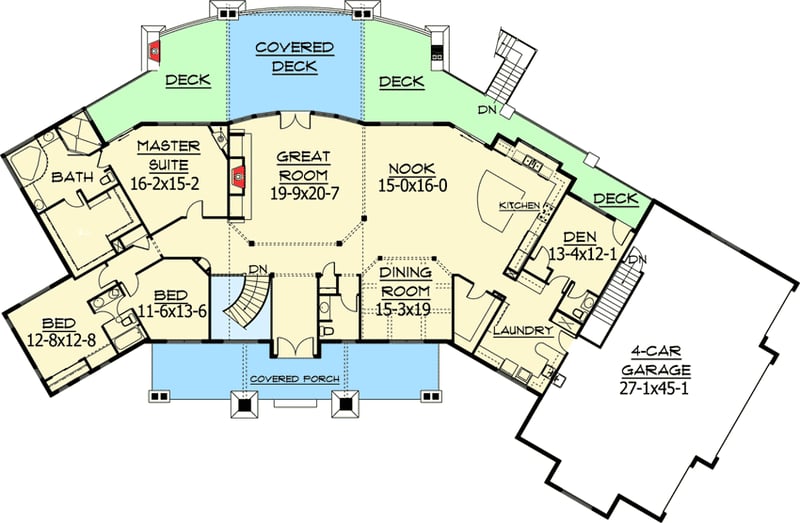

Variation On A Mountain Masterpiece - 95009RW floor plan - Main Level

Lower level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

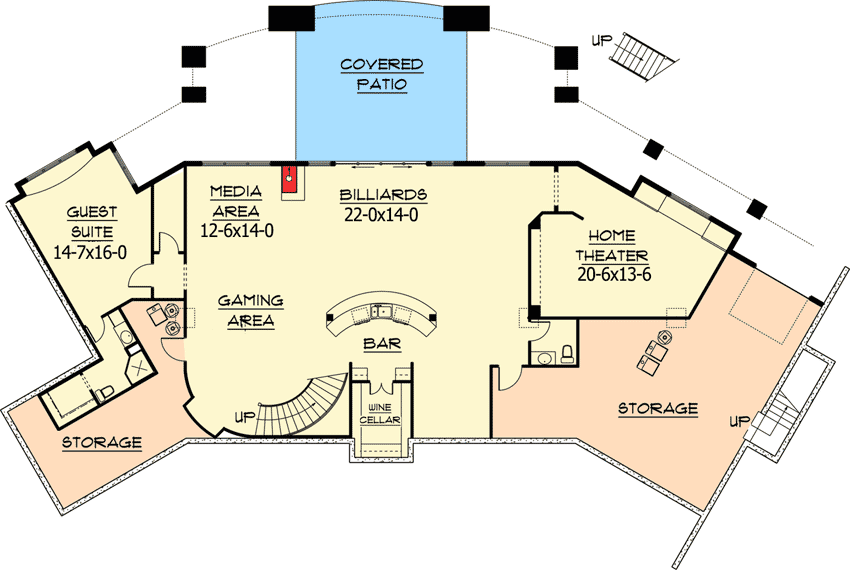

Variation On A Mountain Masterpiece - 95009RW floor plan - Lower level

Plan details

Square Footage Breakdown

Total Heated Area: 6,325 sq. ft.
Lower Level: 2,574 sq. ft.
1st Floor: 3,751 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 3

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 133' 4"
Depth: 86' 4"
Max ridge height: 26' 8"

Garage

Type: Attached
Area: 1408 sq. ft.
Count: 4 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

Primary Pitch: 7 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll
