Plan 9500RW Luxurious Craftsman Detailing

Luxurious Craftsman Detailing

Plan 9500RW

  • 7,400

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Stories

  • 4

    Cars

  • Luxurious details pamper the owners of this spectacular luxury home plan designed with large spaces in every room of the home.

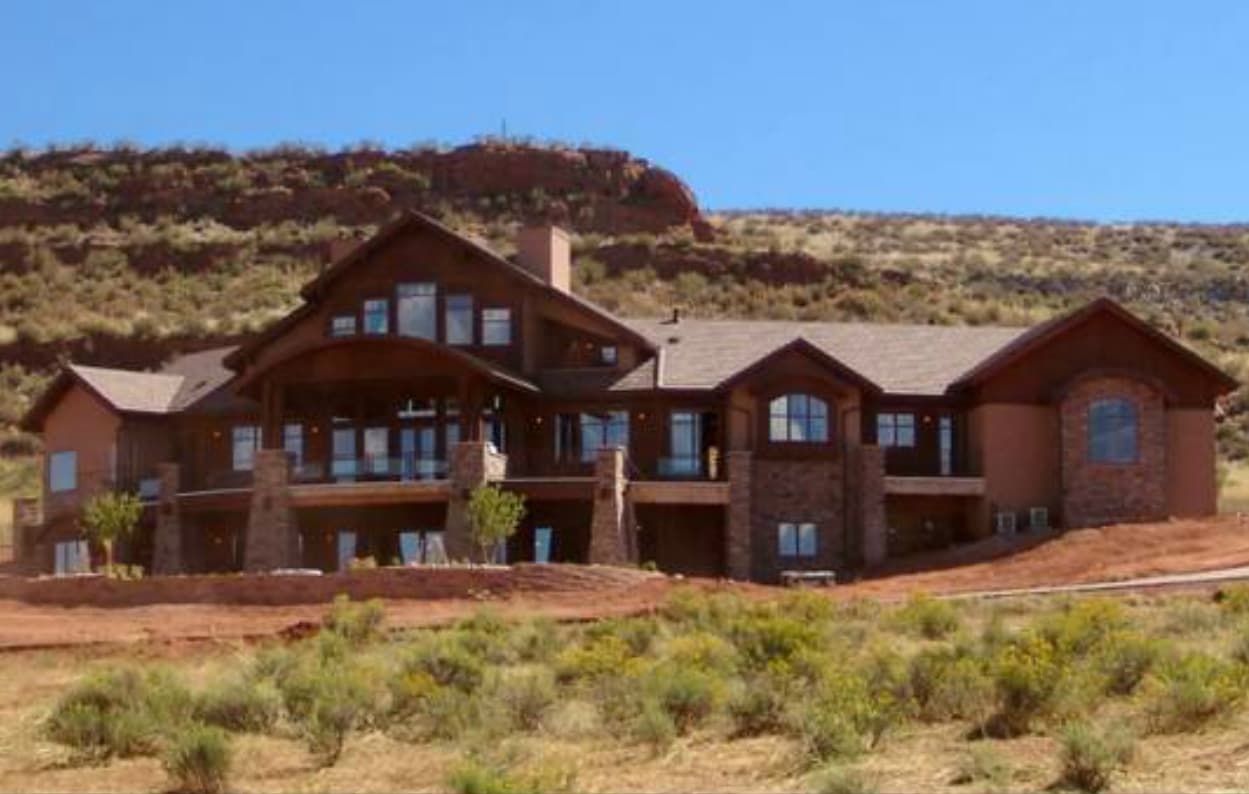

  • The rear gives you panoramic views from the curved deck with a dramatic barrel roof above and a spacious covered patio below.
  • Entering the home you'll be taken by the dramatic two-story foyer and sweeping dual stair leading to the bridge above. Ahead,columns frame the great room which features a two-story fireplace and sweeping views through the curved wall of glass.
  • The kitchen and breakfast nook are open to the great room and are bathed in light and have breathtaking views. The kitchen features a center island, breakfast bar and walk-in pantry.
  • Take your meals to the decks or to your formal dining room framed by columns.
  • Nearby you'll find a large laundry room, a nanny/guest room with a full bath and a private deck, and a four-car garage.
  • Across the home the library makes for a quiet retreat. The master suite has a fireplace access to the curved rear deck. The spa-like master bath features shower and a spa tub, dual sinks, private toilet and laundry in the large walk-in closet. A second bedroom has a private bath and deck.
  • Upstairs, take in views below from the bridge. A loft and library both have sloped ceilings. The loft has a cozy angled fireplace and the library a small wet bar and covered viewing platform.
  • The lower level is loaded with a game room, theater, guest suite and storage.
  • Related Plans: Eliminate the lower level with house plan 9531RW.
  • Get an additional drive-under garage and a larger master suite with house plan 9536RW (in reverse orientation).
  • Downsize with house plan 95009RW (6,325 sq. ft.).

  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan

What is NOT included:

  • Architectural or Engineering stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

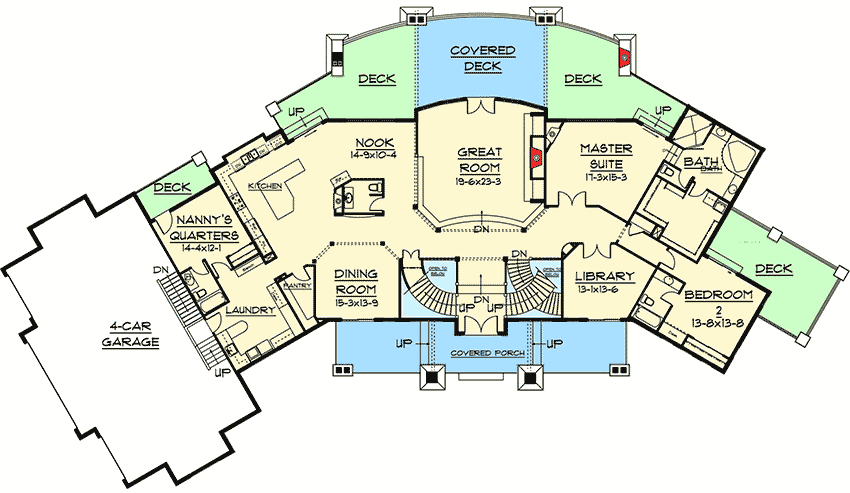

Luxurious Craftsman Detailing - 9500RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

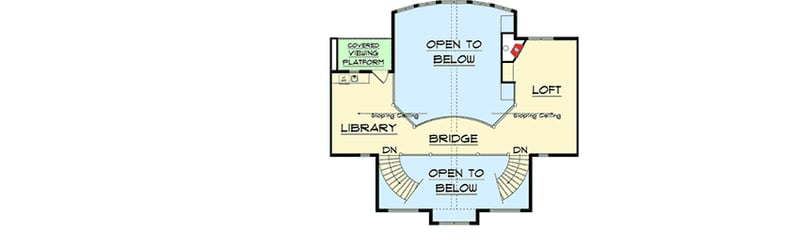

Luxurious Craftsman Detailing - 9500RW floor plan - Upper Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

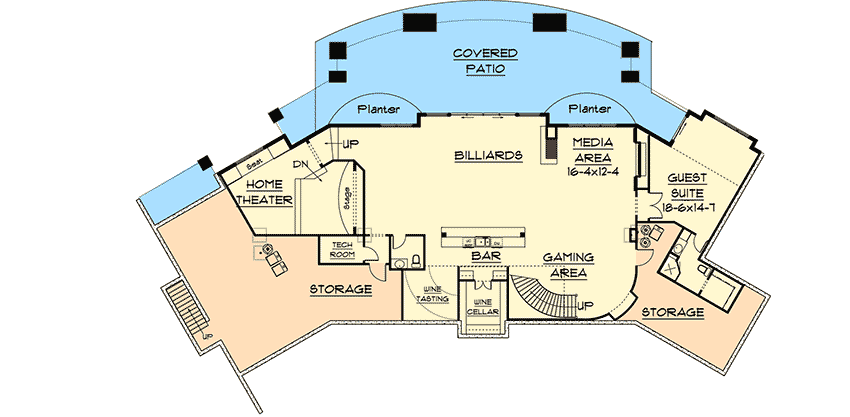

Luxurious Craftsman Detailing - 9500RW floor plan - Lower Level

Plan details

Luxurious Craftsman Detailing

  • 7,400

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $4,600
  • CAD - Single-Build $5,850
  • View all purchase option online

About This Plan

  • Luxurious details pamper the owners of this spectacular luxury home plan designed with large spaces in every room of the home.
  • The rear gives you panoramic views from the curved deck with a dramatic barrel roof above and a spacious covered patio below.
  • Entering the home you'll be taken by the dramatic two-story foyer and sweeping dual stair leading to the bridge above. Ahead,columns frame the great room which features a two-story fireplace and sweeping views through the curved wall of glass.
  • The kitchen and breakfast nook are open to the great room and are bathed in light and have breathtaking views. The kitchen features a center island, breakfast bar and walk-in pantry.
  • Take your meals to the decks or to your formal dining room framed by columns.
  • Nearby you'll find a large laundry room, a nanny/guest room with a full bath and a private deck, and a four-car garage.
  • Across the home the library makes for a quiet retreat. The master suite has a fireplace access to the curved rear deck. The spa-like master bath features shower and a spa tub, dual sinks, private toilet and laundry in the large walk-in closet. A second bedroom has a private bath and deck.
  • Upstairs, take in views below from the bridge. A loft and library both have sloped ceilings. The loft has a cozy angled fireplace and the library a small wet bar and covered viewing platform.
  • The lower level is loaded with a game room, theater, guest suite and storage.
  • Related Plans: Eliminate the lower level with house plan 9531RW.
  • Get an additional drive-under garage and a larger master suite with house plan 9536RW (in reverse orientation).
  • Downsize with house plan 95009RW (6,325 sq. ft.).

Floor Plans

  • Main Level

  • Upper Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,400 sq. ft.
  • Lower Level: 2,817 sq. ft.
  • 1st Floor: 3,936 sq. ft.
  • 2nd Floor: 647 sq. ft.
  • Deck: 2,569 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 154' 8"
  • Depth: 87' 9"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 1457 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
