Sweeping Rear Deck with Barrel Roof

Plan 9531RW

This plan plants 3 trees

4,705
Heated s.f.
4
Beds
4.5
Baths
2
Stories
4
Cars

Luxurious details pamper the owners of this spectacular luxury home plan designed with large spaces in every room of the home.
The rear gives you panoramic views from the curved deck with a dramatic barrel roof above and a spacious covered patio below.

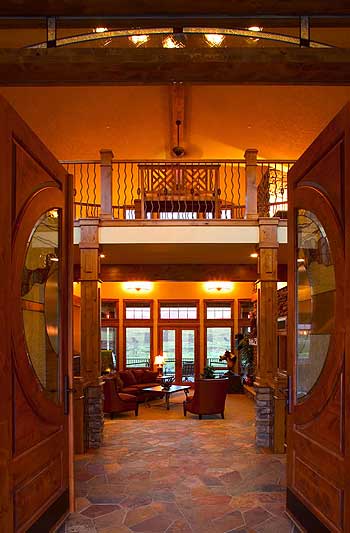

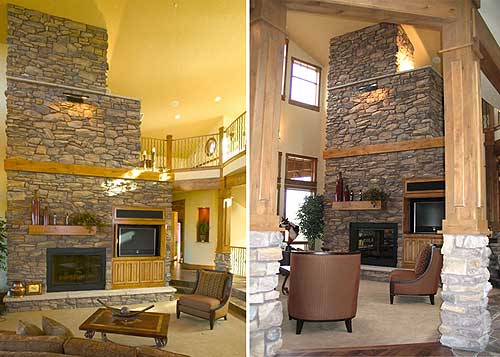

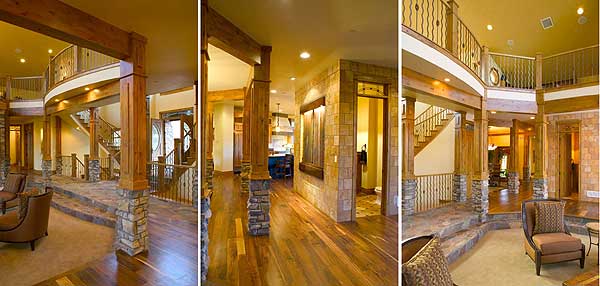

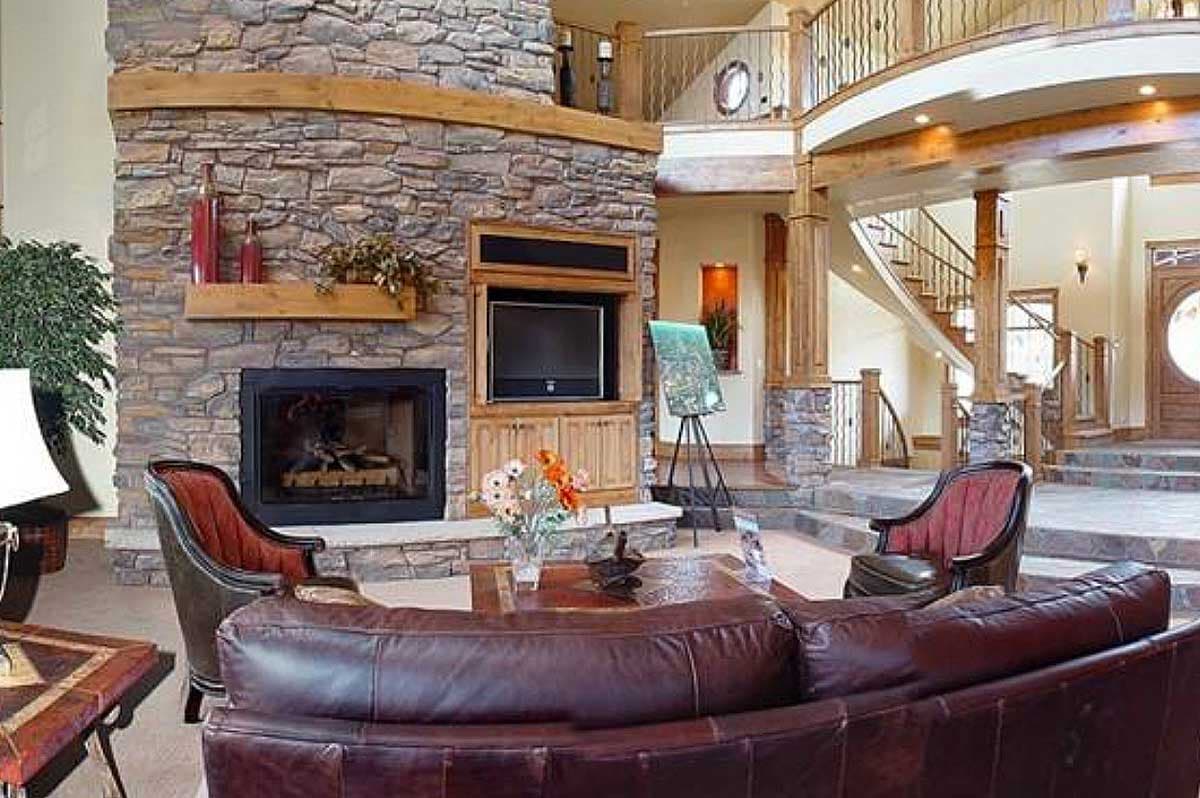

Entering the home you'll be taken by the dramatic two-story foyer and sweeping dual stair leading to the bridge above. Ahead,columns frame the great room which features a two-story fireplace and sweeping views through the curved wall of glass.

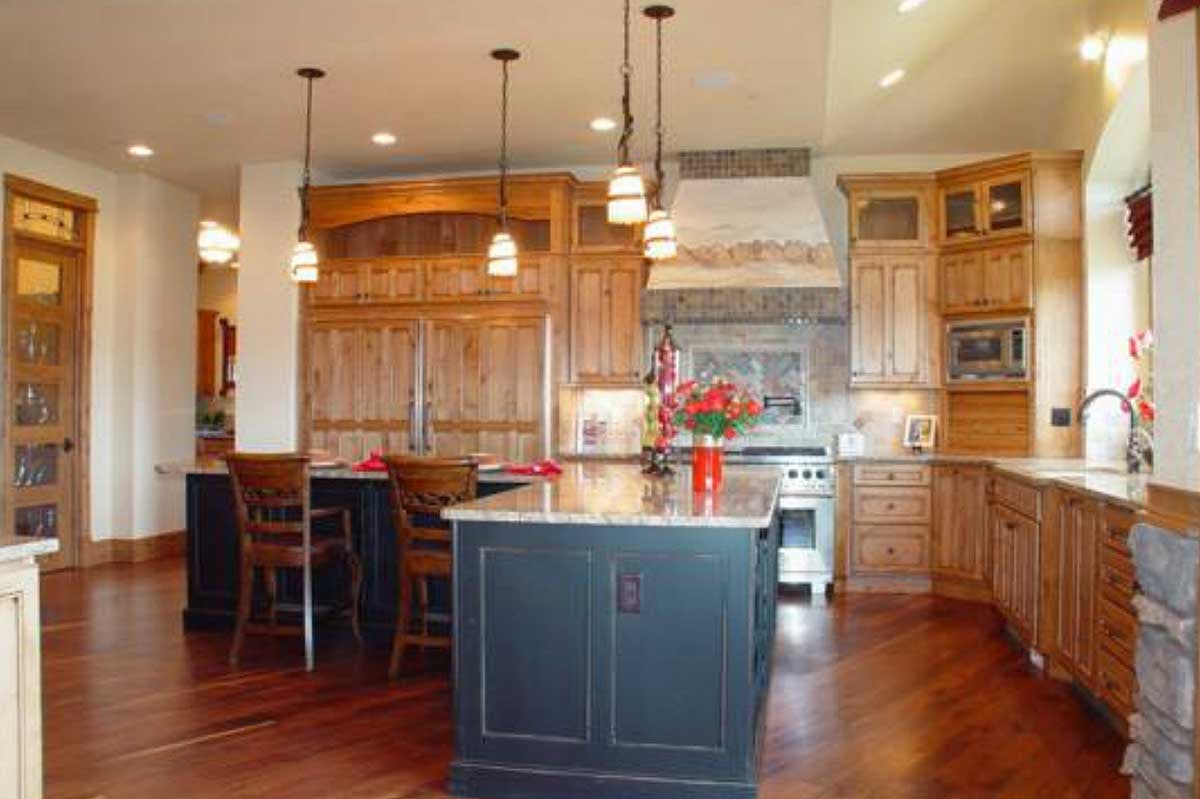

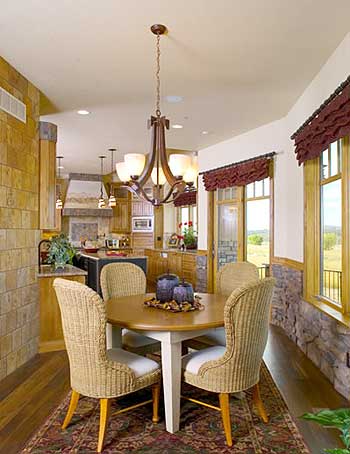

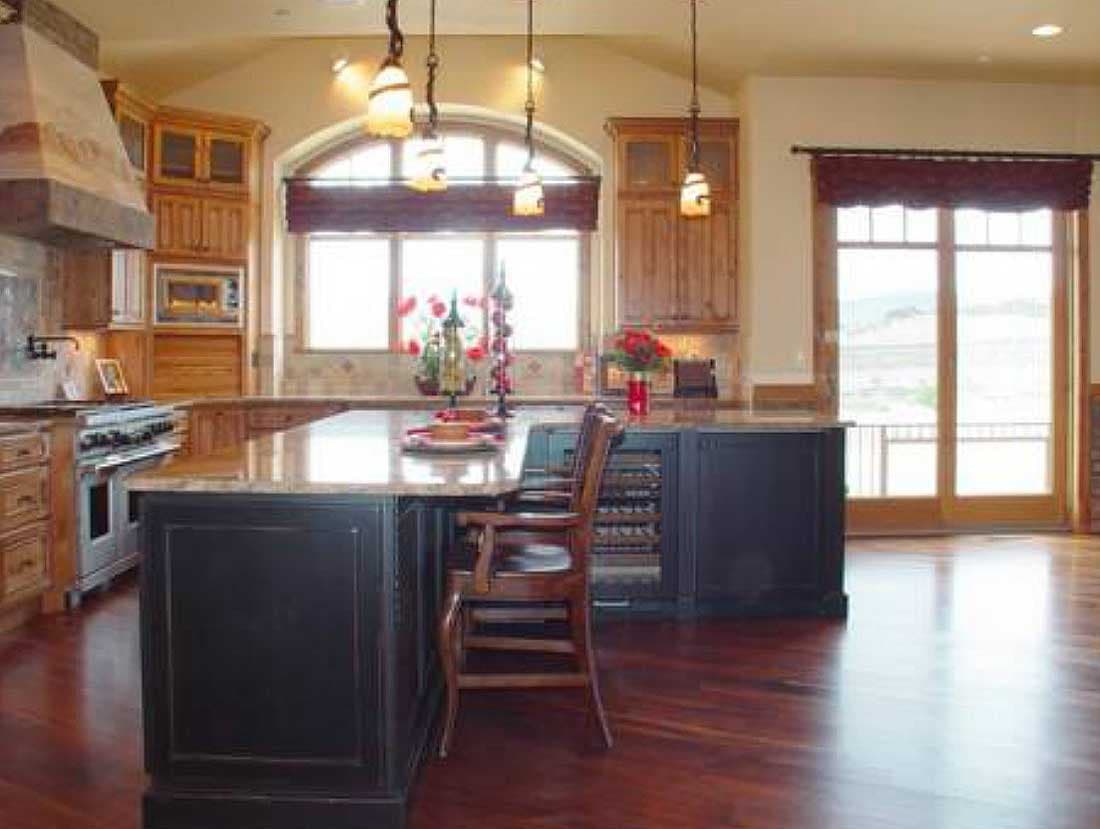

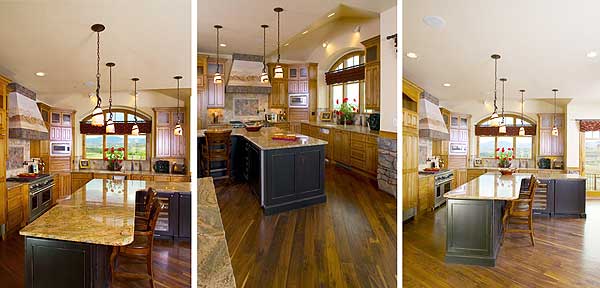

The kitchen and breakfast nook are open to the great room and are bathed in light and have breathtaking views. The kitchen features a center island, breakfast bar and walk-in pantry.

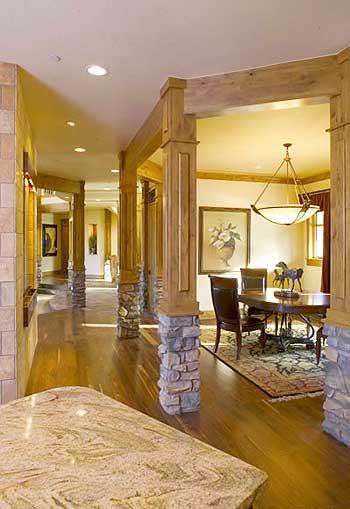

Take your meals to the decks or to your formal dining room framed by columns.
Nearby you'll find a large laundry room, a nanny/guest room with a full bath and a private deck, and a four-car garage.

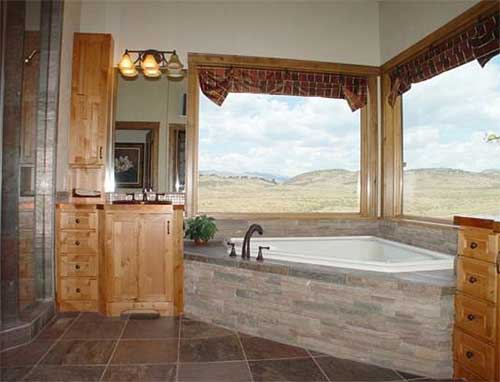

Across the home the library makes for a quiet retreat. The master suite has a fireplace access to the curved rear deck. The spa-ilke master bath features shower and a spa tub, dual sinks, private toilet and laundry in the large walk-in closet. A second bedroom has a private bath and deck.
Upstairs, take in views below from the bridge. A loft and library both have sloped ceilings. The loft has a cozy angled fireplace and the library a small wet bar and covered viewing platform.
Related Plan: Need more room? Gain a finished lower level with house plan 9500RW and 9536RW.
Skip the second floor and add a marvelous lower level with 95009RW (6,325 sq. ft.).

The following details are included with this house plan:

Cover Page

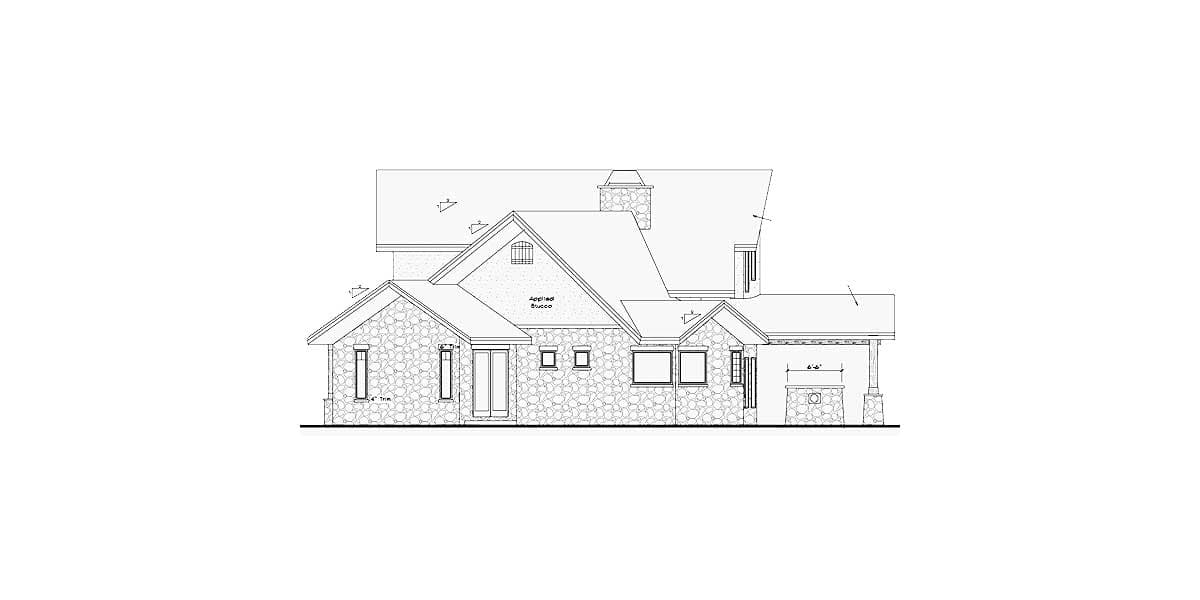

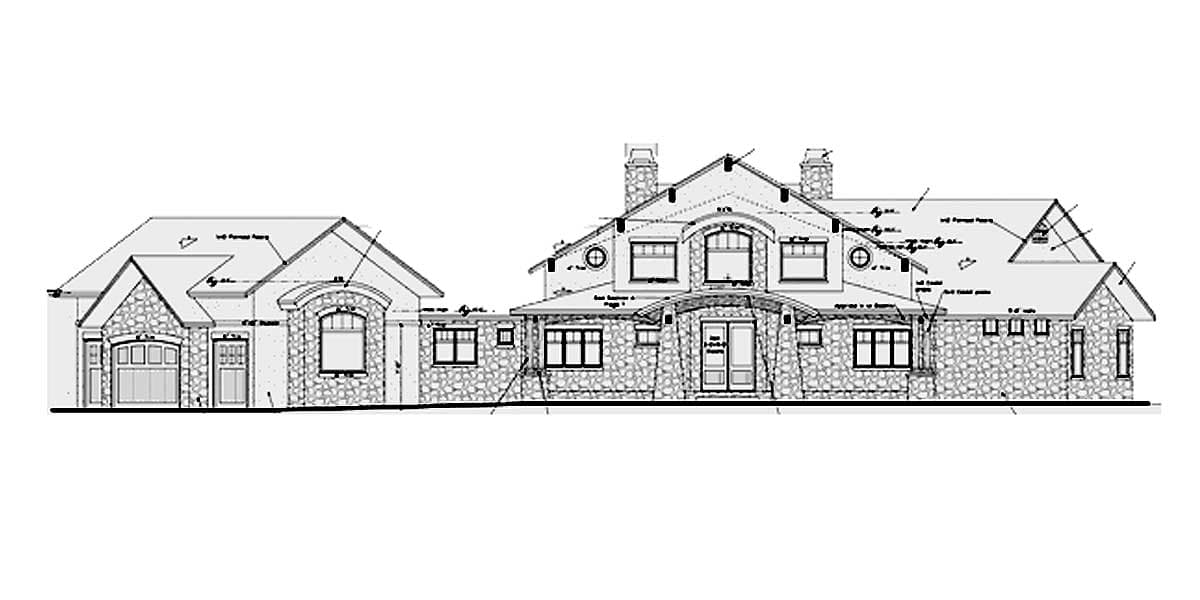

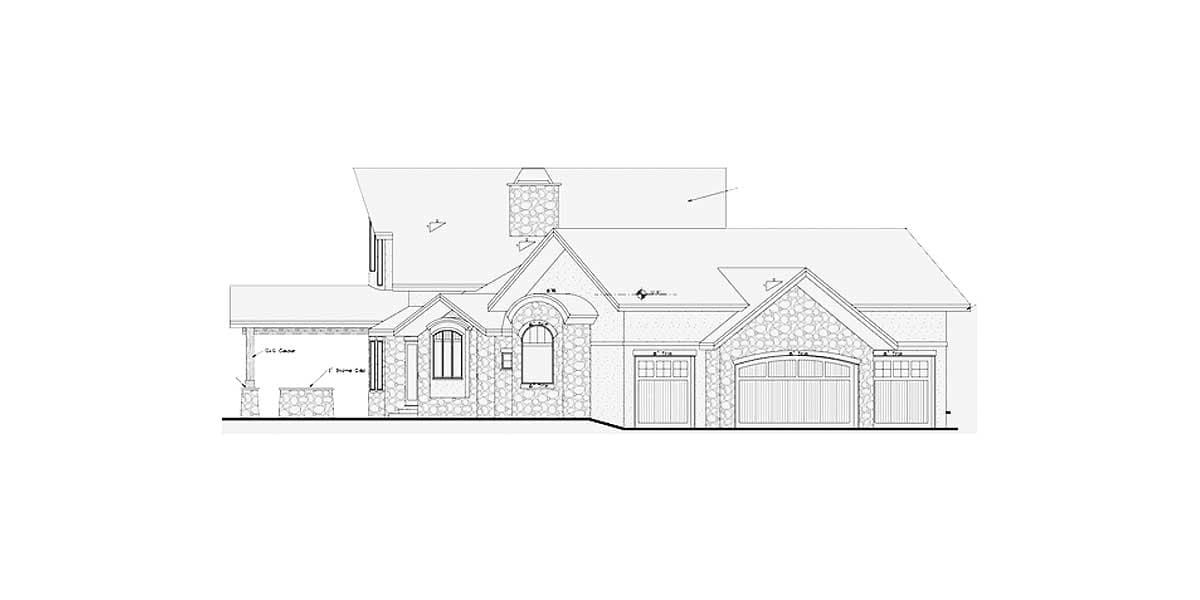

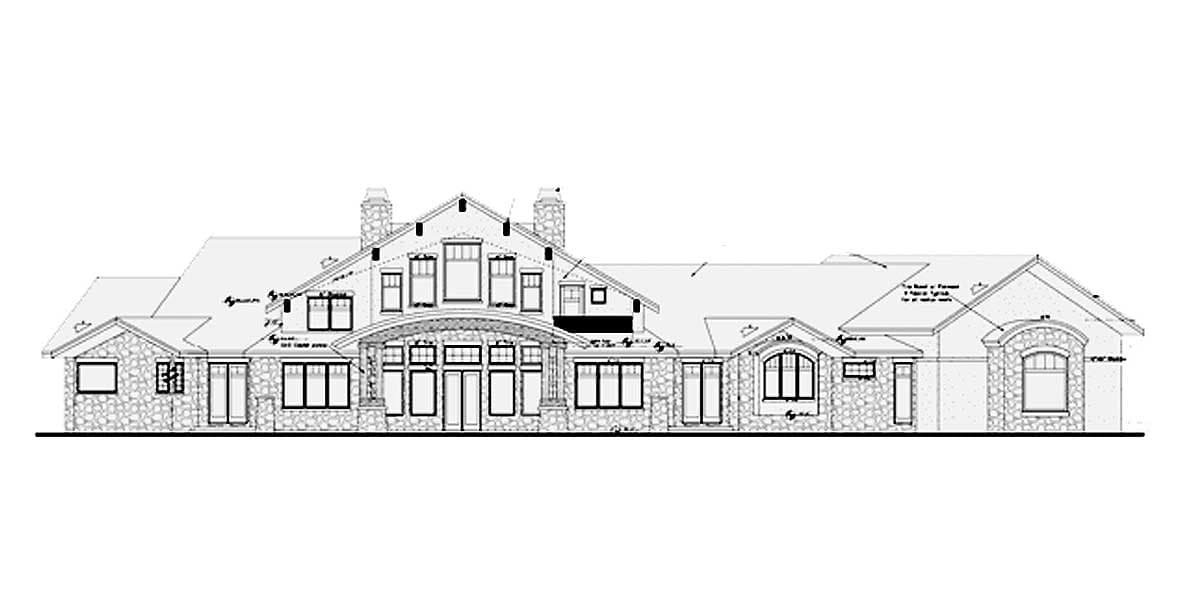

4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

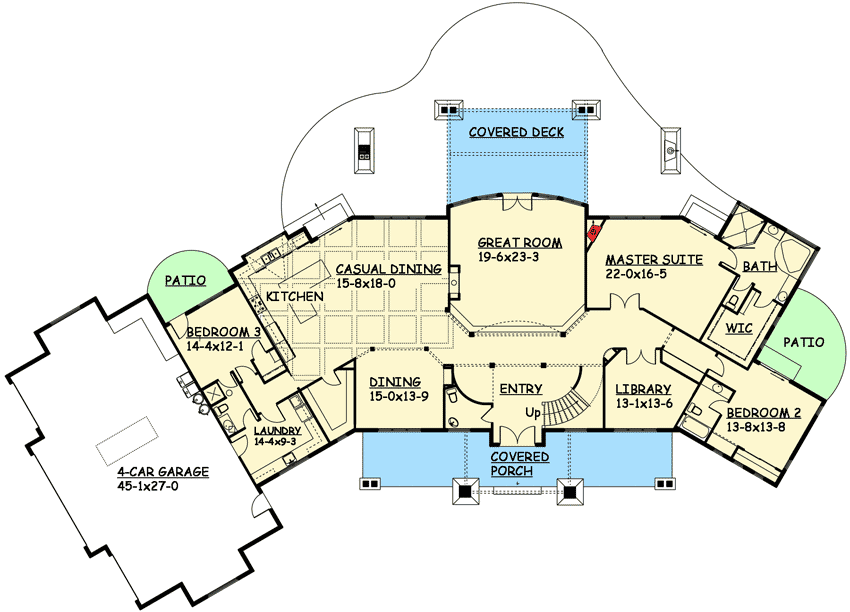

Sweeping Rear Deck with Barrel Roof - 9531RW floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

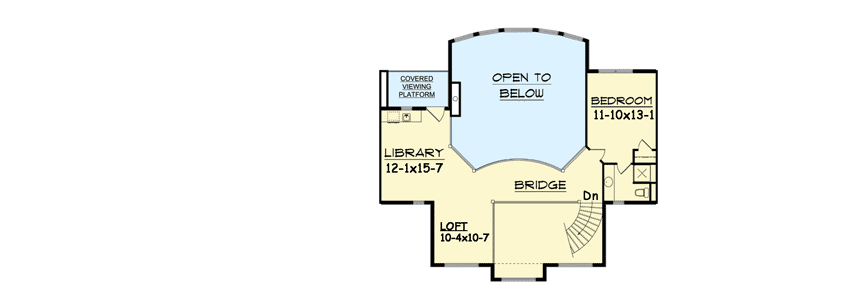

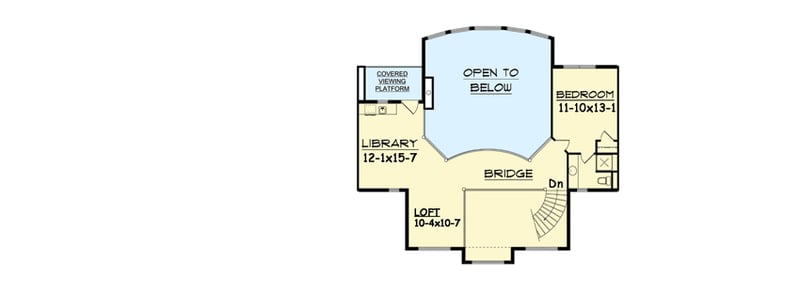

Sweeping Rear Deck with Barrel Roof - 9531RW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,705 sq. ft.
1st Floor: 3,936 sq. ft.
2nd Floor: 769 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 154' 8"
Depth: 87' 9"
Max ridge height: 32' 6"

Garage

Type: Attached
Area: 1457 sq. ft.
Count: 4 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll


Sweeping Rear Deck with Barrel Roof 4,705 Heated s.f. 4 Beds 4.5 Baths 2 Floors 4 Car garage Buy This Plan PDF - Single-Build $3,300 PDF - Unlimited Build $4,950 CAD + PDF - Single Build $5,000 CAD - Unlimited Build $7,500 View all purchase option online About This Plan Luxurious details pamper the owners of this spectacular luxury home plan designed with large spaces in every room of the home. The rear gives you panoramic views from the curved deck with a dramatic barrel roof above and a spacious covered patio below. Entering the home you'll be taken by the dramatic two-story foyer and sweeping dual stair leading to the bridge above. Ahead,columns frame the great room which features a two-story fireplace and sweeping views through the curved wall of glass. The kitchen and breakfast nook are open to the great room and are bathed in light and have breathtaking views. The kitchen features a center island, breakfast bar and walk-in pantry. Take your meals to the decks or to your formal dining room framed by columns. Nearby you'll find a large laundry room, a nanny/guest room with a full bath and a private deck, and a four-car garage. Across the home the library makes for a quiet retreat. The master suite has a fireplace access to the curved rear deck. The spa-ilke master bath features shower and a spa tub, dual sinks, private toilet and laundry in the large walk-in closet. A second bedroom has a private bath and deck. Upstairs, take in views below from the bridge. A loft and library both have sloped ceilings. The loft has a cozy angled fireplace and the library a small wet bar and covered viewing platform. Related Plan: Need more room? Gain a finished lower level with house plan 9500RW and 9536RW. Skip the second floor and add a marvelous lower level with 95009RW (6,325 sq. ft.). Floor Plans Main Level 2nd Floor Plan Details Square Footage Breakdown Total Heated Area: 4,705 sq. ft. 1st Floor: 3,936 sq. ft. 2nd Floor: 769 sq. ft. Beds/Baths Bedrooms: 4 Full bathrooms: 4 Half bathrooms: 1 Foundation Type Standard Foundations: Slab Exterior Walls Standard Type(s): 2x6 Dimensions Width: 154' 8" Depth: 87' 9" Max ridge height: 32' 6" Garage Type: Attached Area: 1457 sq. ft. Count: 4 Cars Entry Location: Side Ceiling Heights Floor / Height: First Floor / 10' 0" Roof Framing Type: Truss
