Plan 8176LB

Vaulted Master & Tandem Garage

Heated S.F.
2,301
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 8176LB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 8176LB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

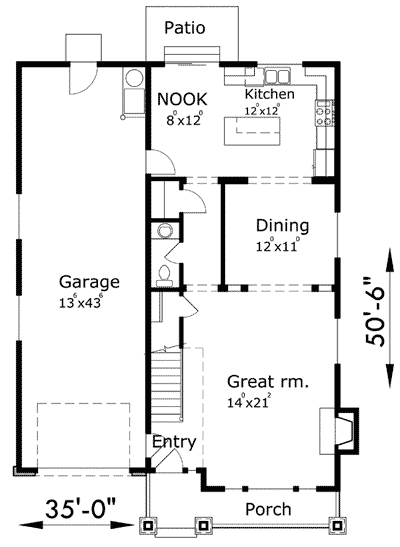

Plan 8176LB: Vaulted Master & Tandem Garage - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

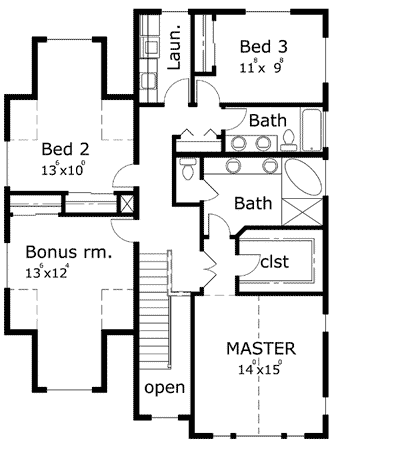

Plan 8176LB: Vaulted Master & Tandem Garage - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Great for the narrow lot, this Craftsman home plan features a tandem garage and a vaulted master bedroom.
  • A bonus room over the garage can be put to many uses including a study or media room.
  • The great room opens to the dining room and has a tasteful fireplace.
  • The kitchen has island seating and easy access to the garage making grocery unloading a breeze.

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,301 sq. ft.

1st Floor

965 sq. ft.

2nd Floor

1,336 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

50' 6"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

587 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Media Room

Optionally Finished Bonus Room

Tandem Garage

Square Footage Breakdown

Total Heated Area

2,301 sq. ft.

1st Floor

965 sq. ft.

2nd Floor

1,336 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

50' 6"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

587 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Media Room

Optionally Finished Bonus Room

Tandem Garage
