Plan 22040SL
Vaulted Ranch House Plan
Heated S.F.
1,568
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • Decorative arches accent the exterior of this single story house plan. The vaulted ceiling and open floor plan creates a feel of openness in the living areas.
  • The kitchen has convenient access to the walk-in pantry and serves the dining room with ease.
  • The vaulted master bedroom features a luxury bath and walk-in closet.
  • Related Plans: Need a three-car garage? See house plan 22008SL.
  • This house plan is also available in these alternate exteriors - 22041SL, 22042SL, 22043SL and 22044SL.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans

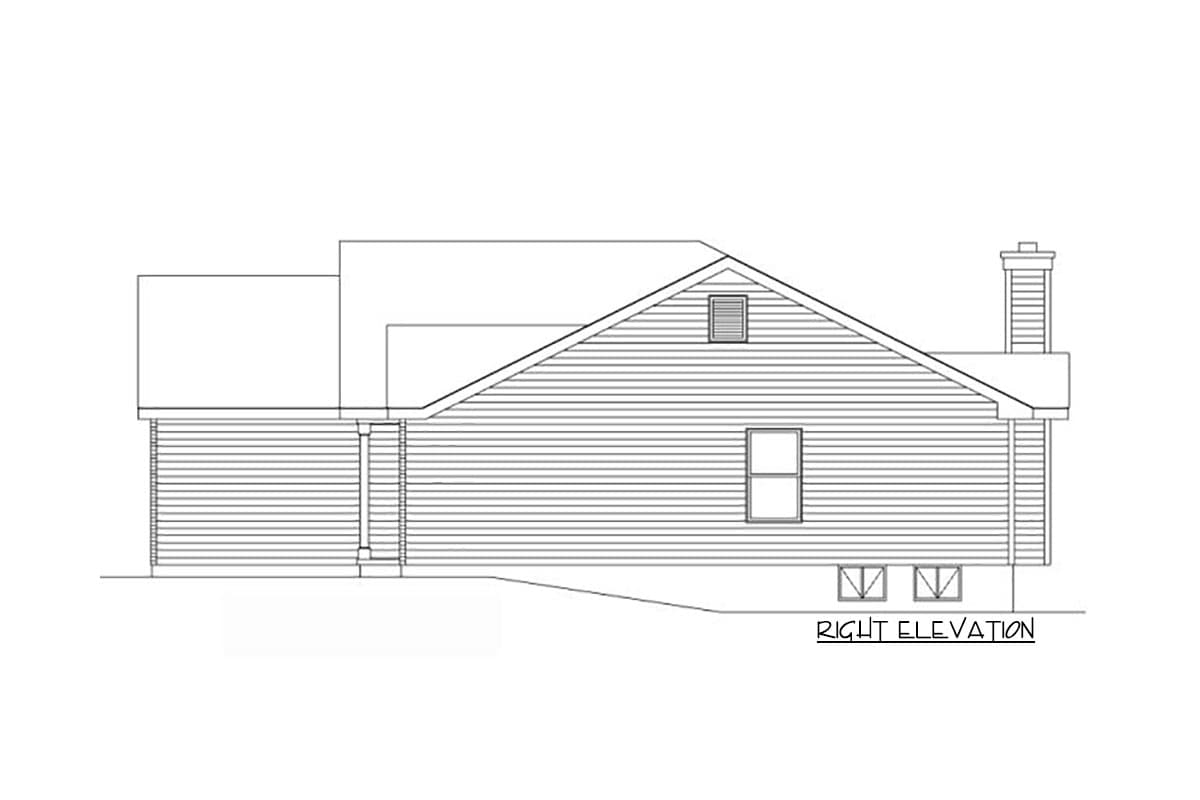

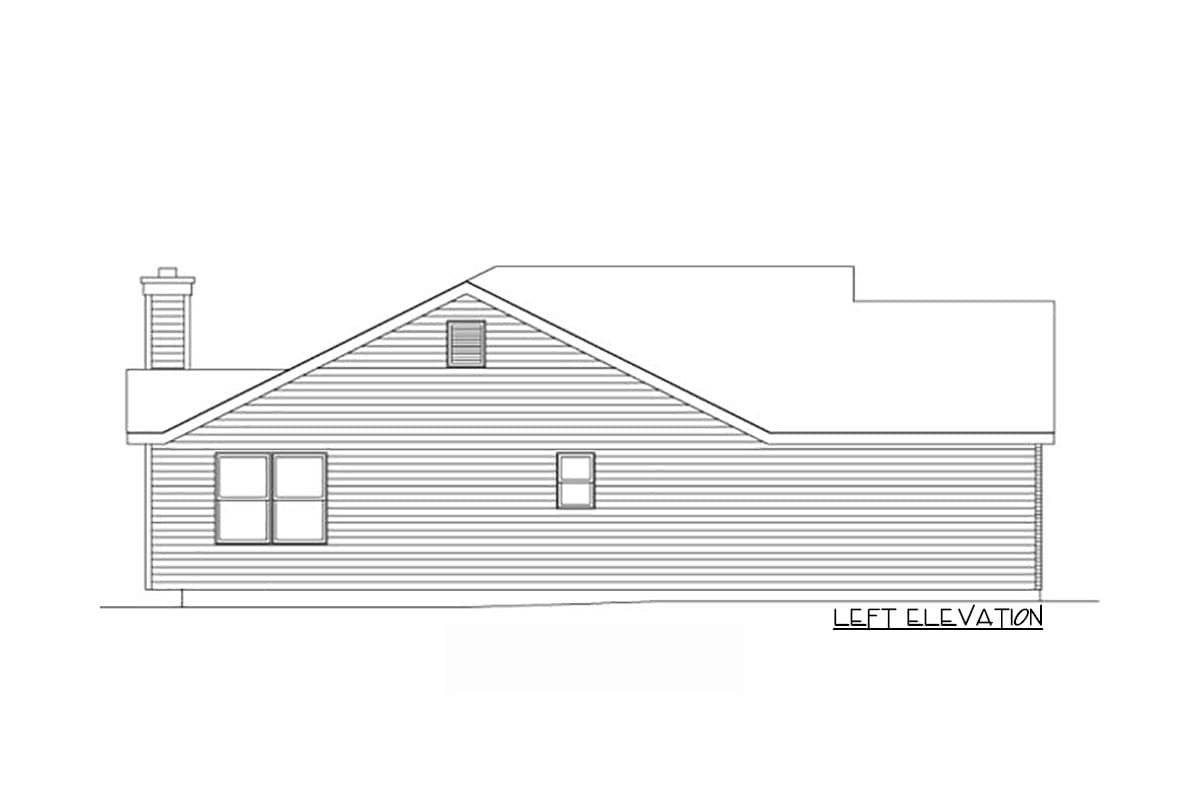

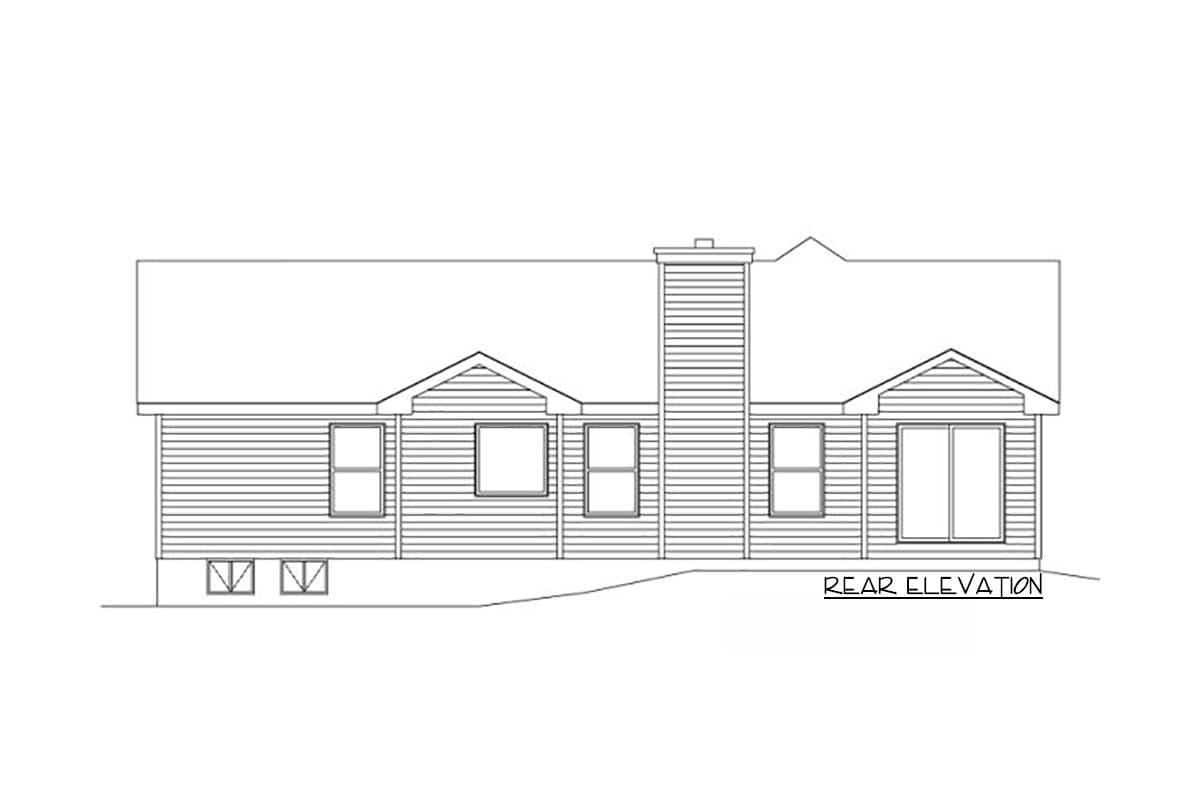

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vaulted Ranch House Plan

  • 1,568

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

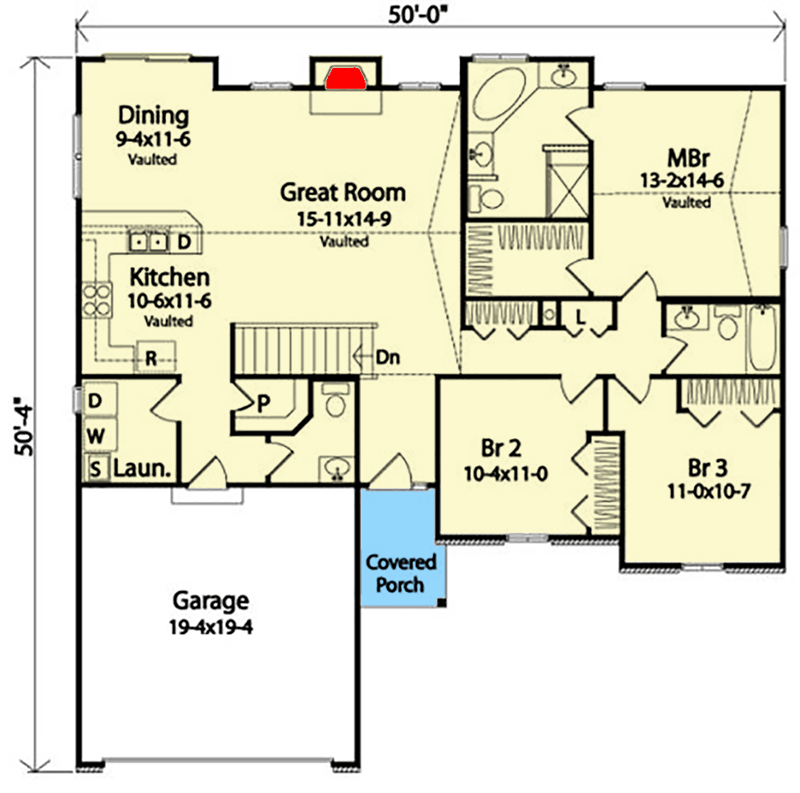

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,568 sq. ft.
  • 1st Floor: 1,568 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 4"
  • Max ridge height: 19' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 374 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
