Plan 20074GA

Versatile Ranch in Multiple Versions

1,500 2-4 3 + 1-2 3
Pageloader

Versatile Ranch in Multiple Versions

Plan 20074GA

  • 1,500

    Heated s.f.

  • 2-4

    Beds

  • 3 +

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This unusually versatile ranch home plan offers both beauty and an array of superb features. Boasting 1,500 square feet, this carefully designed home includes a country kitchen, spacious family room and a guest room as well as a luxurious master suite. An enormous future 1,361 sq. ft. bonus area and optional finished 1,763 sq. ft. basement offer unlimited possibilities.
  • A three-car garage with work area leads into the country kitchen. Here a center island with a sink and dishwasher makes meal prep and clean-up a breeze. The spacious 21'8" x 15'4" family room is ideal for entertaining.
  • Follow the steps down to the basement where a whole new world awaits! A family recreation room has plenty of room for a pool table and a home theater is right around the corner. There's also a snack bar included in this space. But this optional basement is not - all play and no work. There's a home office and exercise area located on this level too. Rounding out this level are two bedrooms, a bathroom , laundry room and mechanical room.
  • The 1,361 sq. ft. upper level future bonus room could serve any number of purposes from play room, study, library, craft room, storage.
  • Related Plans: Get alternate exteriors with house plans 20075GA and 20076GA.
  • Get a larger kitchen and master bedroom with house plan 20077GA.

Each plan set includes the following:

  •  Digital exterior rendering cover page
  •  Exterior elevation page
  •  Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  •  Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  •  Cross sections and interior elevation page
  •  Roof framing plan with 3-D roof framing schematic
  •  IRC code specifications and methodologies
  •  General construction details

Plan details

Architectural Style

Plan Collections



Versatile Ranch in Multiple Versions

  • 1,500

    Heated s.f.

  • 2 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $945
  • 5 Sets $1,045
  • 8 Sets $1,095
  • Reproducible Set $1,245
  • PDF - multi-use $1,445
  • CAD $1,495
  • CAD - multi-use $1,995
  • View all purchase option online

About This Plan

  • This unusually versatile ranch home plan offers both beauty and an array of superb features. Boasting 1,500 square feet, this carefully designed home includes a country kitchen, spacious family room and a guest room as well as a luxurious master suite. An enormous future 1,361 sq. ft. bonus area and optional finished 1,763 sq. ft. basement offer unlimited possibilities.
  • A three-car garage with work area leads into the country kitchen. Here a center island with a sink and dishwasher makes meal prep and clean-up a breeze. The spacious 21'8" x 15'4" family room is ideal for entertaining.
  • Follow the steps down to the basement where a whole new world awaits! A family recreation room has plenty of room for a pool table and a home theater is right around the corner. There's also a snack bar included in this space. But this optional basement is not - all play and no work. There's a home office and exercise area located on this level too. Rounding out this level are two bedrooms, a bathroom , laundry room and mechanical room.
  • The 1,361 sq. ft. upper level future bonus room could serve any number of purposes from play room, study, library, craft room, storage.
  • Related Plans: Get alternate exteriors with house plans 20075GA and 20076GA.
  • Get a larger kitchen and master bedroom with house plan 20077GA.

Floor Plans

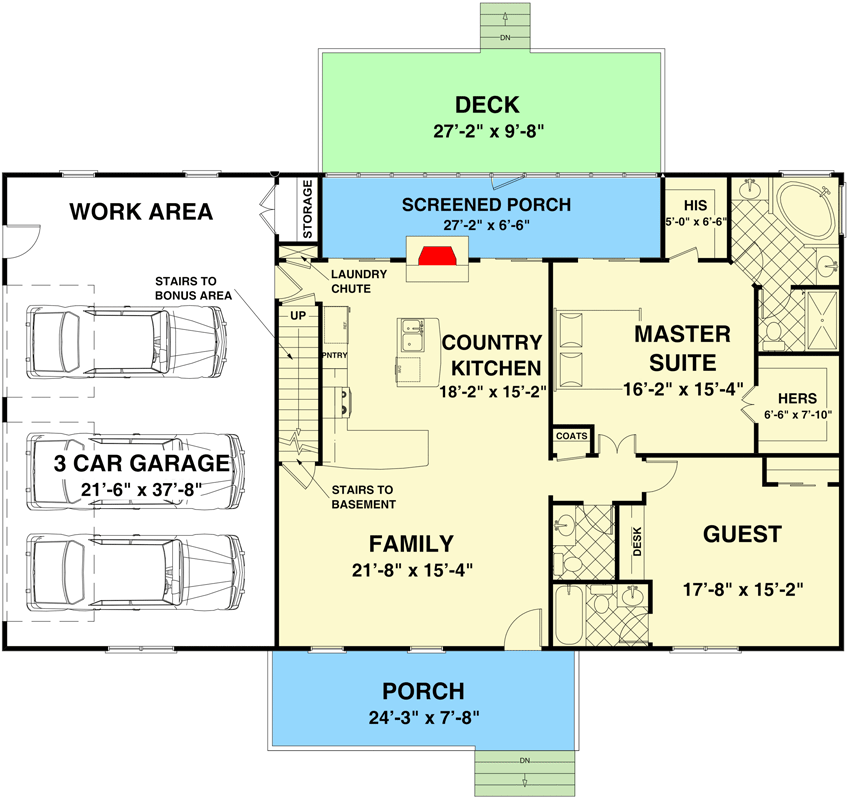

  • Main Level

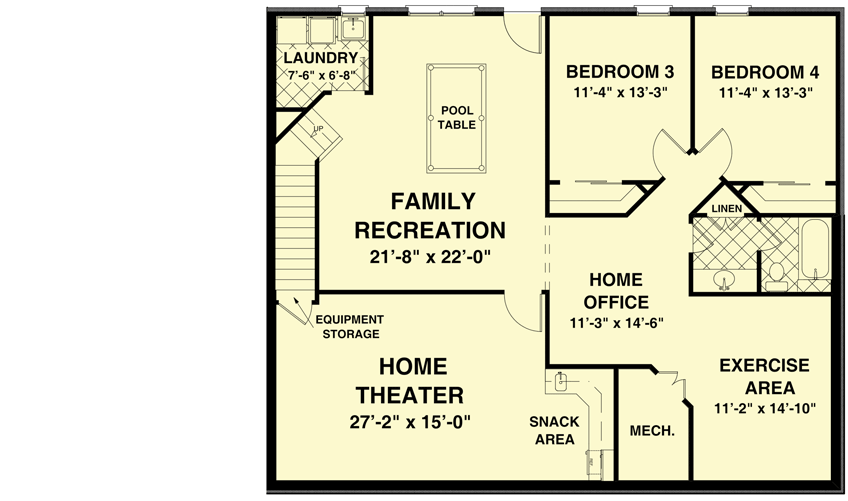

  • Optional

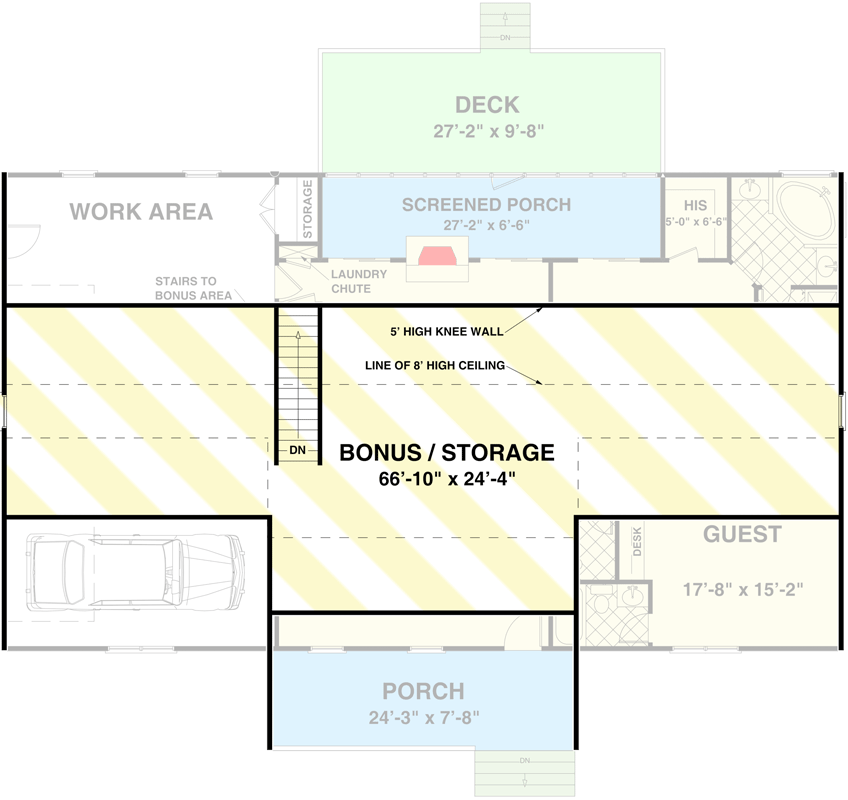

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,500 sq. ft.
  • 1st Floor: 1,500 sq. ft.
  • Optional Lower Level: 1,763 sq. ft.
  • Bonus: 1,361 sq. ft.
  • Porch, Front: 186 sq. ft.
  • Screened Porch: 263 sq. ft.
  • Basement Unfinished: 1,763 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 6"
  • Depth: 46' 4"
  • Max ridge height: 22' 8"

Garage

  • Type: Attached
  • Area: 810 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
