Plan 90248PD

Victorian Duplex

Heated S.F.
2,130
Units
2
Width
Depth

Floor Plan

Plan 90248PD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 90248PD

M-F 9am-5pm EST |

1-203-761-8500

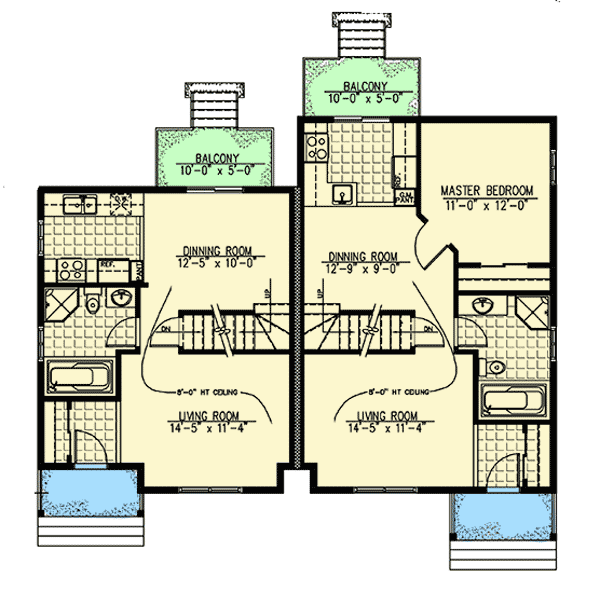

Main Level

Plan 90248PD: Victorian Duplex - Floor Plan - Main Level

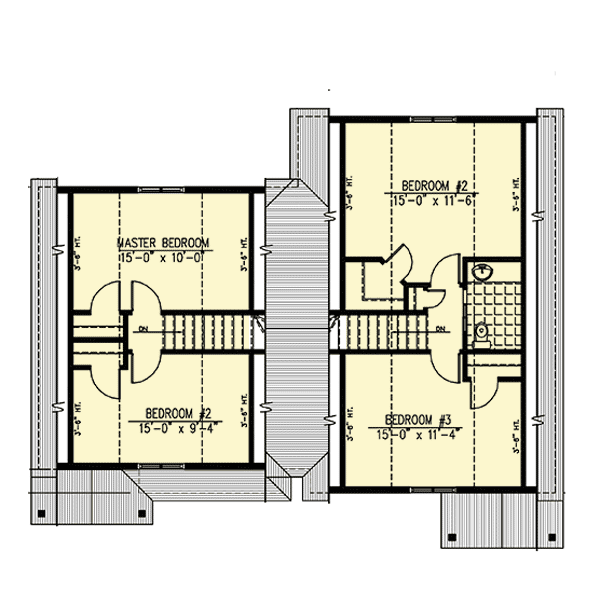

2nd Floor

Plan 90248PD: Victorian Duplex - Floor Plan - 2nd Floor

Plan Details

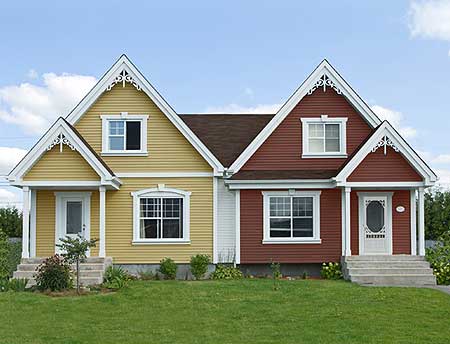

  • Decorative wood trim adds a charming touch to this Victorian duplex.
  • The living room is set apart from the kitchen to keep noise down.
  • Each unit is different with the right side having a main floor master suite and two additional bedrooms upstairs.
  • The right side unit is 701 square feet on the main floor and 501 square feet on the second floor for a total living area of 1,202 square feet.
  • In the left side unit, the master is up on the second floor along with one other bedroom.
  • The left unit has 552 square feet on the main floor and 376 square feet on the upper floor for a total living area of 928 square feet.
Unit A
Heated Area
928Sq. Ft.
552 Sq. Ft. 1st
376 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
Dimensions
22'width
24'depth
22' 8"height
Unfinished Areas
552 Sq. Ft. Basement Unfinished
Unit B
Heated Area
1,202Sq. Ft.
701 Sq. Ft. 1st
501 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
22'width
32'depth
22' 8"height
Unfinished Areas
701 Sq. Ft. Basement Unfinished

What's Included

Please note this plan is designed to the National Building Code of Canada.

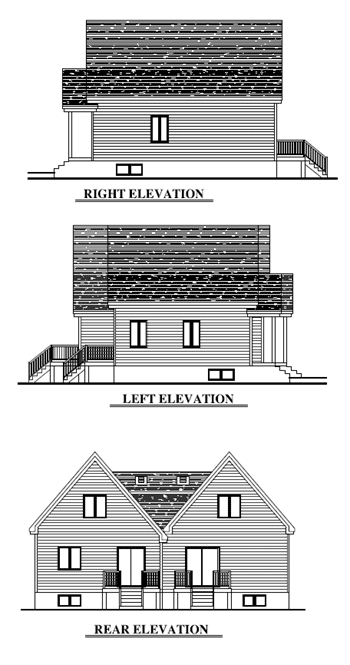

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,130 sq. ft.

1st Floor

1,253 sq. ft.

2nd Floor

877 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

32' 0"

Max Ridge Height

22' 8"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,130 sq. ft.

1st Floor

1,253 sq. ft.

2nd Floor

877 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

32' 0"

Max Ridge Height

22' 8"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Photo Gallery
