Visitable Cozy Cottage for the Budget-Minded Owner

Plan 871007NST

  • 1,000

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • The rectangular design and square footage of this cozy cottage keeps the budget in mind, while the charming exterior reminds us of simpler times.  Designed as part of the "visitable" movement, it has a zero-step entry and a wheelchair-accessible main floor bathroom.
  • The kitchen features L-shaped cabinets and counters that surround a dining table which doubles as meal prep space.
  • The open-concept layout on the main floor keeps the conversation flowing between family members or guests.
  • Two bedrooms consume the second level, along with a full bath.
  • Related Plans: Get alternate versions with house plans 871003NST and 871005NST.

This house plan has 10 pages as follows:

  1. Cover page with general details
  2. Floor plans and roof plan
  3. Maneuvering plan
  4. Elevations
  5. Section
  6. Window and door schedules
  7. Foundation, eave, bracket and stair details
  8. Flashing details
  9. Foundation plan, floor and main floor roof framing plan, roof framing plan
  10. Electrical plans

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

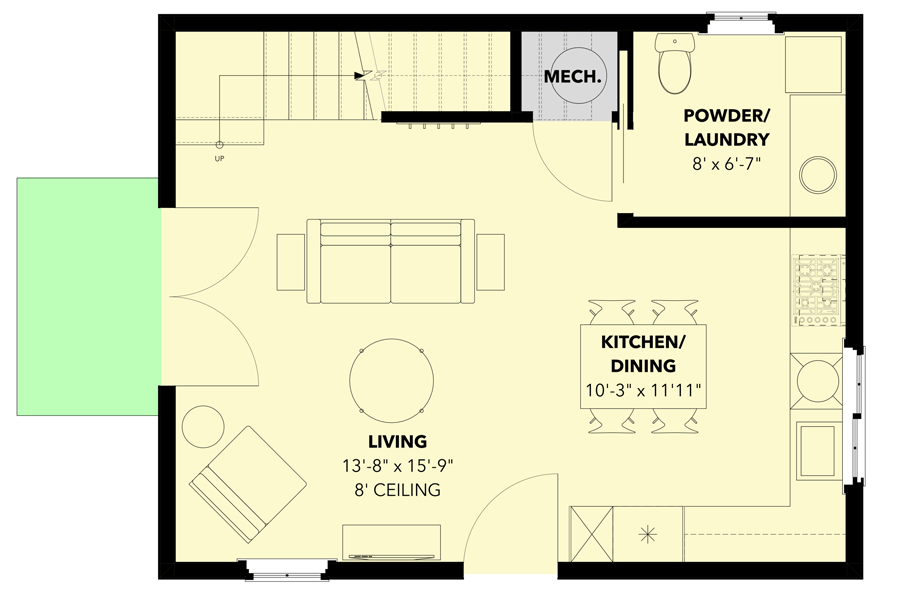

Visitable Cozy Cottage for the Budget-Minded Owner - 871007NST floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

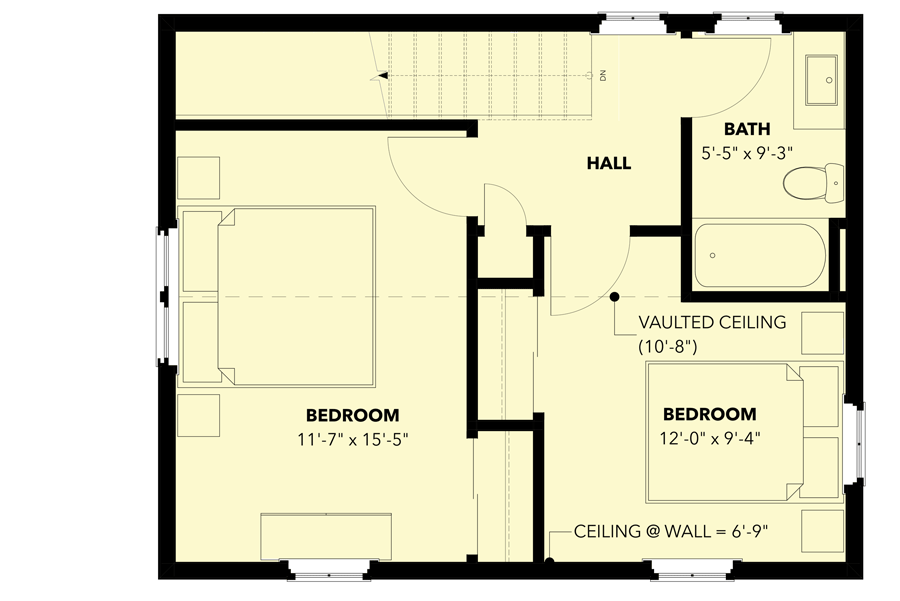

Visitable Cozy Cottage for the Budget-Minded Owner - 871007NST floor plan - 2nd Floor

Main Level - Wheelchair Maneuvering Plan

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

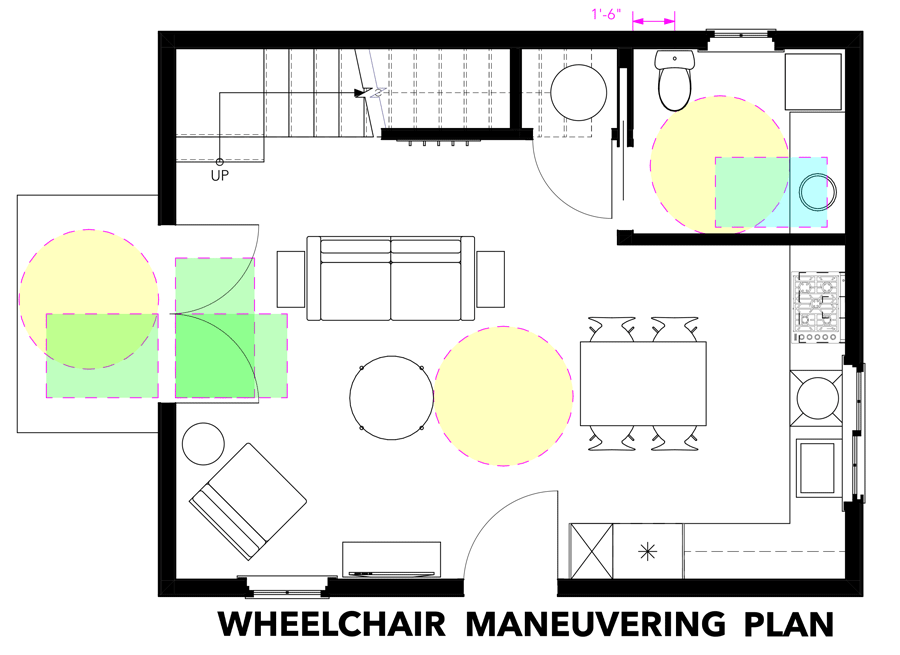

Visitable Cozy Cottage for the Budget-Minded Owner - 871007NST floor plan - Main Level - Wheelchair Maneuvering Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,000 sq. ft.
  • 1st Floor: 500 sq. ft.
  • 2nd Floor: 500 sq. ft.
  • Porch, Front: 20 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 25' 0"
  • Max ridge height: 24' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 7' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Visitable Cozy Cottage for the Budget-Minded Owner

  • 1,000

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,195
  • CAD - Single-Build $1,995
  • View all purchase option online

About This Plan

  • The rectangular design and square footage of this cozy cottage keeps the budget in mind, while the charming exterior reminds us of simpler times.  Designed as part of the "visitable" movement, it has a zero-step entry and a wheelchair-accessible main floor bathroom.
  • The kitchen features L-shaped cabinets and counters that surround a dining table which doubles as meal prep space.
  • The open-concept layout on the main floor keeps the conversation flowing between family members or guests.
  • Two bedrooms consume the second level, along with a full bath.
  • Related Plans: Get alternate versions with house plans 871003NST and 871005NST.

Floor Plans

  • Main Level

  • 2nd Floor

  • Main Level - Wheelchair Maneuvering Plan

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,000 sq. ft.
  • 1st Floor: 500 sq. ft.
  • 2nd Floor: 500 sq. ft.
  • Porch, Front: 20 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 25' 0"
  • Max ridge height: 24' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 7' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
Plan 871007NST
View this and more for this plan by visiting www.architechtecturaldesigns.com/871007NST
|
Need Help? 800-854-7852
|
