Plan 6785MG
Waterfront Inspiration
Heated S.F.
3,380
Beds
3
Baths
4
Stories
2
Cars
2
What's Included
Plan Details
  • This home plan borrows from the classic architecture found in the West Indies and perfectly suits any view rich location be it on the water or in the mountains.
  • Large windows and French doors off the rear of the house lend to the vacation feeling as the home features many amenities that give a comfortable year-round lifestyle.
  • Each bedroom has it's own bath and walk-in closet, the master suite is spacious, opening on to a spa room perfect for a hot tub or sitting room.
  • The main roof pitch is 4:12.
What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Waterfront Inspiration

  • 3,380

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

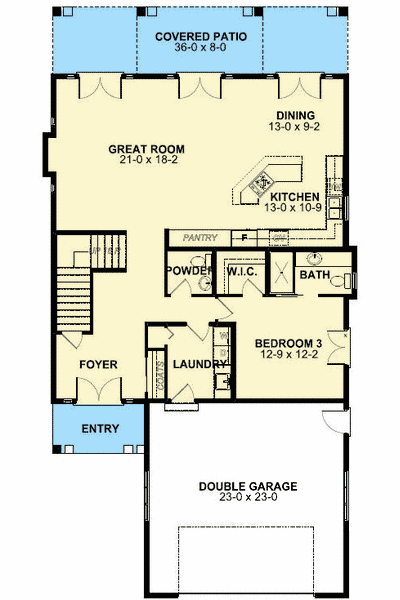

  • Main Level

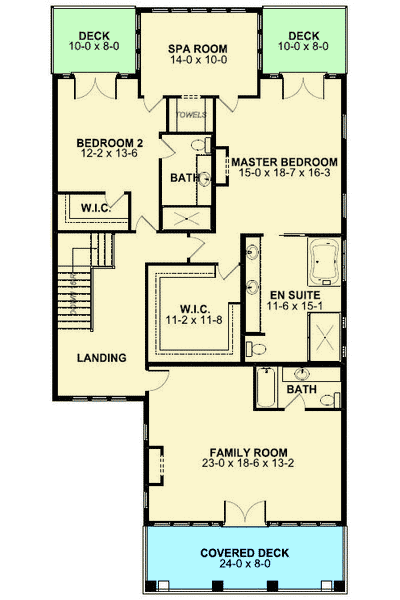

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,380 sq. ft.
  • 1st Floor: 1,535 sq. ft.
  • 2nd Floor: 1,845 sq. ft.

Dimensions

  • Width: 37' 0"
  • Depth: 70' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 1060 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
