  • This home plan presents an exceptionally friendly face with its 16-foot-long porch, an inviting front door with sidelites and transom, and an oval window.
  • Interior amenities also exude a sociable personality-a two-story foyer anchored by a majestic staircase and accented by an overhead plant shelf, living and dining rooms open to the foyer and each other, and a gather-round fireplace in the living room.
  • The spacious kitchen and family room area is suited to today's style of casual entertaining. Stretches of countertop in the kitchen provide workstations for more than one cook. Fitted with a downdraft cook top, the island serves as the cooking station and offers seating for kibitzers.
  • The family room is graced with a built-in media center and fireplace. The double-sided gas fireplace is shared with the den. Windows across the rear wall and French doors in the dining nook link the interior to nature.
  • The second floor hosts the master bedroom and bath, three additional bedrooms, a compartmentalized bath, and a bonus room. A full-service laundry room with sink, cabinets, and counter is located upstairs with the bedrooms, where most laundry is generated.
  • Related Plan: For a more country-like exterior, see house plan 6887AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Welcoming 16' Porch

  • 2,977

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,069
  • PDF - single-use $1,419
  • 5 Sets $1,569
  • 5 Sets PLUS $1,619
  • CAD - multi-use $2,838
  • View all purchase option online

About This Plan

  • This home plan presents an exceptionally friendly face with its 16-foot-long porch, an inviting front door with sidelites and transom, and an oval window.
  • Interior amenities also exude a sociable personality-a two-story foyer anchored by a majestic staircase and accented by an overhead plant shelf, living and dining rooms open to the foyer and each other, and a gather-round fireplace in the living room.
  • The spacious kitchen and family room area is suited to today's style of casual entertaining. Stretches of countertop in the kitchen provide workstations for more than one cook. Fitted with a downdraft cook top, the island serves as the cooking station and offers seating for kibitzers.
  • The family room is graced with a built-in media center and fireplace. The double-sided gas fireplace is shared with the den. Windows across the rear wall and French doors in the dining nook link the interior to nature.
  • The second floor hosts the master bedroom and bath, three additional bedrooms, a compartmentalized bath, and a bonus room. A full-service laundry room with sink, cabinets, and counter is located upstairs with the bedrooms, where most laundry is generated.
  • Related Plan: For a more country-like exterior, see house plan 6887AM.

Floor Plans

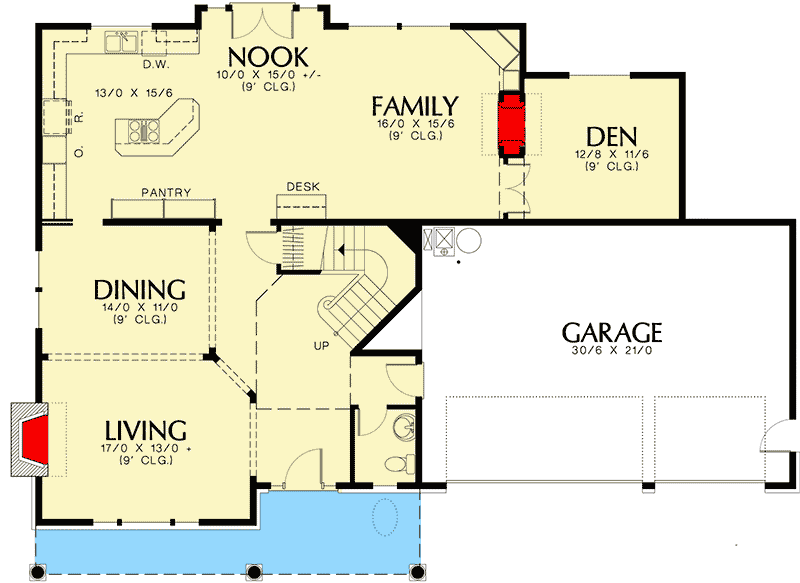

  • Main Level

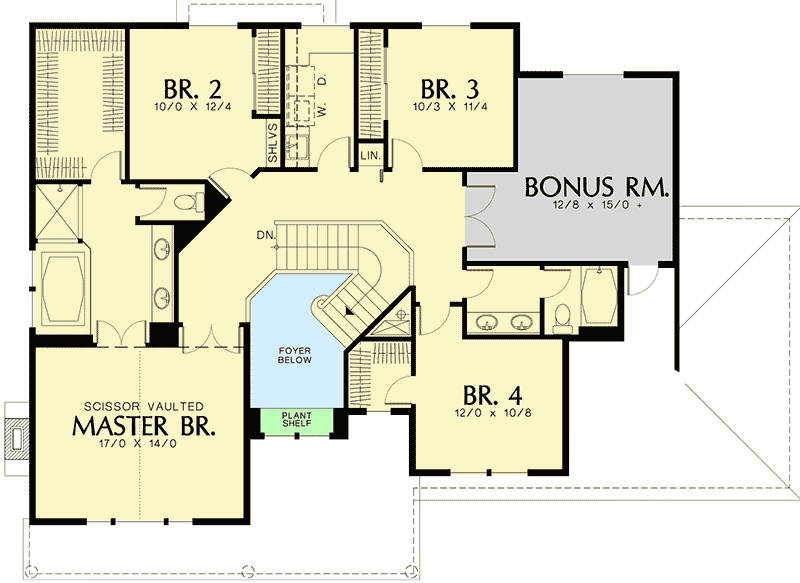

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,977 sq. ft.
  • 1st Floor: 1,570 sq. ft.
  • 2nd Floor: 1,407 sq. ft.
  • Bonus: 235 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 47' 0"
  • Max ridge height: 30' 11"

Garage

  • Type: Attached
  • Area: 661 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 2nd Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • PDF
