Well-Balanced Modern Acadian House Plan with Massive Rear Porch

Plan 56512SM

  • 3,500

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • The symmetrical front elevation provides a sense of balance on the exterior of this Modern Acadian house plan. Two dormer windows above the front porch completes the design.
  • Grand, coffered ceilings crown the great room and dining area, while both rooms enjoy a gas fireplace and views onto the massive rear porch and beyond.
  • The spacious kitchen allows for more than one cook, and a walk-in pantry is hidden behind barn doors.
  • The master bedroom offers a true oasis for the homeowner with a freestanding tub in front of an oversized shower in the ensuite. Two closets provide ample wardrobe space and a shortcut to the laundry room is an added convenience.
  • Other amenities include an office / flex space, 3-car garage attached to the rear of the home, and a 460 sq ft bonus room above the garage.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

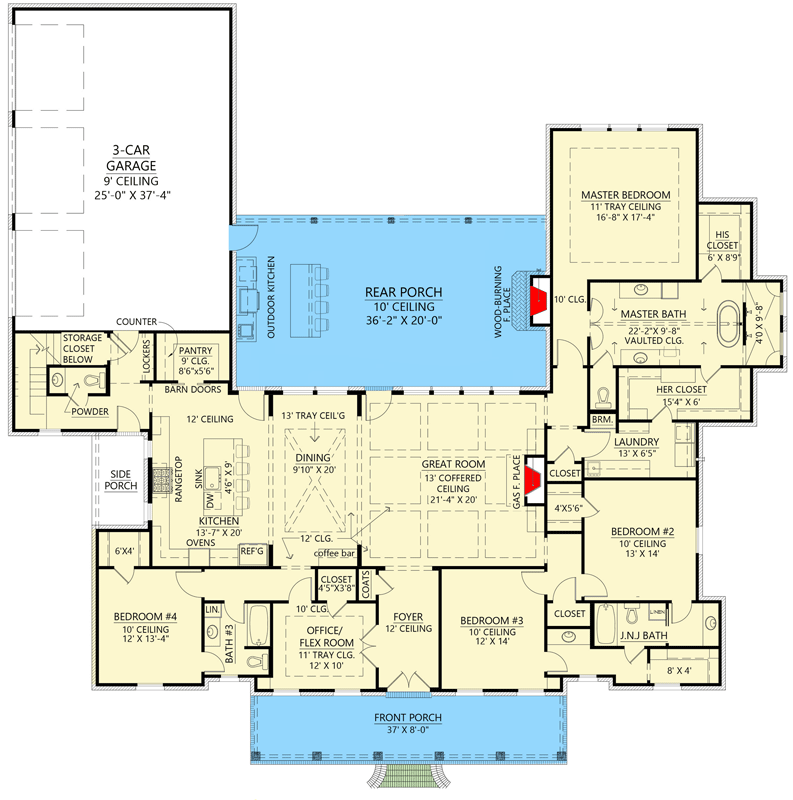

Well-Balanced Modern Acadian House Plan with Massive Rear Porch - 56512SM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

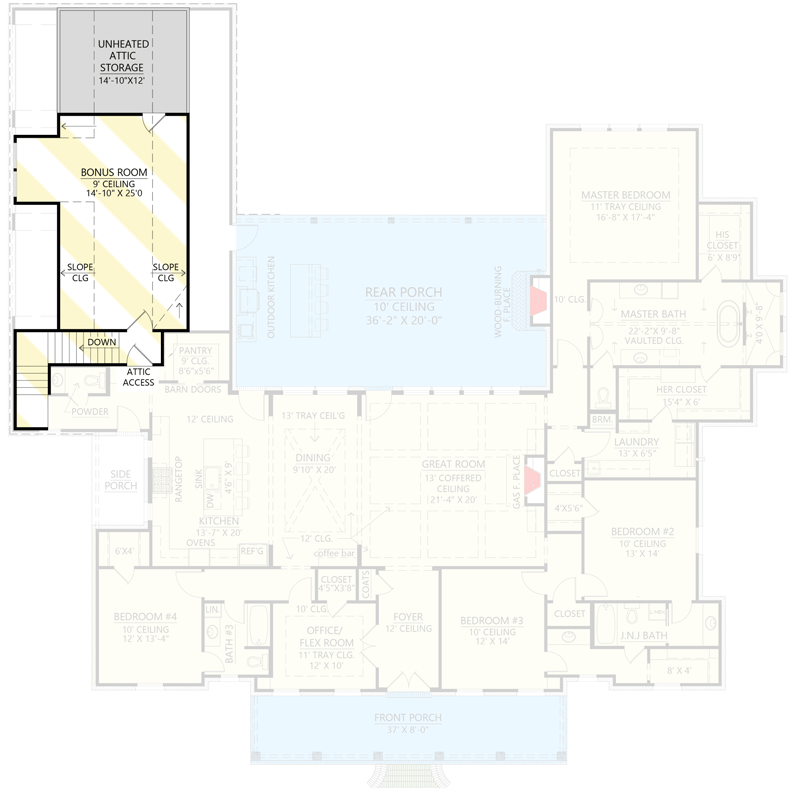

Well-Balanced Modern Acadian House Plan with Massive Rear Porch - 56512SM floor plan - 2nd Floor
