Plan 40904DB

Well-Proportioned Craftsman House Plan

Well-Proportioned Craftsman House Plan

Plan 40904DB

  • 2,255

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Sturdy columns support the front porch of this well-proportioned Craftsman house plan.
  • Flex space off the foyer lets you use the space as you wish.
  • With a marvelous open layout in back, the views stretch all the way from the kitchen thru the dining area and into the big family room with its corner fireplace.
  • All four bedrooms are on the upper floor with the graceful master suite having a compartmented walk-in closet for his and her sections.
  • Related Plans: Get alternate exteriors with house plans 40903DB, 40875DB and 40876DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

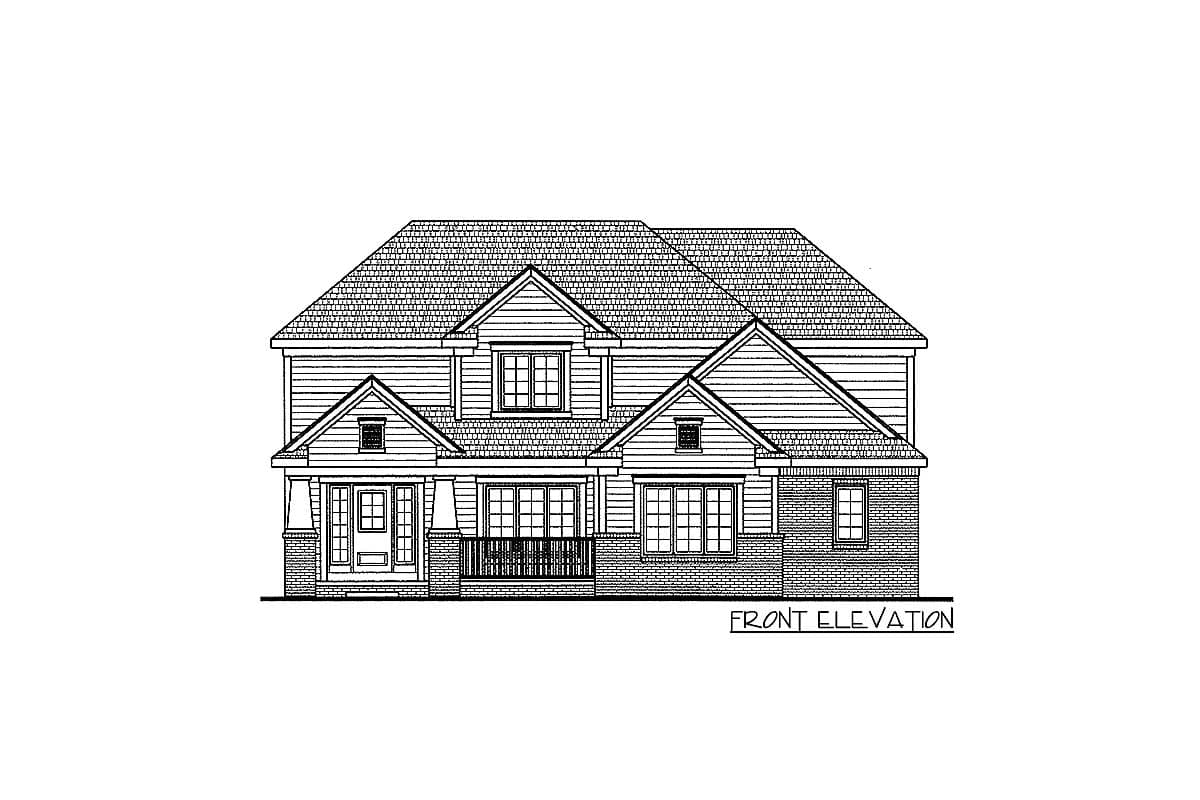

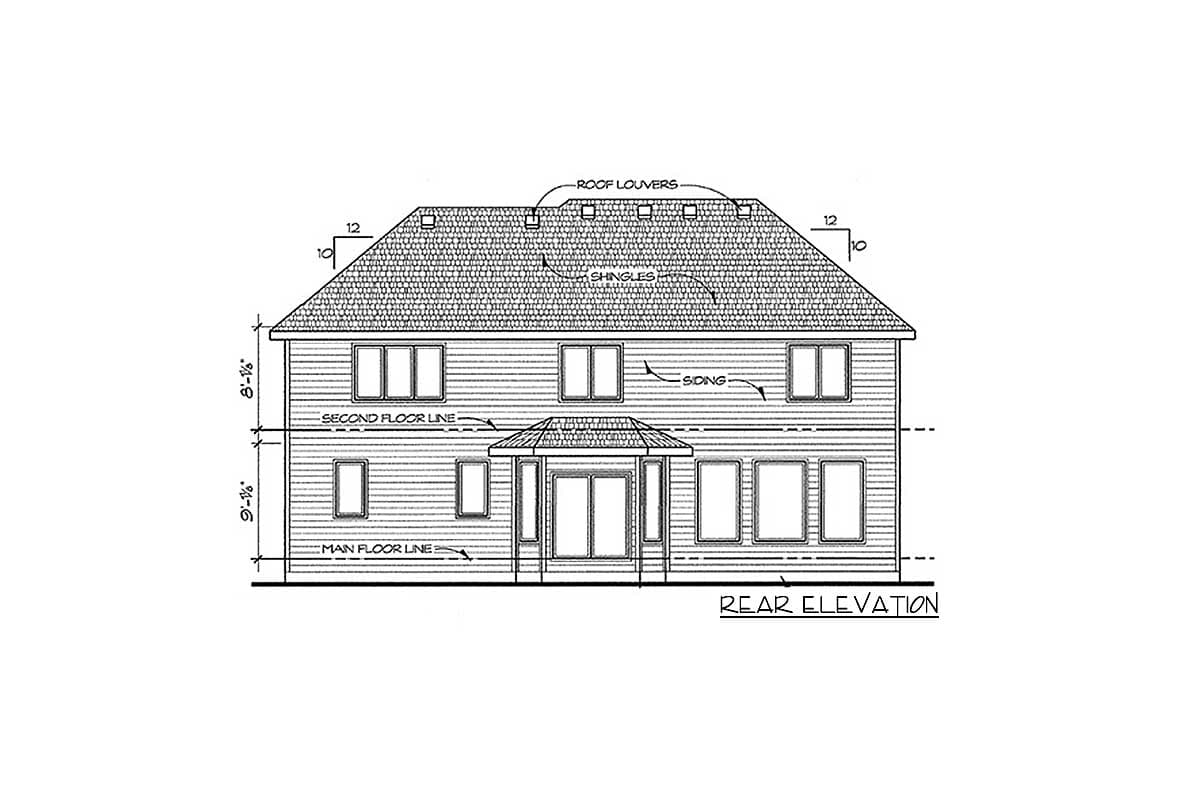

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details

Architectural Style

Plan Collections



Well-Proportioned Craftsman House Plan

  • 2,255

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $660
  • PDF - single-use $1,005
  • 5 Sets $1,130
  • 5 Sets PLUS $1,175
  • 8 Sets $1,200
  • PDF - multi-use $1,505
  • CAD $1,759
  • CAD - multi-use $2,259
  • View all purchase option online

About This Plan

  • Sturdy columns support the front porch of this well-proportioned Craftsman house plan.
  • Flex space off the foyer lets you use the space as you wish.
  • With a marvelous open layout in back, the views stretch all the way from the kitchen thru the dining area and into the big family room with its corner fireplace.
  • All four bedrooms are on the upper floor with the graceful master suite having a compartmented walk-in closet for his and her sections.
  • Related Plans: Get alternate exteriors with house plans 40903DB, 40875DB and 40876DB.

Floor Plans

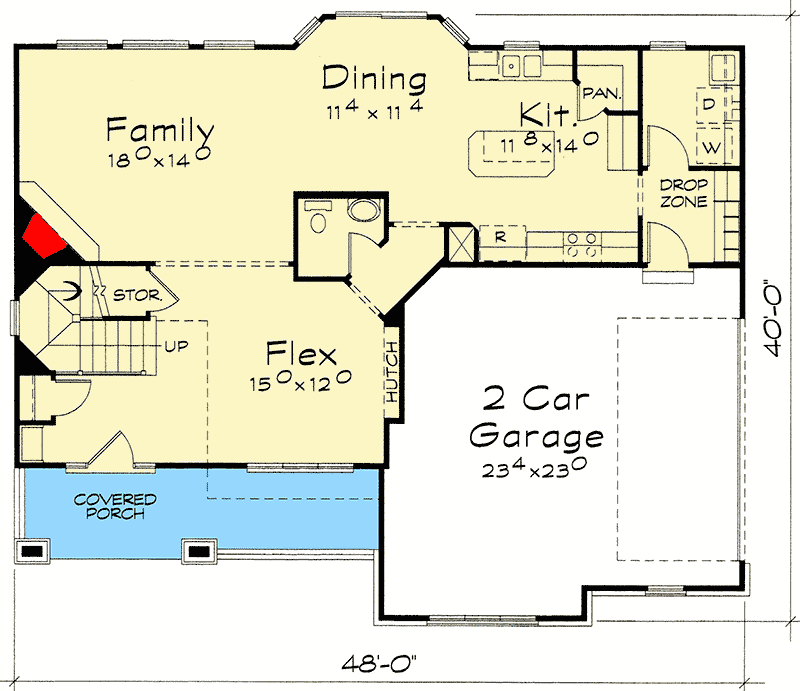

  • Main Level

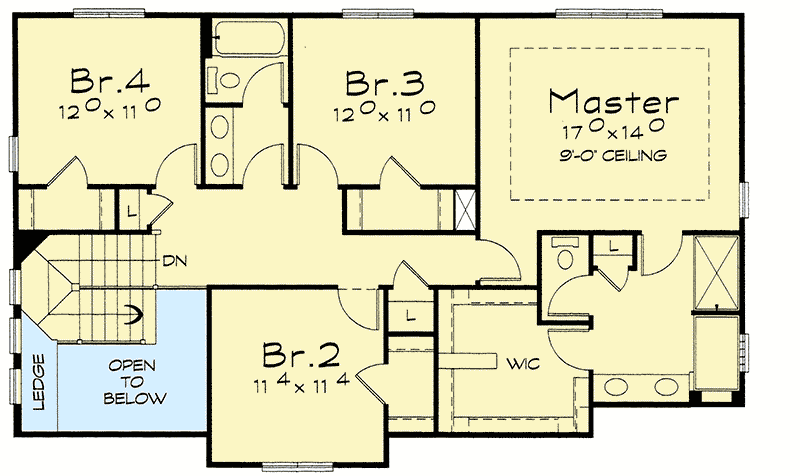

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,255 sq. ft.
  • 1st Floor: 1,065 sq. ft.
  • 2nd Floor: 1,190 sq. ft.
  • Porch, Front: 144 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 40' 0"
  • Max ridge height: 28' 11"

Garage

  • Type: Attached
  • Area: 515 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
