Plan 66210WE

Wide Lot with Unique Courtyard

4,354 4 4.5 1 3
Pageloader

Wide Lot with Unique Courtyard

Plan 66210WE

  • 4,354

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Perfect design for a wide lot.
  • This home features a unique courtyard area off of one of the guest bedrooms.
  • The expansive family room has pocket doors that will open up to the lanai and the outdoor kitchen and fire place.
  • Each bedroom is it's own suite with a private bath for each.
  • The master suite is generous with a sitting area and a large walk-in closet.

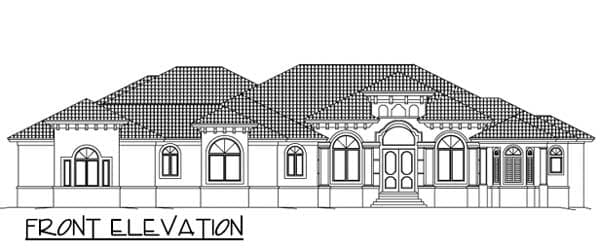

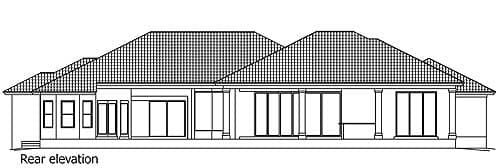

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Wide Lot with Unique Courtyard

  • 4,354

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,575
  • 8 Sets $1,660
  • Reproducible Set $1,750
  • PDF - single-use $1,750
  • CAD $1,750
  • View all purchase option online

About This Plan

  • Perfect design for a wide lot.
  • This home features a unique courtyard area off of one of the guest bedrooms.
  • The expansive family room has pocket doors that will open up to the lanai and the outdoor kitchen and fire place.
  • Each bedroom is it's own suite with a private bath for each.
  • The master suite is generous with a sitting area and a large walk-in closet.

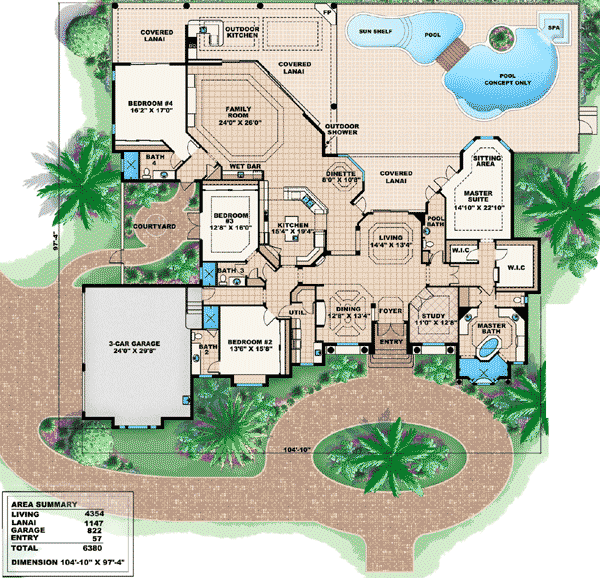

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,354 sq. ft.
  • 1st Floor: 4,354 sq. ft.
  • Lanai: 1,147 sq. ft.
  • Entry: 57 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 104' 10"
  • Depth: 97' 4"
  • Max ridge height: 23' 8"

Garage

  • Type: Attached
  • Area: 822 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
