Plan 66081WE

Wonderful Curb Appeal

Heated S.F.
2,324
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 66081WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66081WE

M-F 9am-5pm EST |

1-203-761-8500

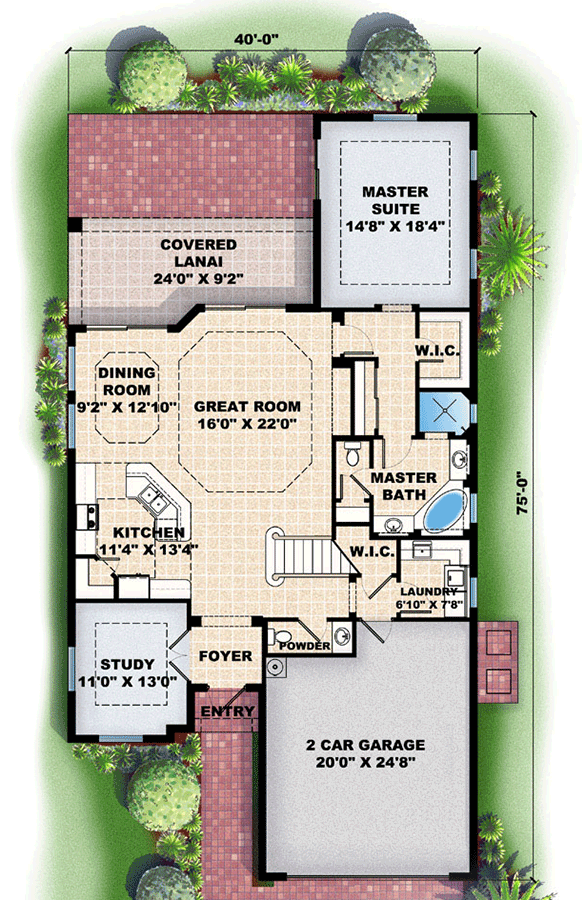

Main Level

Plan 66081WE: Wonderful Curb Appeal - Floor Plan - Main Level - Florida-Style, Mediterranean

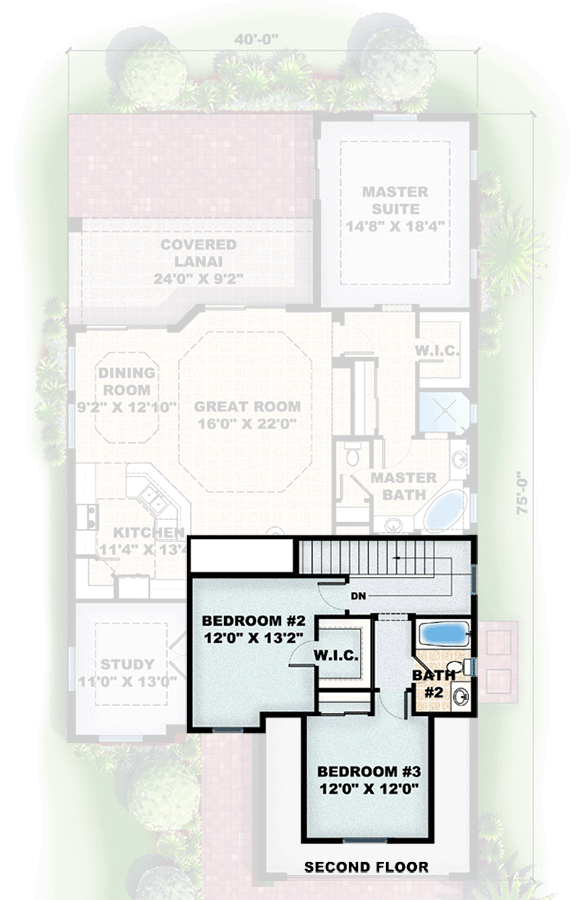

2nd Floor

Plan 66081WE: Wonderful Curb Appeal - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

  • The uniquely stylish curb appeal of this destinctive design will add to the flair of your neighborhood.
  • Special ceiling treatments can be found in almost every room on the first floor.
  • Spend quiet times relaxing in your first floor master suite or working in your private study.
  • Guests and children alike will enjoy having their own space in the two second floor bedrooms.
  • This home could be beautifully situated on a narrow lot.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,324 sq. ft.

1st Floor

1,738 sq. ft.

2nd Floor

586 sq. ft.

Lanai

227 sq. ft.

Entry

25 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

75' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,324 sq. ft.

1st Floor

1,738 sq. ft.

2nd Floor

586 sq. ft.

Lanai

227 sq. ft.

Entry

25 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

75' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry
