Plan 80836PM
Wonderful Open Floor Plan
Heated S.F.
2,042
Beds
3
Baths
1.5+
Stories
2
Cars
1
What's Included
Plan Details
  • A country front porch opens to an air lock entry foyer in this Farmhouse house plan.
  • The study lies off the foyer away from the main living area in back.
  • Connecting the dining room and living room gives you improved sightlines, whether you're in the kitchen, eating or relaxing on the couch.
  • Sliding glass doors open to the backyard.
  • All three bedrooms are upstairs where they share a huge bathroom with two pedestal sinks and a giant soaking tub plus a shower.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Wonderful Open Floor Plan

  • 2,042

    Heated s.f.

  • 3

    Beds

  • 1.5+

    Baths

  • 2

    Floors

  • 1

    Car garage

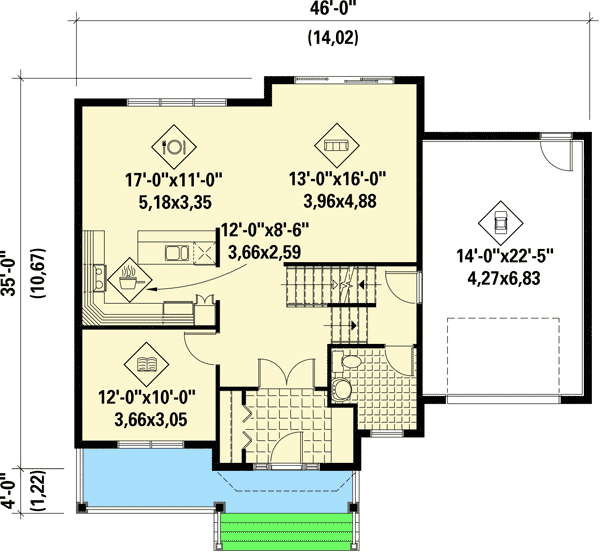

Floor Plan

  • Main Level

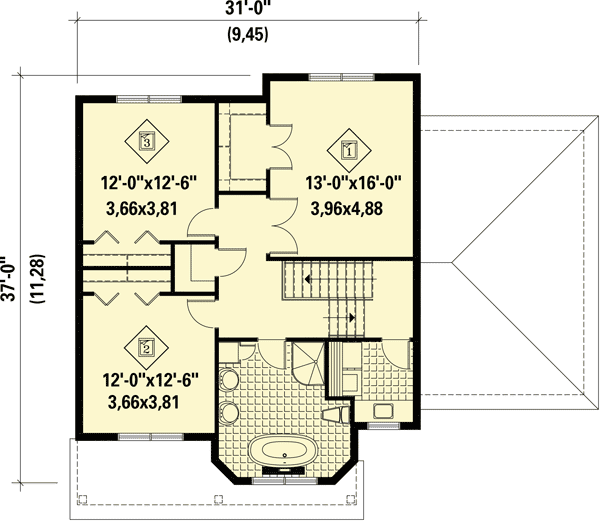

  • 2nd Floor
