Plan 80463PM

Wrap-Around Porch and Media Room

Heated S.F.
2,563
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 80463PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80463PM

M-F 9am-5pm EST |

1-203-761-8500

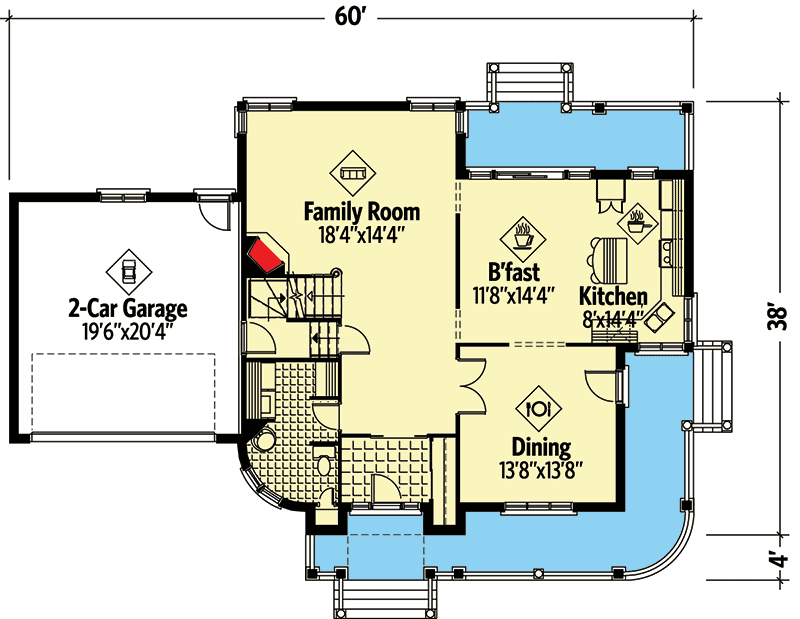

Main Level

Plan 80463PM: Wrap-Around Porch and Media Room - Floor Plan - Main Level - European

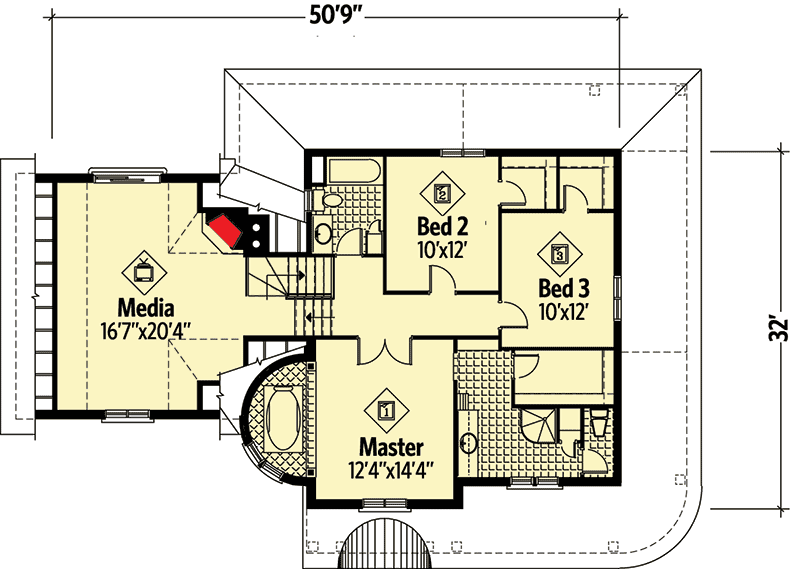

2nd Floor

Plan 80463PM: Wrap-Around Porch and Media Room - Floor Plan - 2nd Floor - European

Plan Details

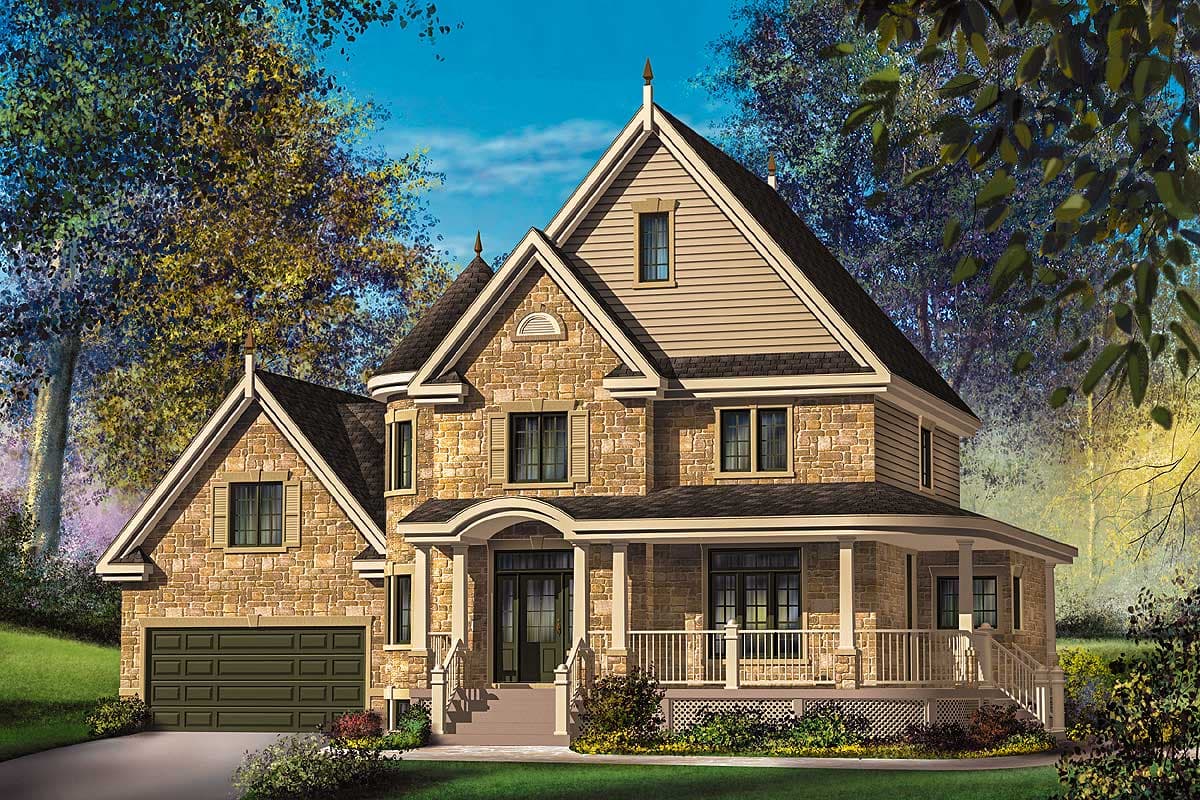

  • Elegant spires sit pretty on the roof of this European house plan and a gracious wrap-around porch has two sets of stairs.
  • The wide foyer and hallway is a real delight, you never feel cramped.
  • You can step out to the front porch from the dining room or use the sliders in the breakfast noo to reach th back porch.
  • A corner fireplace warms the main livimg room.
  • Each of the three bedrooms on the upper floor has a walk-in closet.
  • Enjoy movie night in the huge second floor media room that also has a fireplace.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,563 sq. ft.

1st Floor

1,237 sq. ft.

2nd Floor

1,326 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

38' 0"

Max Ridge Height

40' 5"

Garage

Type

Attached

Area

447 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Master Suite - Upstairs

Media Room

Wraparound Porch

Plan Collections

Canadian House Plans

Metric
