Wrap-Around Porch, Transom Windows

Plan 21124DR

  • 2,245

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A wrap-around porch and windows with arched transoms distinguish the exterior of this country design. Off the porch, the foyer is spacious enough for several pieces of furniture.
  • The foyer is enclosed by double doors that open to the hall near the fireplaced living room.
  • Featured in the spacious kitchen are a central island and a walk-in pantry. The nearby dining room opens to the porch, as does the breakfast area.
  • Upstairs, the good-sized master suite has a walk-in closet and an elegant bath with twin vanities and separate tub and shower. Another full bath and two more bedrooms complete the floor.
  • Ceilings: 9' standard first floor; 8' standard second floor.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:

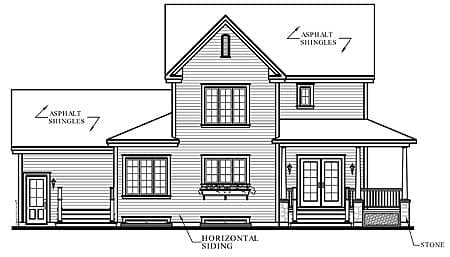

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

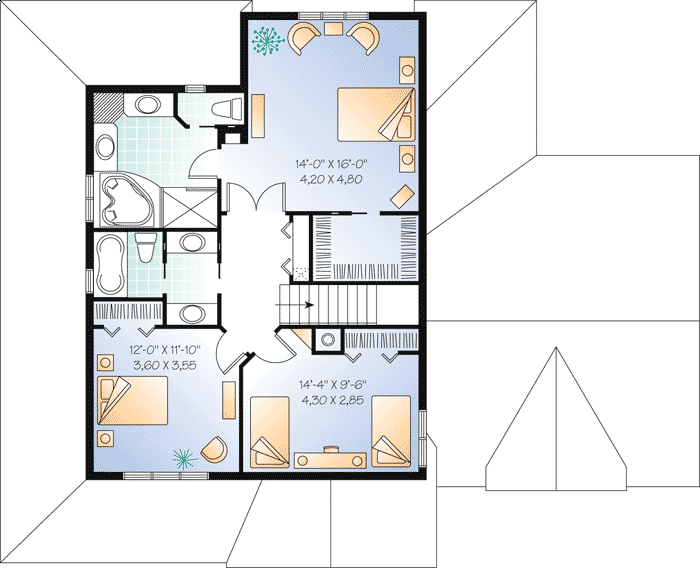

Wrap-Around Porch, Transom Windows - 21124DR floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

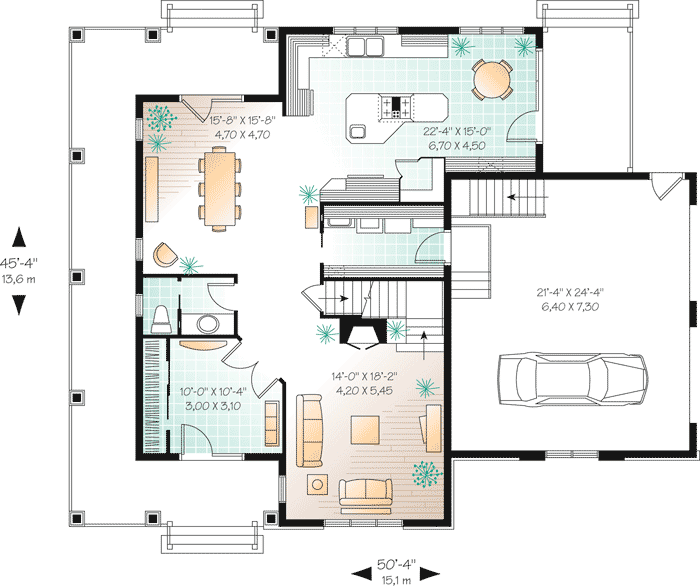

Wrap-Around Porch, Transom Windows - 21124DR floor plan - Main Level

Wrap-Around Porch, Transom Windows

  • 2,245

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • 2nd Floor

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,245 sq. ft.
  • 1st Floor: 1,229 sq. ft.
  • 2nd Floor: 1,016 sq. ft.

Dimensions

  • Width: 50' 4"
  • Depth: 45' 4"
  • Max ridge height: 31' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 567 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
