Plan 21552DR Year Round Retreat

1,878 3 2 2
Print
Compare
...

Year Round Retreat

Plan 21552DR

  • 1,878

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Metal roofing and a pergola covered deck add to the delights of this vacation home plan that could be a year round retreat. A screened porch provides additional outdoor relaxation and dining.
  • Inside, a portion of the living room has a 17'4" vaulted ceiling making the room feel bigger. The dining area and large kitchen with window sink are open to the living room as well.
  • The first floor master suite with both a tub and shower lies close to the laundry area for convenience.
  • Upstairs, two bedrooms, each with a large walk-in closet share the second bathroom. A reading loft area overlooks the living room below.
  • Related Plan: For an alternate 4 bedroom version. see house plan 21752DR.

Each plan includes the following:

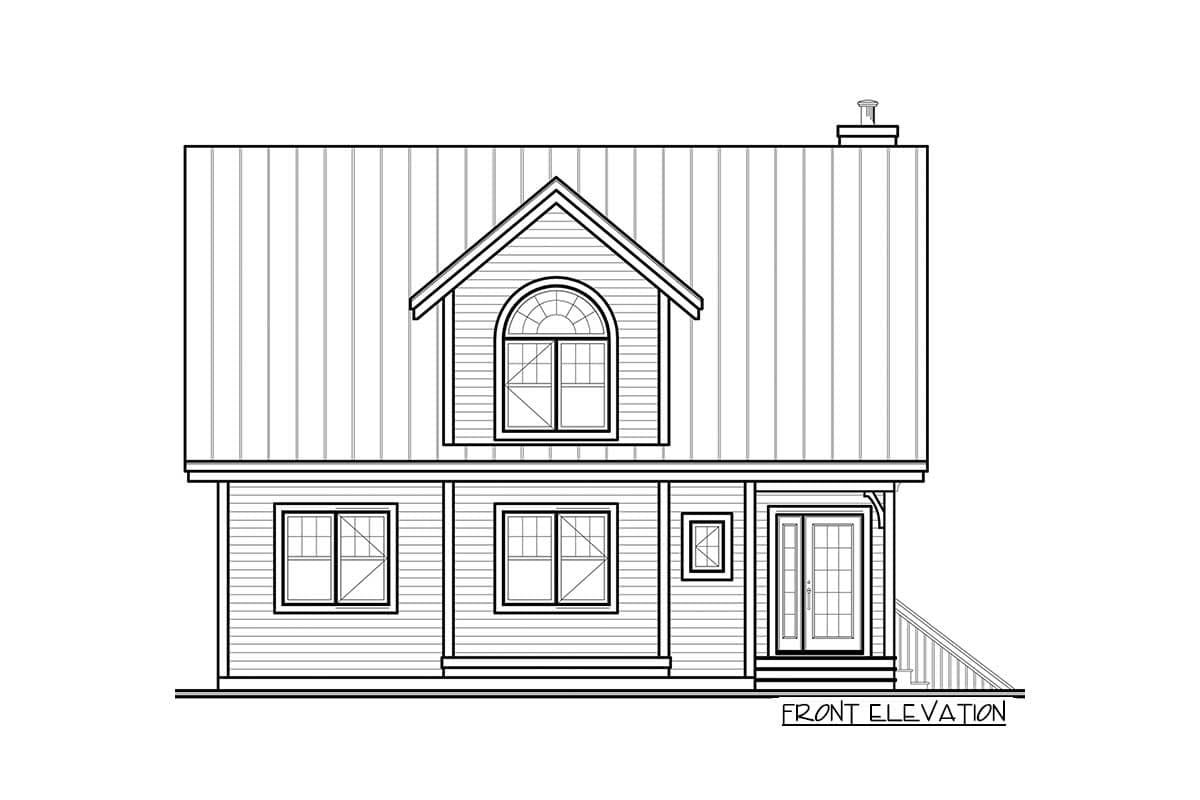

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

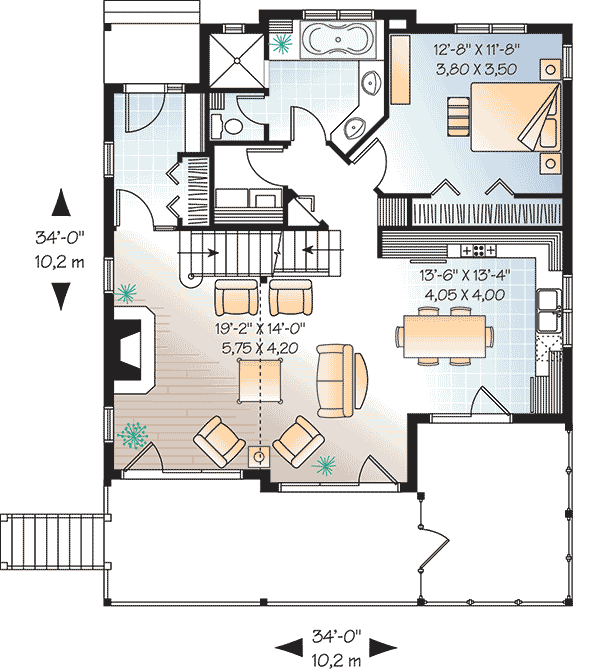

Year Round Retreat - 21552DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

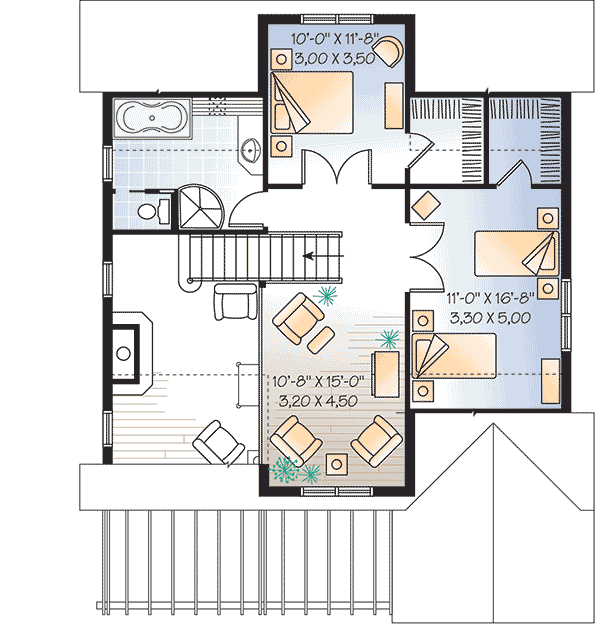

Year Round Retreat - 21552DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,878 sq. ft.
  • 1st Floor: 1,069 sq. ft.
  • 2nd Floor: 809 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 34' 0"
  • Max ridge height: 26' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Year Round Retreat

  • 1,878

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,195
  • Reproducible Set $1,195
  • 5 Sets + PDF $1,320
  • CAD - Single-Build $1,795
  • View all purchase option online

About This Plan

  • Metal roofing and a pergola covered deck add to the delights of this vacation home plan that could be a year round retreat. A screened porch provides additional outdoor relaxation and dining.
  • Inside, a portion of the living room has a 17'4" vaulted ceiling making the room feel bigger. The dining area and large kitchen with window sink are open to the living room as well.
  • The first floor master suite with both a tub and shower lies close to the laundry area for convenience.
  • Upstairs, two bedrooms, each with a large walk-in closet share the second bathroom. A reading loft area overlooks the living room below.
  • Related Plan: For an alternate 4 bedroom version. see house plan 21752DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,878 sq. ft.
  • 1st Floor: 1,069 sq. ft.
  • 2nd Floor: 809 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 34' 0"
  • Max ridge height: 26' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss

Plan 21552DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21552DR
|
Need Help? 800-854-7852
|
Plan 21552DR
