1700 Square Foot Modern Barndominium-Style House Plan
Heated S.F.
1,706
Beds
3
Baths
2.5
Stories
1
Cars
4
Tour
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

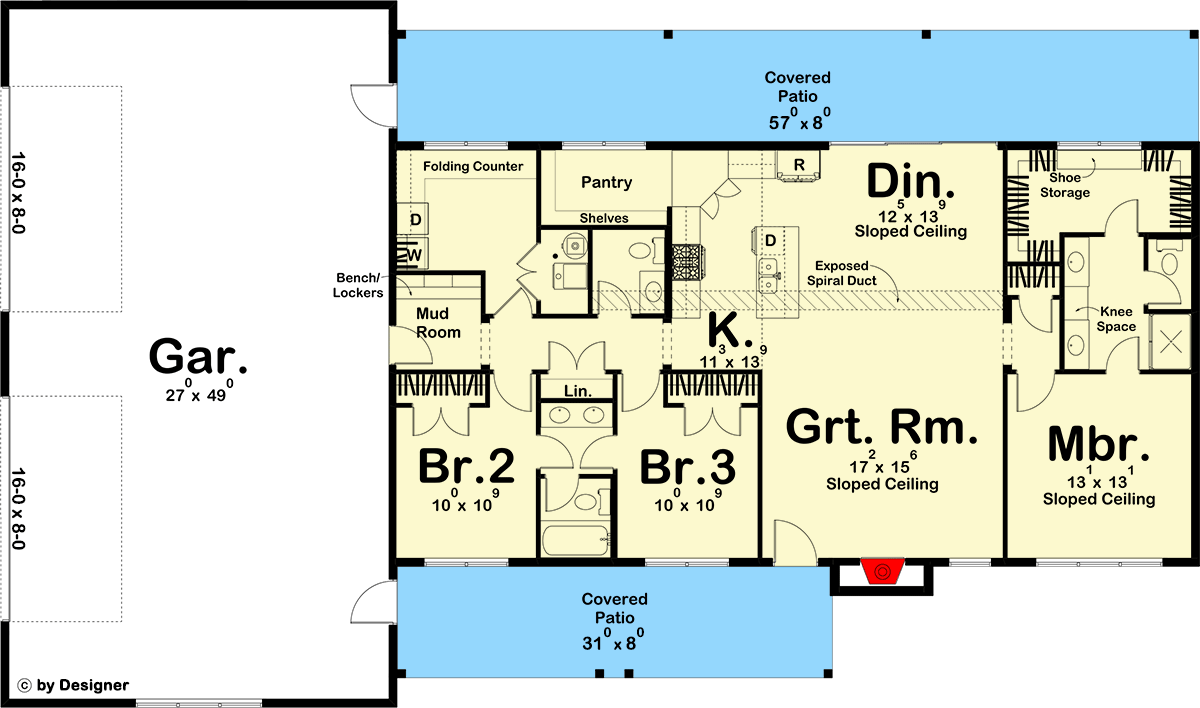

1700 Square Foot Modern Barndominium-Style House Plan - 623187DJ floor plan - Main Level

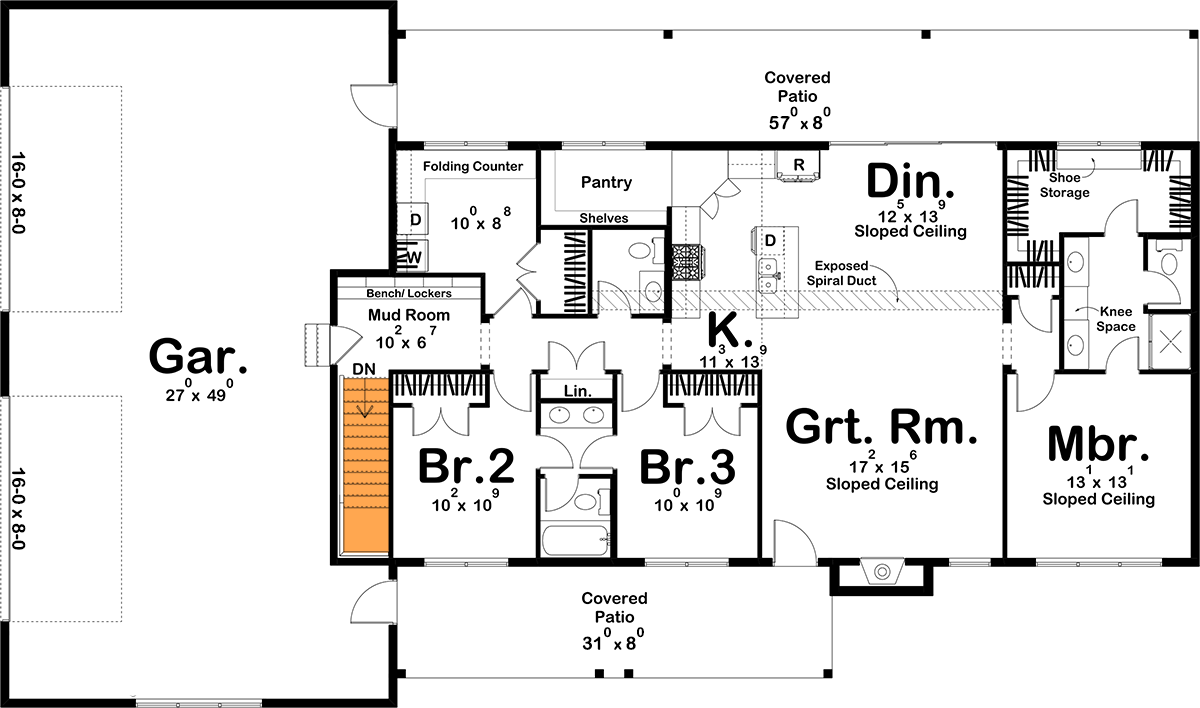

Basement Stairs Location
Reverse Floor Plan
1700 Square Foot Modern Barndominium-Style House Plan - 623187DJ floor plan - Basement Stairs Location
Plan Details
  • This modern barndominium-style house plan gives you 3 beds, 3 baths and 1706 square foot of heated living area. A mixture of metal, wood, and stone give it great curb appeal.
  • Both sides of the home have a massive covered patio, and walking inside either area welcomes you into a large open-concept area. The great room with built-in fireplace, dining area, and kitchen with a spacious walk-in pantry and kitchen island are all seen as you walk right in.
  • The master bedroom can be found on the right side of the home, with a large bathroom including double vanities and separate toilet/shower areas, as well as a large walk-in closet with built-in shoe storage.
  • Bedrooms 2 and 3 can be found near the four-car garage, both sharing a Jack and Jill bathroom just across the hall from a guest bathroom and laundry room.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1700 Square Foot Modern Barndominium-Style House Plan

  • 1,706

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 1,706 sq. ft.
  • 1st Floor: 1,706 sq. ft.

Dimensions

  • Width: 85' 0"
  • Depth: 50' 0"
  • Max ridge height: 17' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1385 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
