Plan 421517CHD
2-Story Contemporary Home Plan with Study and Main Bedroom on the First Floor
Heated S.F.
2,323
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • The side-entry garage is considerate of curb appeal on the front elevation of this 2-Story Contemporary home plan that delivers 3 bedrooms and 2.5 baths.
  • Tall ceilings soar above the living area, which is flanked by a study and eat-in kitchen. The kitchen island extends into a built-in table with seating for eight.
  • French doors near the dining room connect with a 21'4" by 12' covered patio for grilling and dining outdoors.
  • The sizable main bedroom includes a 5-fixture bathroom and walk-in closet that links to the laundry room.
  • Upstairs, bedrooms 2 and 3 share a Jack-and-Jill bathroom and a bonus loft adds a flexible space to the design.
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story Contemporary Home Plan with Study and Main Bedroom on the First Floor

  • 2,323

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

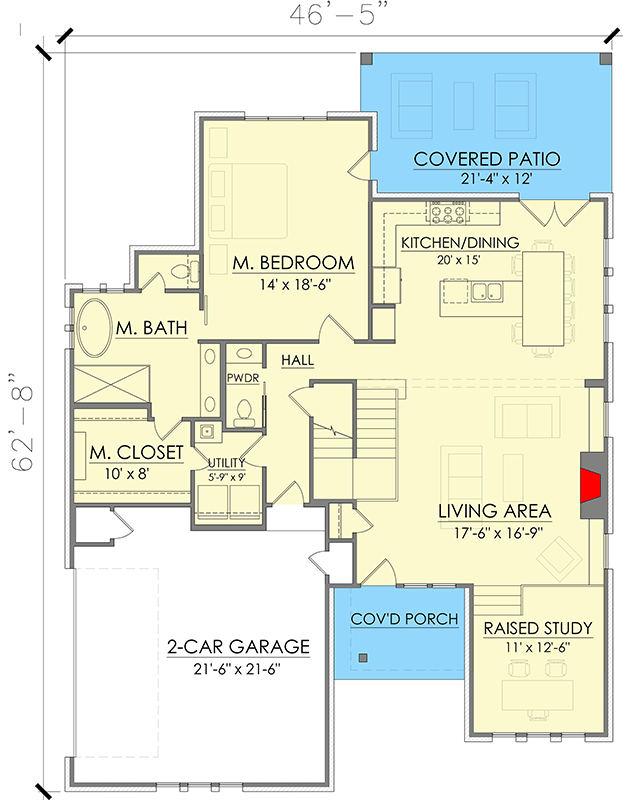

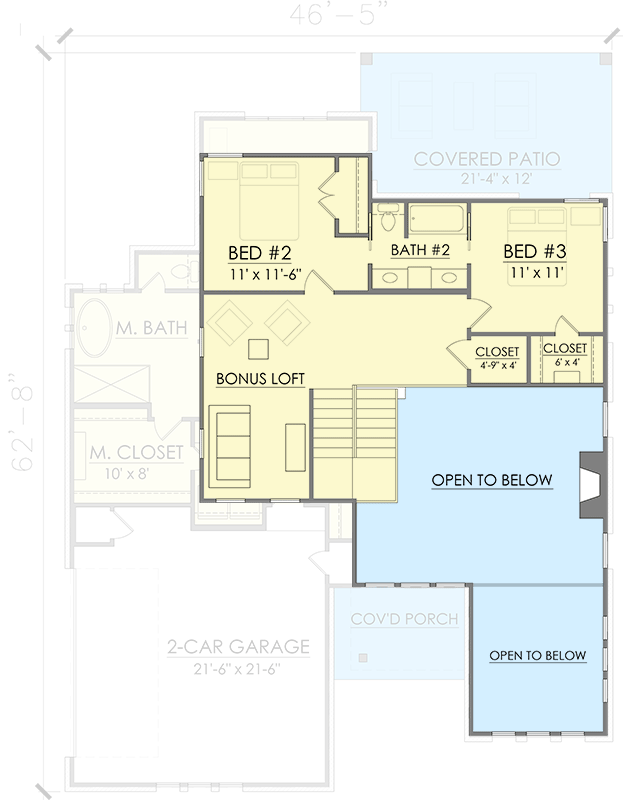

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,323 sq. ft.
  • 1st Floor: 1,615 sq. ft.
  • 2nd Floor: 708 sq. ft.

Dimensions

  • Width: 46' 5"
  • Depth: 62' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" LIVING ROOM 20' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
