Plan 744511ABR
3-Bed Contemporary Tudor Cottage House Plan with Detached Garage - 1614 Sq Ft
Heated S.F.
1,614
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • This contemporary Tudor-inspired house plan gives you 1,614 square feet of heated living space and either 2 or 3 bedrooms depending on how you use the flex room.
  • A pair of windows and a door are on the back wall of the vaulted great room, giving you views and natural light. The space opens to the kitchen with large island that comfortably seats four and the dining room with views to the back.
  • The right side of the home is dedicated to bedrooms with the primary bedroom with walk-in closet and four-fixture bath in back and the other bedroom in front. Laundry is tucked away in a hall closet that leads you to the side covered porch where you will also find the detached garage.
  • Related Plan: Get a smaller version in reverse orientation with house plan 744510ABR (1,527 sq ft)
What's Included
  • Cover Sheet
  • Specs and Notes
  • Foundation Plan
  • Detailed Floor Plan(s)
  • Exterior Elevations
  • 3D Ortho Views & Cross Sections
  • Roof Plan
  • Framing Plan
  • Electrical Layout Plan
  • Window/Door/Cabinet Schedules
  • Notes/Typical Sections/Framing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Contemporary Tudor Cottage House Plan with Detached Garage - 1614 Sq Ft

  • 1,614

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

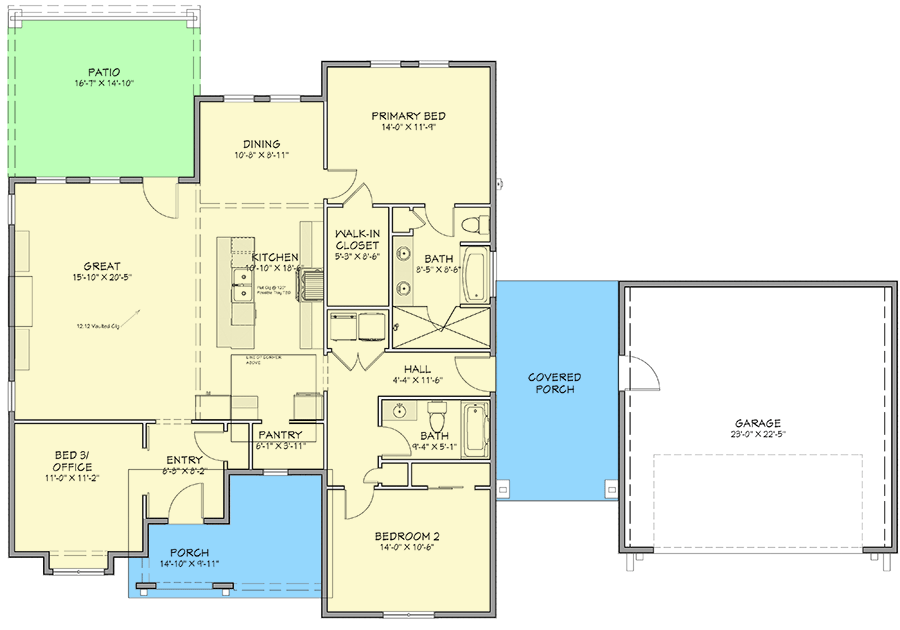

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,614 sq. ft.
  • 1st Floor: 1,614 sq. ft.

Dimensions

  • Width: 76' 9"
  • Depth: 50' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Detached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 10 on 12
