4-Bed Southern House Plan with Split Bedrooms - 2004 Sq Ft
Heated S.F.
2,004
Beds
4
Baths
3
Stories
1
Cars
2
Plan Details
  • The timeless exterior of this 4-bedroom, Southern house plan consists of brick and board and batten siding. A single dormer completes the design.
  • The living room is filled with natural light, while a central fireplace serves as the focal point. The adjoining kitchen boasts a large island with a double-bowl sink, and a formal dining room is situated near the foyer.
  • On your way to the master suite, you'll pass a cozy study, with views to the back patio. The master bedroom features an elongated en suite with dual vanities, a toilet room, and walk-in closet.
  • Two family bedrooms occupy the right side of the home, and share the full bath that separates them.
  • A fourth bedroom is just inside from the 2-car garage, which offers a quieter space for a guest or boomerang kid.
  • Related Plan: Get an alternate exterior with house plan 510202WDY.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed Southern House Plan with Split Bedrooms - 2004 Sq Ft

  • 2,004

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

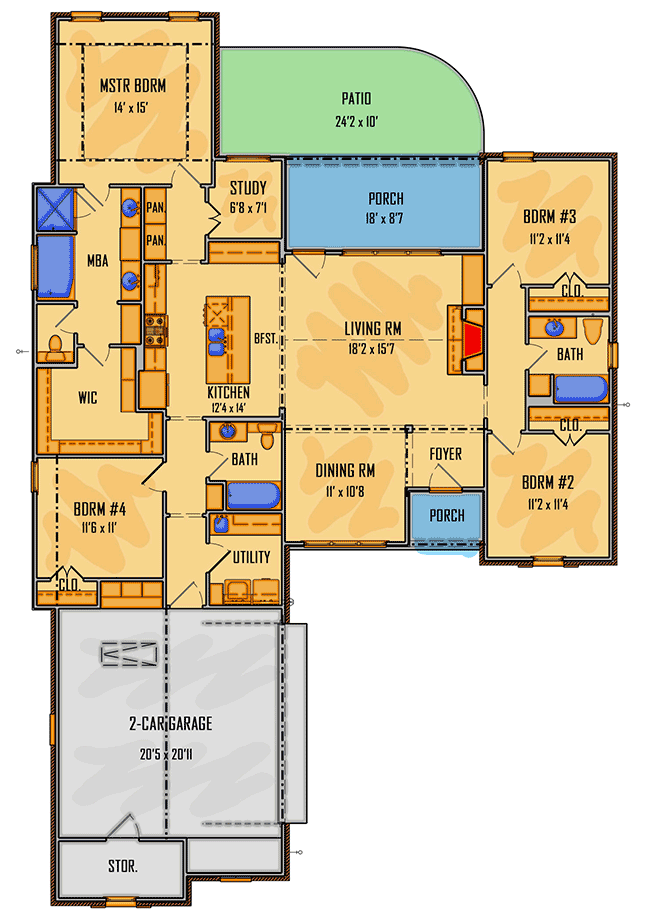

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,004 sq. ft.
  • 1st Floor: 2,004 sq. ft.

Dimensions

  • Width: 53' 4"
  • Depth: 81' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 555 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
