5002 Square Foot Mountain Craftsman House Plan with Lower Level Expansion
Heated S.F.
5,002
Beds
4-5
Baths
3.5 - 5.5
Stories
2
Cars
4
Plan Details
  • A wonderful mix of stone, stucco and wood give this Craftsman home an eye-catching exterior.
  • Views go straight back to the huge open great room that shares space with the kitchen and dining room. With a huge food pantry and home office close by, you have everything at your fingertips.
  • Sliding glass doors in the main floor master suite lead to the rear deck with both covered and uncovered portions. Both the master bathroom and walk-in closet with its own island are there to pamper homeowners.

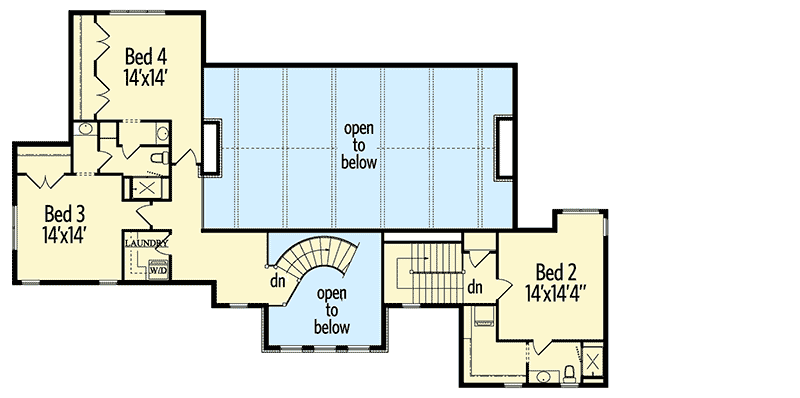

  • The main staircase serves bedrooms 3 and 4 with their own laundry room and a back staircase takes you to a private guest suite that works well as an in-law suite.

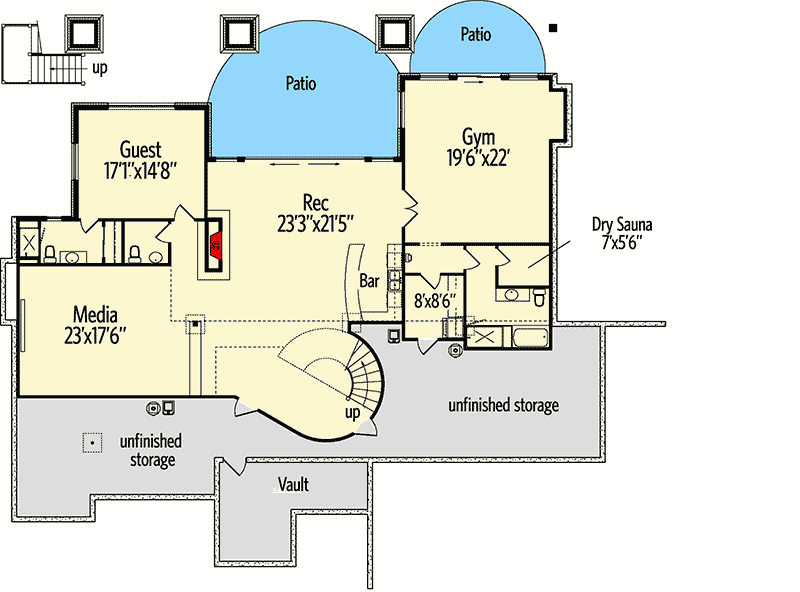

  • As an added bonus, the plans come with a walkout basement giving you an additional 2,557 square feet of finished space and additional storage. Note that this is not part of the total living area calculation. A home gym complete with dry sauna and a big media room can all be yours if you finish this space off.
What's Included

  • Cover Page
  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5002 Square Foot Mountain Craftsman House Plan with Lower Level Expansion

  • 5,002

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

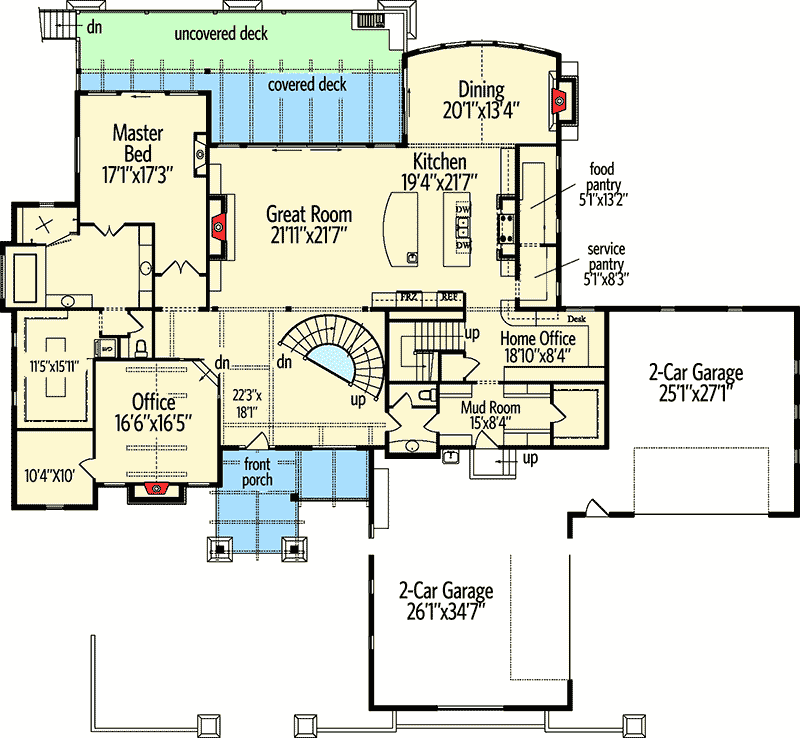

Floor Plan
