Plan 9365EL
EXCLUSIVE
Cedar Shingle Facade
Heated S.F.
3,682
Beds
4
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • Cedar shingles and a front porch give this traditional home great curb appeal. The entry foyer is flanked by a study to the right, a formal dining area to the left and a great room just ahead.
  • The kitchen with center island is open to the great room for easy entertaining and the casual breakfast nook has views to the back yard. A laundry room and mud room with garage access are conveniently located off the kitchen.
  • Another great feature of this home plan is the first floor master bedroom suite with master bath that includes a spa tub, dual vanity sinks and a spacious walk-in closet.
  • The upper level has three additional bedrooms, two baths, a game room and a bonus room for future expansion.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan

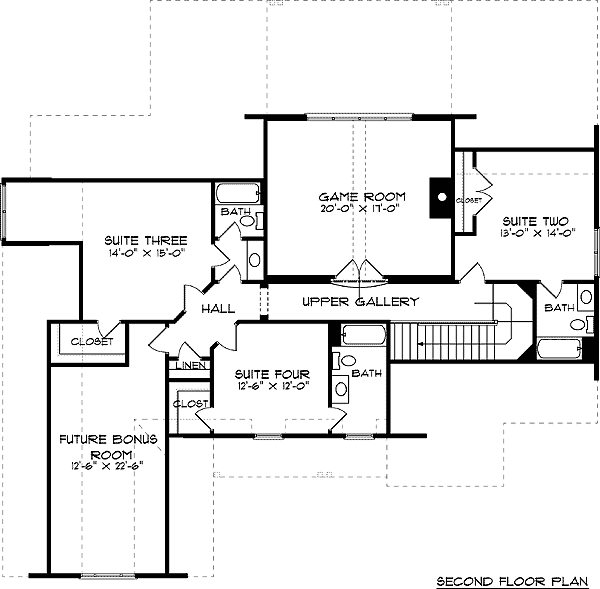

  • Second Floor Plan (if applicable)
  • Roof Framing Plan

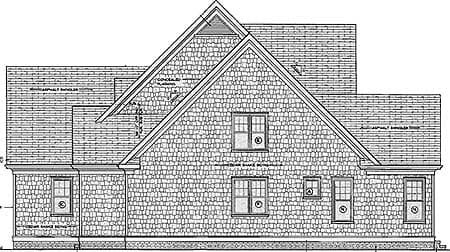

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
