Plan 135164GRA
Craftsman Garage Apartment Plan with an RV Bay
Heated S.F.
1,233
Beds
1
Baths
2.5
Stories
2
Cars
3
Plan Details

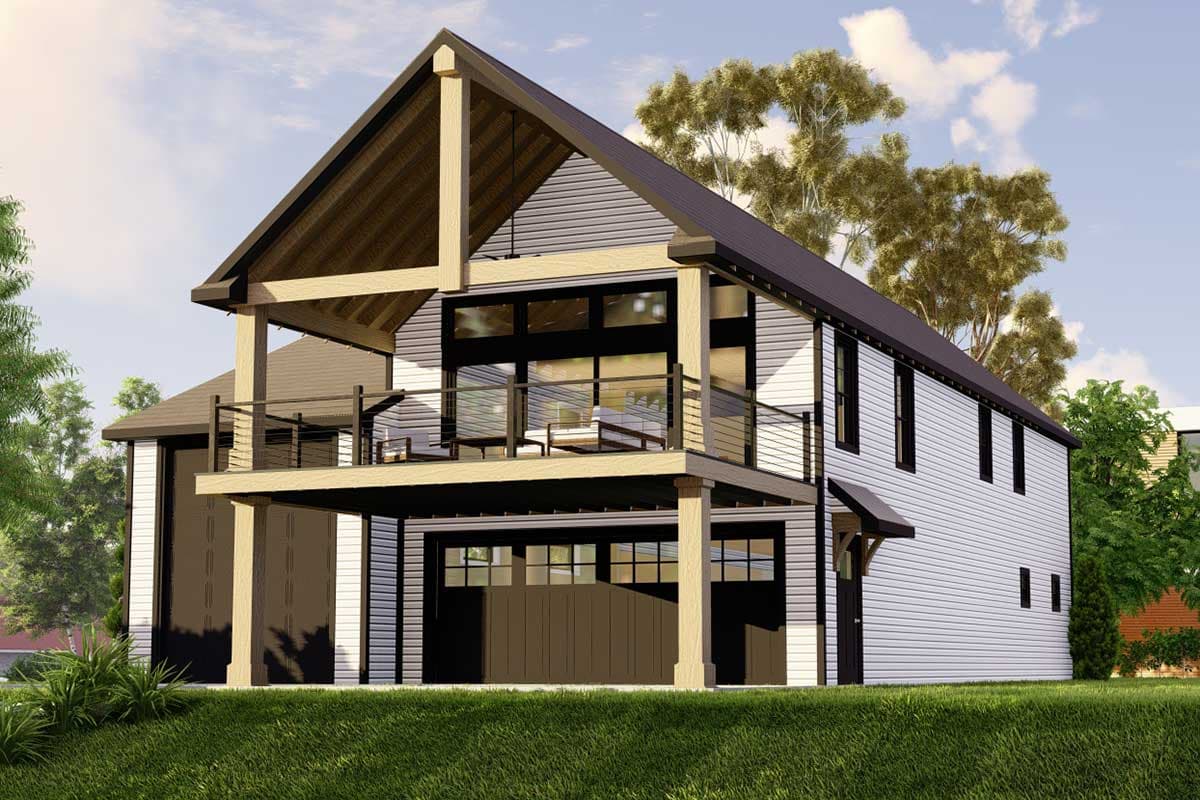

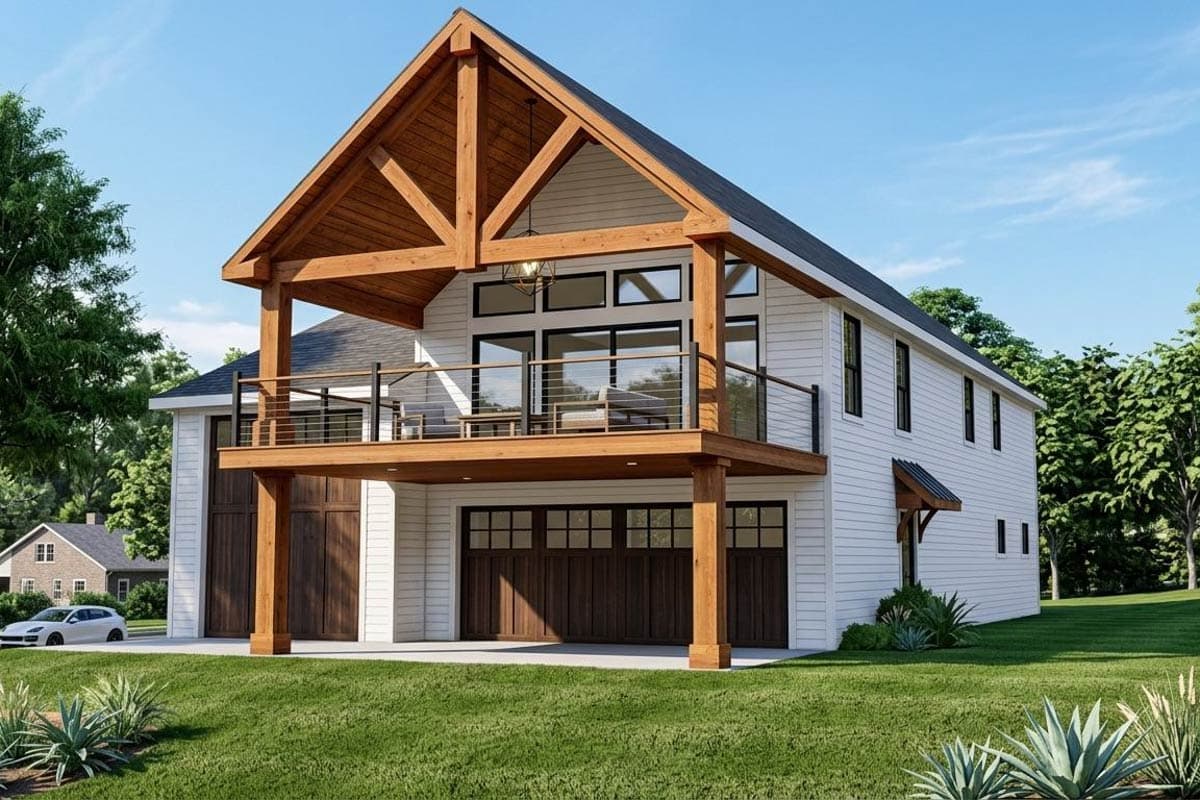

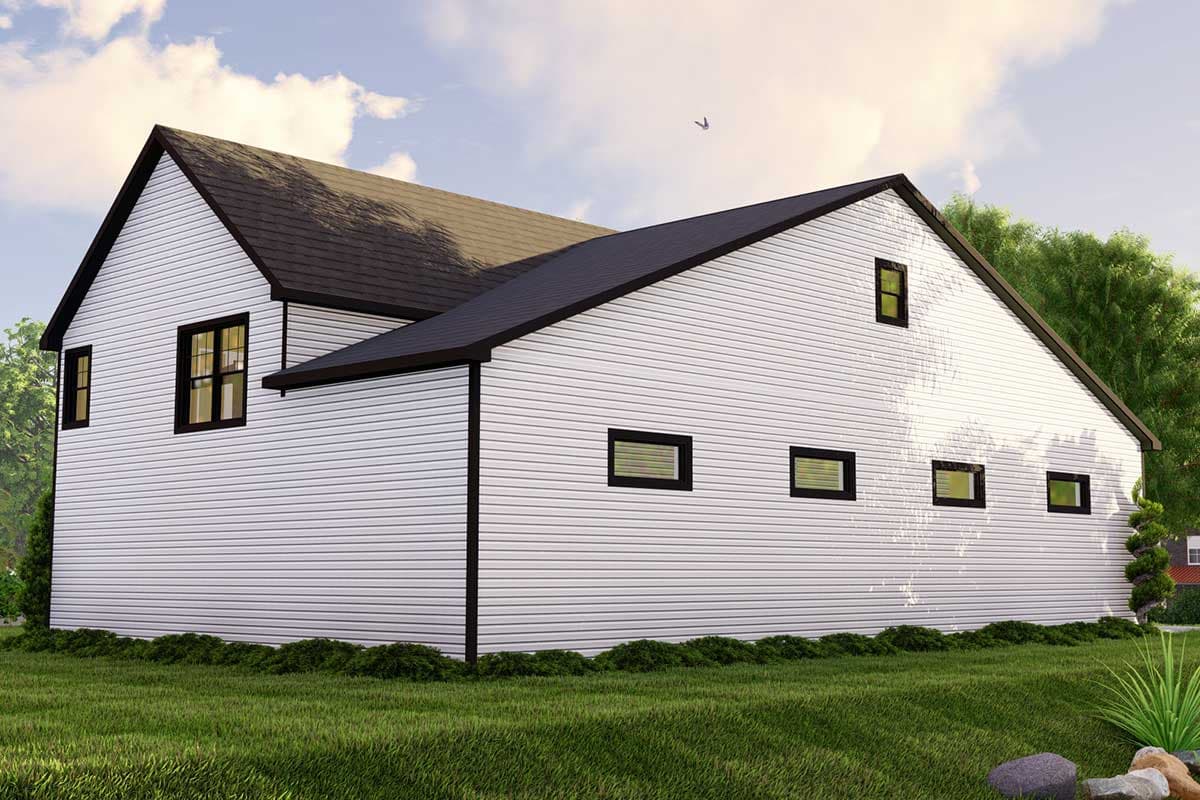

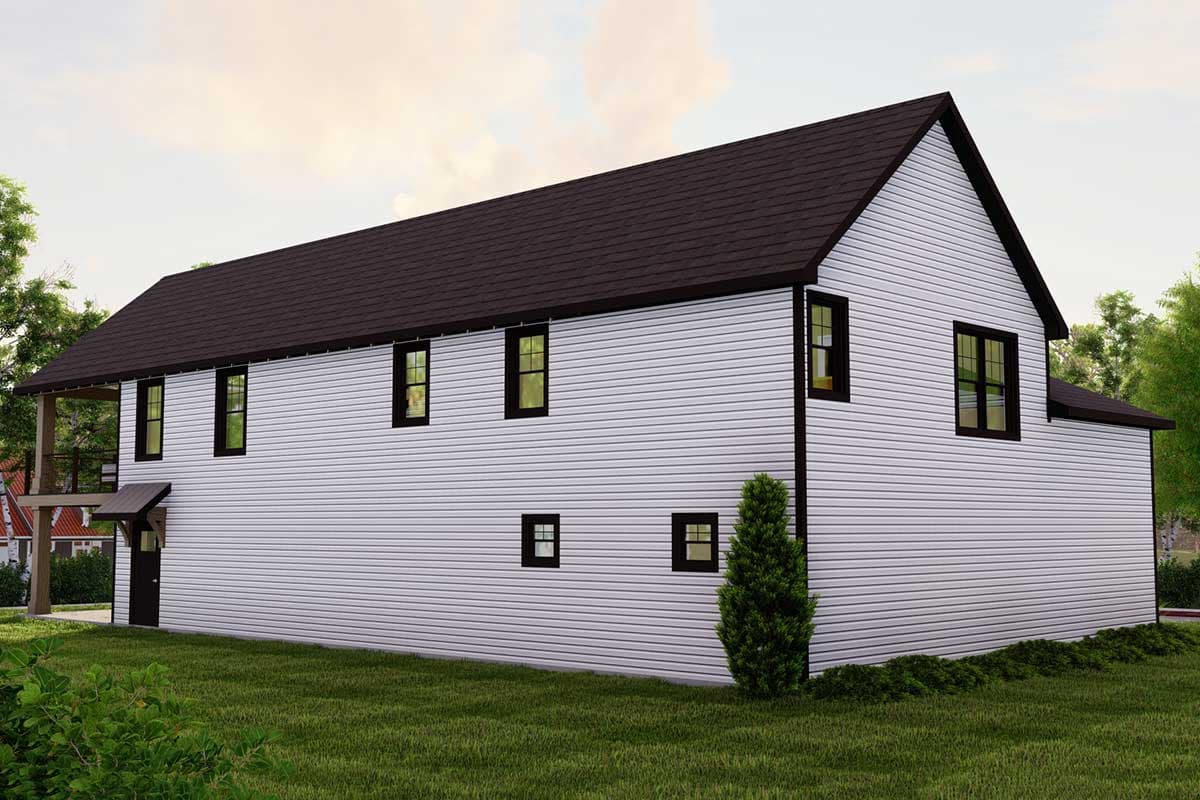

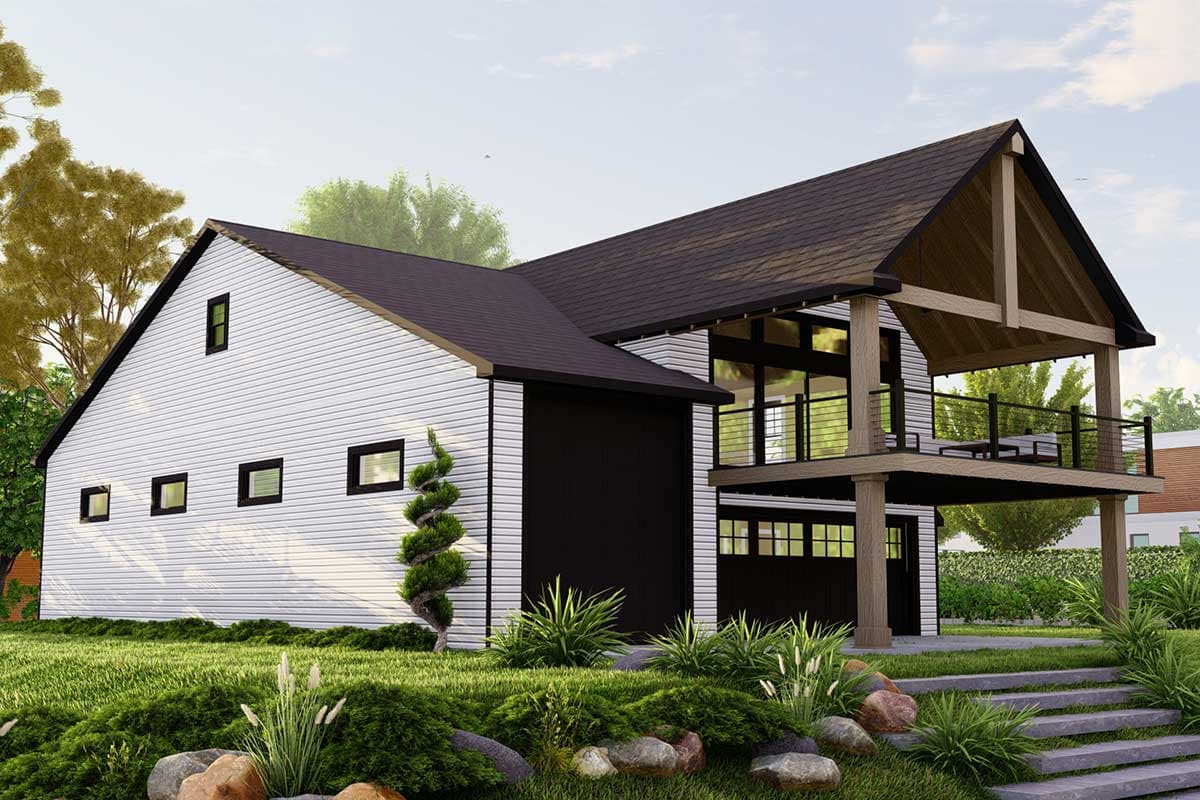

  • This Craftsman garage apartment plan features a cross-gable roof with horizontal siding wrapping around the entire structure.
  • The lower level is consumed by a massive, 3-car garage that includes an oversized (10' by 12') door. A 3/4 bathroom and laundry room can also be found on the main level.
  • Upstairs, a cathedral ceiling crowns the living room and continues above the covered deck.
  • The open kitchen includes an island and plenty of workspace. A pantry is located in the nearby hallway, across from a powder bath with a washer and dryer.
  • The bedroom is tucked towards the rear and features a walk-in closet and 4-fixture bath with a custom tile shower.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Garage Apartment Plan with an RV Bay

  • 1,233

    Heated s.f.

  • 1

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

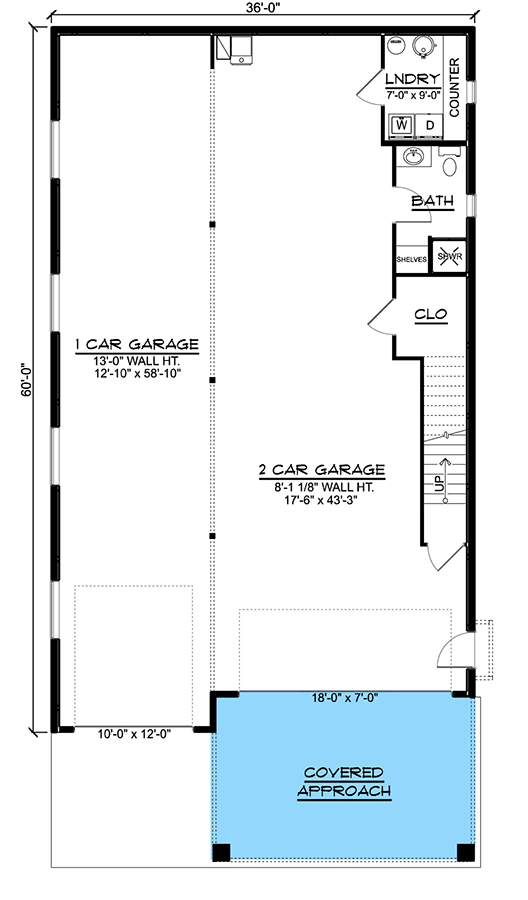

  • Main Level

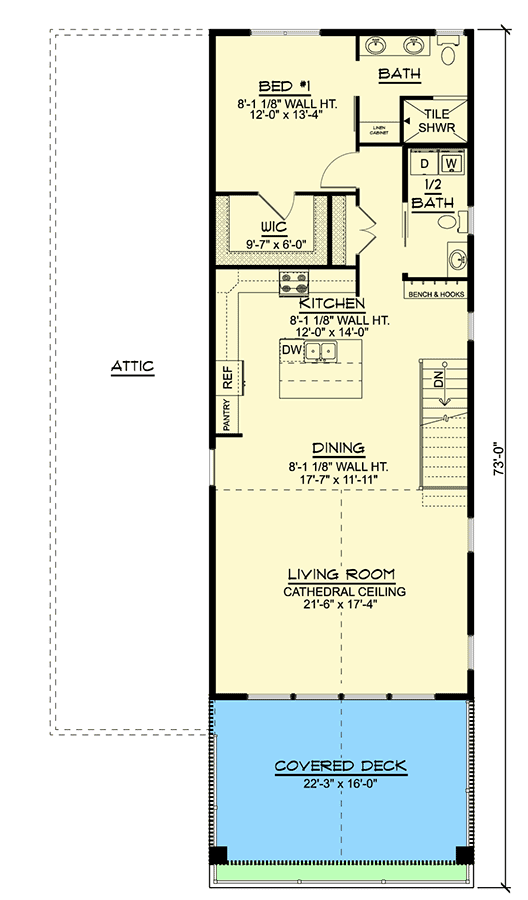

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,233 sq. ft.
  • 2nd Floor: 1,233 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 73' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 2094 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
