Exclusive 4-Bed Southern Traditional House Plan with Split Bedrooms
Heated S.F.
2,204
Beds
4
Baths
3
Stories
1
Cars
3
What's Included
Plan Details
  • Forward-facing gables pair up with a hip and valley roof on the exterior of this 4-bedroom, Southern traditional house plan. The protruding 3-car garage creates a convenient parking courtyard in front of the home.
  • The foyer drops you off directly into the open-concept living space, highlighting a spacious living room, dining area, and rear porch that extends onto a patio.
  • An oversized opening offers an easy flow between the living room and kitchen, where a large island houses a double-bowl sink. In the neighboring hallway, discover a cabinet pantry across from a quaint study.
  • The master bedroom is situated apart from the other bedrooms, and includes a 5-fixture bath with a walk-in closet. Three additional family bedrooms are sprinkled throughout the design, conveniently located next to full bathrooms.
  • Additional space in the garage is ideal for storage, or a workbench, and the laundry room can be found just inside from the garage.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

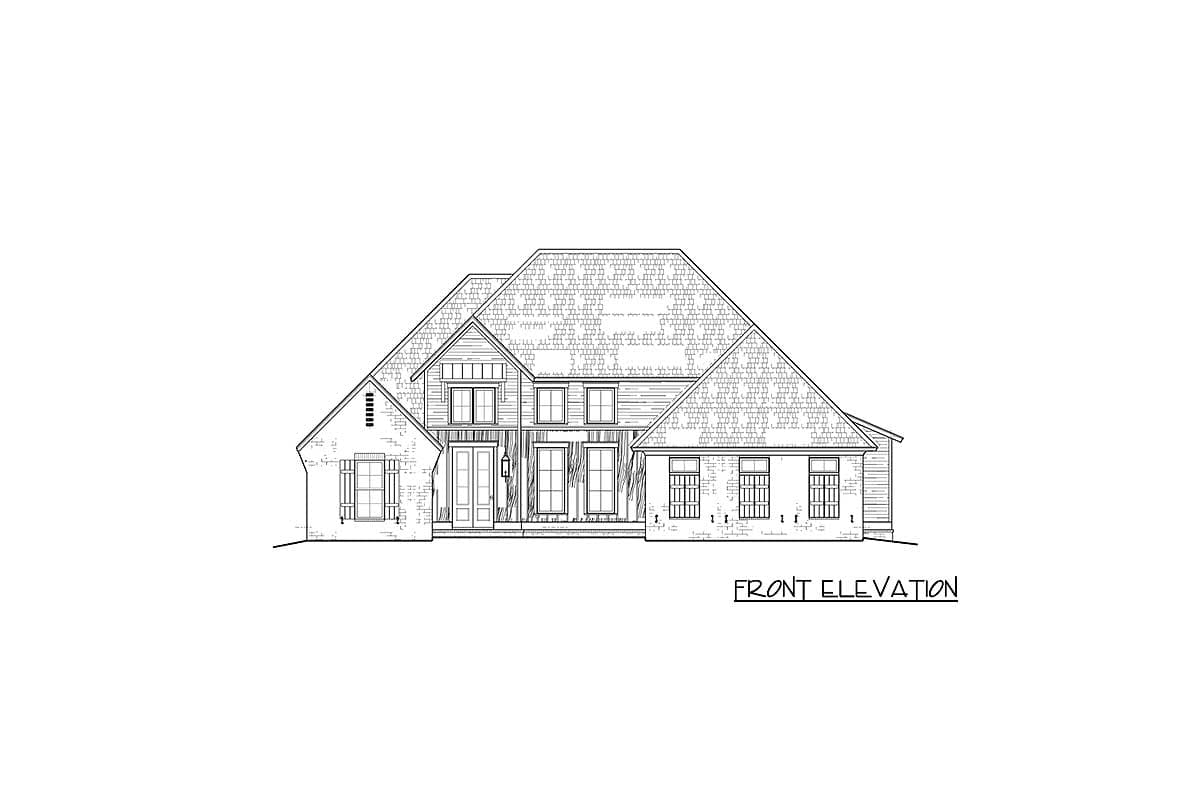

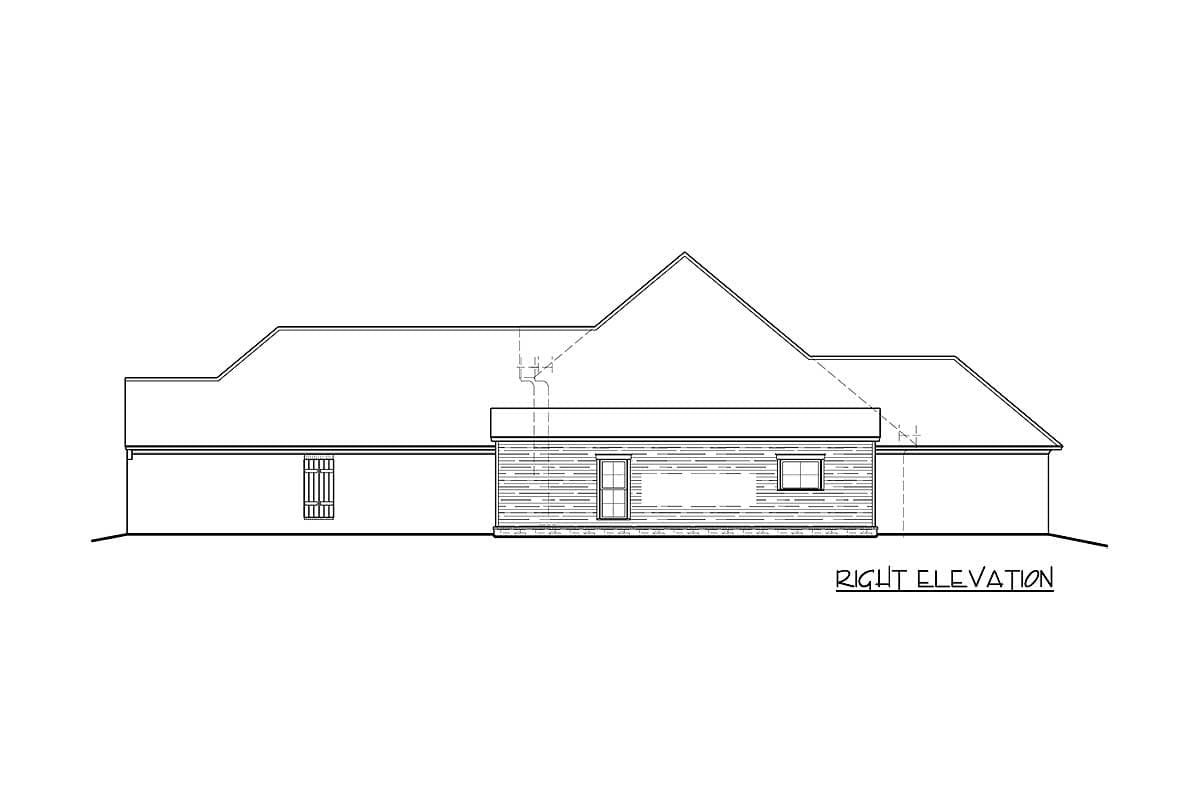

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive 4-Bed Southern Traditional House Plan with Split Bedrooms

  • 2,204

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

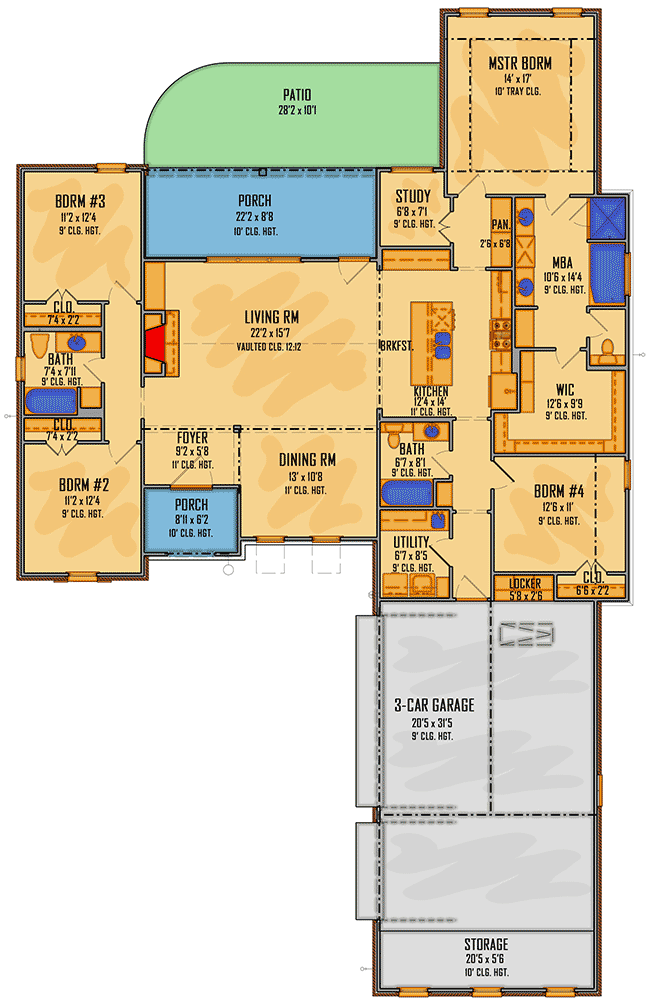

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,204 sq. ft.
  • 1st Floor: 2,204 sq. ft.

Dimensions

  • Width: 58' 9"
  • Depth: 94' 2"
  • Max ridge height: 26' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 797 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
