Exclusive Colonial 4-Bed House Plan with Second Level Master
Heated S.F.
2,524
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This 4-bedroom, colonial house plan provides a smart layout creating great flow throughout the home.
  • Past the foyer with a dining and family room on either side, discover an open floor plan, consisting of the kitchen, breakfast room, and living room, which forms a comfortable center for everyday living.
  • Upstairs, the master bedroom has a private bathroom with dual vanities and a walk-in closet.
  • Across the hall, three additional bedrooms are situated across from the second-level laundry room, and share a 4-fixture bathroom.
  • Enjoy the outdoors from a deck located off the kitchen.
What's Included
  • Cover Sheet with abbreviations
  • General construction notes
  • Foundation plan with details
  • Dimensioned floor plan (includes window, plumbing fixture locations, etc.)

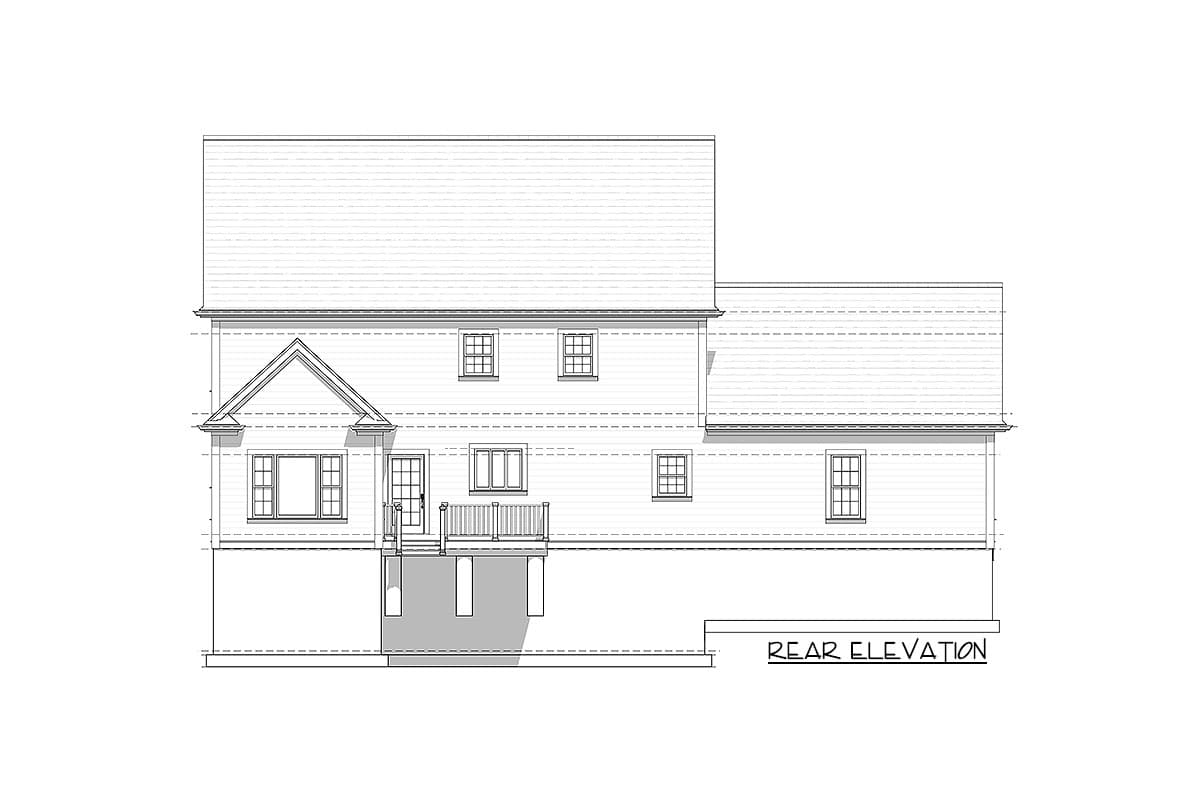

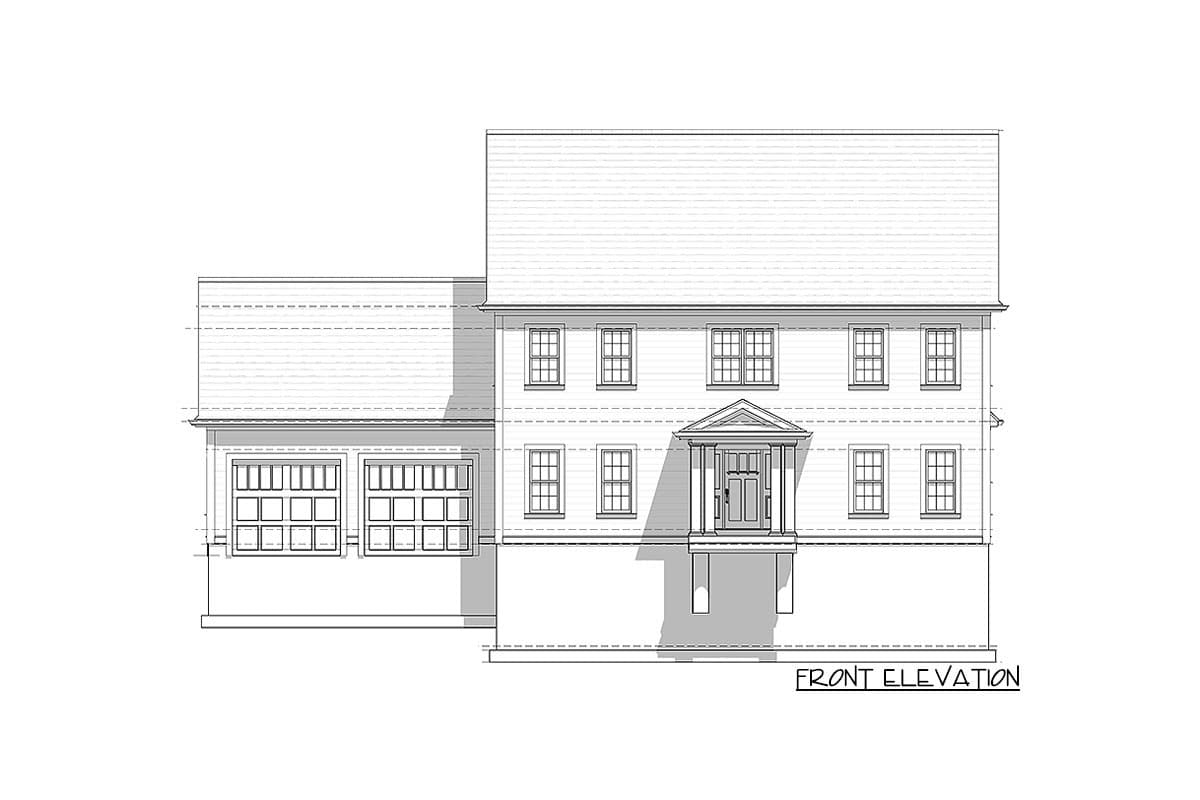

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Deck framing plan for each floor
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Colonial 4-Bed House Plan with Second Level Master

  • 2,524

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

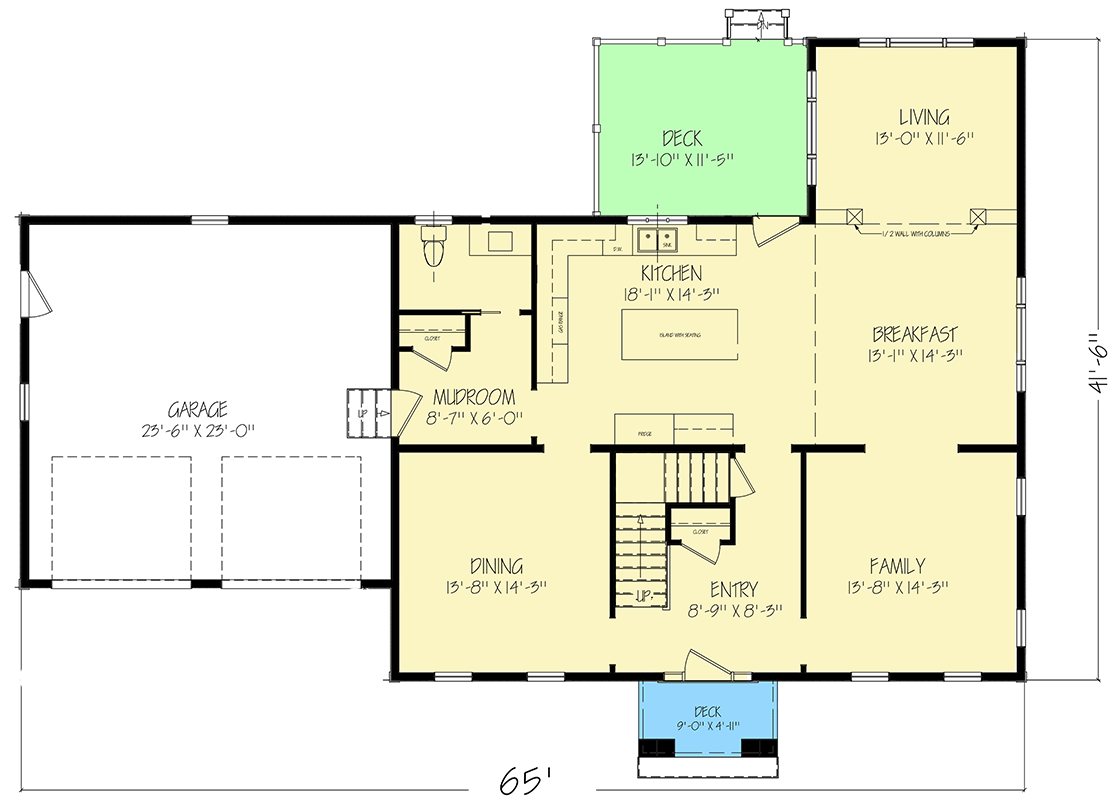

  • Main Level

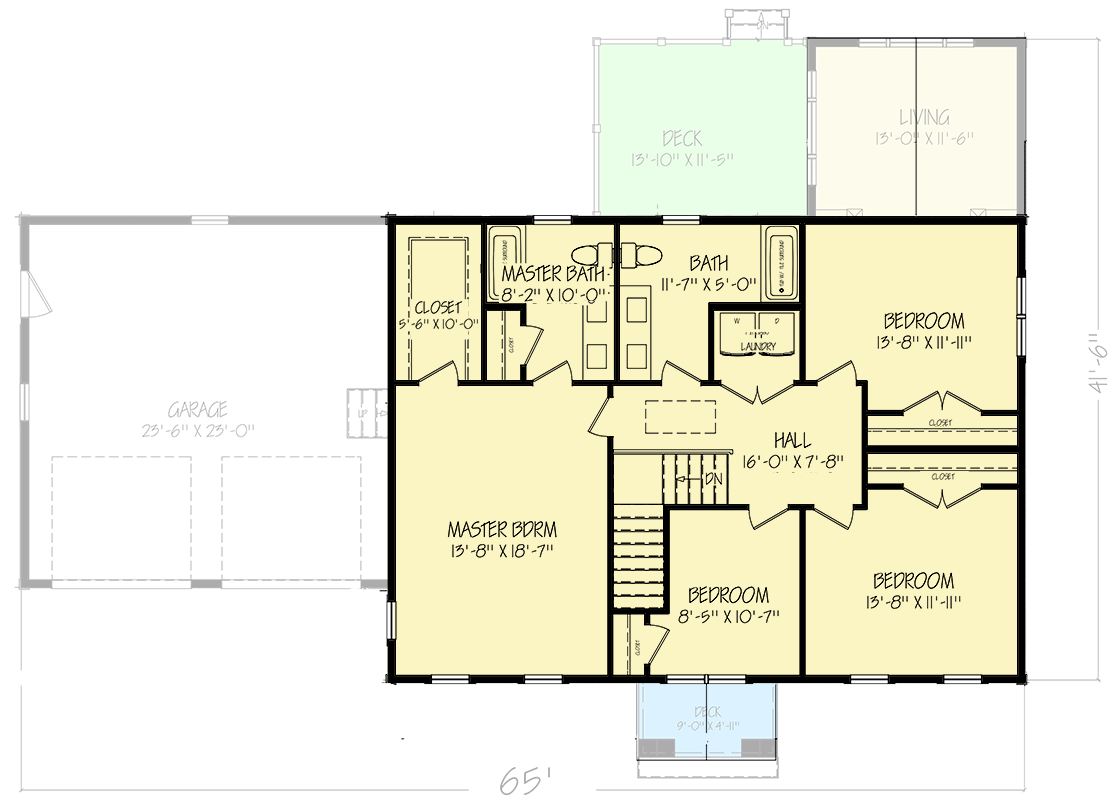

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,524 sq. ft.
  • 1st Floor: 1,342 sq. ft.
  • 2nd Floor: 1,182 sq. ft.

Dimensions

  • Width: 65' 0"
  • Depth: 41' 6"
  • Max ridge height: 34' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 6"

Roof

  • Primary Pitch: 11 on 12
  • Framing Type: Stick And Truss
