Plan 11585KN
Fully Loaded Rustic Retreat
Heated S.F.
5,045
Beds
5
Baths
5.5
Stories
2
Cars
2
Plan Details

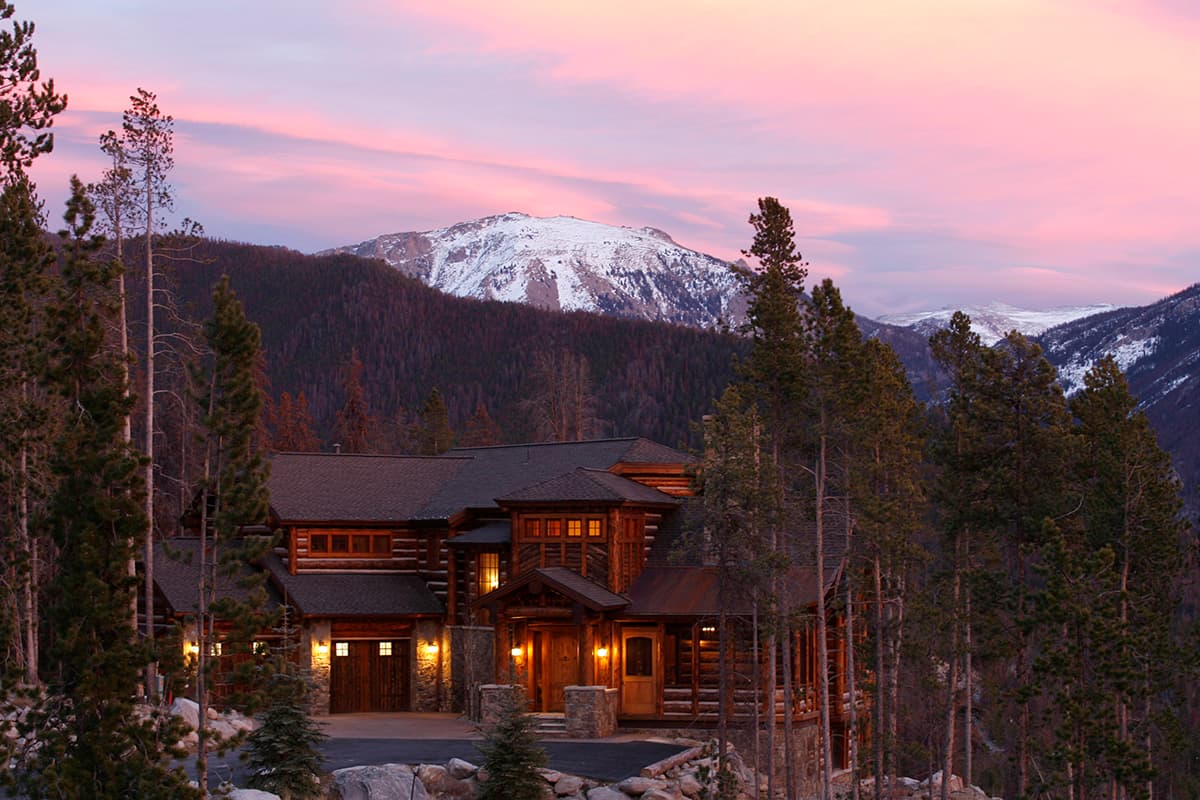

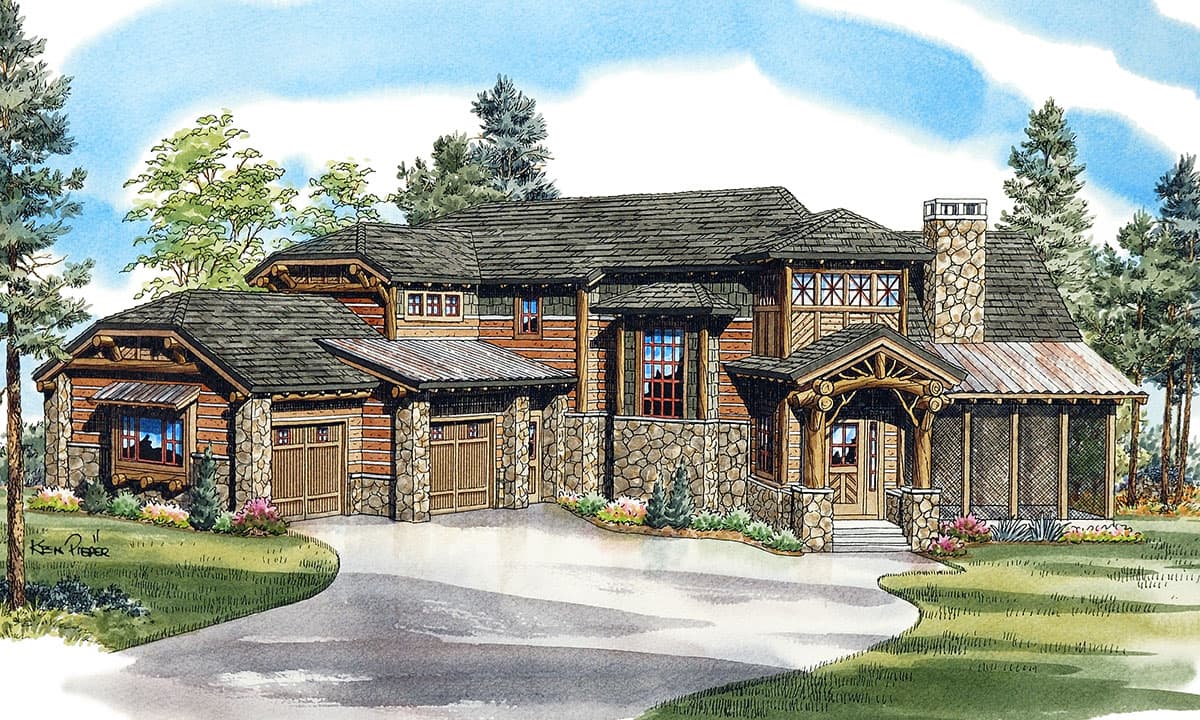

  • This fully loaded rustic retreat is perfect for the view lot. With grand spaces on three levels, there is room for family and guests year-round.
  • The foyer opens to a two-story space. Inside you'll find an open floor plan with all rooms having great sight lines to the back. A fireplace and angled entertainment niche are highlights in the family room.

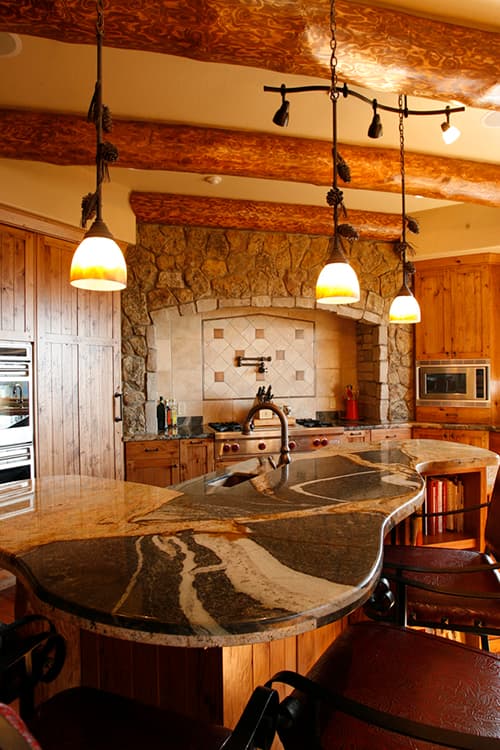

  • The kitchen has a large island with seating. The dining room is nearby and a door takes you to the large deck perfect for outdoor dining. A screened porch across the home is a nice retreat.

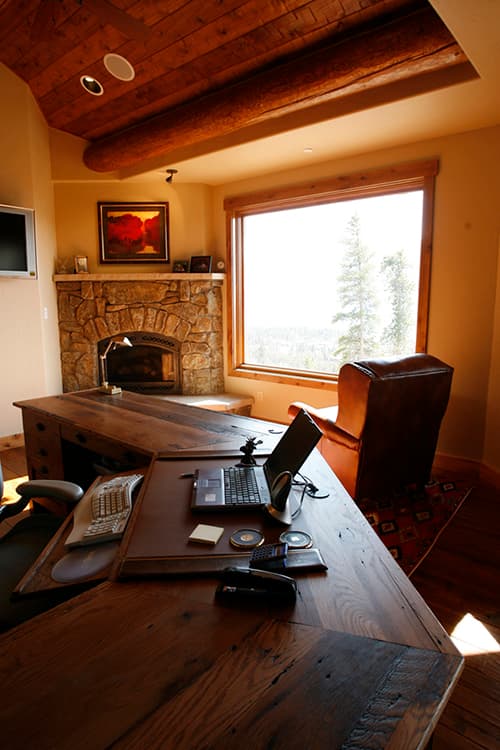

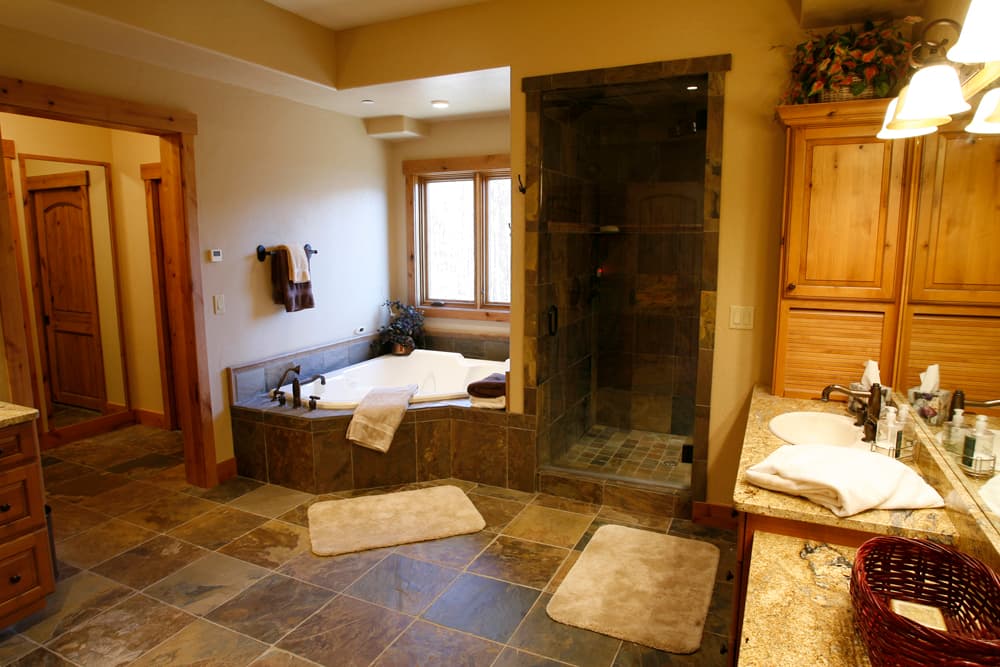

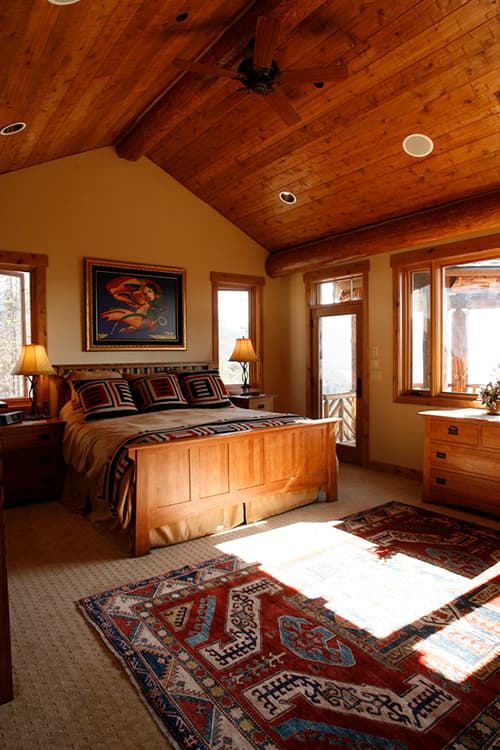

  • The master suite is on the first floor and has deck access, although you may want to choose the upstairs suite as the master. With even larger closetspace and an octagonal private deck, this is a great suite. A study and second family room with private deck complete the upstairs.

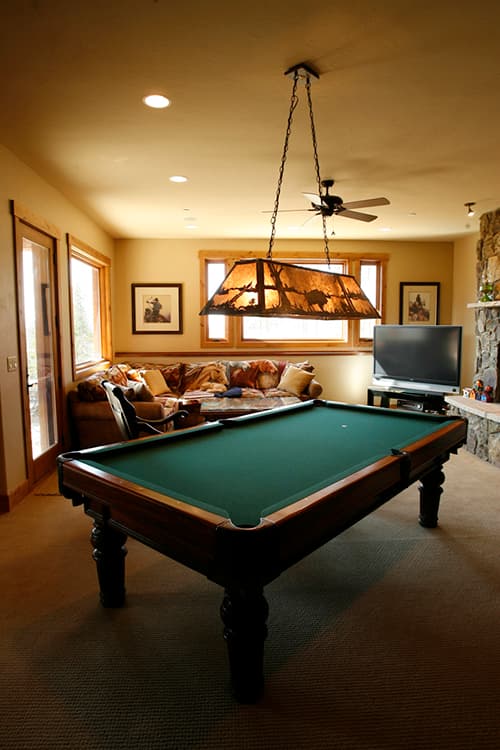

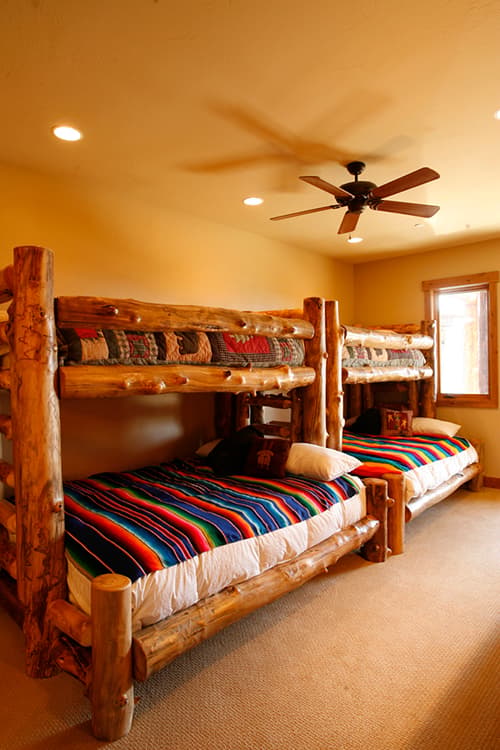

  • The lower level can handle three more bedrooms. A large common area has a fireplace and entertainment niche and accesses the lower patio. You'll also find plenty of storage and a large mechanical room.
What's Included

  • Floor plans at ¼" scale
  • All exterior elevations at ¼" scale
  • Roof plan at ¼" scale
  • Building sections at ¼" scale
  • Completed foundation plan at ¼" scale
  • Completed floor/roof framing plan at ¼" scale
  • Building height profiles at ¼" scale
  • Door and window schedules
  • General construction notes and building schedules
  • Exterior finish schedule
  • Architectural details
  • Construction details for cabinets, interior built-ins and stairs
  • Designations for all floor, wall and ceiling surfaces
  • Details and specifications for all ceiling treatments
  • All square footage calculations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Fully Loaded Rustic Retreat

  • 5,045

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

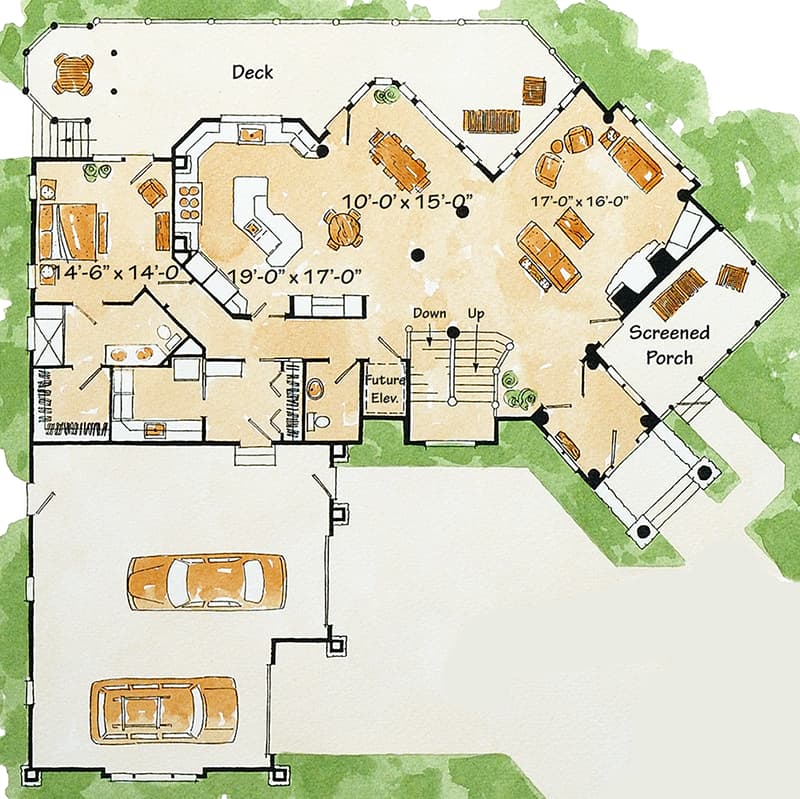

  • Main Level

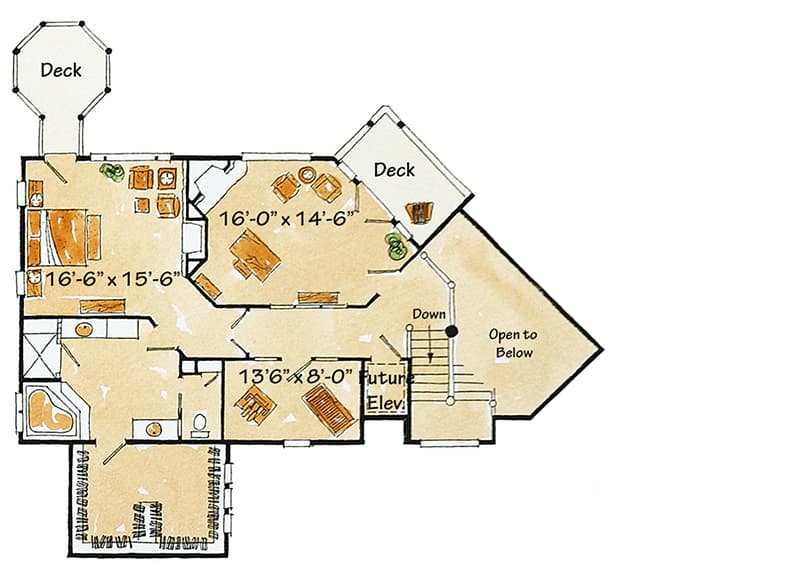

  • Second Level

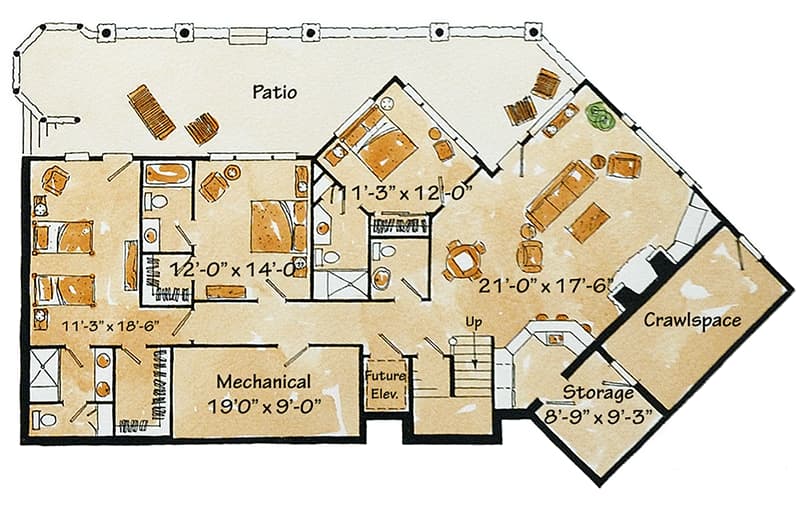

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,045 sq. ft.
  • Lower Level: 1,628 sq. ft.
  • 1st Floor: 2,101 sq. ft.
  • 2nd Floor: 1,316 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 79' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 941 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
