Plan 26600GG
High End Drama with Bonus
Heated S.F.
4,874
Beds
5
Baths
5.5
Stories
2
Cars
2
Floor Plan
Optional Finished Lower Level
Reverse Floor Plan
High End Drama with Bonus - 26600GG floor plan - Optional Finished Lower Level
Plan Details

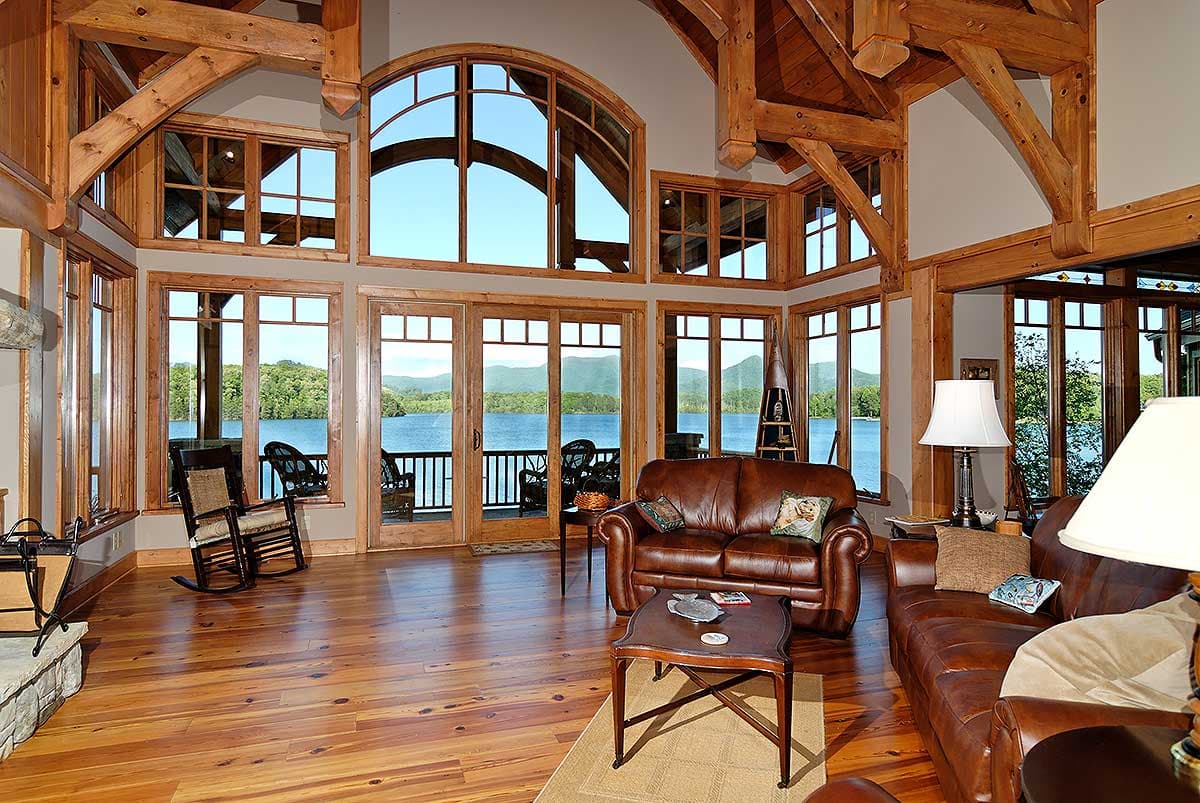

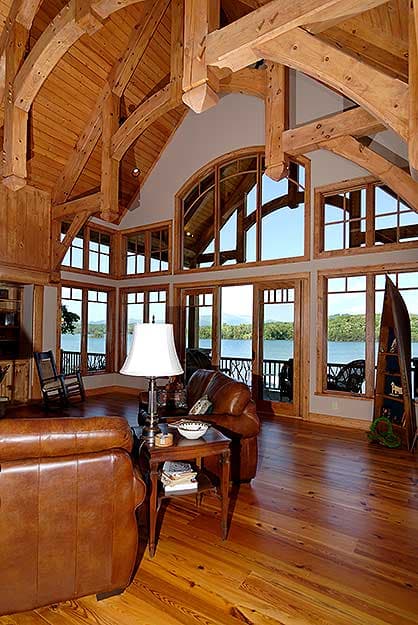

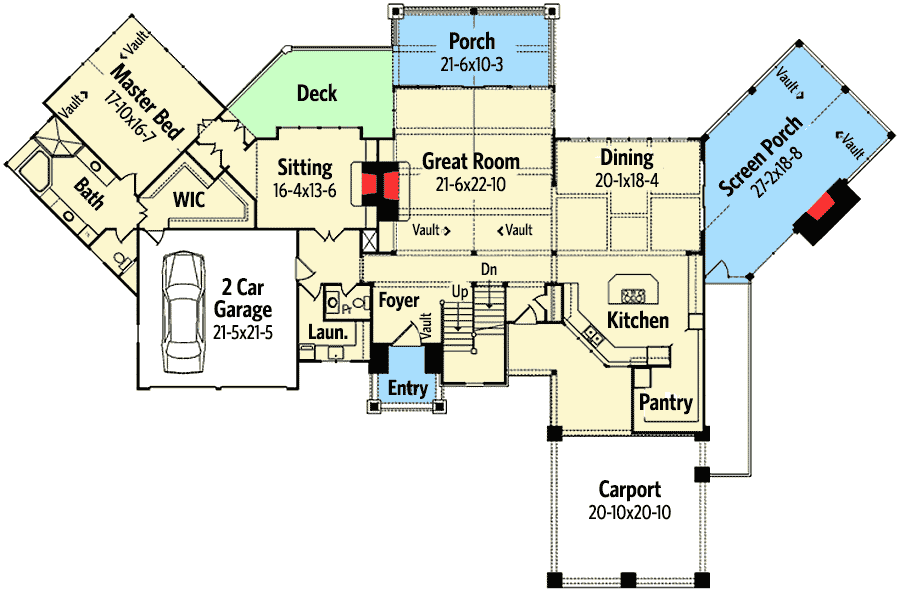

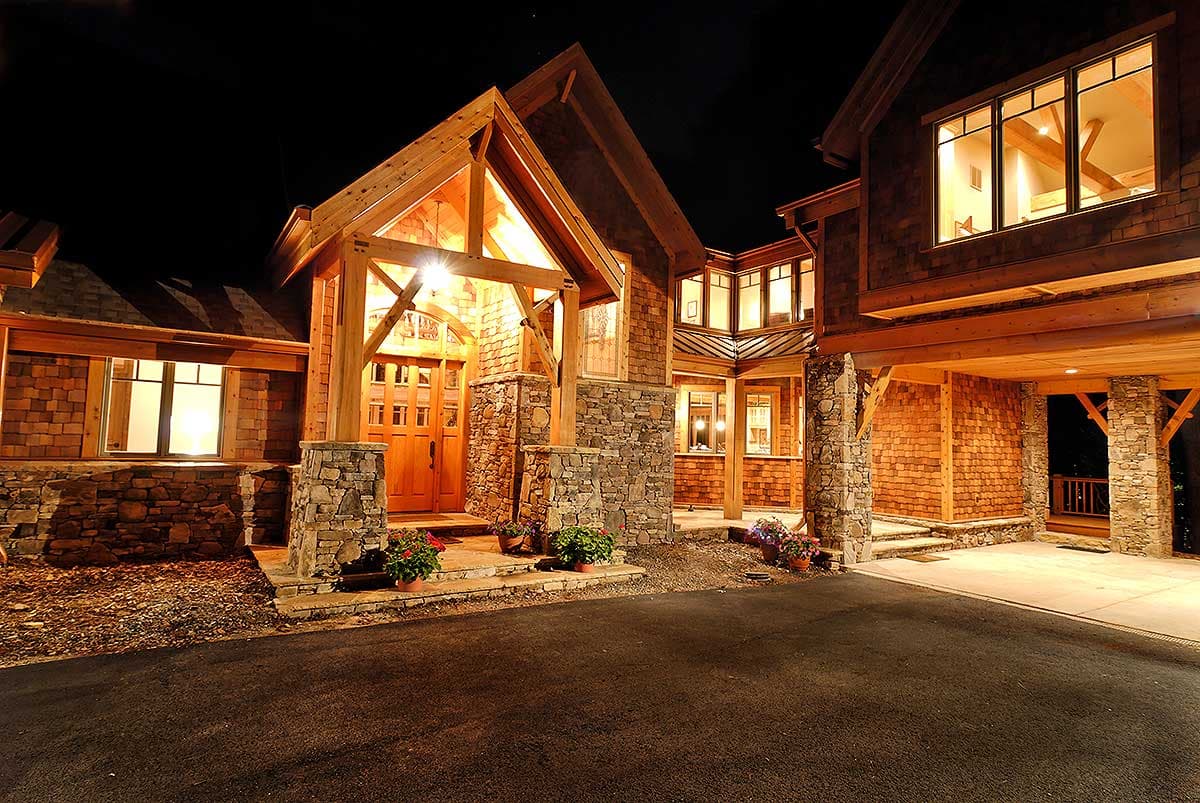

  • After entering the foyer you are quickly greeted by the stunning timber framed structure of the great room that extends through the porch. Both great room and dining room boast walls of windows and transoms.

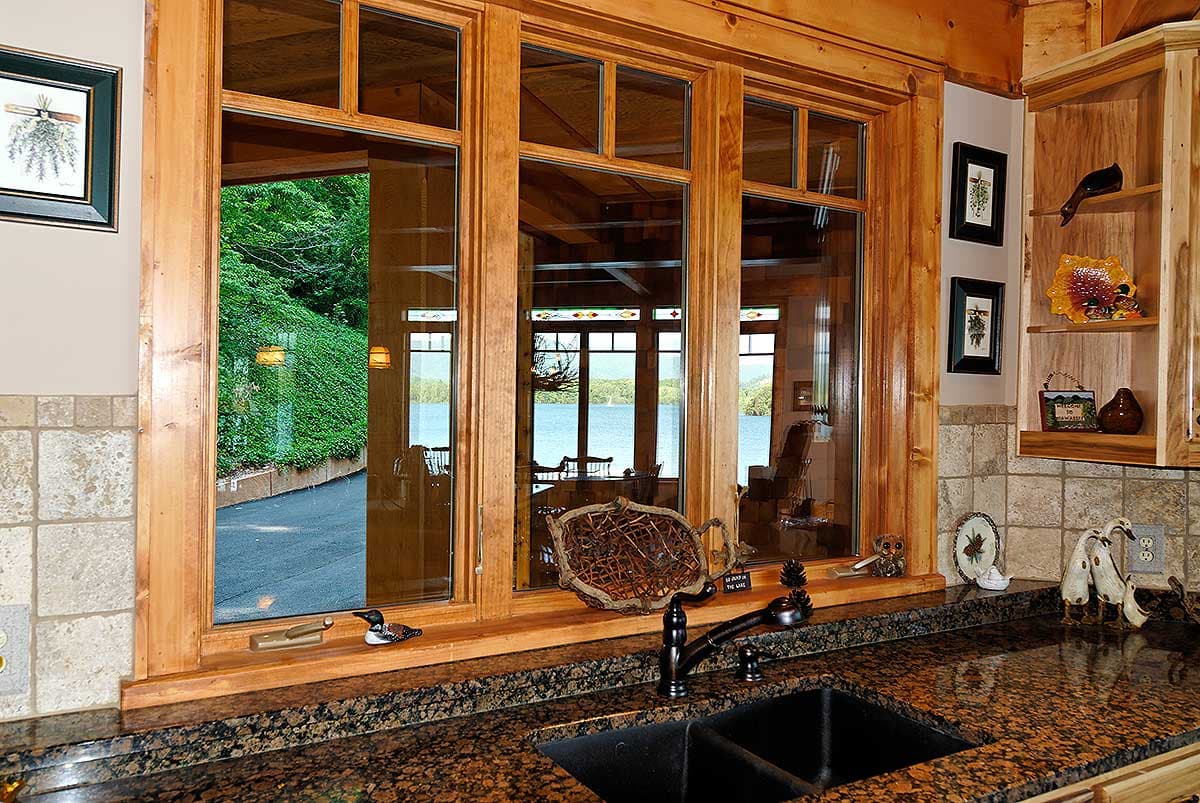

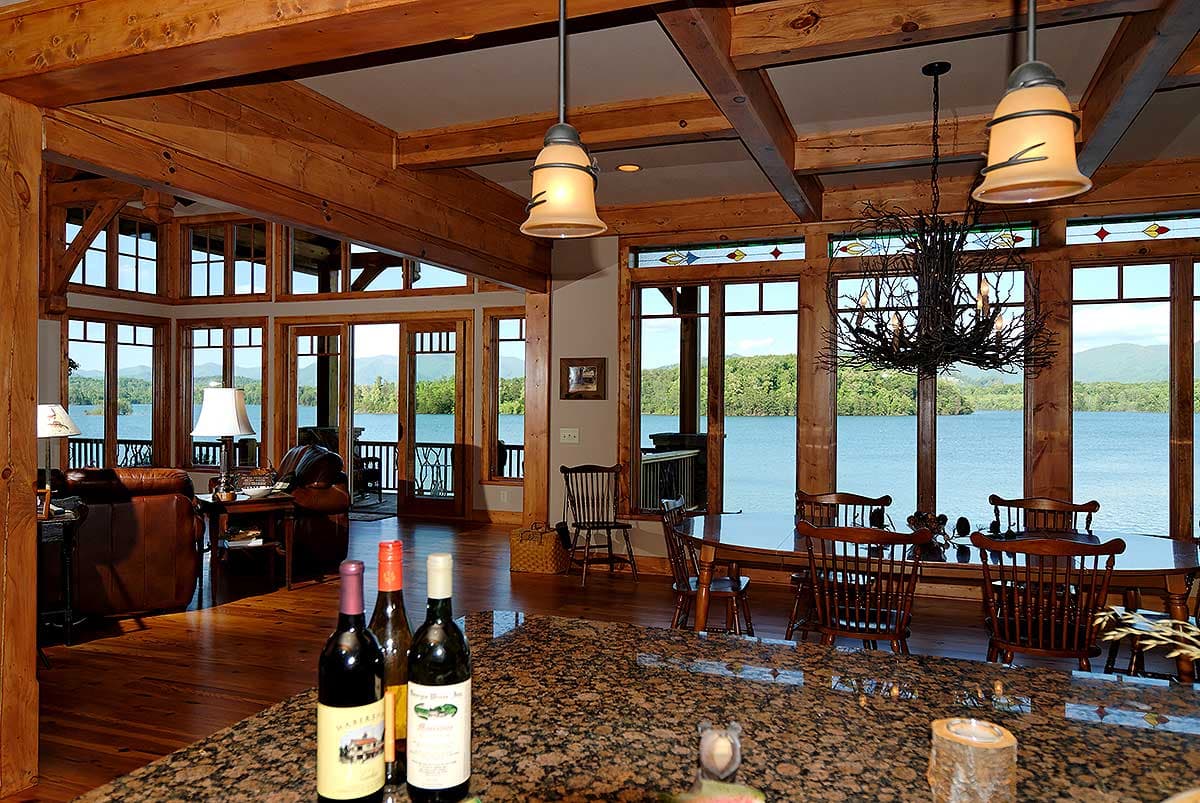

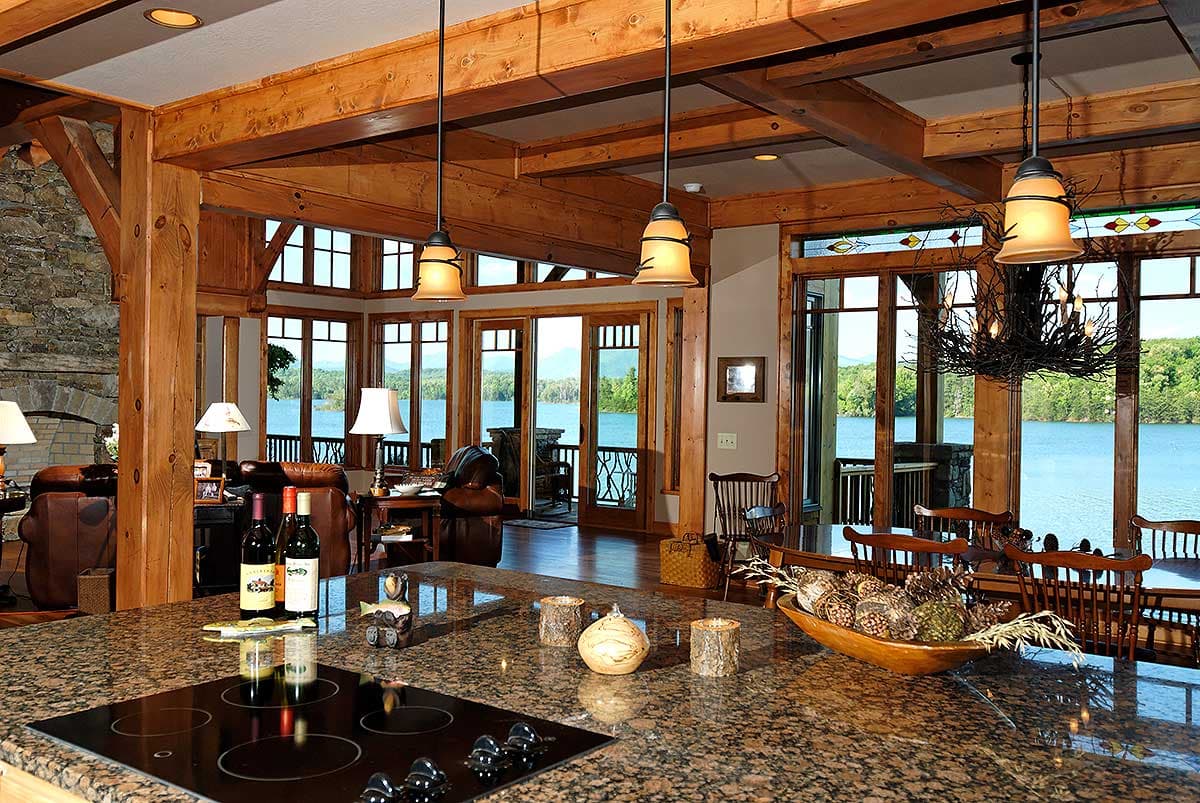

  • The kitchen is open to the dining room and includes a spacious pantry and a triple window, providing a view to the entry side of the house.

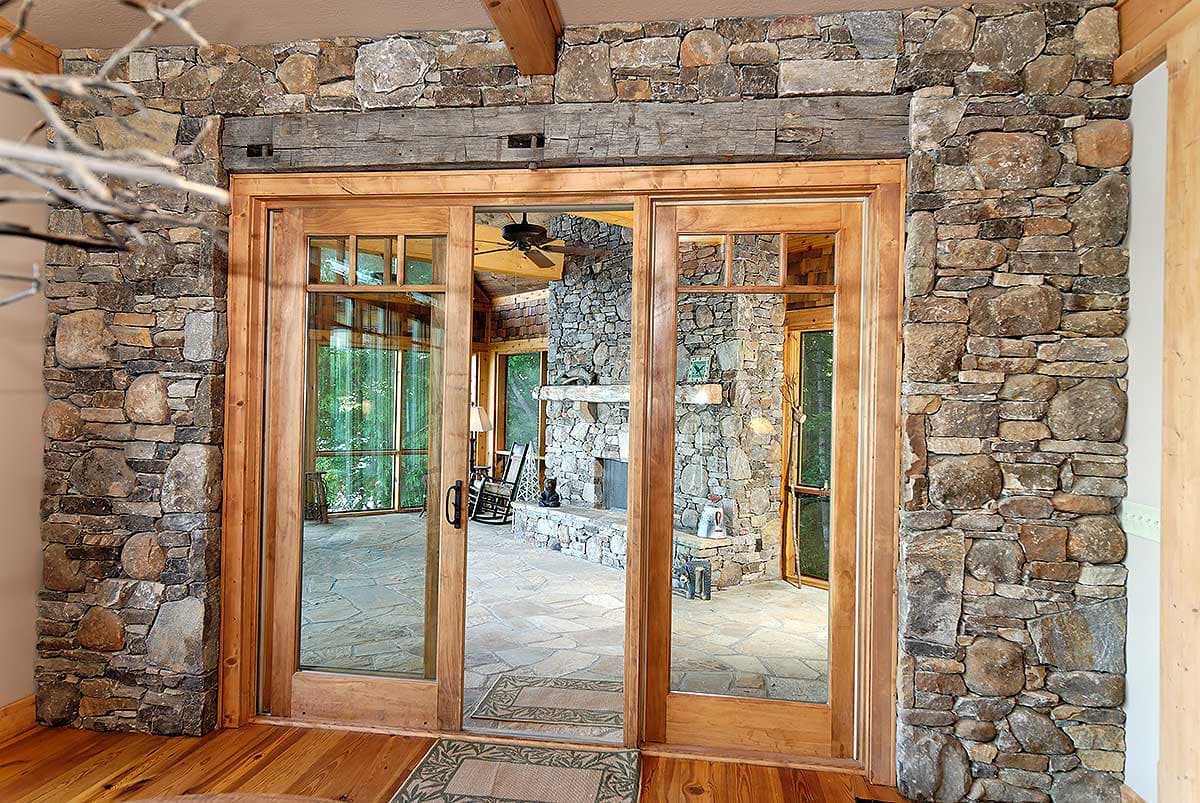

  • The angled screen porch is vaulted with ceiling beams and includes a stacked stone fireplace

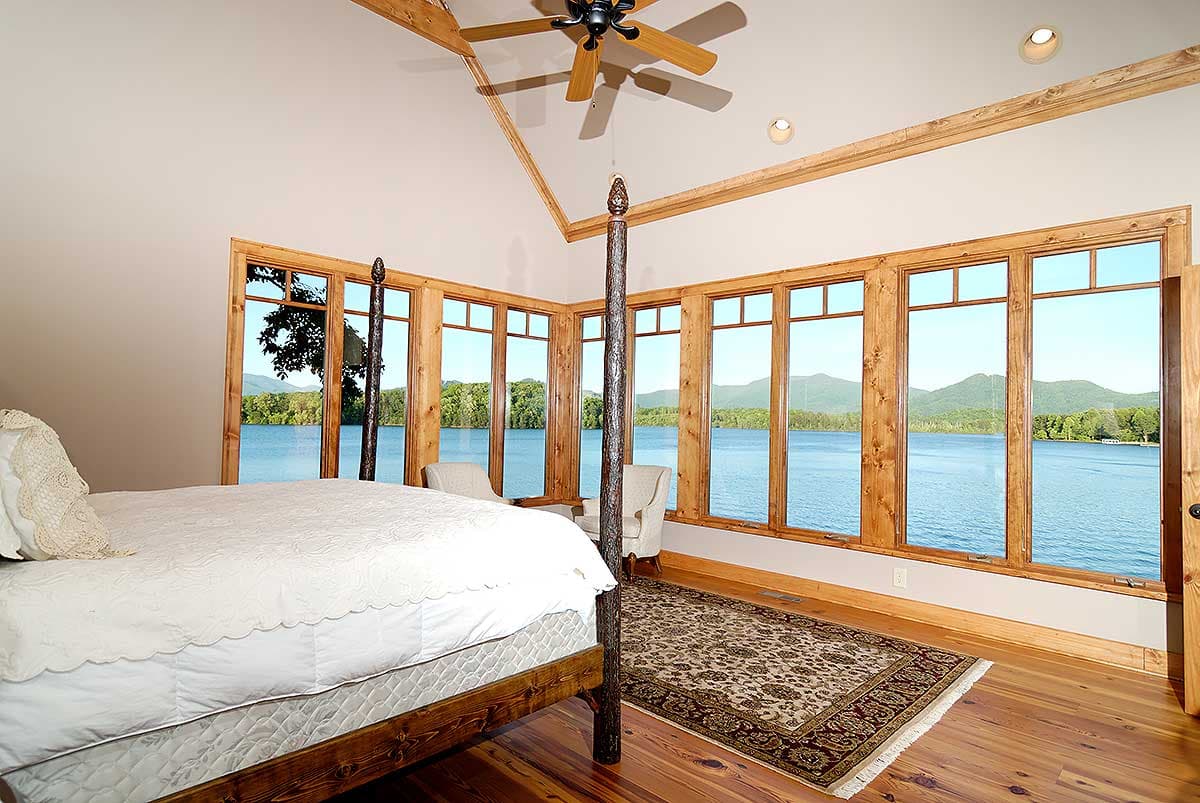

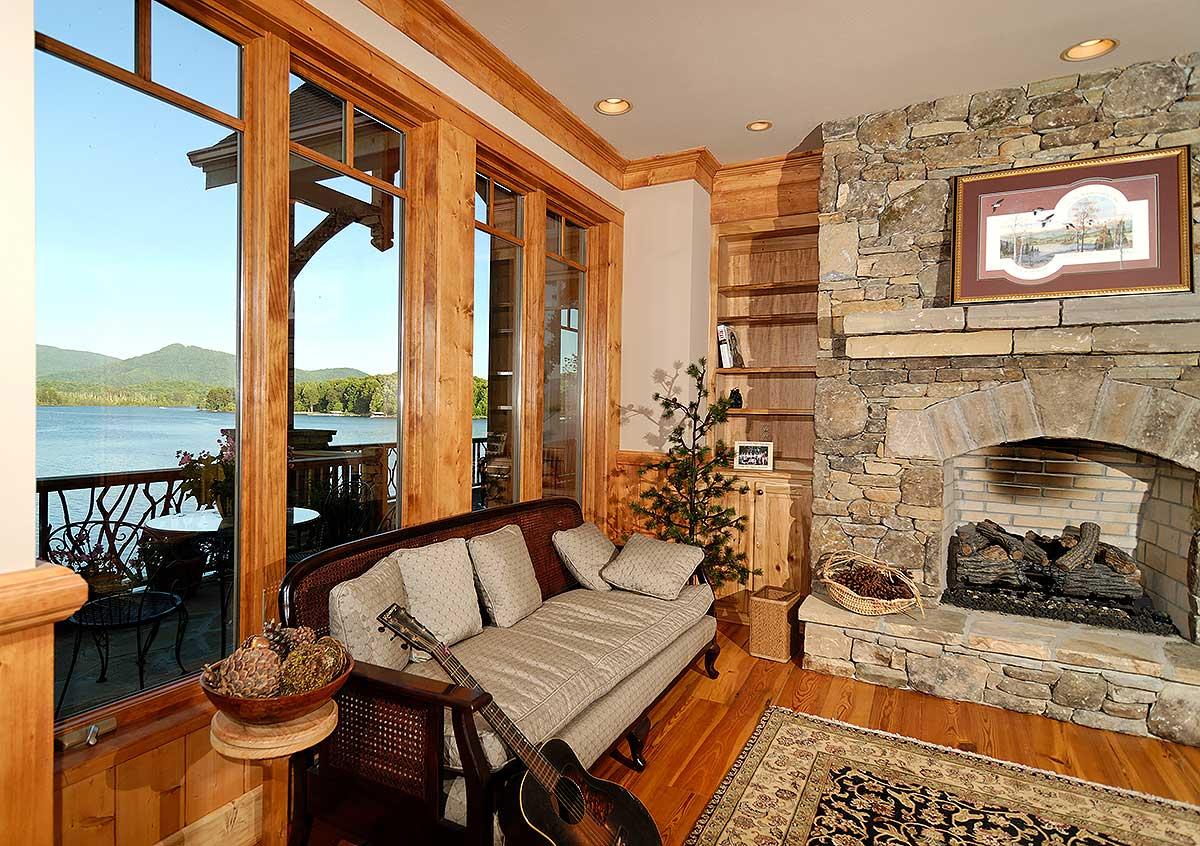

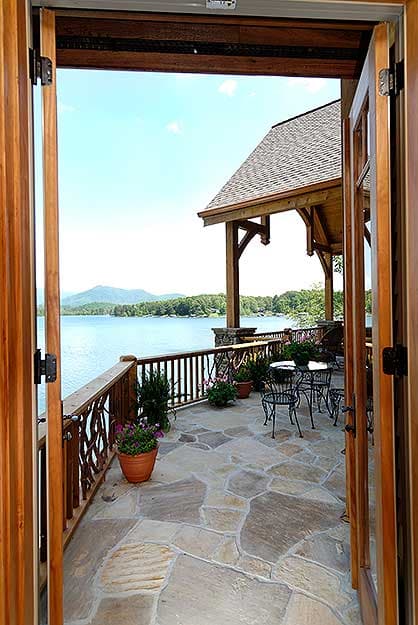

  • The vaulted master bedroom located at the opposite side of the house includes its own private sitting room with fireplace. The adjoining bath gives you a lake view while soaking in a warm tub. The walk-in closet is large enough to accommodate a sizeable wardrobe.

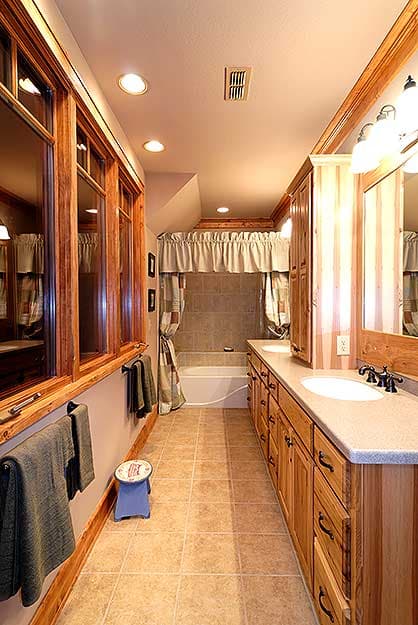

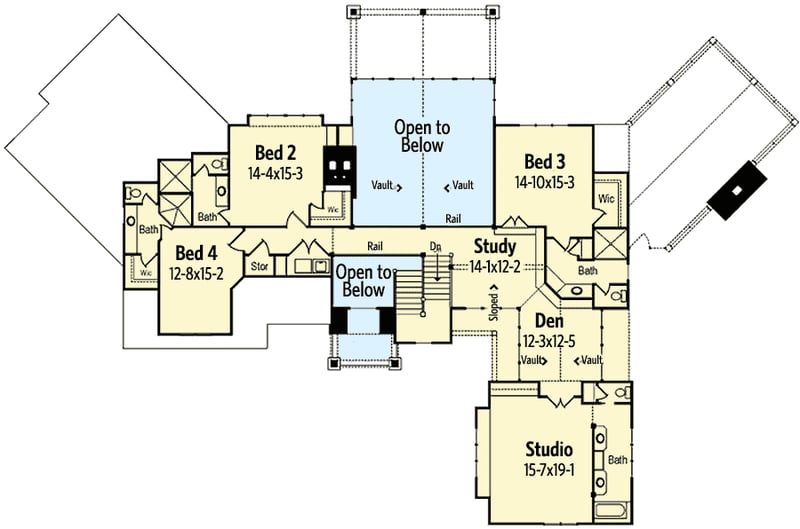

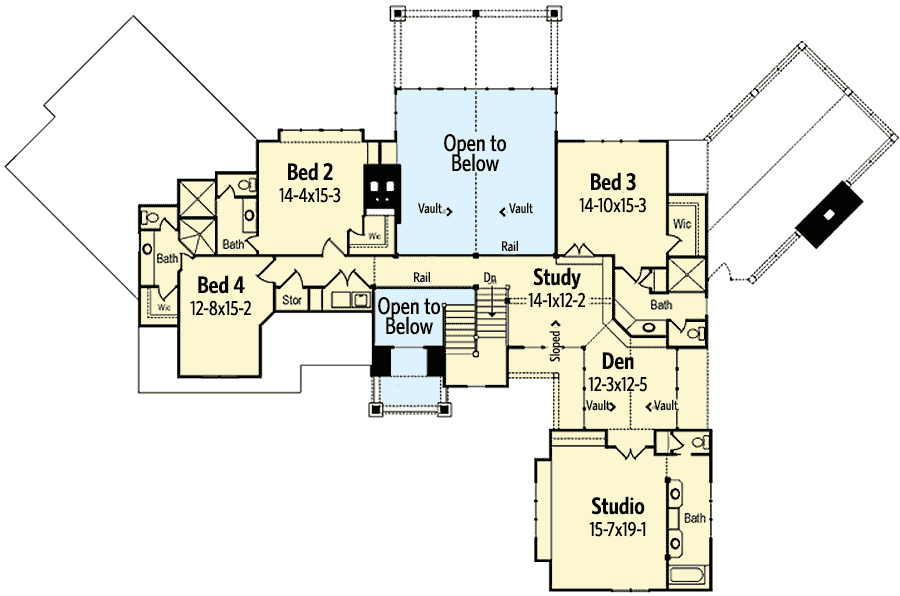

  • The upper level is complete with three additional bedrooms each with its own bath and walk-in closet. A studio over the carport doubles as a fifth bedroom. In addition this level includes a computer room and den each vaulted with walls of windows. A second laundry area is provided just outside Bedroom #2.

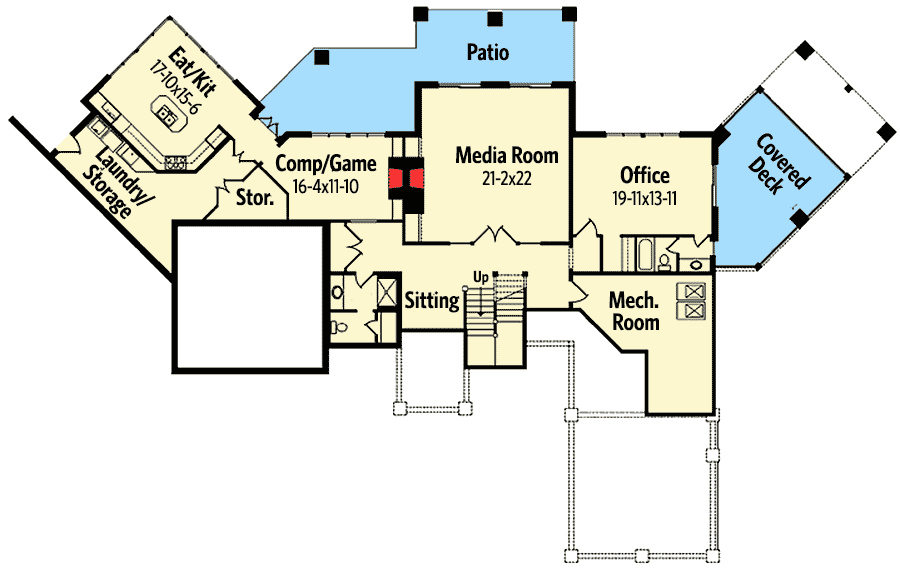

  • Added Bonus: The optional lower level comes with the plans. If you choose to finish the lower level it includes an eat-in-kitchen, game room, media room and guest suite.
  • Note: Certain zip code restrictions apply in NC, SC, TN and GA. Contact us for availability if building in these states.
What's Included
Cover sheet
First floor plan and general notes
Second floor plan
Door/window schedules/details

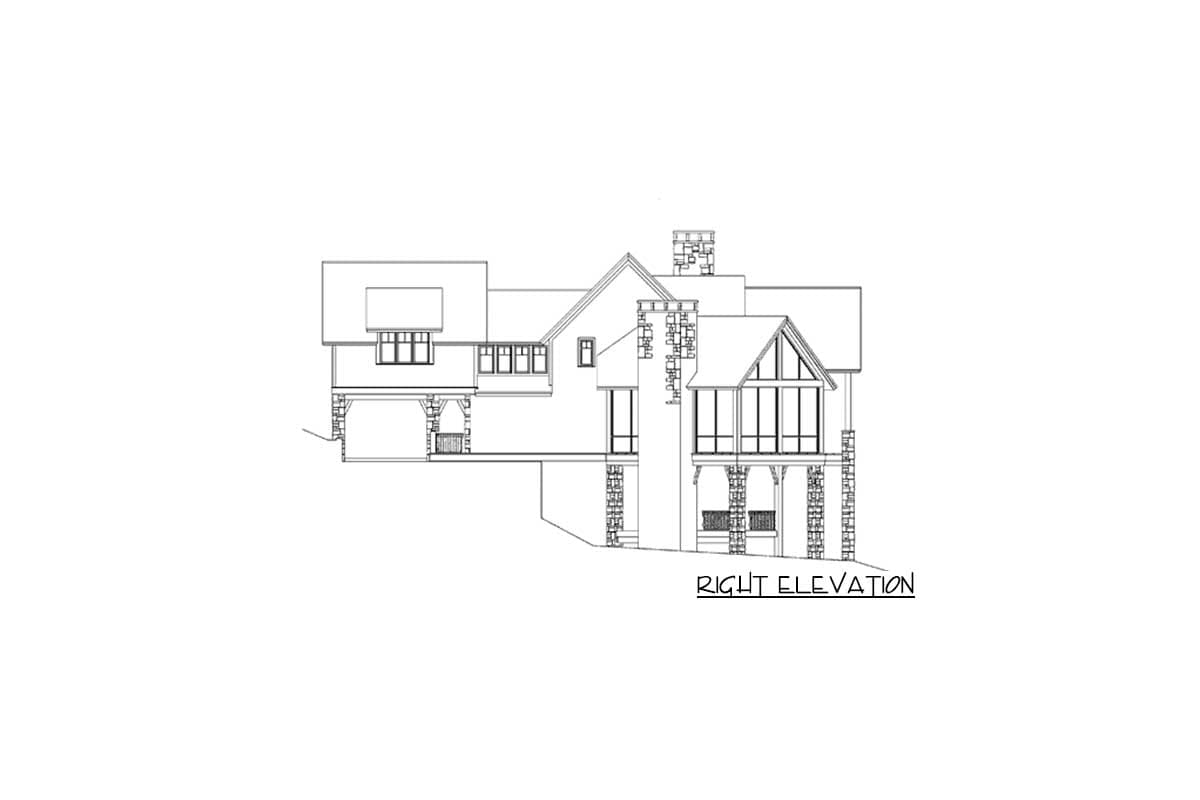

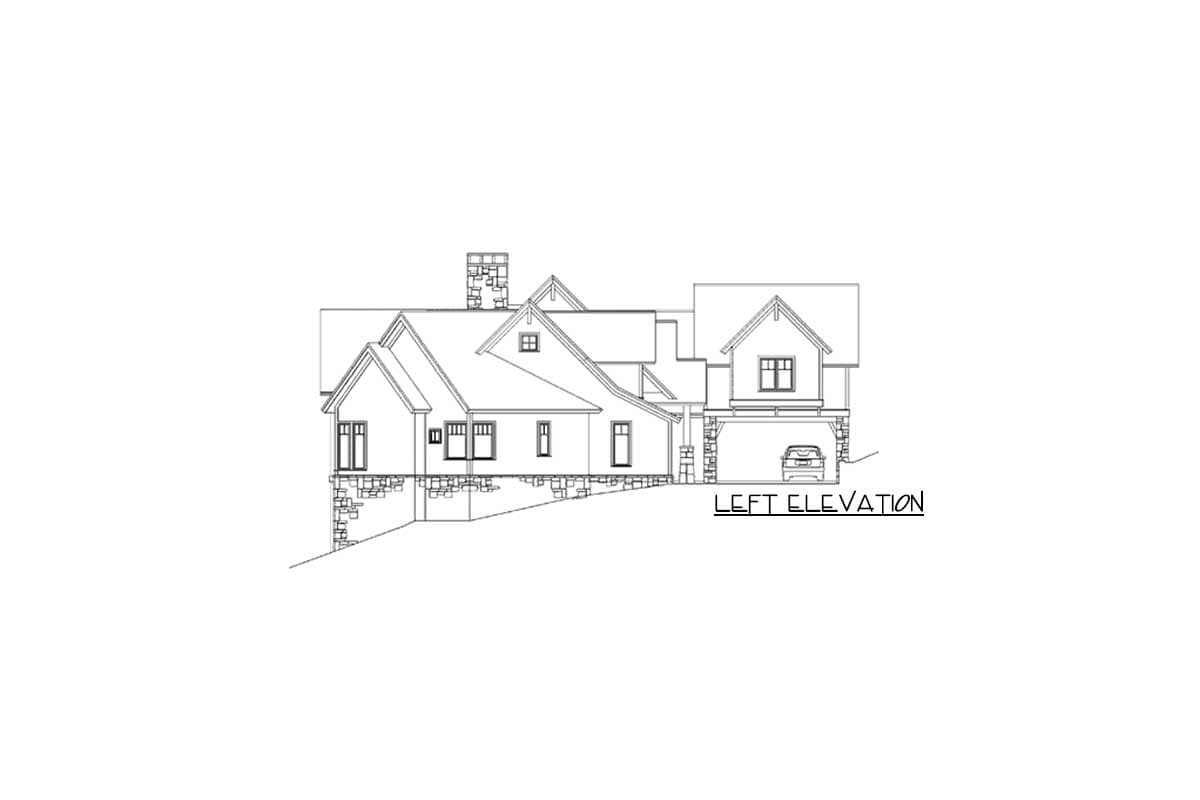

Front and side elevations

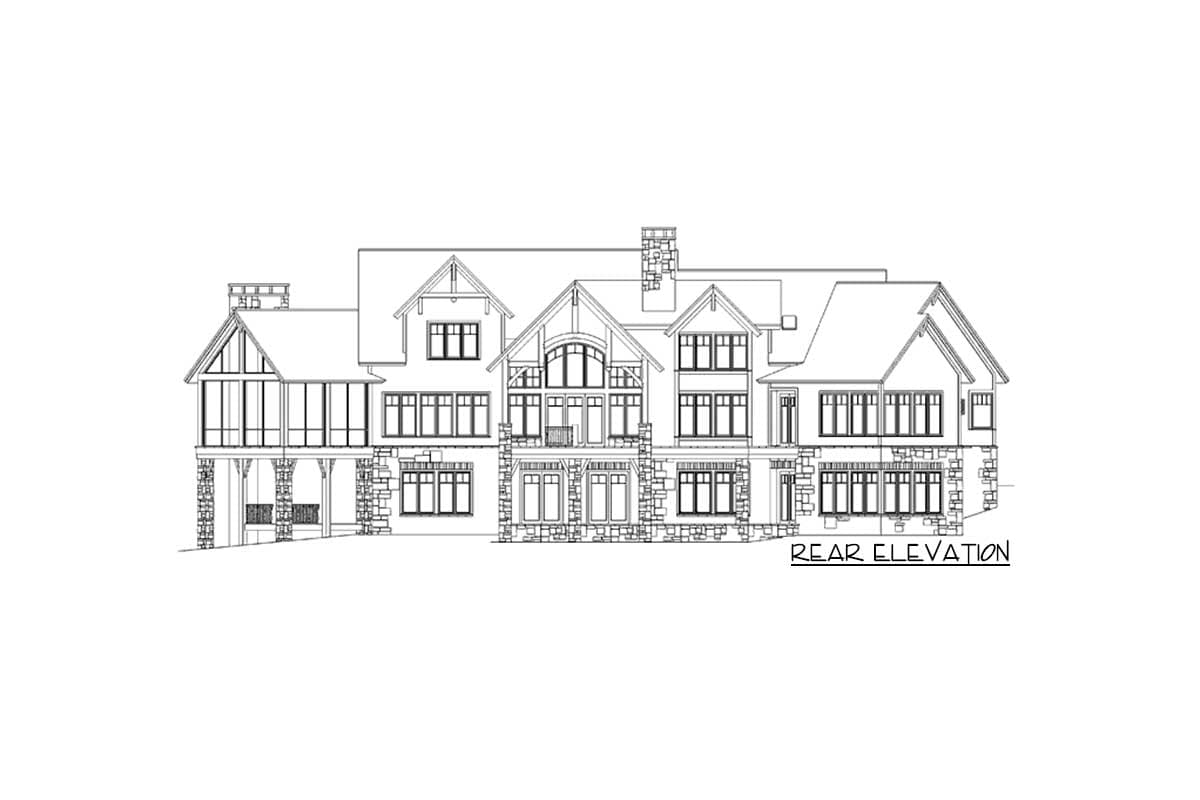

Rear and side elevations
Building sections (4 sheets)
Details
Roof plan
Electrical plans
Cabinet detail sheets (2)
Detail sheets (2)
General notes/structural notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

High End Drama with Bonus

  • 4,874

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,874 sq. ft.
  • 1st Floor: 2,695 sq. ft.
  • 2nd Floor: 2,179 sq. ft.

Dimensions

  • Width: 121' 4"
  • Depth: 78' 4"
  • Max ridge height: 30' 7"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 478 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 9' 9" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
