Plan 1757LV
Impressive Design
Heated S.F.
3,186
Beds
3-4
Baths
2.5 - 3.5
Stories
2
Cars
2
Plan Details
  • A stylish courtyard garage, multiple gables and a copper bay window adorn this impressive design. Inside, a balcony overlooks the foyer and the great room, both rising for two stories. Vaulted ceilings are found in the downstairs study and in bedroom three.
  • In the great room, built-ins border the fireplace, and transom windows are stacked over French doors opening to the terrace. The bayed breakfast nook is open to the kitchen with its walk-in pantry. Another bay window is found in the master suite, which includes a walk-in closet and a compartmented bath filled with amenities.
  • A formal dining room defined by decorative columns completes the first floor.
  • Upstairs, a well-appointed bath serves bedrooms two and three. Notice the sitting area off the balcony. The second floor includes 215 square feet of unfinished storage space which could be suite 4.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Impressive Design

  • 3,186

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

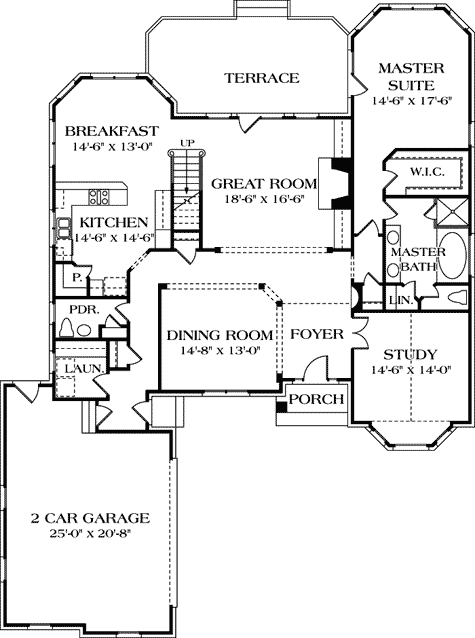

  • Main Level

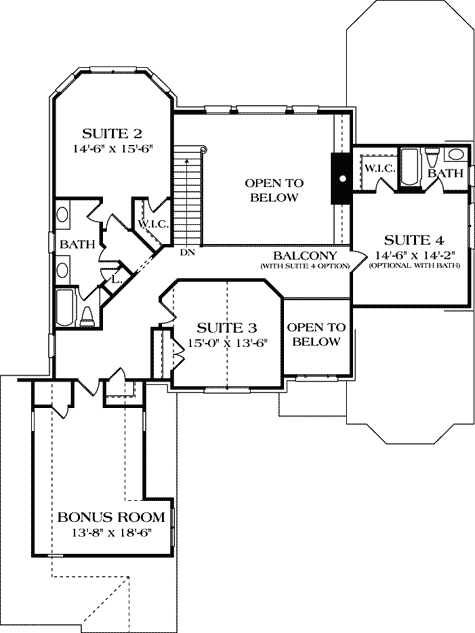

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,186 sq. ft.
  • 1st Floor: 2,223 sq. ft.
  • 2nd Floor: 963 sq. ft.

Dimensions

  • Width: 58' 8"
  • Depth: 79' 2"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 629 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
