Plan 520002RKY
Modern Cabin with Soaring Vaulted Ceilings and Lower Level Expansion - 1990 Sq Ft
Heated S.F.
1,990
Beds
2-4
Baths
2.5 - 3.5
Stories
2
Cars
2
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

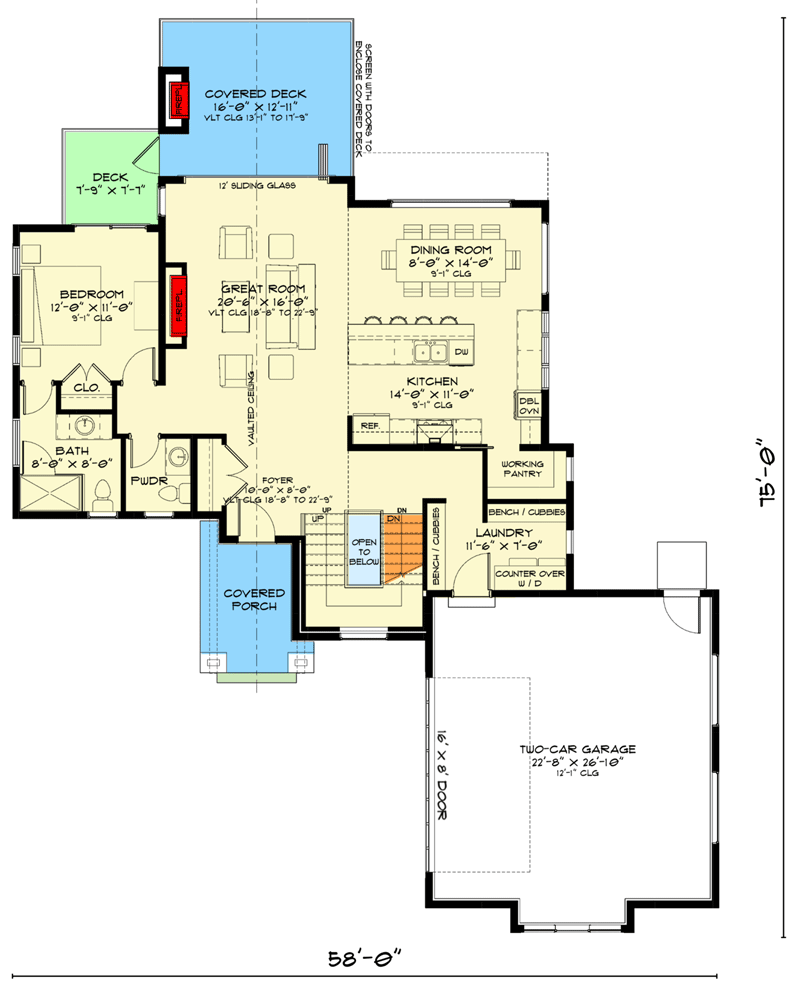

Modern Cabin with Soaring Vaulted Ceilings and Lower Level Expansion - 1990 Sq Ft - 520002RKY floor plan - Main Level
2nd Floor
Reverse Floor Plan

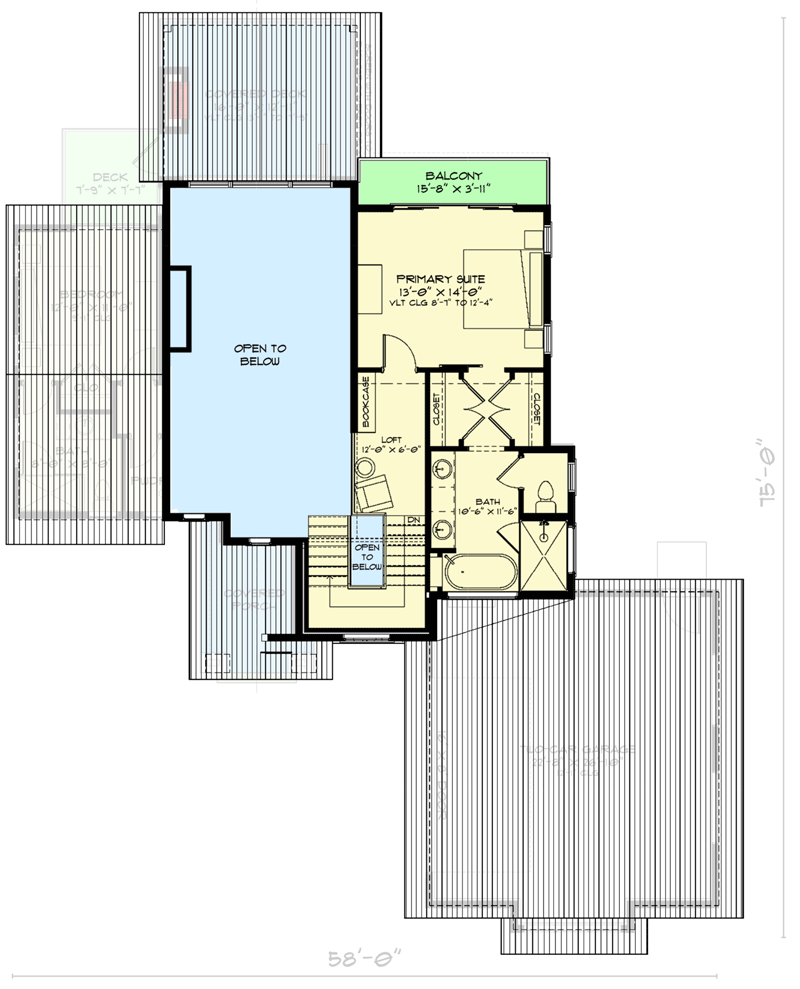

Modern Cabin with Soaring Vaulted Ceilings and Lower Level Expansion - 1990 Sq Ft - 520002RKY floor plan - 2nd Floor
Optionally Finished Lower Level
Reverse Floor Plan

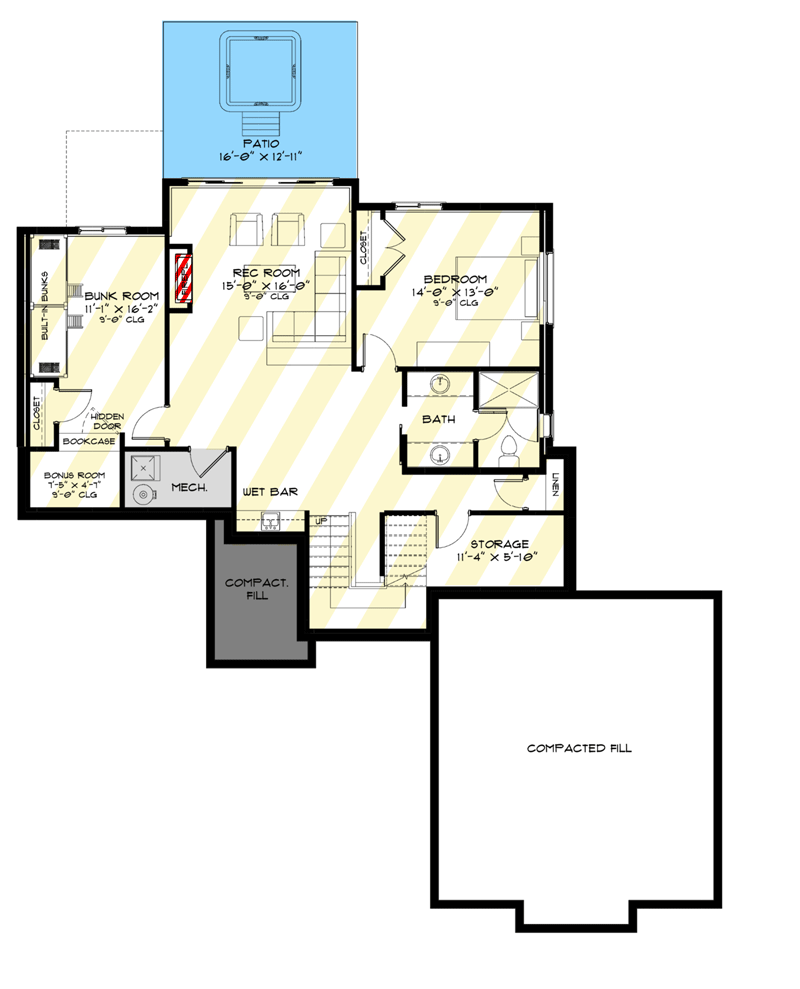

Modern Cabin with Soaring Vaulted Ceilings and Lower Level Expansion - 1990 Sq Ft - 520002RKY floor plan - Optionally Finished Lower Level
Plan Details
  • Welcome home to this two-story modern mountain cabin with all the amenities. This two-story home includes the option to finish the lower level, making it perfect for hillside walkout sites. Soaring vaulted ceilings greet you from the moment you step through the foyer, and they don’t stop until you get past the ample covered deck at the rear of the home.
  • The main level features a large bedroom with a private bath and deck access, and the upper level is fully dedicated to the primary suite sanctuary, which includes a loft, a private balcony to enjoy the rear-site views, and a bathroom with room for a large tub and walk-in shower.
  • The two-car garage has enough extra space for a workbench and enters into a mudroom / laundry room with plenty of cubbies to drop off all your gear. The open floor plan of the main level features a spacious kitchen with a large island and a tucked away working pantry which can be outfitted with extra counter space for meal prep. The dining room can easily seat ten, and flickering fires in both the grand indoor fireplace and outdoor fireplace make this home the place you want to be in all seasons.
  • The lower level adds two additional bedrooms, including a bunk room with a secret door hidden behind a bookcase that leads to a small vault or bonus room. The rec room is the ideal spot for movie marathons and game nights, featuring a wet bar and cozy fireplace.
  • Modern cabin with soaring vaulted ceilings, expansive views through foyer and great room, and indoor and outdoor fireplaces.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet
  • Specifications
  • Foundation Layout Plan
  • Floor Plans
  • Sections
  • Elevations
  • Roof Ridge Plan
  • Details sheet(s)
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Cabin with Soaring Vaulted Ceilings and Lower Level Expansion - 1990 Sq Ft

  • 1,990

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,990 sq. ft.
  • 1st Floor: 1,358 sq. ft.
  • 2nd Floor: 632 sq. ft.
  • Covered Deck: 208 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 75' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 645 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 1" Second Floor / 8' 7"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
