Plan 680175VR
Modern Lake Home Plan with Third Floor Loft and Rooftop Deck - 1669 Sq Ft
Heated S.F.
1,669
Beds
2
Baths
2.5
Stories
2-3
Cars
3
What's Included
Plan Details

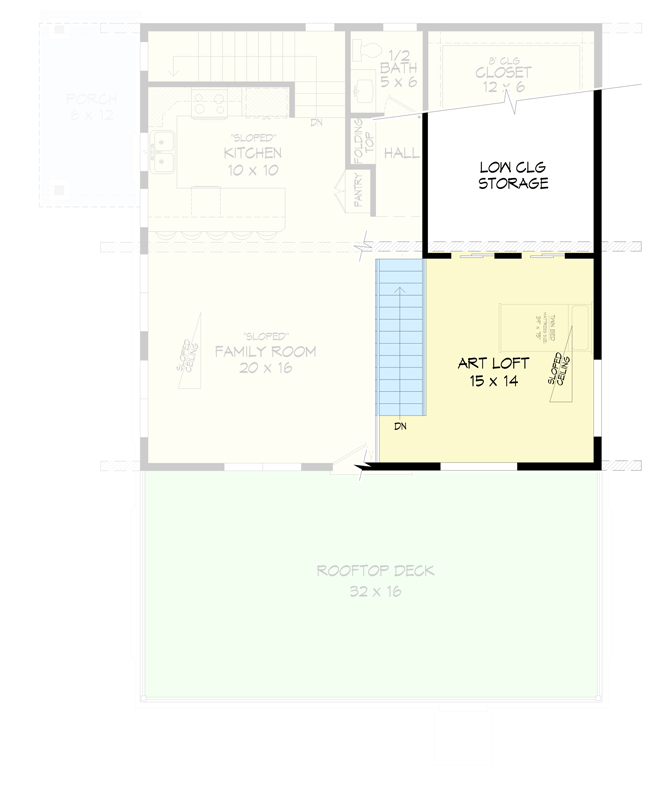

  • This 1,669 square foot modern lake house plan has 2 beds, 2.5 baths and a third floor loft that gives you 310 square foot of space overlooking the 2-story family room.

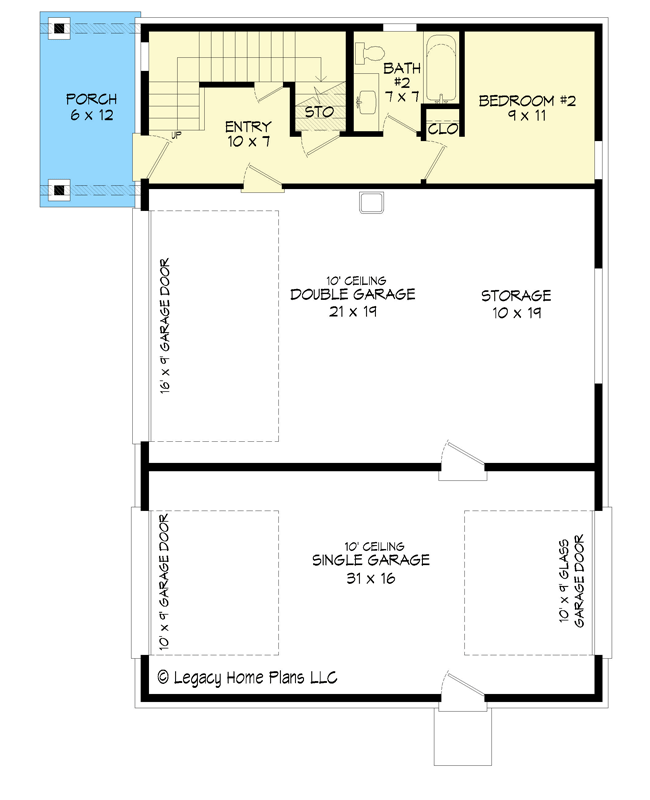

  • An entrance by the 3-bay garage take you into the entry with a bedroom and full bath in front of a storage area beneath the stairs that lead to the main level.

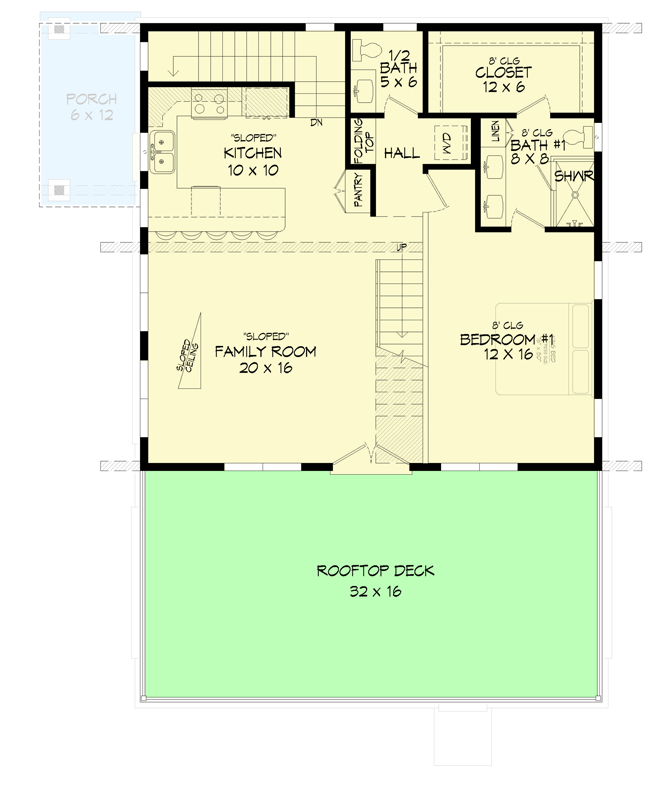

  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen includes a pantry and counter seating for five which opens up into the family room and extends outdoors onto a rooftop deck. The main bedroom has a private bath and walk-in closet.
  • Related Plan: Get an alternate version with house plan 680279VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Lake Home Plan with Third Floor Loft and Rooftop Deck - 1669 Sq Ft

  • 1,669

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2-3

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,669 sq. ft.
  • 1st Floor: 367 sq. ft.
  • 2nd Floor: 992 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 47' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1137 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
