Plan 31809DN
Ocean Dream House Plan
Heated S.F.
4,521
Beds
3
Baths
4
Stories
2
Cars
4
Plan Details
  • Most of our raised island homes are on the smaller side but this stunning home plan has 4,521 square feet of luxurious space.
  • Balconies, decks and terraces beckon you to enjoy the fresh air.
  • Dine in the formal dining area of the great room or in the bayed breakfast nook or at the eating bar in the huge gourmet kitchen.
  • A residential elevator helps get you from each level and goes all the way up to the study loft on the upper floor.
  • The master suite is designed to impress with a romantic fireplace, double doors to the rear deck and a huge master bath with both a soaking tub and a large shower.
  • Both of the front-facing bedrooms have their own private balcony, walk-in closet and private bathroom.

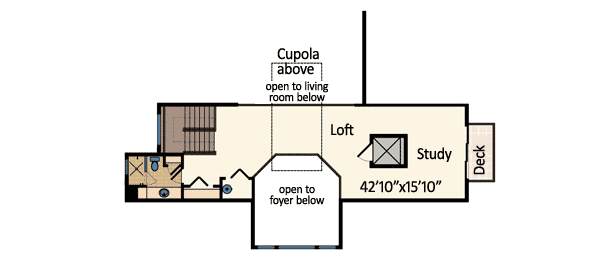

  • The cupola lets light spill down into the 2-story living room. The 27' ridge height is measured from the main ridge, making the house slightly taller when including the cupola.
What's Included
This plan set has 19 pages and includes the following:

  • Cover sheet

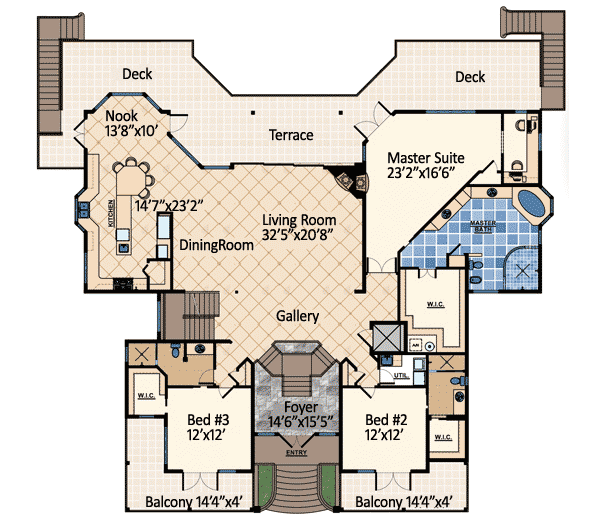

  • First floor plan , notes, dimensions (3 pages)
  • Second floor plan, notes, dimensions (3 pages)
  • Third floor plan, notes, dimensions (3 pages)
  • Electrical schematics (3 pages)

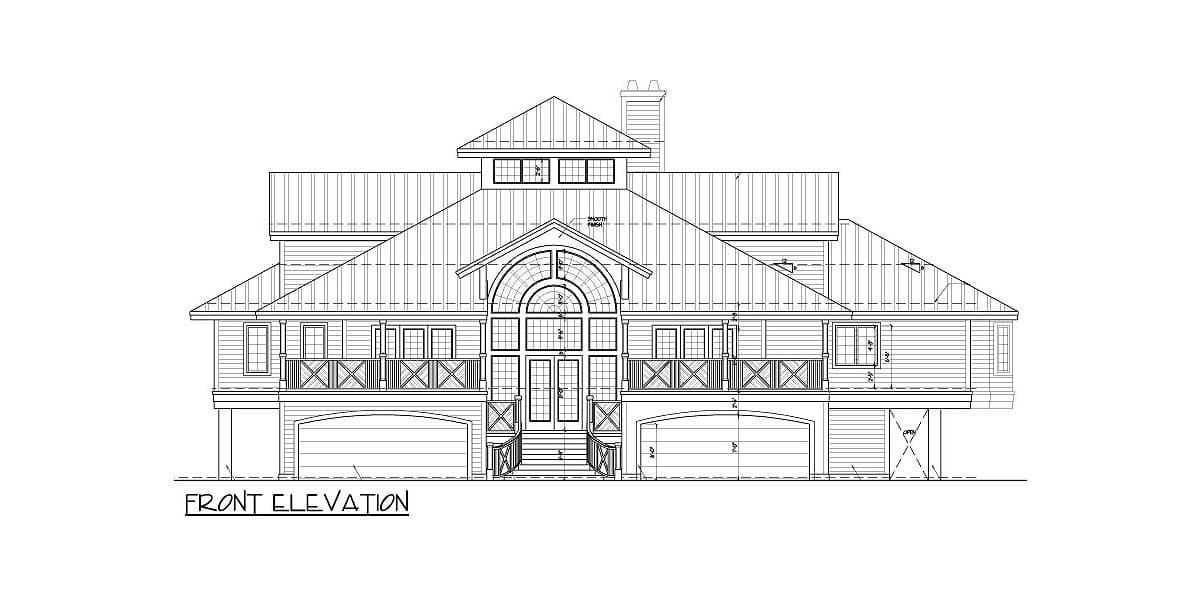

  • Elevations (2 pages)
  • Wall Sections
  • Construction Details
  • Roof
  • Fastener Requirements
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ocean Dream House Plan

  • 4,521

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

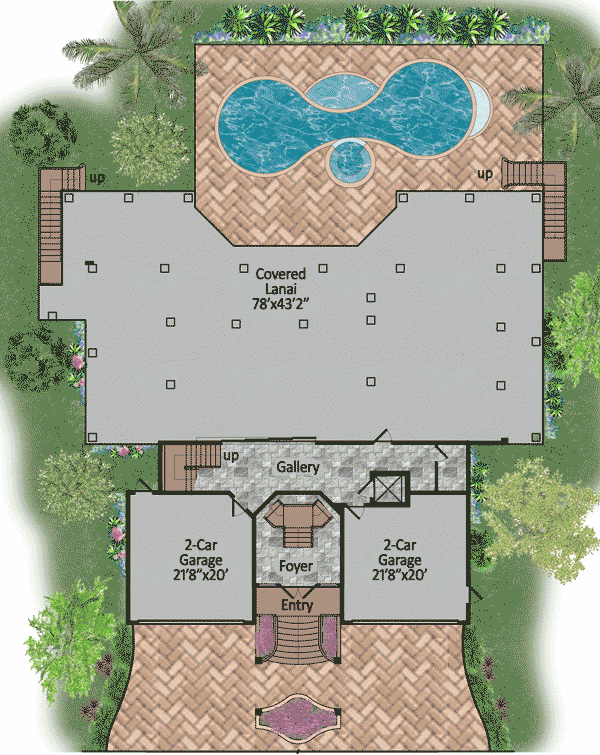

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,521 sq. ft.
  • Lower Level: 362 sq. ft.
  • 1st Floor: 3,408 sq. ft.
  • 2nd Floor: 751 sq. ft.

Dimensions

  • Width: 90' 0"
  • Depth: 84' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 944 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
