Plan 3422VL
Open Living Area
Heated S.F.
1,815
Beds
3
Baths
2.5
Stories
2
Cars
2
Plan Details
  • In back of this two-story design, a screened porch off the dining room offers an ideal outdoor eating venue.

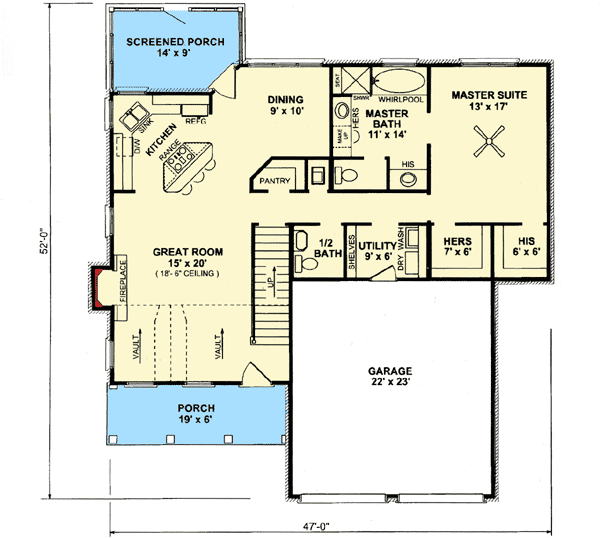

  • Inside, an open sitting area upstairs overlooks the 18'6" two-story great room with its fireplace. The great room forms one large space with the dining room and the open kitchen, broken only by a diagonal island with a cooktop and snack bar. A walk-in pantry closet serves this area.
  • The first-floor master suite is privately sited. Two walk-in closets open off the bedroom. In the bath are his and her vanities. A walk-in shower and a whirlpool tub complete the bathroom.
  • On the second floor, both bedrooms open to the sitting area, and bedroom three also opens directly to the bath on this floor. Vaulted bonus space over the garage can be expanded in the future.
  • Foundation options: basement, slab or crawl space. Specify when ordering.
What's Included

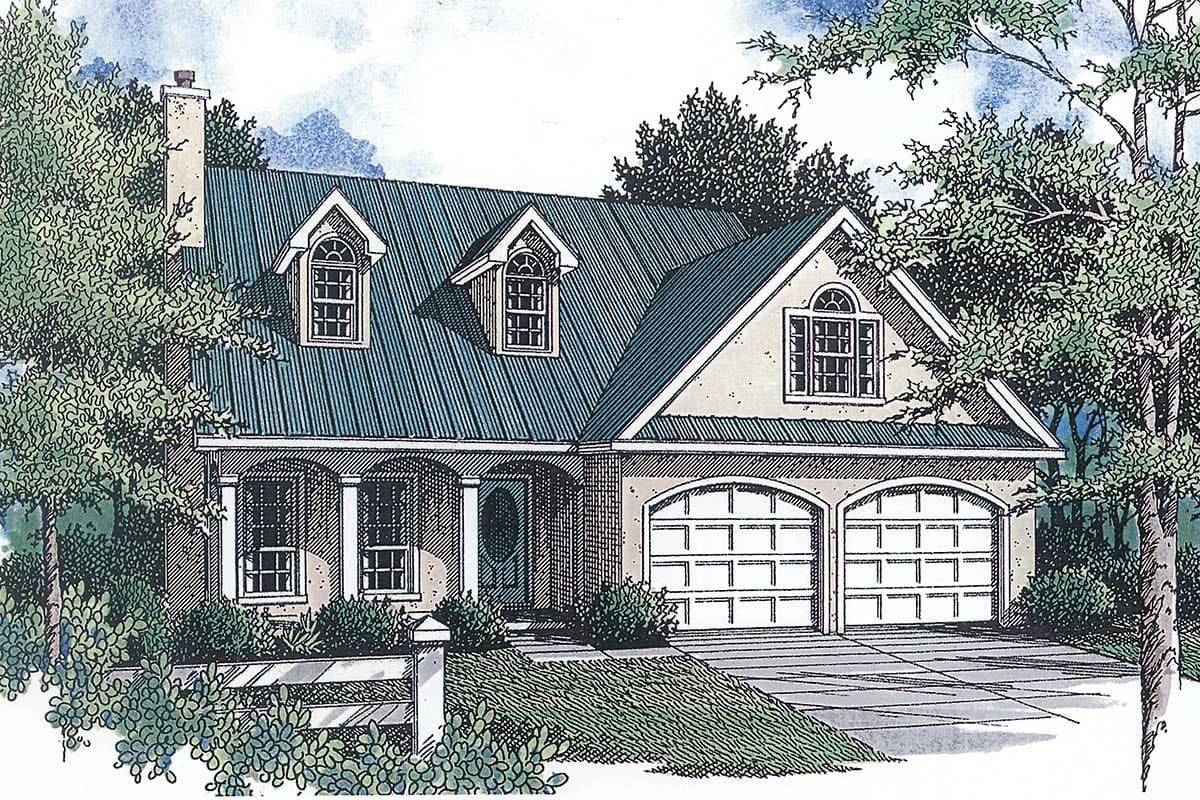

  • Front and Right Side Elevations
  • Rear and Left Side Elevations
  • Floor Plan
  • Cabinet Elevations/Cross Sections
  • Foundation Page
  • Foundation Details
  • Electrical Layout
  • Duct Layout

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Living Area

  • 1,815

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,815 sq. ft.
  • 1st Floor: 1,257 sq. ft.
  • 2nd Floor: 558 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 52' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
