Plan 5183MM
Open Living Duplex with Flipped 825 Square Foot 2 Bed and 2 Bath Units
Heated S.F.
1,650
Units
2
Width
60'
Depth
33' 6"
Plan Details
  • This is a beautiful, traditional duplex house plan featuring open living area and spacious bedrooms.
  • Each 2 bed, 2 bath unit gives you 825 square feet of heated living space.
  • The L-shaped kitchen has a large panty and a double sink set below a window looking out back.
  • A 12' by 12' patio in back is perfect for outdoor entertaining.
  • A split bedroom layout maximizes your privacy.
  • Related Plans: Get smaller units with duplex plan 51176MM (701 sq. ft./unit). Get more room per unit with duplex plans 5183MM (825 sq. ft./unit), 51200MM (898 sq. ft./unit), 5150MM (990 sq. ft./unit) and 51114MM (1,170 sq. ft./unit).
Unit A
825 Sq. Ft.
825 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
30' w 33' 6" d 18' 9" h
Unit B
825 Sq. Ft.
825 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
30' w 33' 6" d 18' 9" h
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

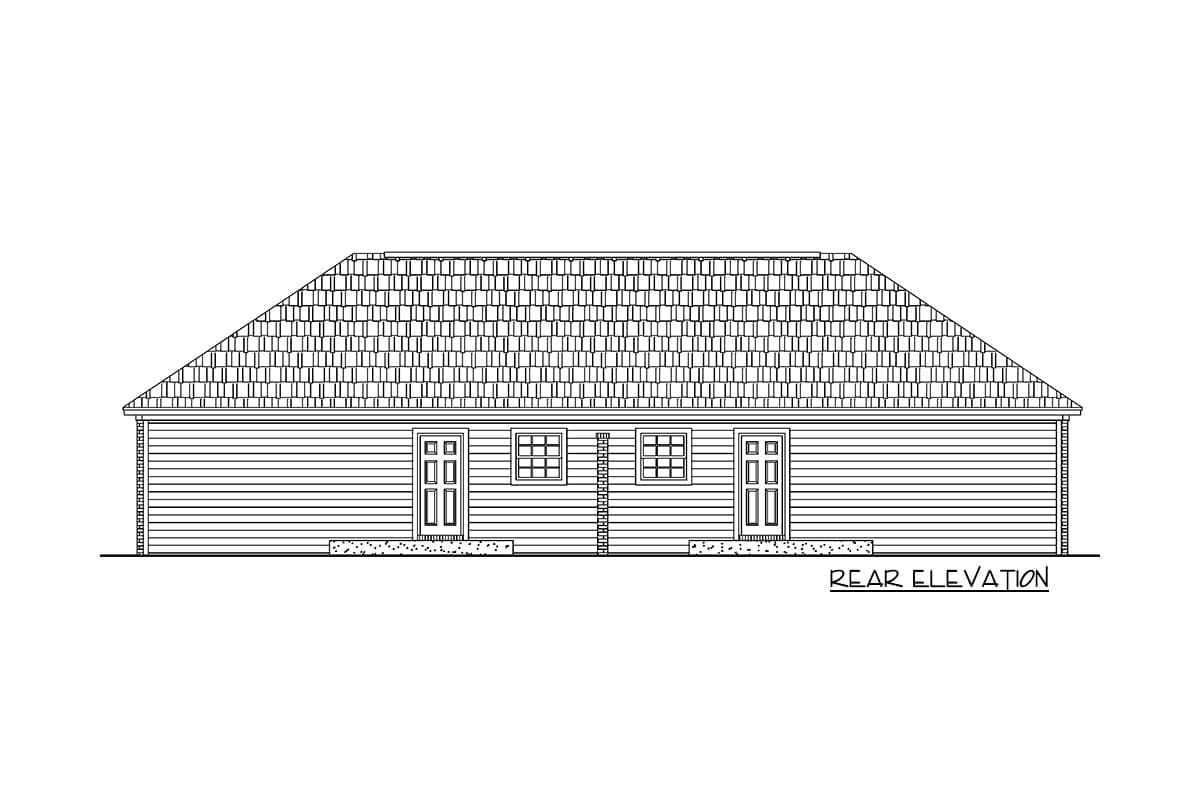

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Living Duplex with Flipped 825 Square Foot 2 Bed and 2 Bath Units

  • 1,650

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 33' 6"

    Depth

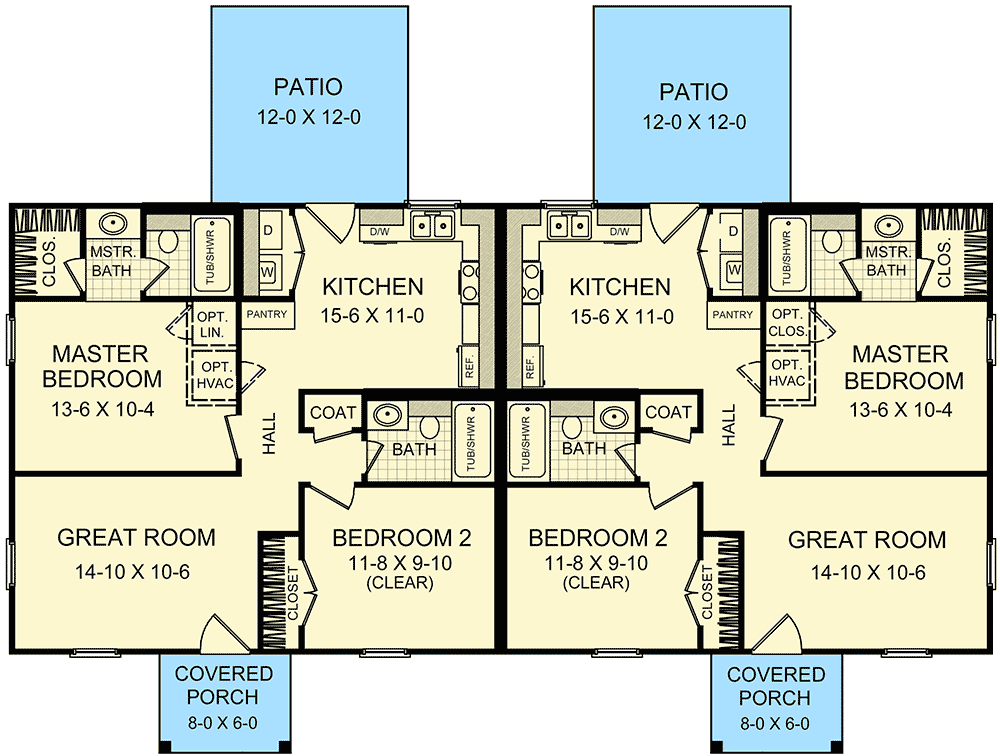

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,650 sq. ft.
  • 1st Floor: 1,650 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 33' 6"
  • Max ridge height: 18' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
