Plan 52346WM
Shingle-Style Cottage with 2-Beds and a Vaulted Ceiling - 1049 Sq Ft
Heated S.F.
1,049
Beds
2
Baths
2
Stories
1
What's Included
Plan Details

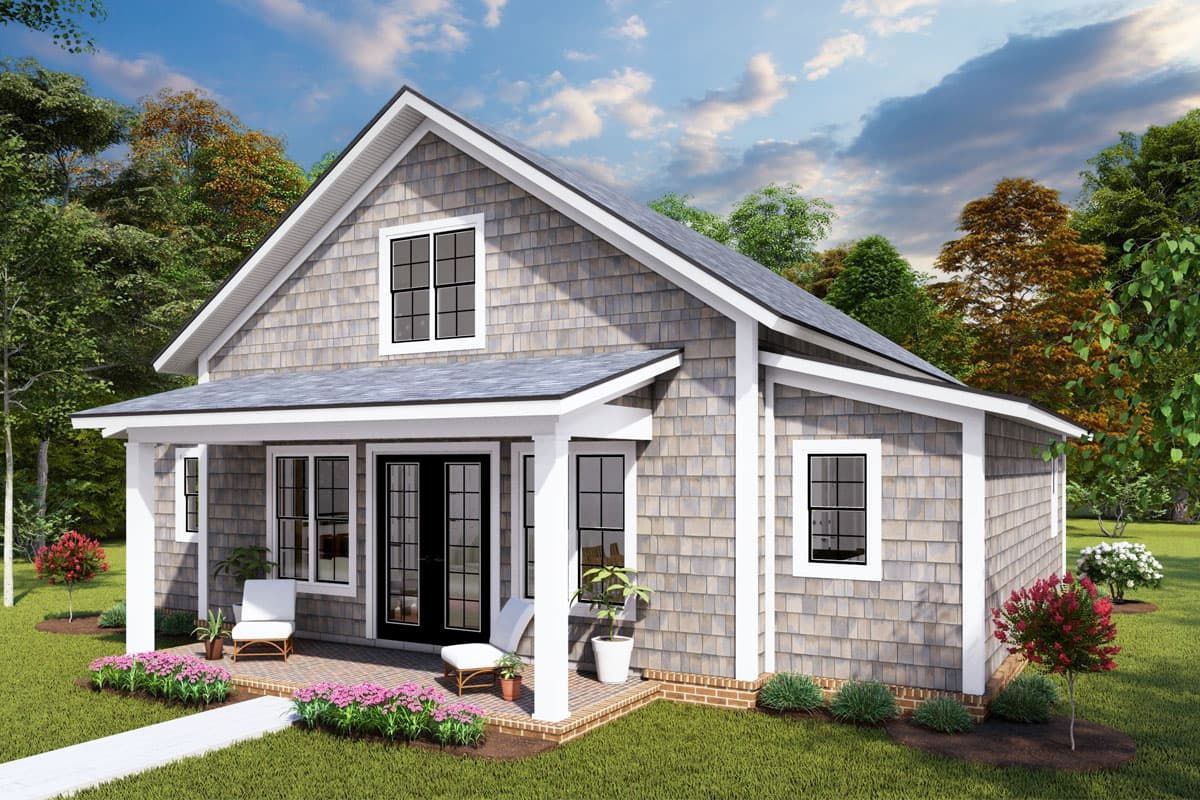

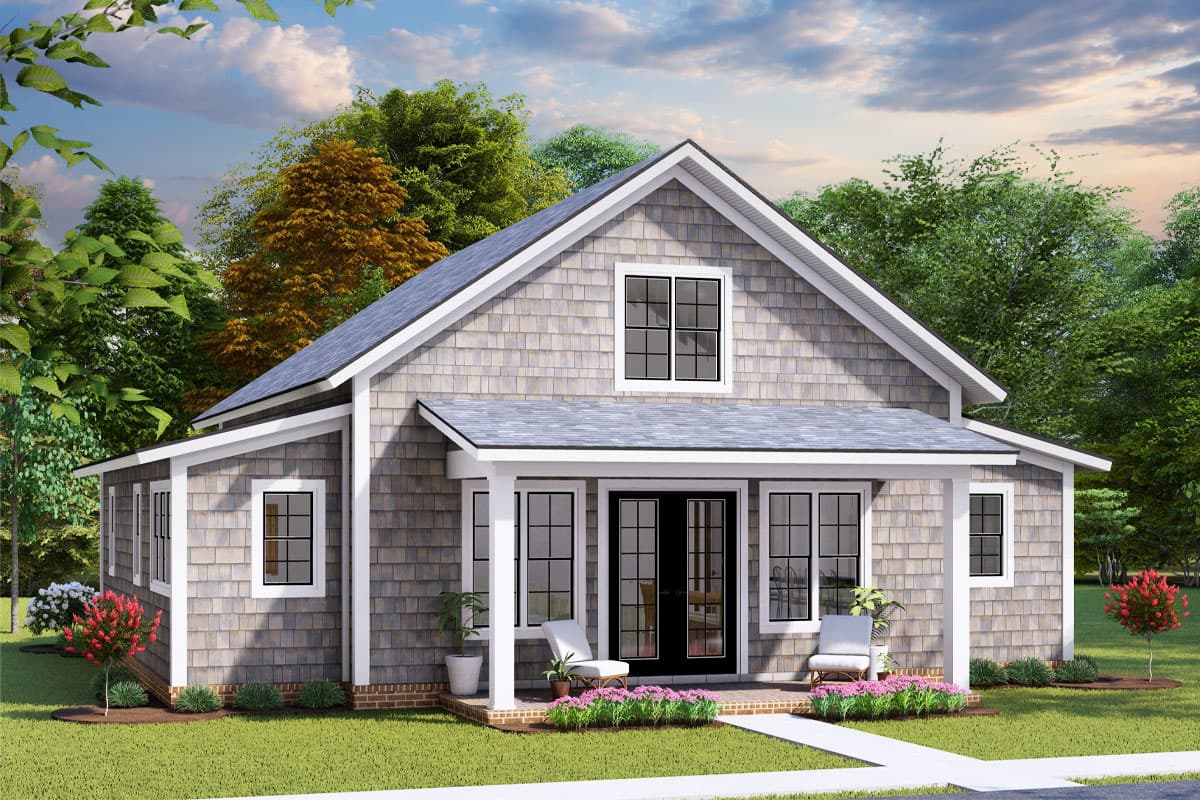

  • This shingle-style cottage house plan gives you 2 beds, 2 baths and 1,049 square feet of heated living space and has an attractive-and-functional 6'-deep (102 square foot) front porch.

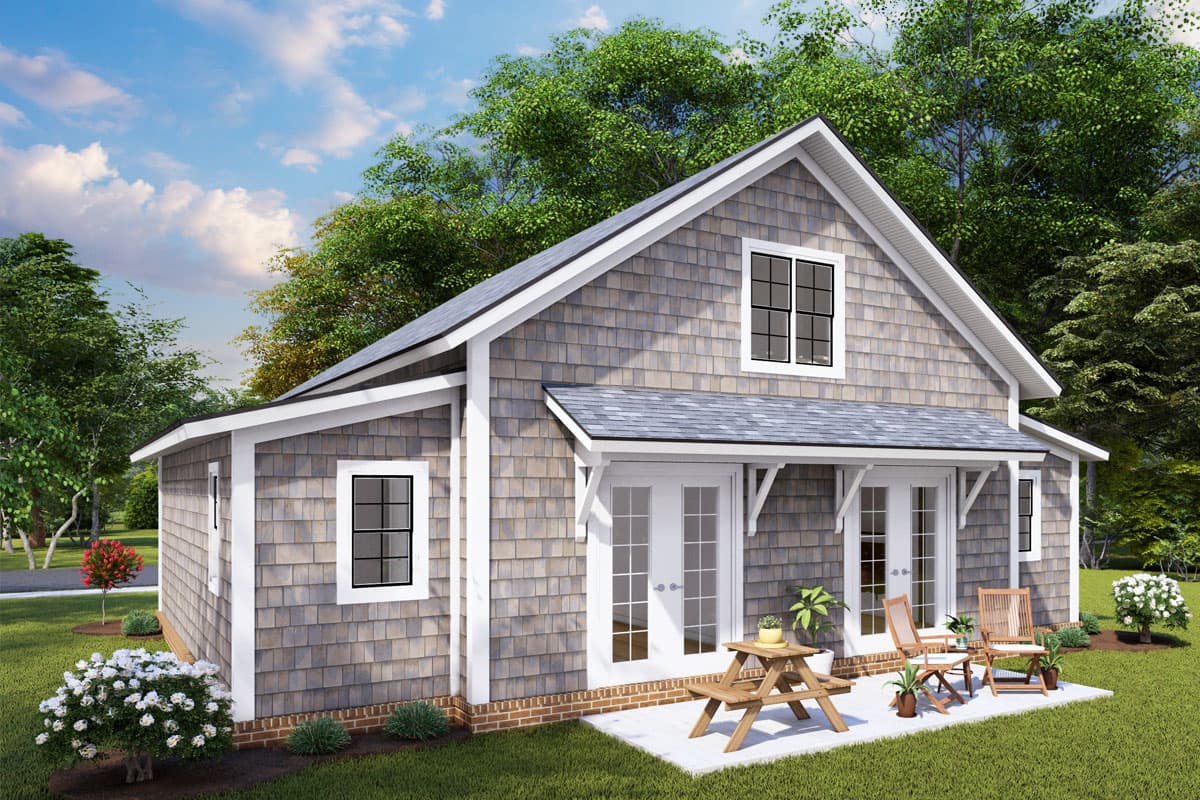

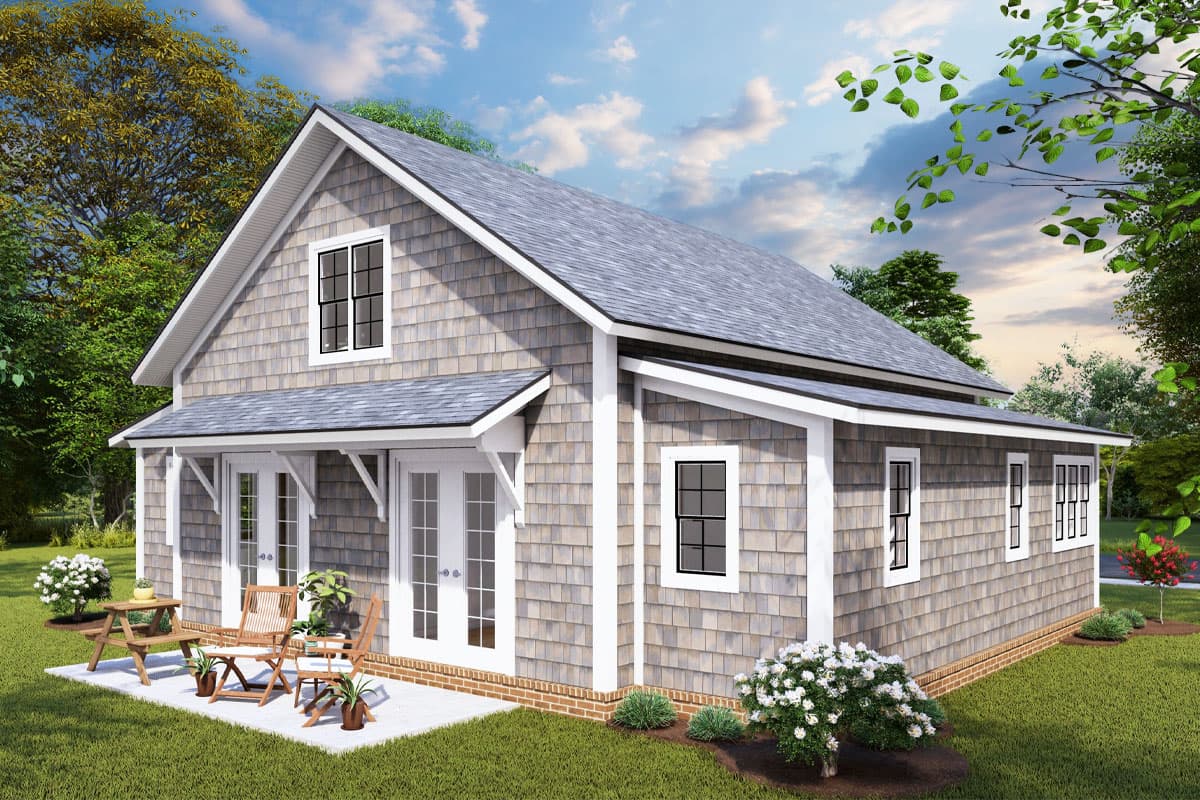

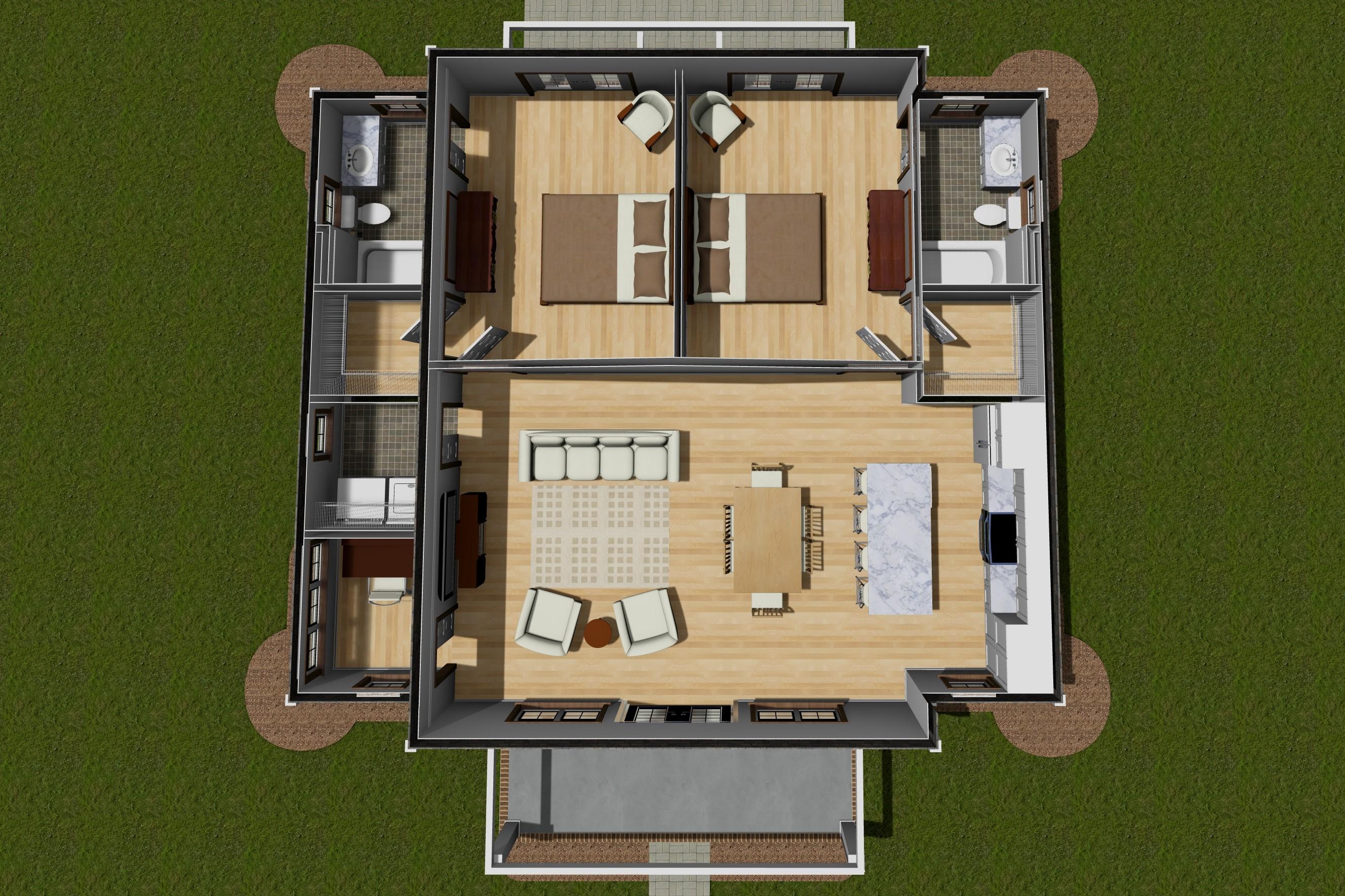

  • The bedrooms are side-by-side in back and both have their own walk-in closets, bathrooms and French door access to the back yard.
  • In front, the ceiling vaults from 11' to a 15' peak. The island kitchen with pantry is on the right and a pocket home office and laundry is on the left, each with pocket doors.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Shingle-Style Cottage with 2-Beds and a Vaulted Ceiling - 1049 Sq Ft

  • 1,049

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

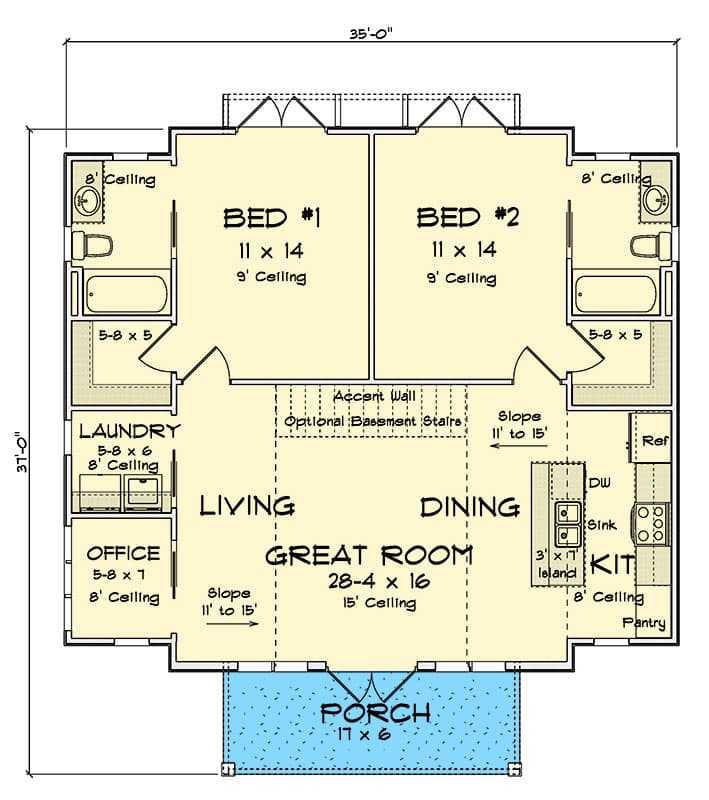

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,049 sq. ft.
  • 1st Floor: 1,049 sq. ft.

Dimensions

  • Width: 35' 0"
  • Depth: 37' 0"
  • Max ridge height: 19' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Shingle-Style Cottage with 2-Beds and a Vaulted Ceiling - 1049 Sq Ft

  • 1,049

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Shingle-Style Cottage with 2-Beds and a Vaulted Ceiling - 1049 Sq Ft

  • 1,049

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,049 sq. ft.
  • 1st Floor: 1,049 sq. ft.

Dimensions

  • Width: 35' 0"
  • Depth: 37' 0"
  • Max ridge height: 19' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12

    Main Level
