Plan 0856W
Southwest Beauty
Heated S.F.
2,015
Beds
3
Baths
2.5
Stories
1
Cars
3
Plan Details
  • Angled on both sides, this 3 bedroom southwest beauty has a little extra flair than your average adobe style home plan.
  • A walled courtyard in front gives you a private setting to enjoy the outdoors. And you can enjoy the shade there on your covered porch.
  • A split bedroom layout maximizes your privacy. And with access to the patio from the master suite, you'll enjoy the indoors and out with ease.
  • The great room is the central hub of the home and features a fireplace and built-ins.
  • A large pantry in the kitchen is a plus and seating at the end of the counter creates a place for casual eating.
What's Included
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

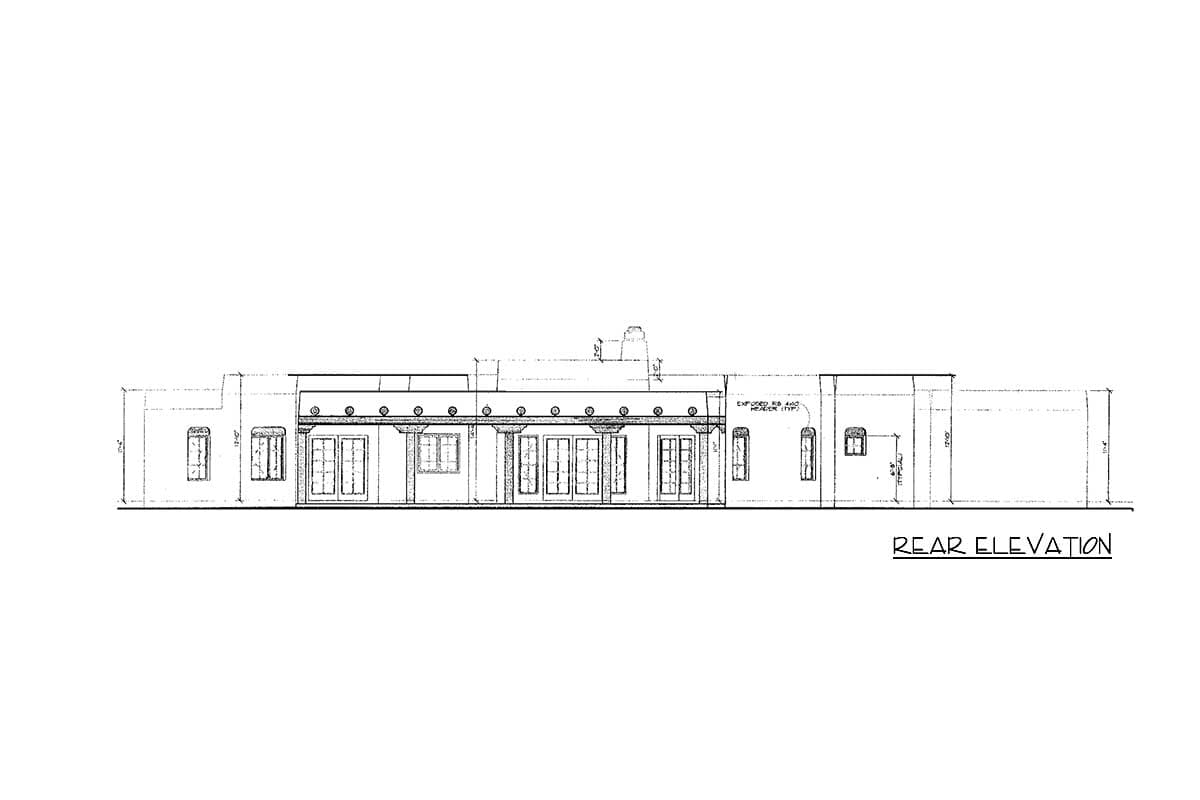

  • Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southwest Beauty

  • 2,015

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

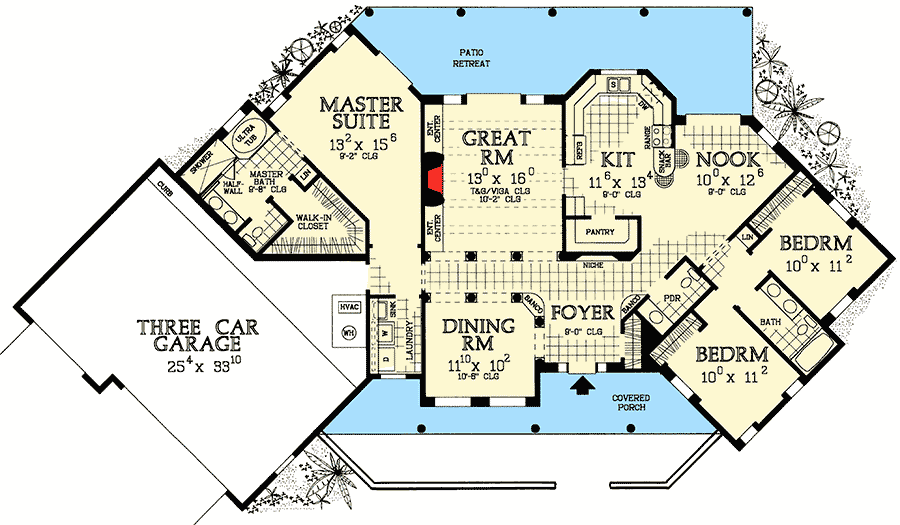

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,015 sq. ft.
  • 1st Floor: 2,015 sq. ft.

Dimensions

  • Width: 96' 5"
  • Depth: 54' 9"
  • Max ridge height: 14' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 857 sq. ft.
  • Count: 3 Cars

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6
