Plan 46053HC
Split Bedroom Escape With Rear Views
Heated S.F.
1,275
Beds
2
Baths
2
Stories
1
Plan Details
  • This Contemporary vacation retreat has major curb appeal with its unusual shape and standing seam metal roof.
  • The main living area is enormous and combines living, dining and cooking in one space.
  • Clerestory windows bring in extra light and the huge covered patio in back offers the perfect place to relax outdoors.
  • Split bedrooms give privacy to each bedroom.
What's Included
This house plan has the following 7 sheets:

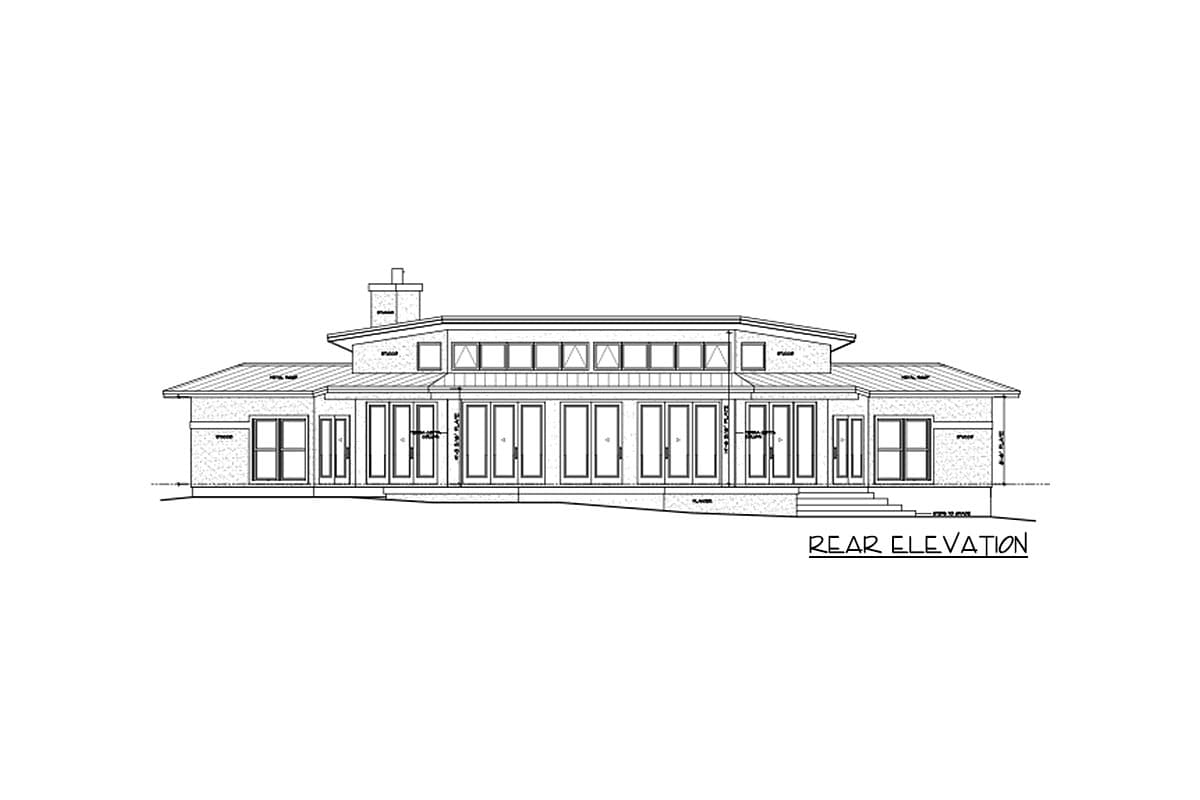

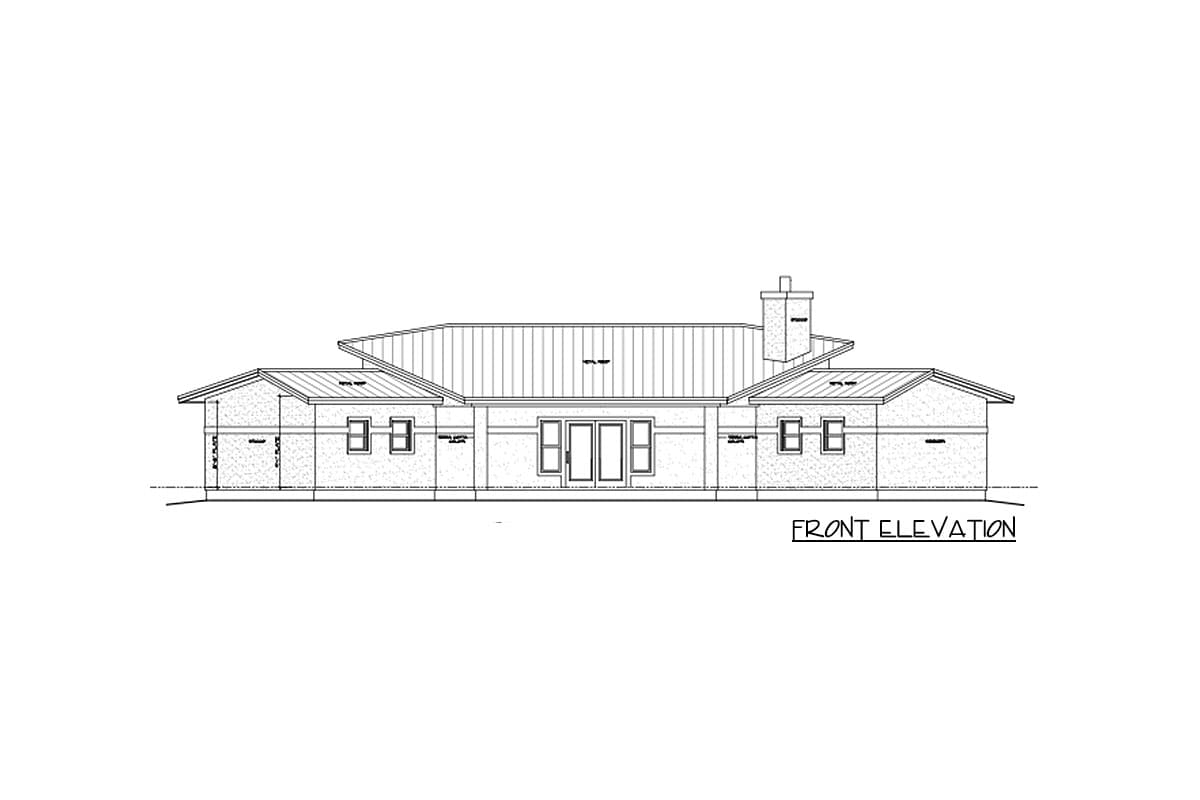

  • Elevations
  • Main floor plan
  • Roof plan
  • Sections
  • Electrical plan
  • Foundation plan
  • General notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom Escape With Rear Views

  • 1,275

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

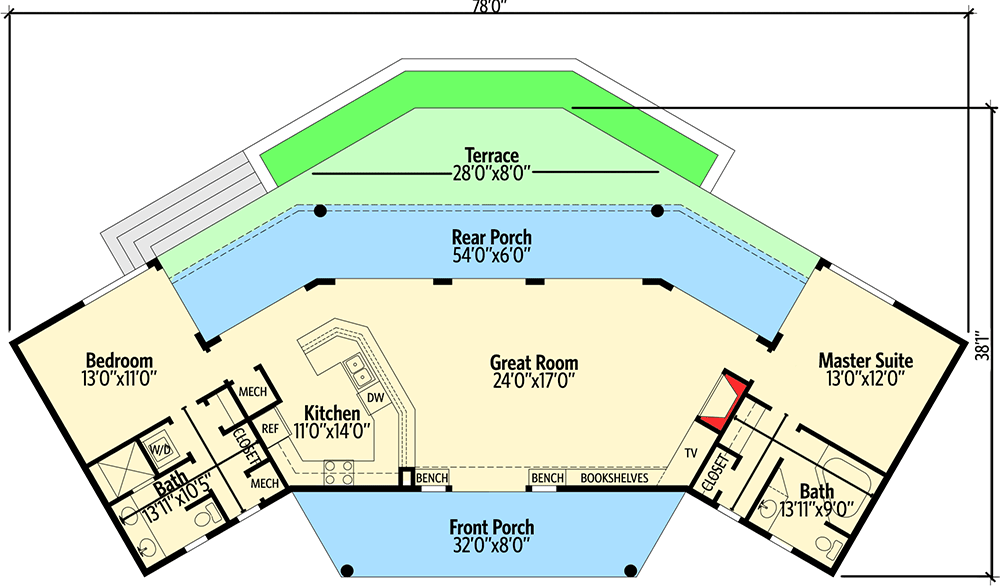

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,275 sq. ft.
  • 1st Floor: 1,275 sq. ft.

Dimensions

  • Width: 78' 0"
  • Depth: 38' 0"
  • Max ridge height: 16' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Stick
