Plan 21858DR
Split Level with Full Bachelor Suite
Heated S.F.
1,981
Beds
4
Baths
2
Stories
1
Plan Details
  • A covered entry greets you to this split level house plan with optional bachelor suite. A closet at the top of the stairs reduces clutter.

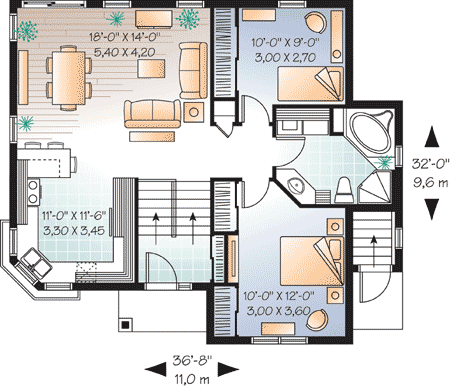

  • Step up to the main living area where you'll find an open floor plan with the kitchen open to the living and dining rooms. Lunch counter seating and corner windows are nice touches.

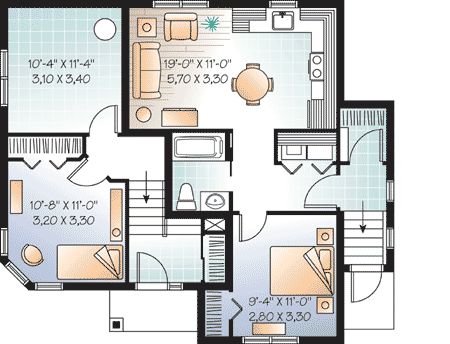

  • On the lower level you'll find a full bachelor/in-law suite complete with full kitchen and living room plus a private entry to outside. The family side features a bedroom and storage.
  • Related Plan: Save money and get an unfinished lower with house plan 21813DR.
What's Included

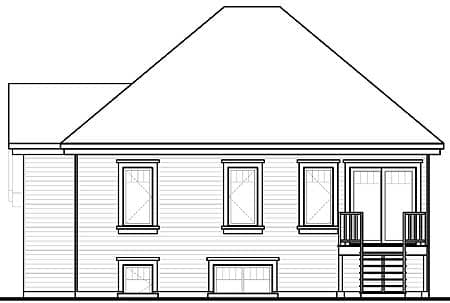

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Level with Full Bachelor Suite

  • 1,981

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,981 sq. ft.
  • Lower Level: 1,004 sq. ft.
  • 1st Floor: 977 sq. ft.

Dimensions

  • Width: 36' 8"
  • Depth: 32' 0"
  • Max ridge height: 25' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
