Plan 54235HU

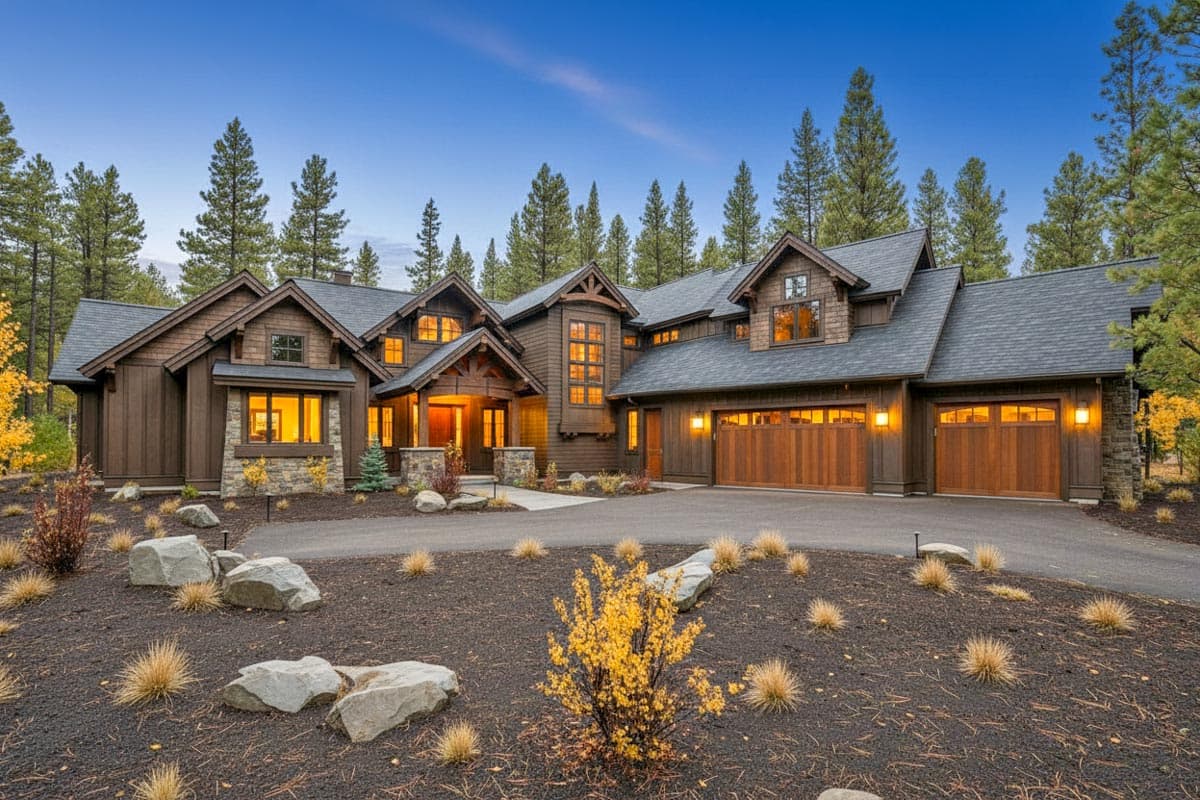

Stunning Mountain Craftsman Retreat with Two Master Suites and Bunk Room
Heated S.F.
4,412
Beds
5
Baths
5.5
Stories
2
Cars
3
Plan Details

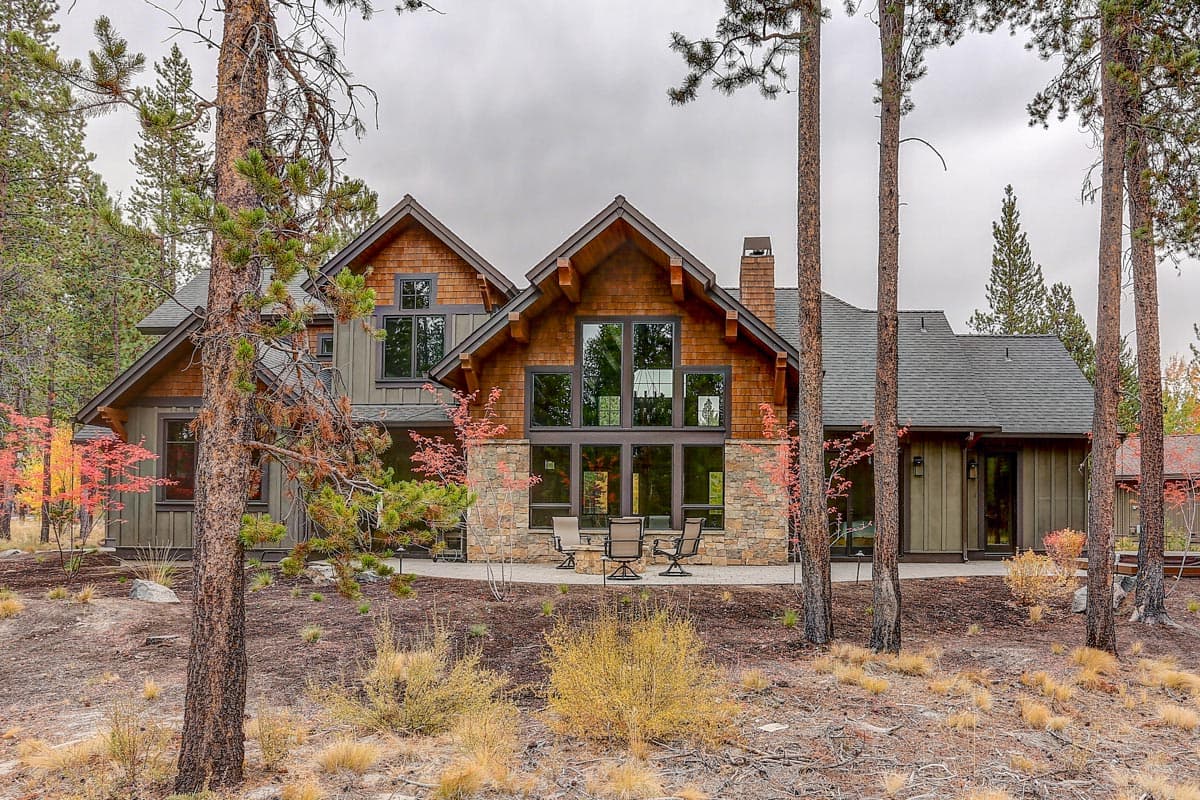

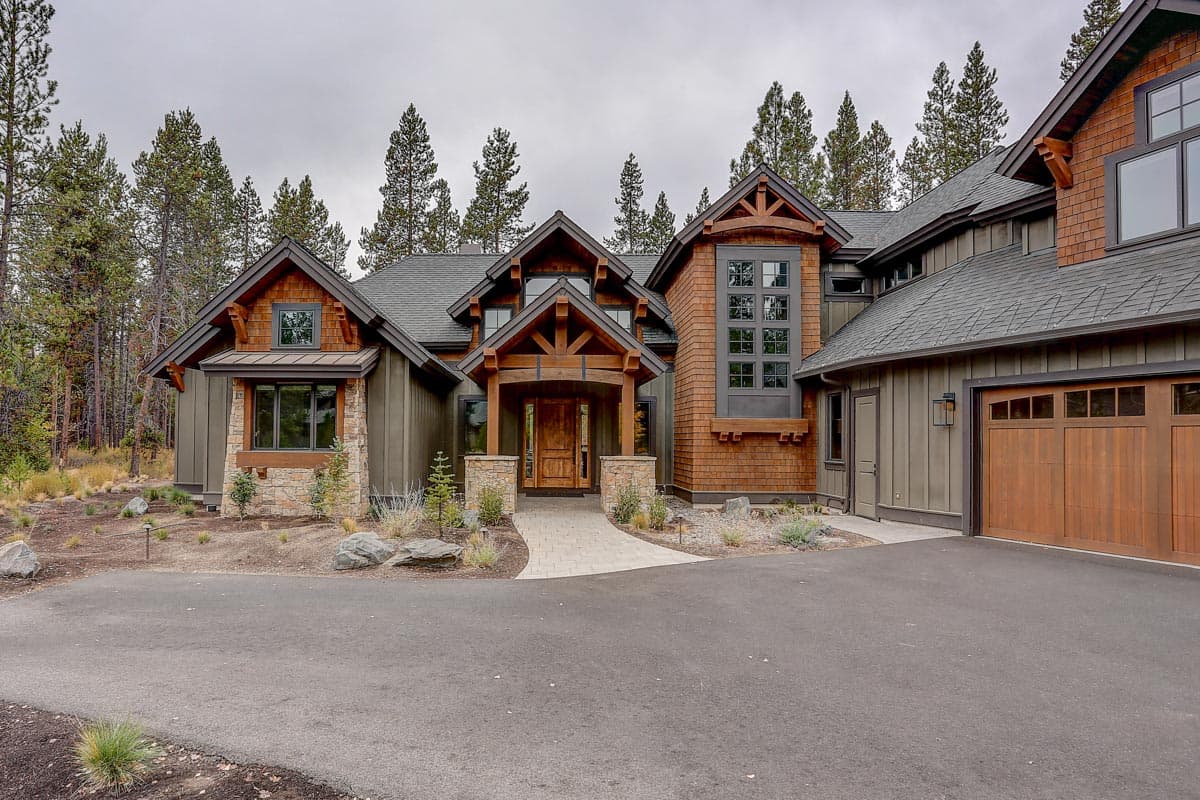

  • This stunning 5-bedroom Craftsman home plan features a dramatic vaulted front entry and a convenient 3-car garage.

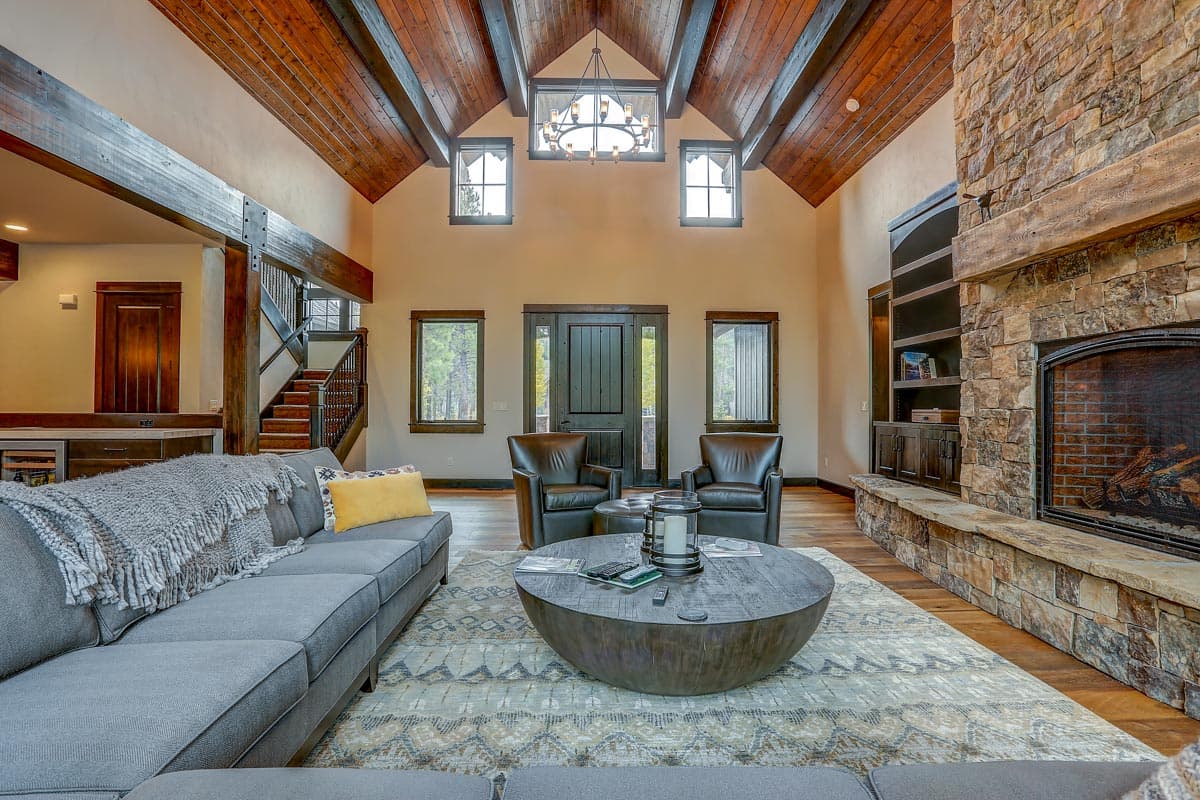

  • A vaulted great room with an inviting fireplace welcomes you in. A spacious dining area with a buffet bar makes entertaining a delight. The thoughtfully designed kitchen boasts a large island with seating and a convenient walk-in pantry.
  • Enjoy the outdoors on an expansive terrace.
  • Master suites on opposite sides of the home offer access to outdoor living space, walk-in closets, and 5-piece master bathrooms. A third main-floor bedroom includes a full bath.
  • Guests will love the privacy of an upper-level guest suite with a full bath. A versatile upstairs bonus room and adjacent bunk room are filled with exciting possibilities.
What's Included
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

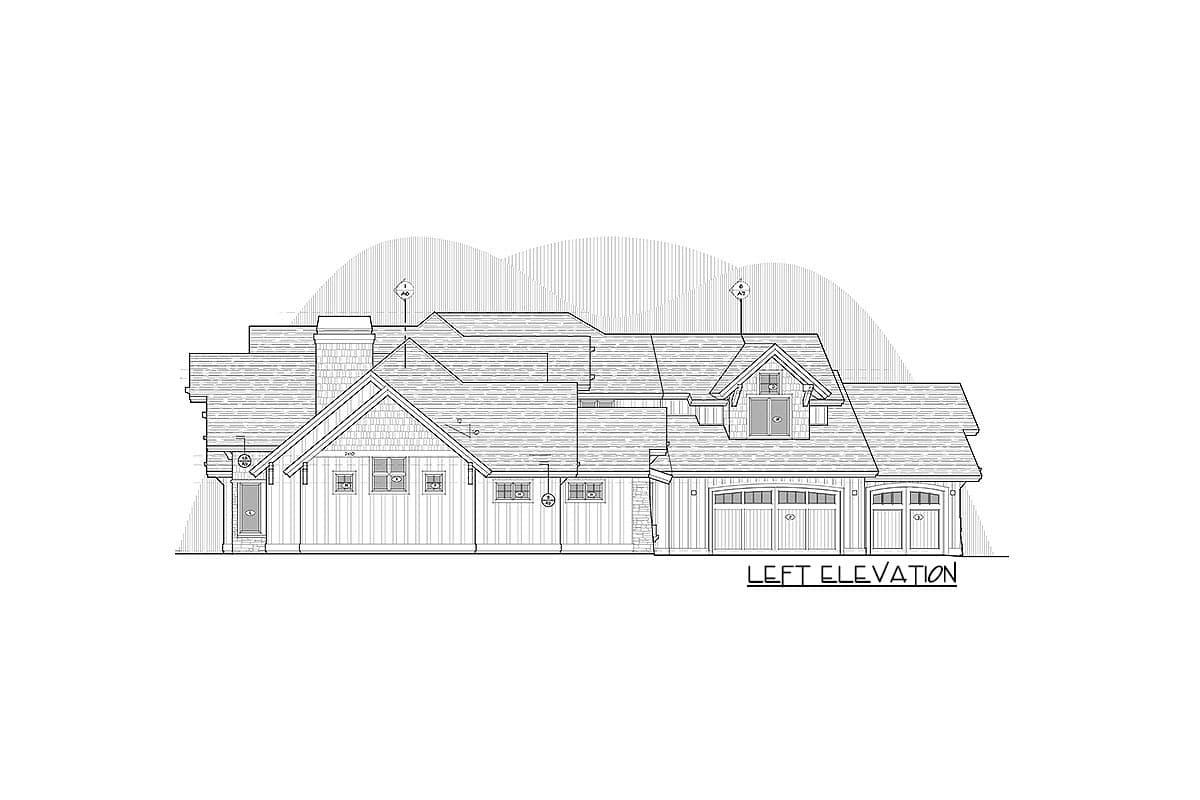

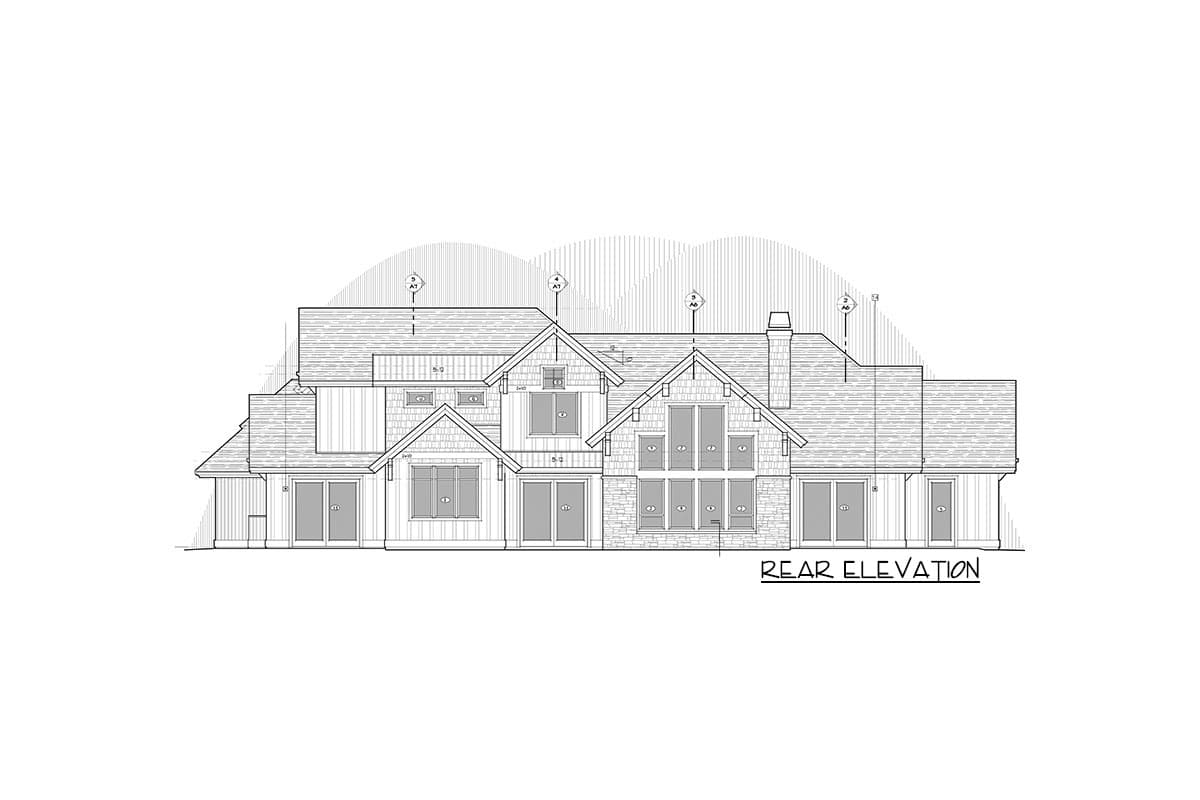

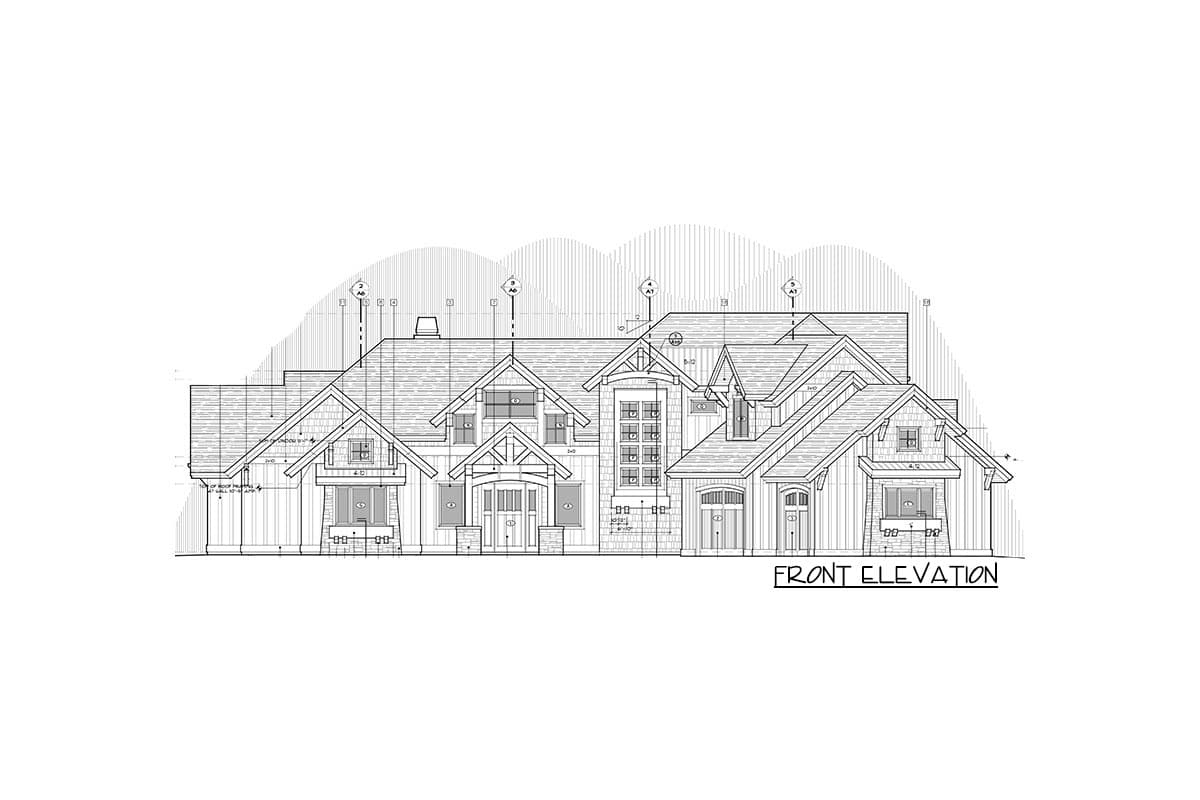

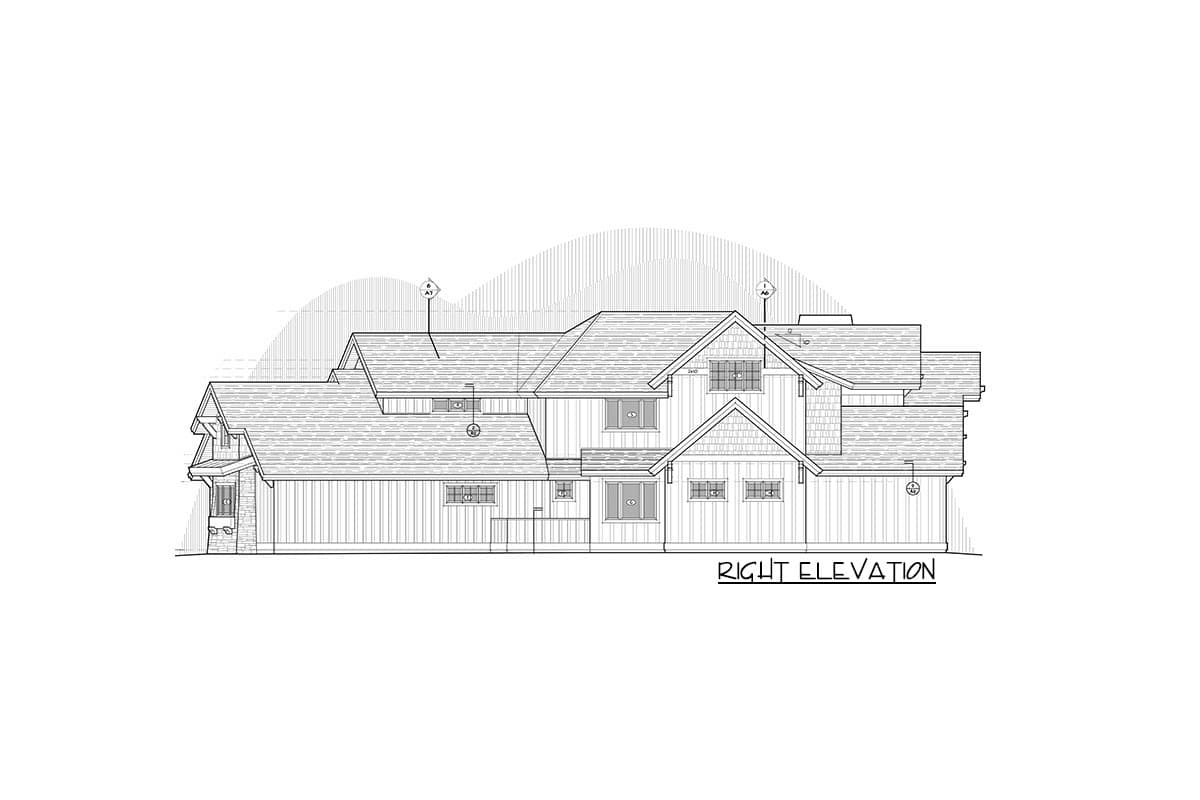

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stunning Mountain Craftsman Retreat with Two Master Suites and Bunk Room

  • 4,412

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

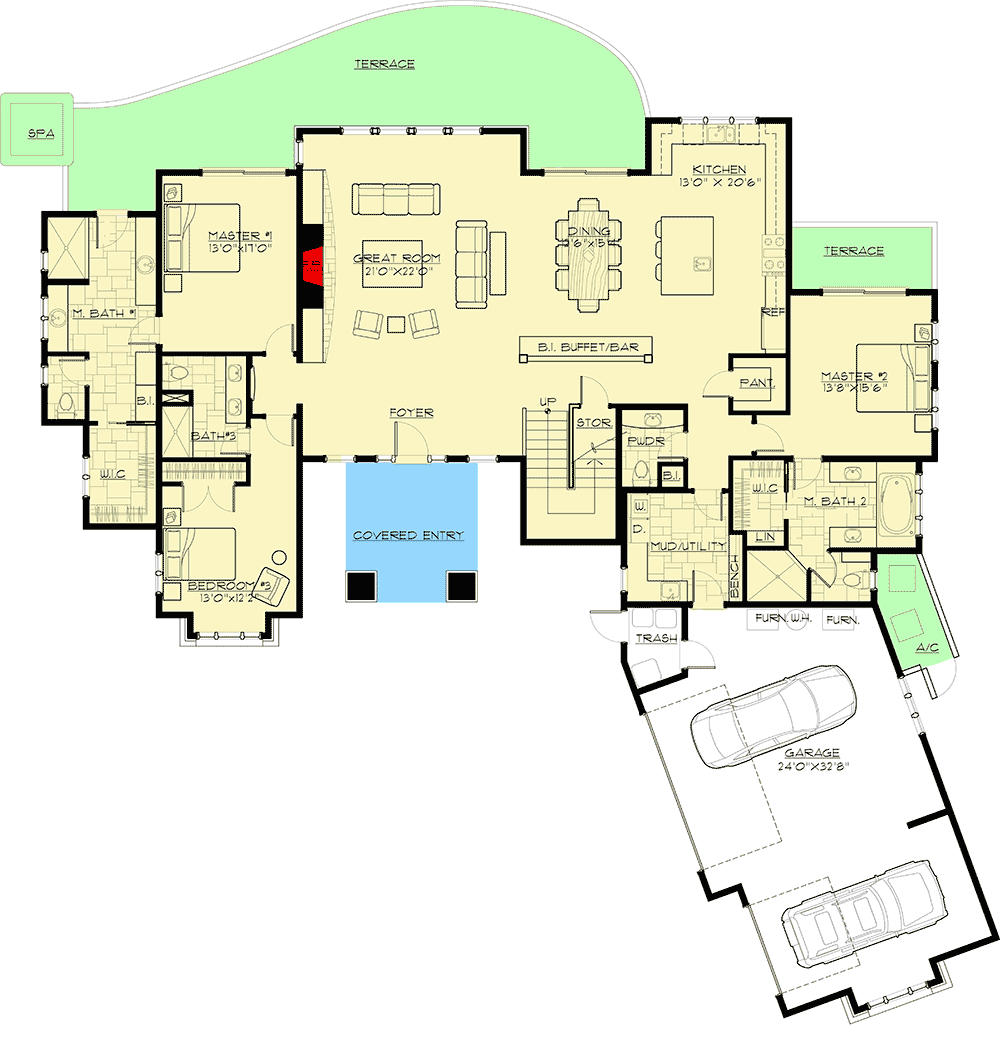

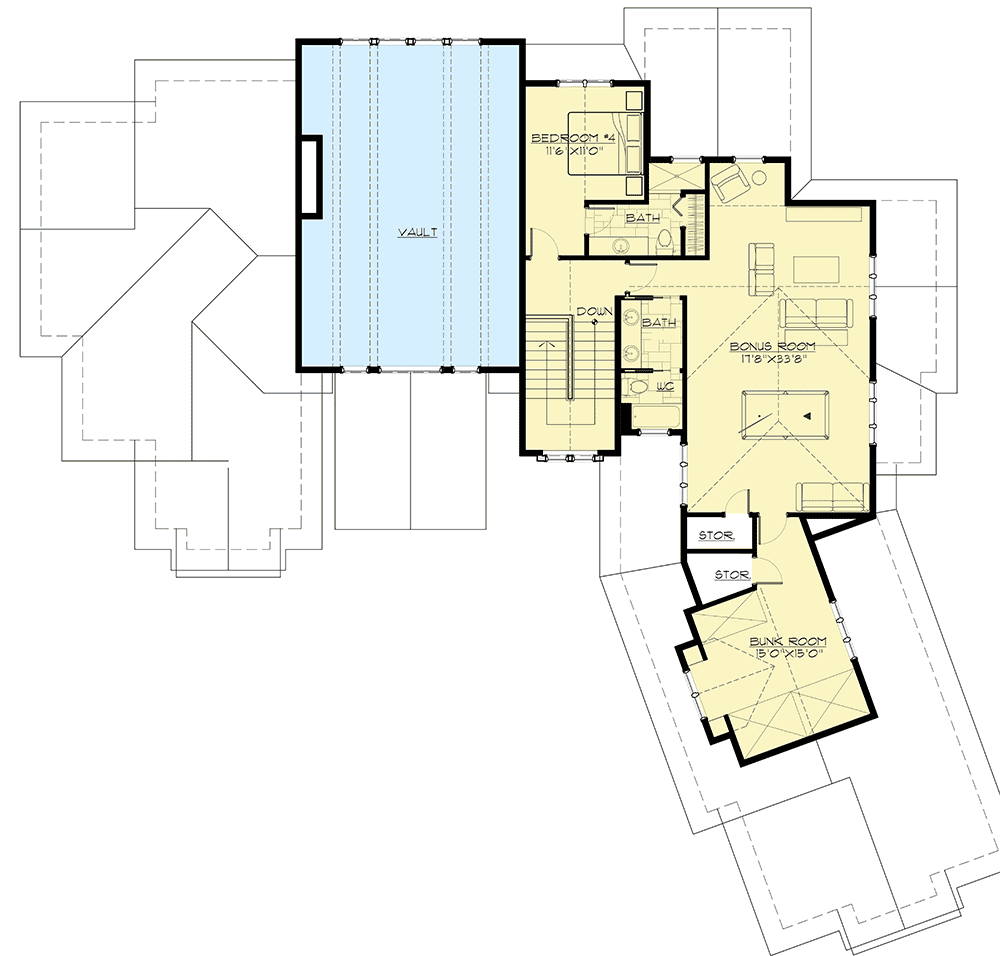

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,412 sq. ft.
  • 1st Floor: 3,076 sq. ft.
  • 2nd Floor: 1,336 sq. ft.

Dimensions

  • Width: 92' 0"
  • Depth: 87' 0"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 934 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick And Truss
