Plan 51125MM
Traditional House Plan with Options - 1640 Sq Ft
Heated S.F.
1,640
Beds
3
Baths
2
Stories
1
Cars
2-3
Plan Details
  • This well-designed house plan provides an abundance of amenities for a minimal square footage.
  • The master suite features a wonderful bathroom with large walk-in closet. The great room has gas logs as well as built-in cabinets and 10' ceilings that make it a great place to relax and spend time with family and friends.
  • The rear covered porch provides a great space for those summer cookouts as well as being within close proximity to the well-equipped kitchen.
  • The two car carport provides easy access to the rear porch and also includes a large storage space.
  • The stick-framed roof has a 8:12 primary pitch and a 4:12 secondary pitch.
  • Related Plans: Get a basement with house plan 51178MM. Get a smaller carport with house plan 51187MM. Get a 2-car garage with house plan 51160MM and a bonus room over the garage with house plan 51048MM. Eliminate the garage entirely with house plan 51164MM.
What's Included
This house plan has 6 pages as follows:
  1. Cover rendering
  2. Foundation plan and notes
  3. First floor plan and electrical layout
  4. Front and left elevations; typical exterior wall section; door & window framing details

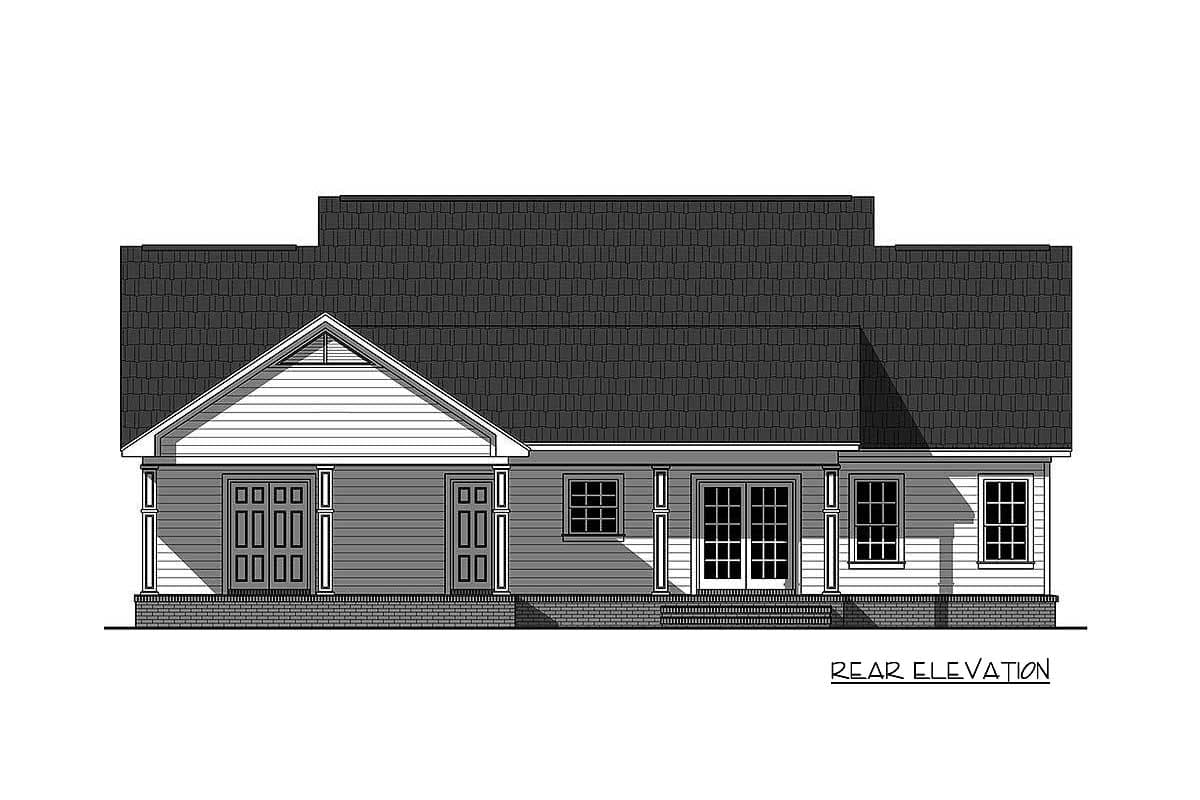

  5. Rear and right elevations; roof framing  and roof drainage plans
  6. Cross section and cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with Options - 1640 Sq Ft

  • 1,640

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2 - 3

    Car garage

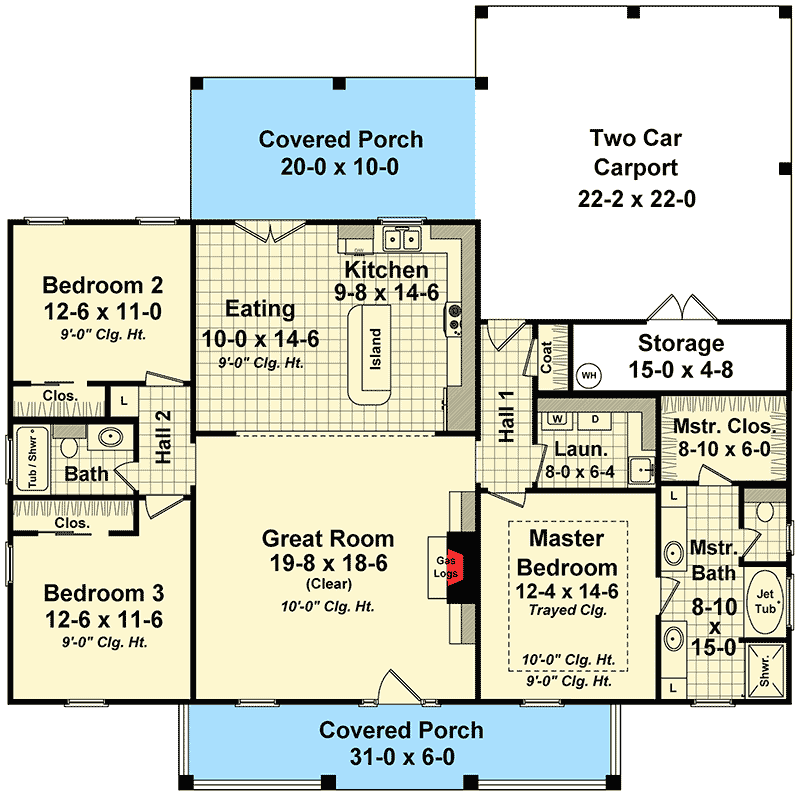

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,640 sq. ft.
  • 1st Floor: 1,640 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 55' 0"
  • Max ridge height: 23' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Carport
  • Count: 2 or 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
