Plan 970099VC

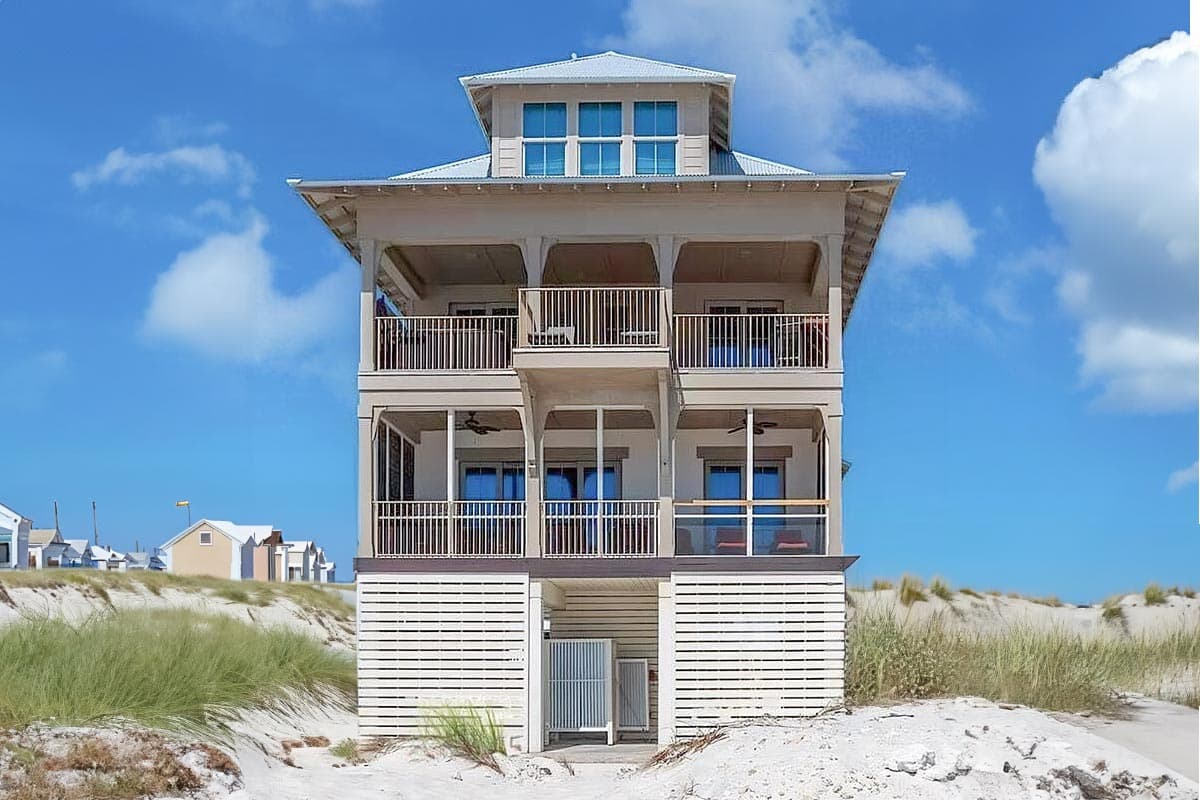

3-Story Coastal Home Plan with Third Floor Bunk Level
Heated S.F.
2,447
Beds
5
Baths
4.5
Stories
3
Cars
2
Plan Details
  • This beach house plan is perfect for vacations, family gatherings, or full-time coastal living.
  • The ground floor has parking for two cars, plus ample storage. An outdoor shower allows sand to be rinsed before entering the home.
  • The first floor features an expansive open concept main living area. Featuring an eat-in kitchen, wet bar, main floor principal suite, and a covered outdoor patio, this is the heart of the home.
  • The second floor features another principal suite, along with two additional guest suites, and laundry. Another covered porch provides privacy and a birds-eye view.
  • The third floor is a bunkroom designed to accommodate multiple guests and has another bathroom.
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

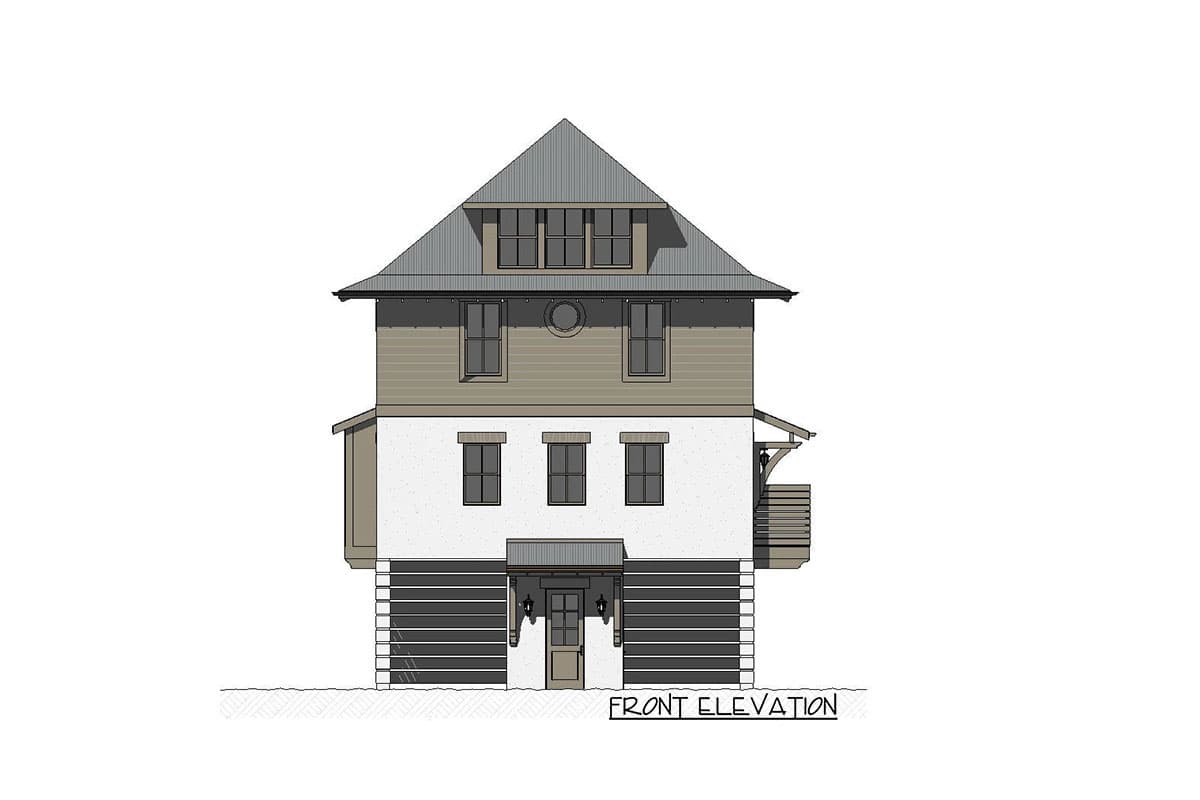

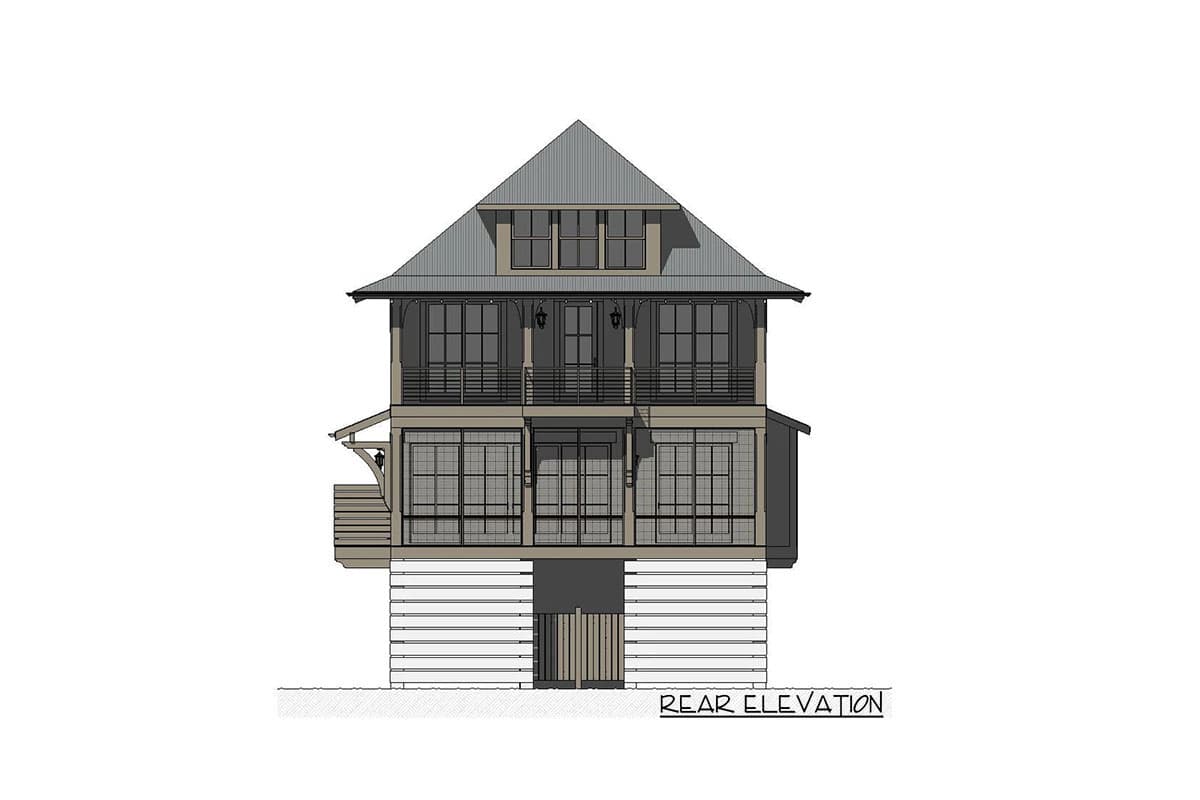

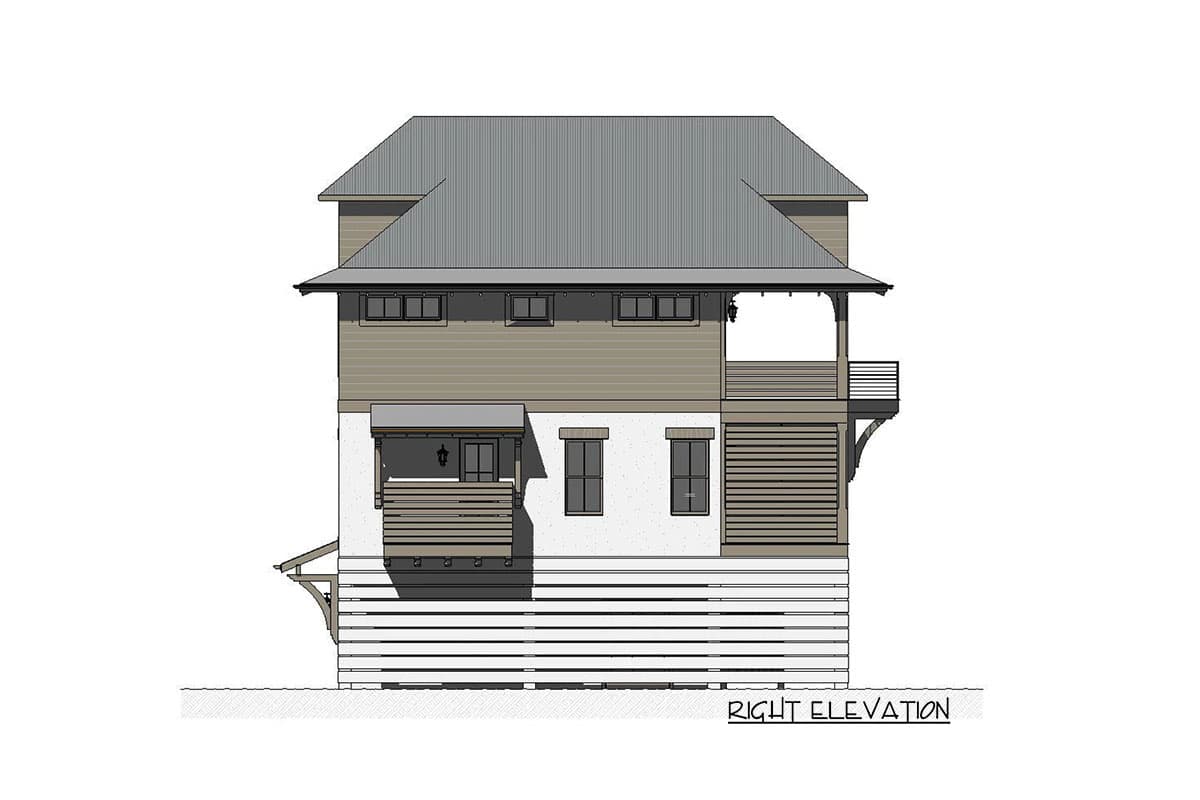

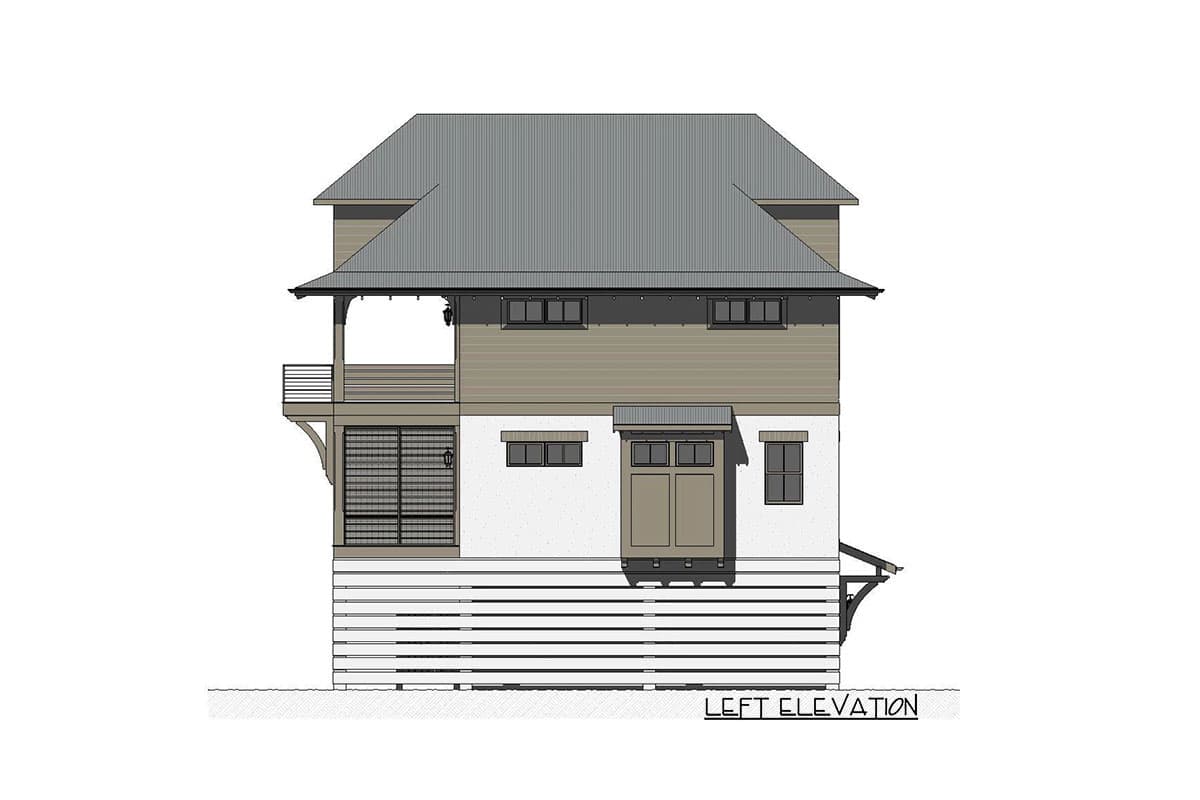

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Story Coastal Home Plan with Third Floor Bunk Level

  • 2,447

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Floor Plan

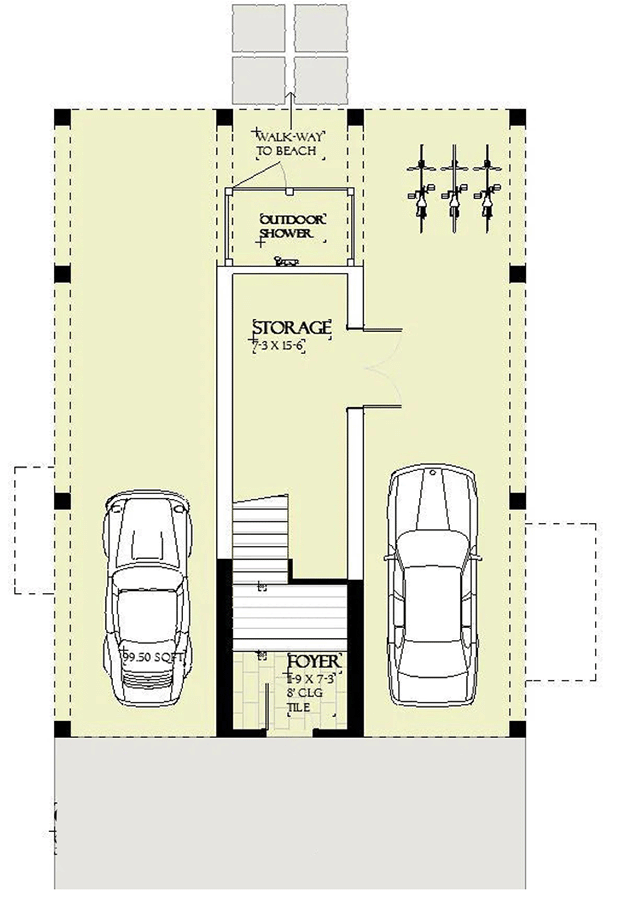

  • Ground Level

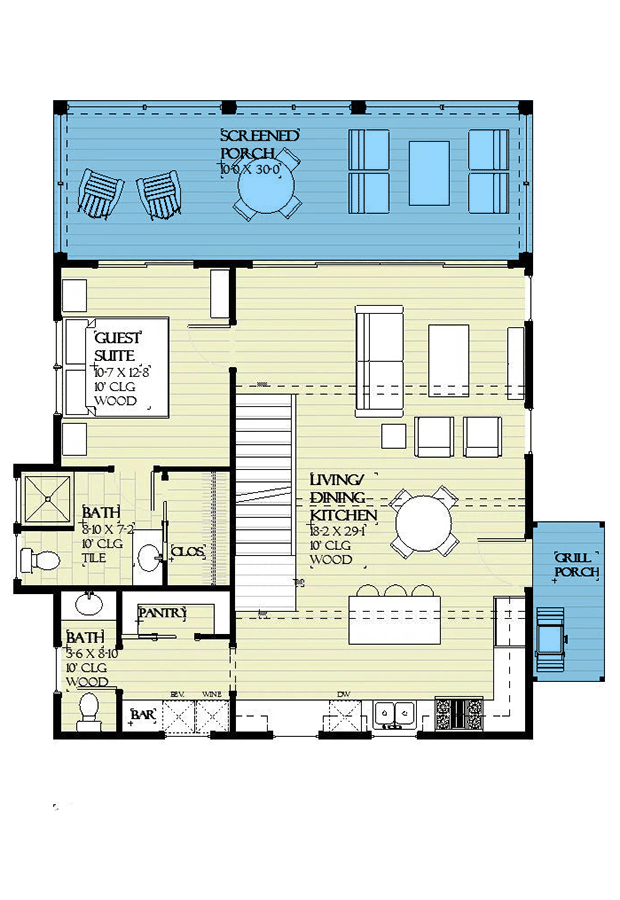

  • First Floor

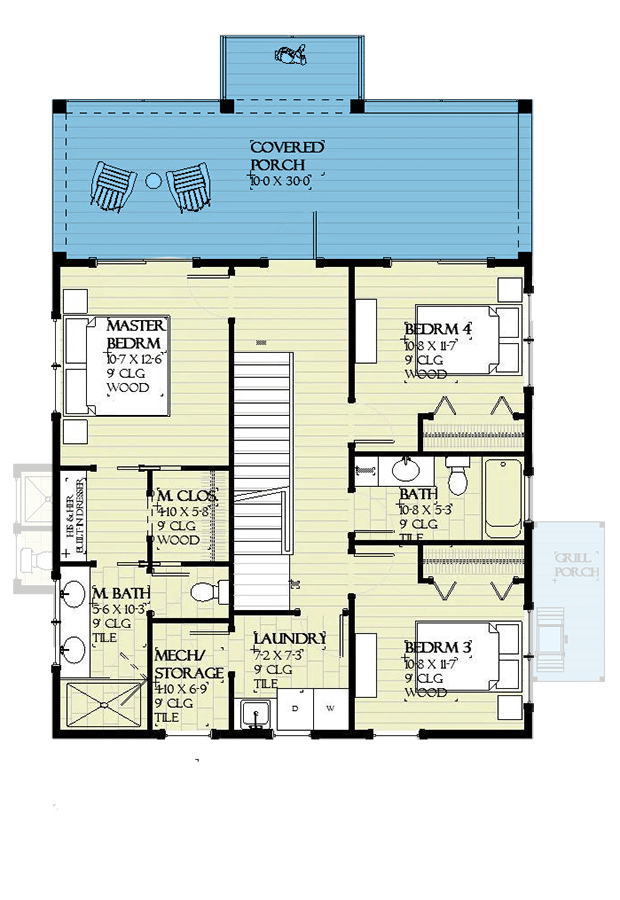

  • Second Floor

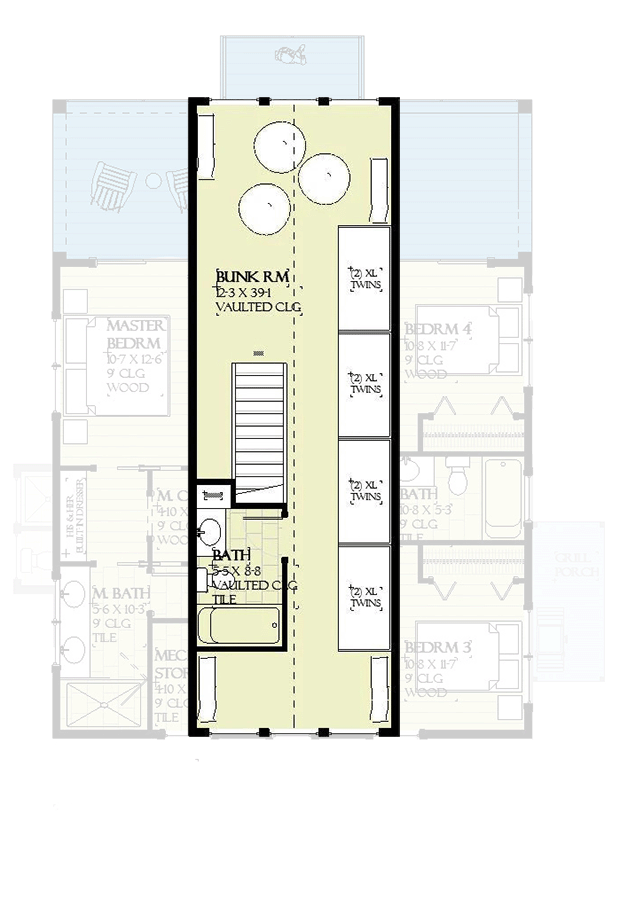

  • Third Floor

Plan Details

Square Footage Breakdown

  • Total: 2,447 sq. ft.
  • 1st Floor: 920 sq. ft.
  • 2nd Floor: 900 sq. ft.
  • 3rd Floor: 527 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 40' 0"
  • Max ridge height: 45' 7"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Drive Under
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
